SounDigital 800.4 XP - 4Ω Amplifier

SounDigital 800.4 XP - 4Ω Amplifier

Regular price $336.00
Regular price $499.99 Sale price $336.00
Sale Sold out
Shipping calculated at checkout.
Shipping calculated at checkout.
Quantity

Additional Payment Info

unnamed
ShopPay
View full details
  • Description

  • Reviews

SounDigital 800.4 XP 4-Channel Amplifier, 4Ω, for Motorcycle Audio

The 800.4 XP is a 4Ω 4-channel amplifier measuring 5.72 x 4.44 x 2.00 in, making 4 x 132 watts RMS at 4Ω, 4 x 200 watts at 2Ω or 2 x 400 watts bridged at 4Ω. It is meant for fairing, lid and rear speakers on a motorcycle, with 45Hz-850Hz 12dB/octave filters.

SounDigital XP 4-Channel Amplifier

132 watts x 4 in a 5.72 inch chassis

Four channels with bridging and adjustable high-pass and low-pass filters, in a small chassis.

  • 4 x 200 watts RMS at 2Ω
  • Bridges to 2 x 400 watts RMS at 4Ω
  • HPF / LPF 45Hz–850Hz, 12dB/octave

Key Product Details

ProductSounDigital 800.4 XP 4-Channel Amplifier, 4Ω
Amplifier TypeCompact 4-channel amplifier
Best ForFairing, lid and rear speakers, and bridged speaker pairs in motorcycle audio systems
Peak Rating4 x 200 watts RMS at 2Ω
Dimensions (W x L x H)5.72" x 4.44" x 2.00"

Always verify speaker impedance, wiring layout, fuse size, amplifier placement, gain structure, charging system capacity, and final system design before ordering or installing this amplifier.

Efficient Four-Channel Power in a Small Chassis

The 800.4 XP gives upgraded coaxials and component speakers the power they need. SounDigital builds the XP series in a compact design made for tight installation areas.

Run it at 4Ω or 2Ω per channel, or bridge a pair of channels at 4Ω for midbass duty.

Power and Performance Specifications

RMS Power4 x 132 watts @ 4Ω / 4 x 200 watts @ 2Ω
Bridged Power2 x 400 watts @ 4Ω
Frequency Response5Hz–34kHz, -3dB
Signal-to-Noise Ratio91dB
Damping Factor200 (@100Hz nominal impedance)
CrossoversHigh-pass and low-pass, 45Hz–850Hz, 12dB/octave
Input Sensitivity0.2V–2V (RCA) / 1.5V–15V (high level)
Operating Voltage9V–16V
Current Draw35A music / 70A max
Efficiency80%
Recommended Fuse40A for music use
Recommended Minimum Battery60Ah
Recommended Cable SizePower 7 AWG / speaker 15 AWG / remote 15 AWG
Dimensions (W x L x H)5.72" x 4.44" x 2.00"
Weight2.04 lb

Recommended System Planning

Match the 800.4 XP to speakers that can handle its power at your final impedance. Use correctly sized OFC power and ground wire, a battery-side fuse, a clean signal input, and a real tuning plan for the crossovers and gains.

If you are unsure whether your charging system can support this amplifier on your bike, contact Garage Bagger Stereo before ordering.

What to Pair With the 800.4 XP

These parts help you wire, load and tune the amplifier correctly.

Amplifier Installation Parts

Power kits, fuses, wiring and mounting parts for motorcycle amplifier installs.

Motorcycle Coaxial Speakers

Fairing and lid speakers to match a 4-channel amplifier.

Motorcycle DSP

Tune the system with a digital sound processor built for Harley-Davidson audio.

SounDigital XP Amplifiers

Add an XP monoblock for the bass.

Related Amplifier & Motorcycle Audio Paths

Build the system around the correct amplifier, speakers, DSP, wiring, and installation parts. These related collections help match the 800.4 XP with the right bagger audio upgrade path.

Best Use for the 800.4 XP

Choose it for compact builds that need clean four-channel power for fairing speakers, saddlebag lids, rear speakers, or bridged pairs.

Designed Around Real Motorcycle Audio

Motorcycle audio is different from car audio. Wind noise, road speed, speaker placement, electrical load, limited mounting space, and heat management all matter. This amplifier belongs in systems where the speakers, wiring, fusing, and tuning plan are matched correctly.

SounDigital 800.4 XP FAQ

How much power does the 800.4 XP make?

It is rated 4 x 132 watts RMS at 4Ω and 4 x 200 watts at 2Ω, or 2 x 400 watts bridged at 4Ω.

Does it have built-in crossovers?

Yes. It has high-pass and low-pass filters adjustable from 45Hz to 850Hz at 12dB per octave.

What fuse and wire does it need?

SounDigital lists a 40A recommended fuse for music use, 7 AWG power cable and 15 AWG speaker cable. Current draw is 35A for music.

How big is it?

It measures 5.72 inches wide by 4.44 inches long by 2.00 inches high and weighs 2.04 lb.

What else do I need to run the 800.4 XP?

Plan for correct fusing, a suitable battery and charging system, speakers matched to the impedance you wire, clean signal input, and a tuning plan such as a DSP. Garage Bagger Stereo can help you match the parts to your bike.

Does Garage Bagger Stereo install the 800.4 XP?

Garage Bagger Stereo offers motorcycle audio installation at our Taylors, SC shop and can help you plan a DIY install. Start a Build Consultation or call 864-334-6131 to check scheduling.

Need Help Choosing?

Tell us your bike, model year and what you want to add, and we will confirm fitment and the right parts before you order.

Similar Products

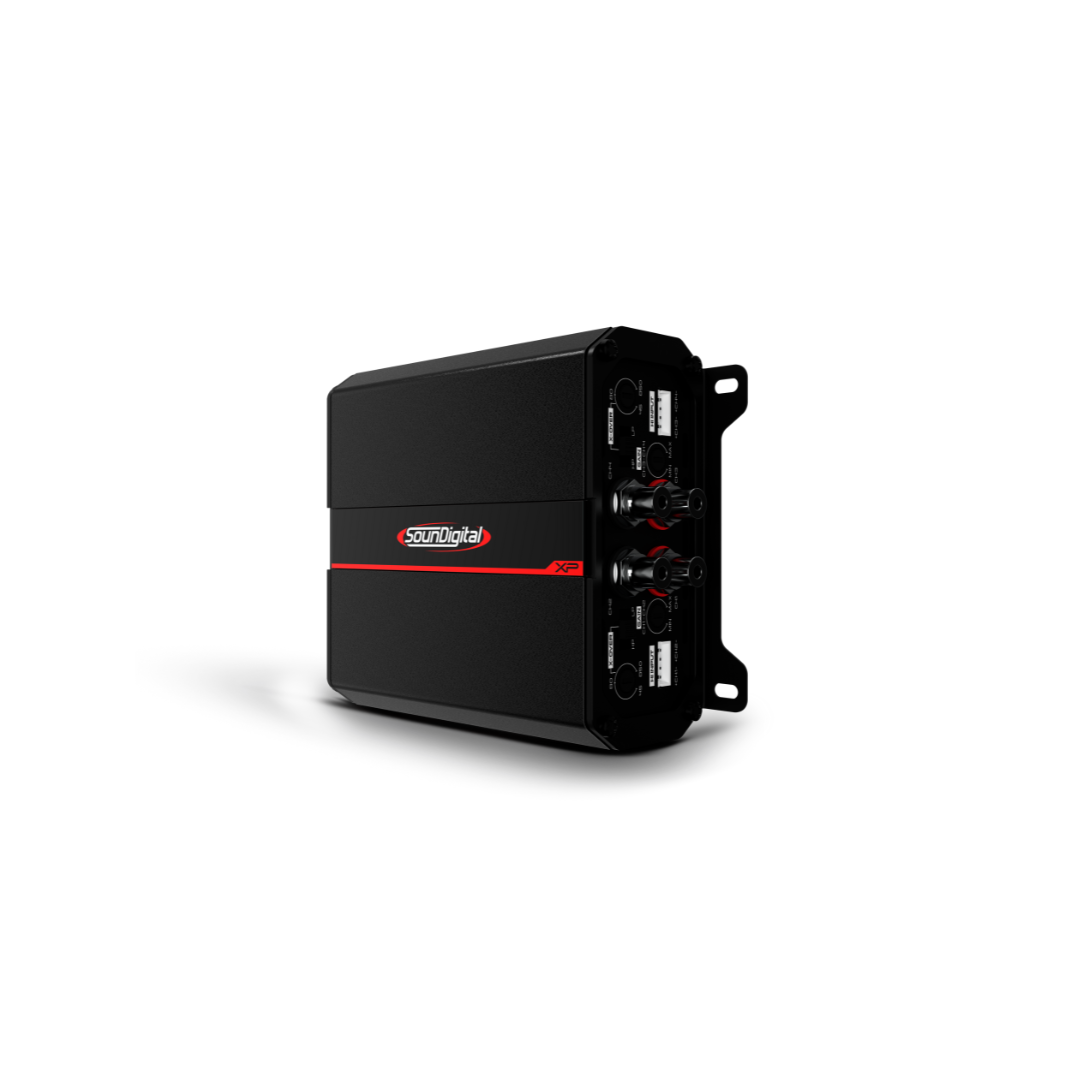

SounDigital 800.4 XP compact 4-channel motorcycle amplifier angled view

Where the SounDigital 800.4 XP Fits on a Bagger

At 5.7 x 4.4 x 2.0 in, the 800.4 XP is small enough for tight fairing and under-seat spots. It's a four-channel amp rated 4 x 132 W RMS at 4 ohm, 4 x 200 W RMS at 2 ohm, or 2 x 400 W RMS bridged at 4 ohm.

The usual layout is two channels for the fairing and two for the lids. Bridged, it can push one pair harder.

Compare it with the 400.4, 1200.4 and 2400.4 in SounDigital XP amplifiers.

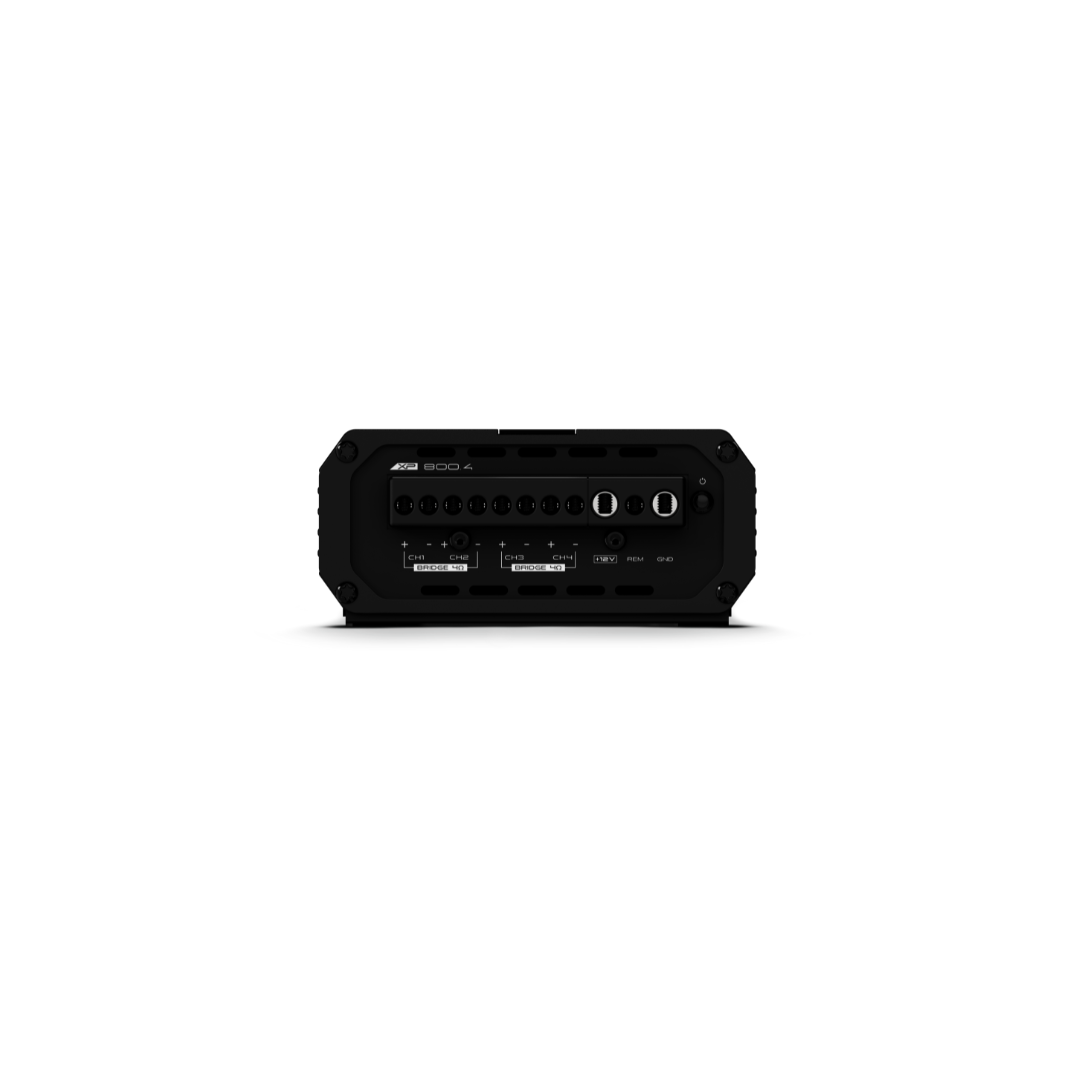

SounDigital 800.4 XP amplifier terminal side

Matching Speakers to the 800.4 XP

At 132 W RMS per channel at 4 ohm, the 800.4 XP pairs well with efficient 6.5" and 6x9 speakers. Check each speaker's RMS rating and impedance against the channel.

Shop 6.5" motorcycle coaxial speakers and 6x9 motorcycle speakers. Tell us your bike and speakers and we'll confirm the wiring and fit before you order.

Need bass too? A sub runs on a mono amp, like the SounDigital 1600.1 XP.

More SounDigital 800.4 XP - 4Ω Amplifier Questions

How much power is the SounDigital 800.4 XP?

SounDigital rates it at 4 x 132 W RMS at 4 ohm, 4 x 200 W RMS at 2 ohm, and 2 x 400 W RMS bridged at 4 ohm.

How big is the SounDigital 800.4 XP?

It measures 5.7 x 4.4 x 2.0 inches.

Can the 800.4 XP run fairing and lid speakers?

Yes. Use two channels for the fairing pair and two for the lid pair.
