Rockford Fosgate 2024-Present Harley-Davidson 6x9" Saddlebag Cut-In Speaker Kit

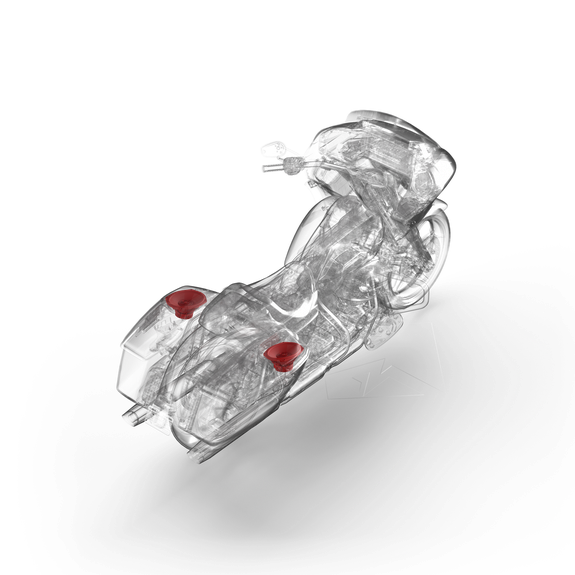

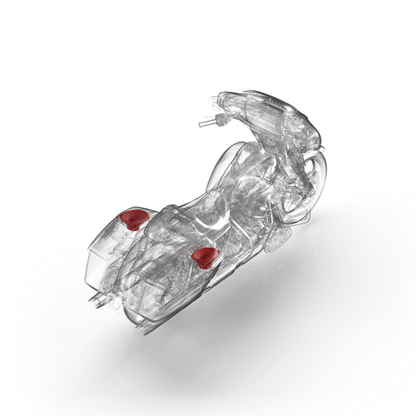

This Rockford Fosgate kit adds 6x9" TMS24-69 speakers to factory Harley-Davidson saddlebags on 2024-Present touring motorcycles. A top-loading bucket and backer ring system with cutting templates guides the lid cut, and the kit is compatible with the Harley-Davidson Power Lock kit. It includes speakers, grilles and the installation harness.

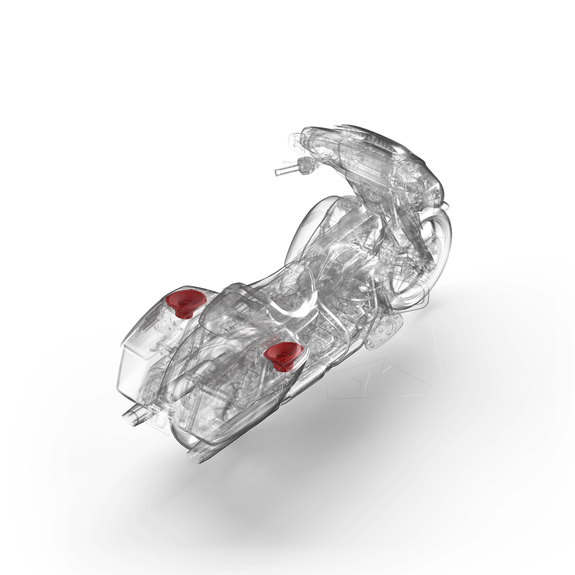

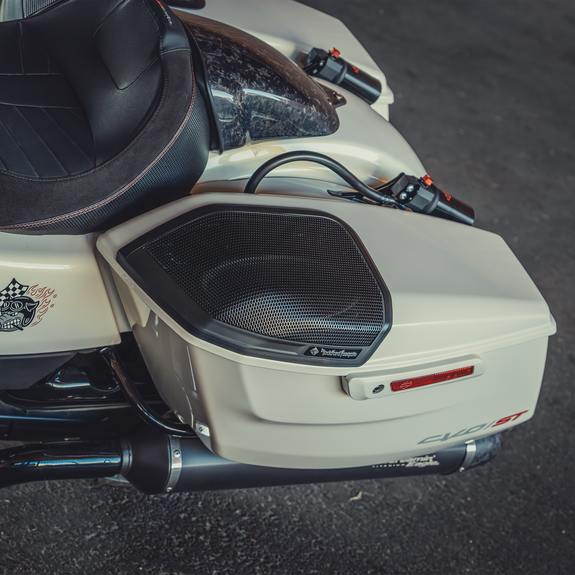

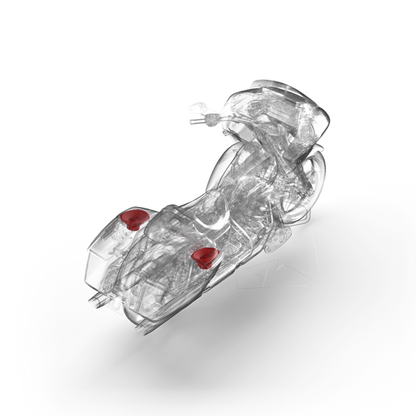

6x9 speakers cut into factory 2024-Present lids
Tube-style gasketed mounts insert from the outside of the lid and mount the speakers higher to preserve bag space.

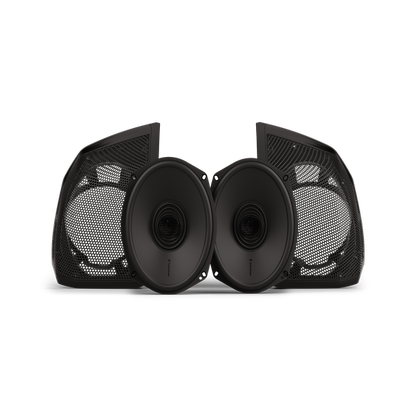

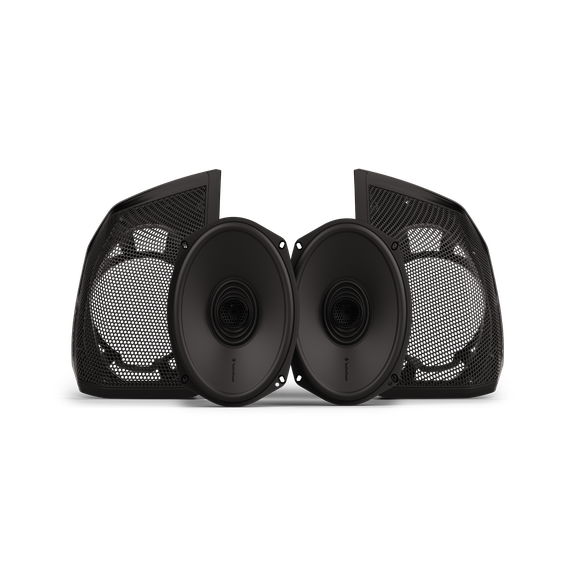

- (2) 6x9" TMS24-69 speakers included
- Compatible with H-D Power Lock kit
- 2-year warranty
Key Product Details
| Fitment | 2024-Present Harley-Davidson touring; factory H-D saddlebags |
| Speakers | (2) 6x9" TMS 2.0 (TMS24-69), Element Ready |
| Included | (2) cutting templates, (2) speaker bucket systems, (2) baglid grilles, (1) installation harness, mounting hardware |
| Harness protection | Watertight, with Molex MX150 and Deutsch DT connections |
| Power Lock | Compatible |
| Warranty | 2 years |
Speaker specifications are from Rockford Fosgate’s TMS24-69 page. The cut is permanent, so confirm fitment before you order.
How the Cut-In System Works

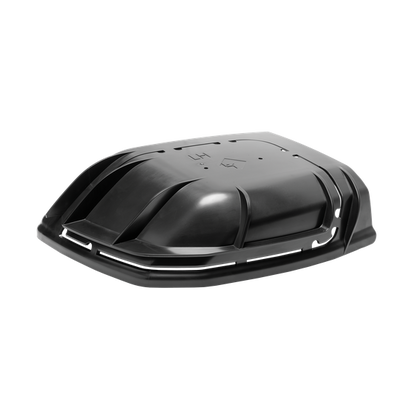

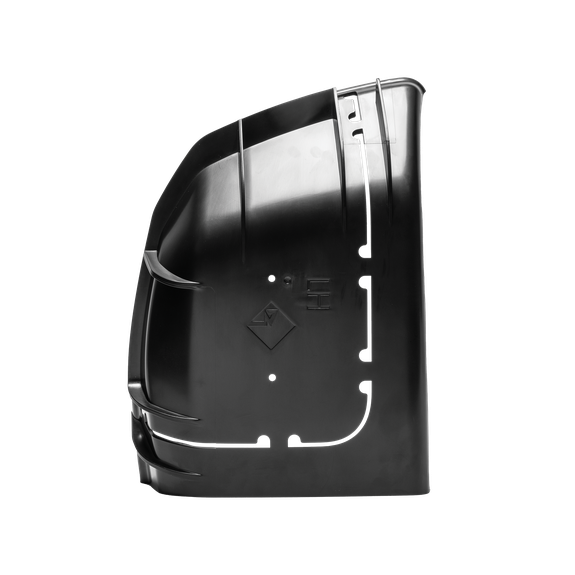

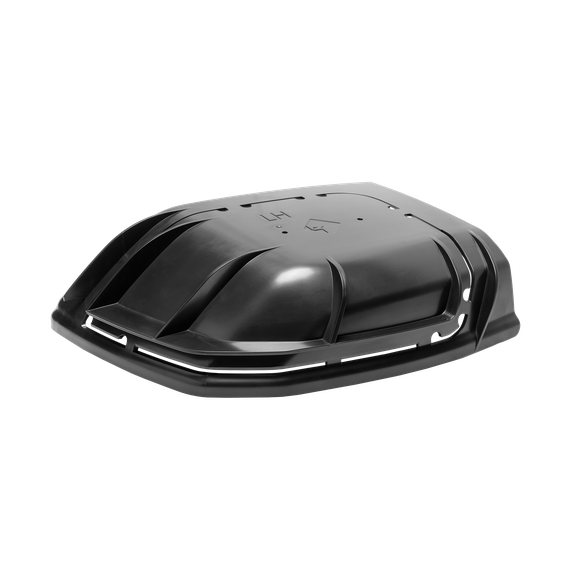

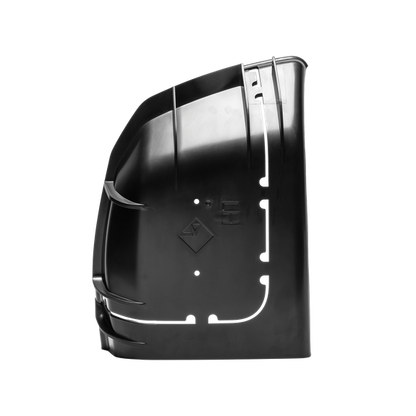

- Top-loading bucket design with a self-centering backer ring.
- Precision template with external ribs for accurate cuts with a jig or air saw.
- A U-channel formed by the top bucket and backer ring fights water intrusion.
- Gasketed screws thread into brass inserts for increased seal and rigidity.
- Integrated motor cover keeps valuables in the saddlebag away from heat.
- Grille with custom side-badge finish secures to the bucket using four rubber O-rings.
TMS24-69 Speaker Specifications
| Frequency response | 50 Hz–20 kHz |
| Nominal impedance | 4 ohm |
| Power handling | 150 W RMS / 300 W max |
| Sensitivity | 91.4 dB @ 1 W / 1 m |
| Crossover | 4 kHz @ 12 dB/octave |
| Voice coil diameter | 1.5" (38.6 mm) |
| Mounting depth | 3.81" (97 mm) |
Plan the System
The speakers are also sold separately as the TMS24-69 6x9 speakers. Pair the kit with the 2024-Present 6.5" fairing speakers and an amplifier.
Related Paths
Rockford 2024-Present 6x9 Cut-In Kit FAQ
What is included in the kit?
Two 6x9" TMS 2.0 speakers, two cutting templates, two speaker bucket systems, two baglid grilles, one installation harness and mounting hardware.
Does the kit work with the H-D Power Lock kit?
Yes. The listing states it is compatible with the Harley-Davidson Power Lock kit.
Which bikes is it for?
It is purpose built for 2024-Present Harley-Davidson touring motorcycles with factory H-D saddlebags.
Do I have to cut the lid?
Yes. It is a cut-in kit. The precision template has external ribs to guide cuts with a jig or air saw.
How is it sealed against water?
A U-channel formed by the bucket and backer ring fights water intrusion, gasketed screws thread into brass inserts, and the grille mounts on four rubber O-rings. The harness uses Molex MX150 and Deutsch DT connections.
