Rockford Fosgate 2014-2023 Harley-Davidson® 6x9" Rear Audio Lid Kit

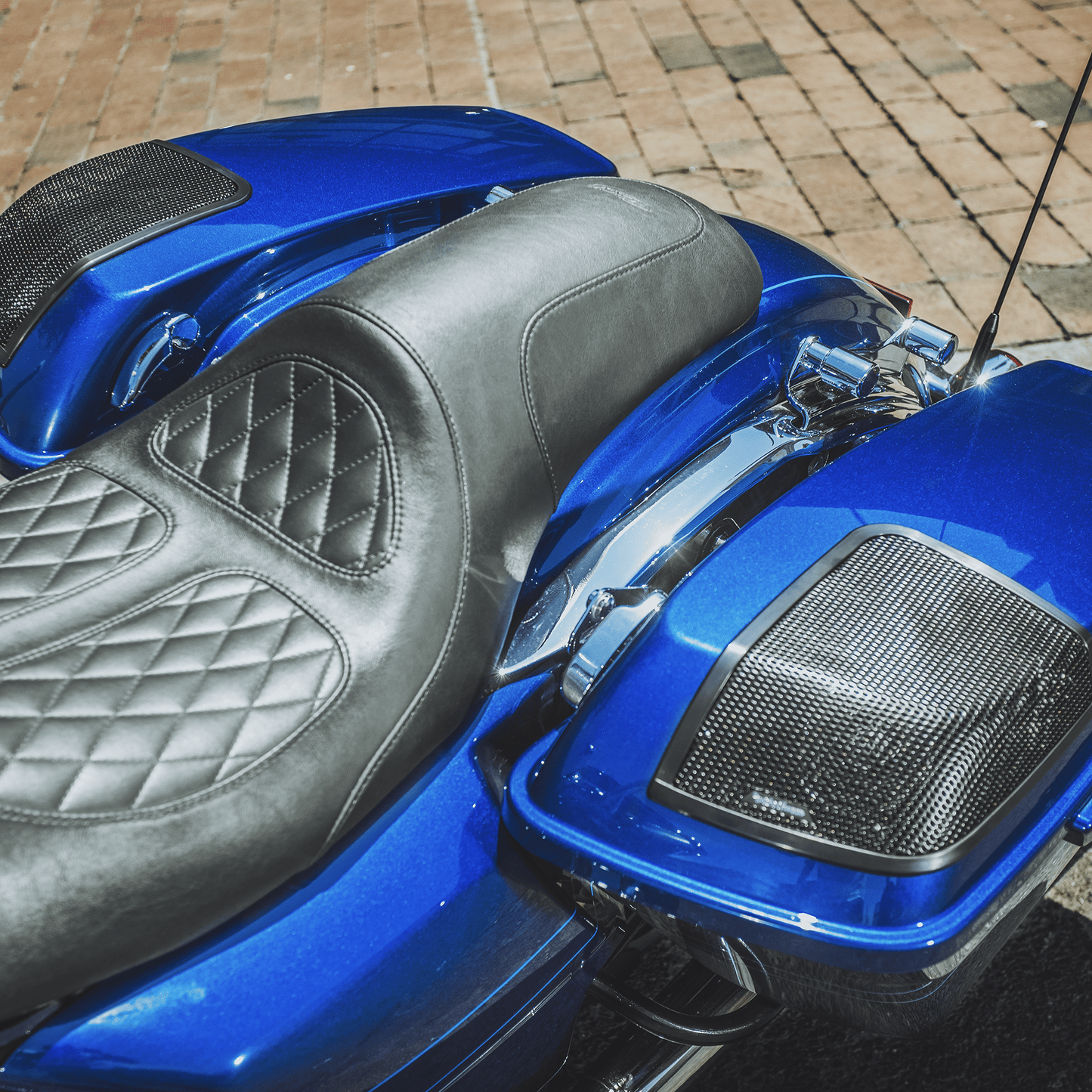

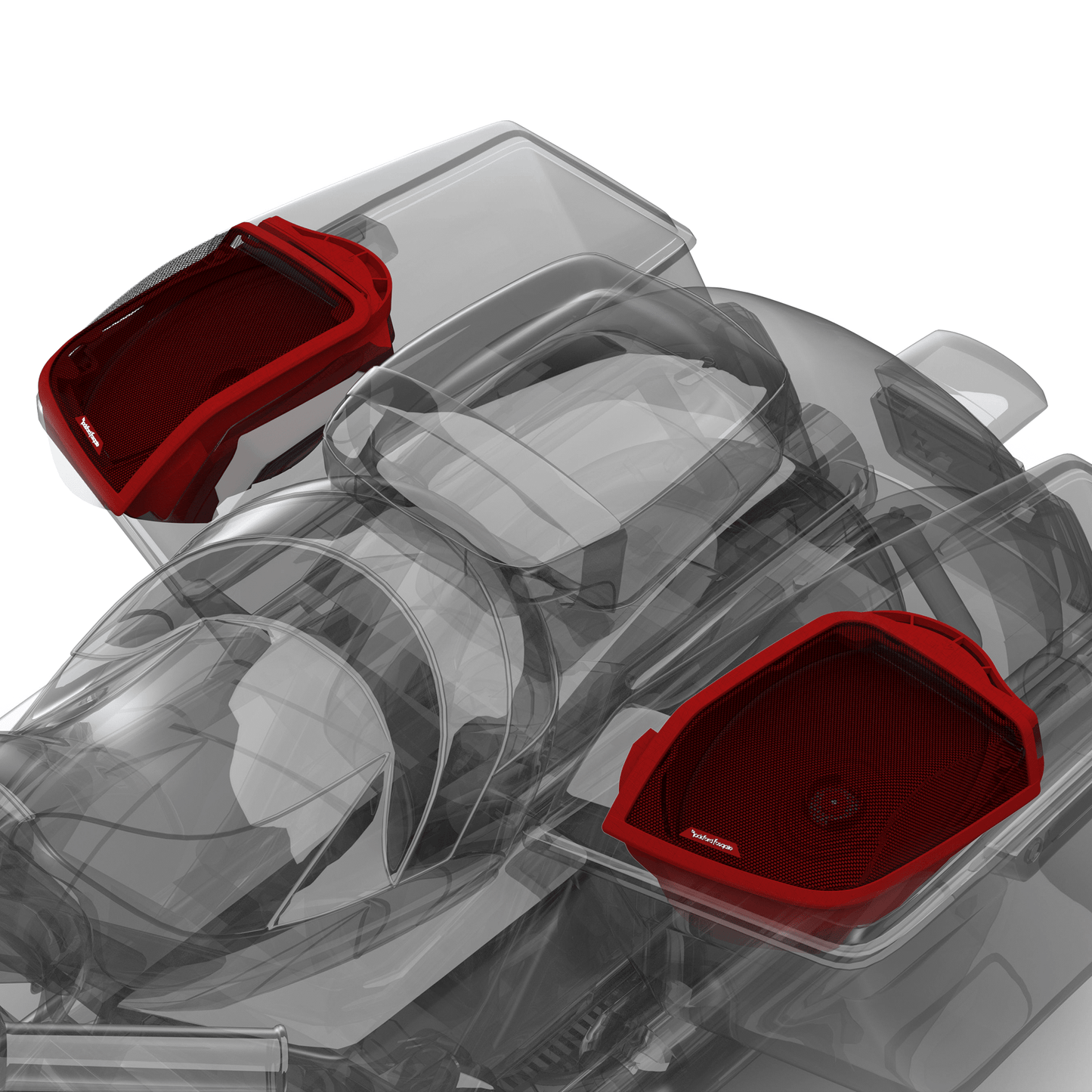

The Rockford Fosgate TMS69BL14 lets you add 6x9" rear speakers to your existing factory hard-shell bag lids on 2014-2023 Harley-Davidson touring models. It eliminates the need to buy and paint new lids. It includes a cut-out guide, TMS69 speakers, grilles, a direct-connect harness and all hardware.
Rear 6x9 speakers in your stock lids
Designed to integrate with existing HD14-TKIT audio systems.
- Includes TMS69 Element Ready 6x9 speakers
- Custom cut-out guide and all hardware
- Painted steel grille with ASA UV-protection frame
Key Product Details
| Model | Rockford Fosgate TMS69BL14 |
| Fitment | 2014-2023 factory Harley-Davidson hard-shell bag lids |
| Designed for | Existing HD14-TKIT audio systems |
| Speakers | TMS69 Element Ready 6x9" full-range |

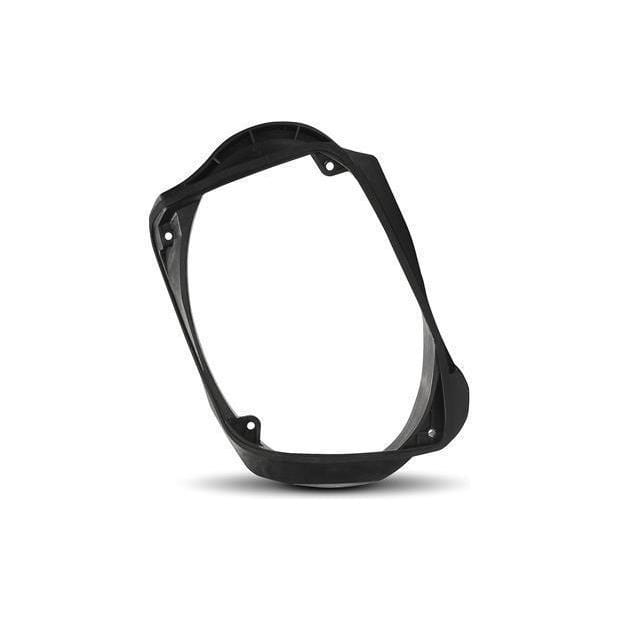

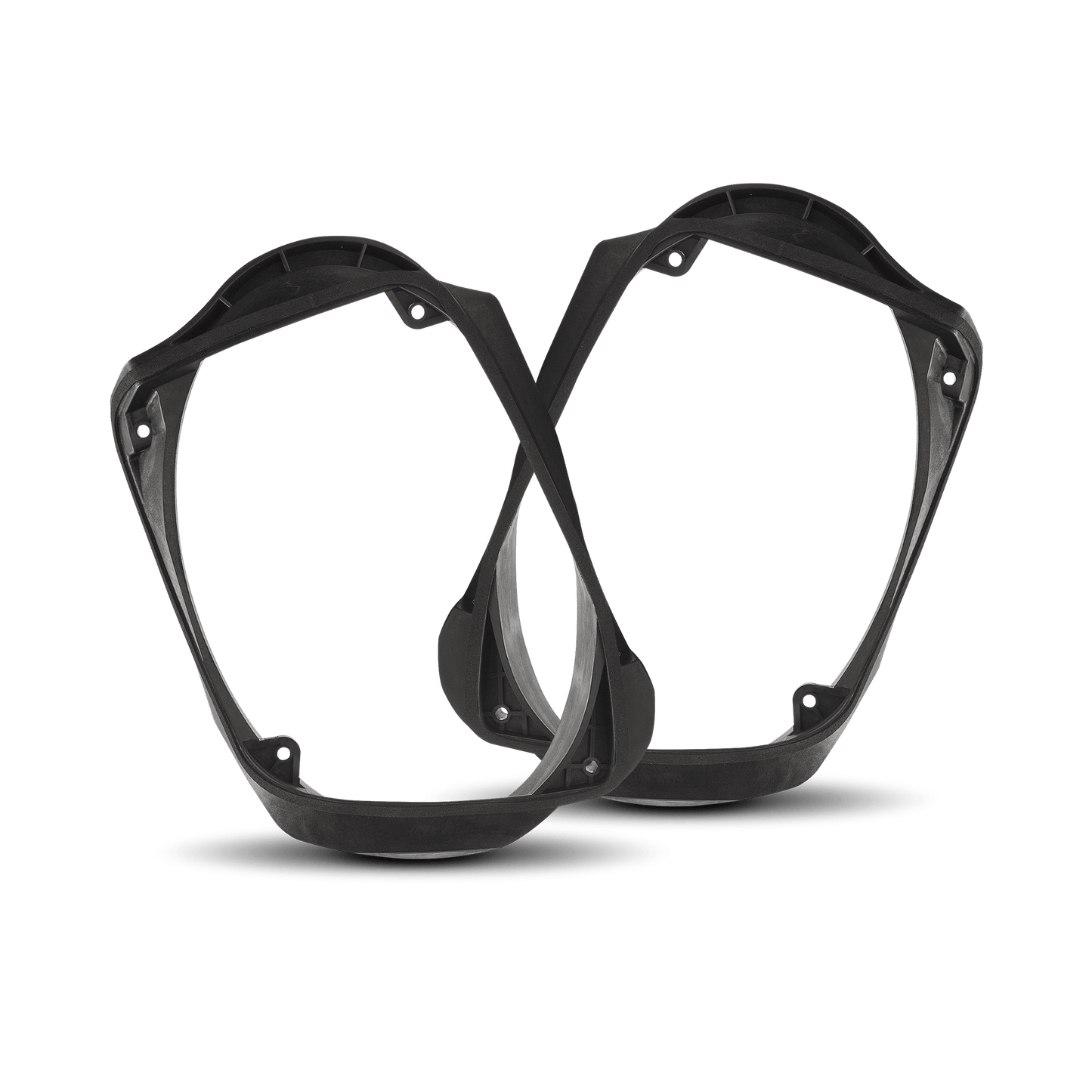

| Frame | Ultra-high-temperature glass-reinforced polymer |

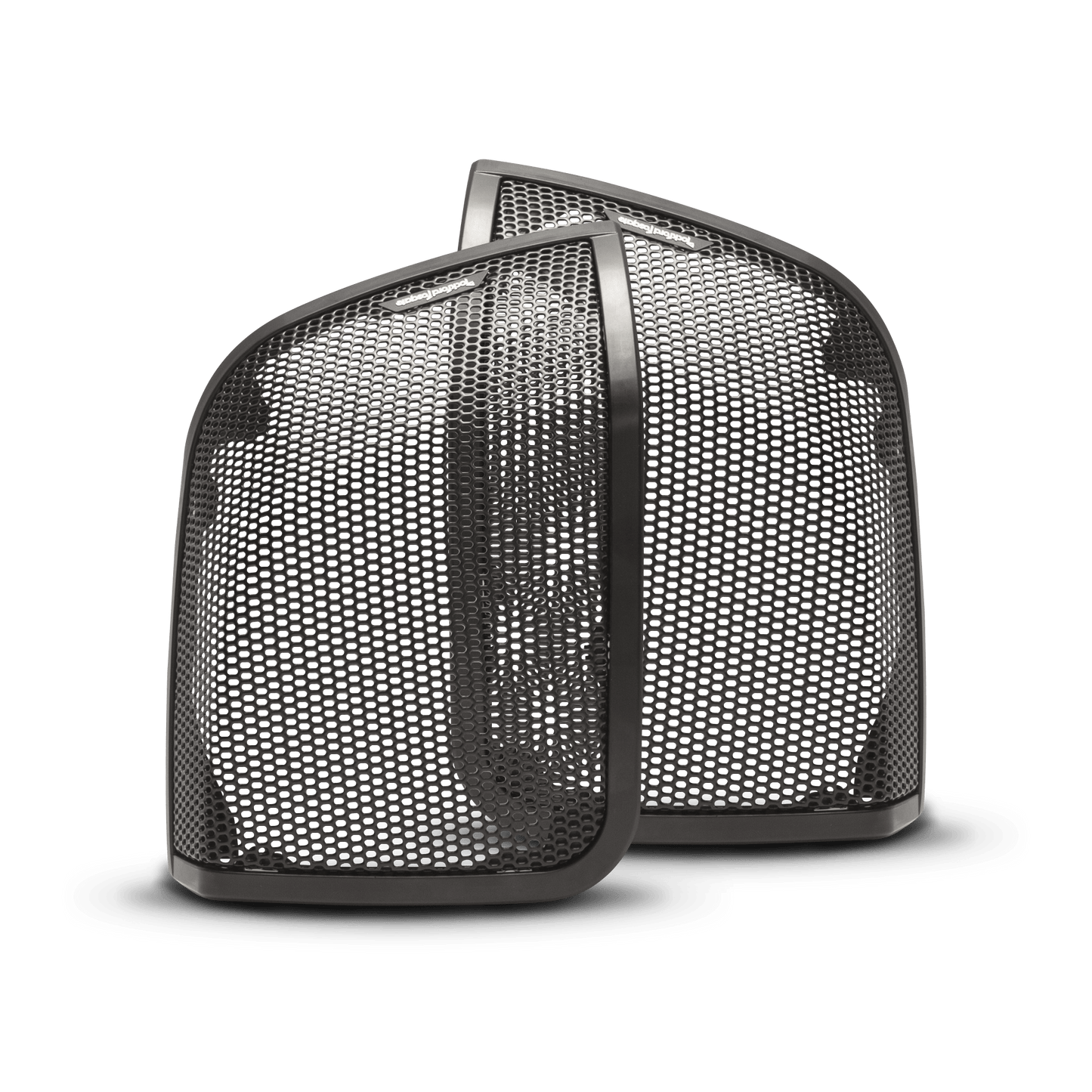

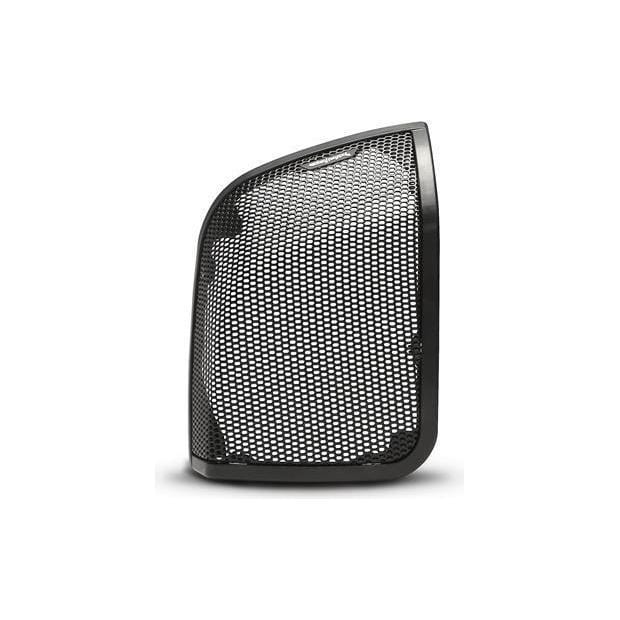

| Grille | Painted stamped steel with ASA plastic frame for UV protection |
| Seal | Sandwich clamping gasket design |
| Wiring | Direct-connect harness |
Plug-and-play operation is not compatible with Tour-Pak speakers (contact support). It may not be compatible with the H-D Power Lock kit.

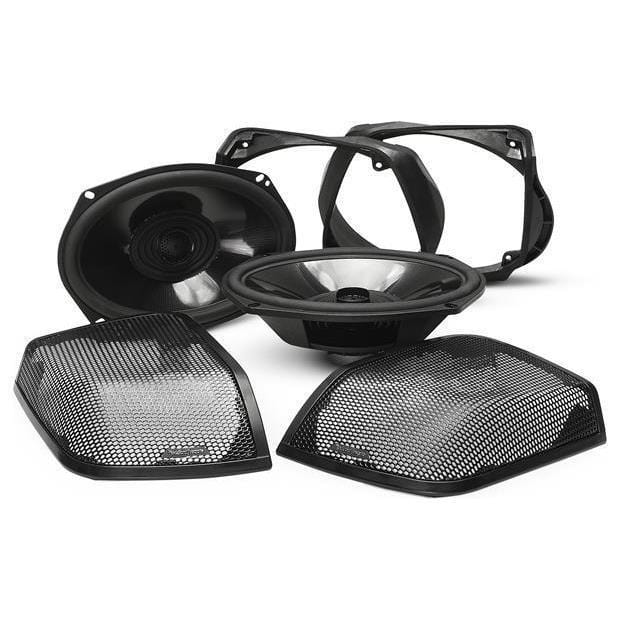

What the Kit Includes

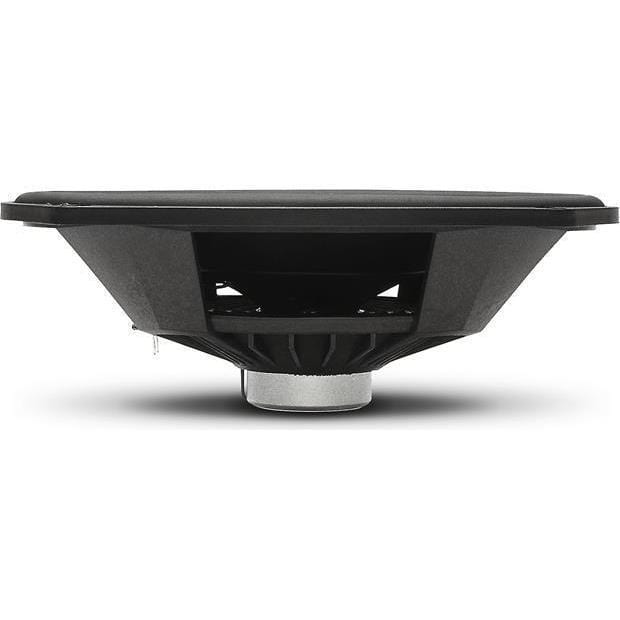

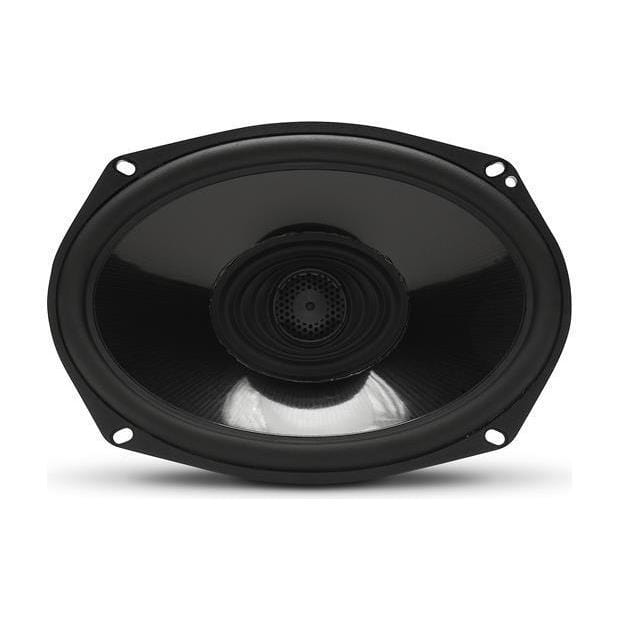

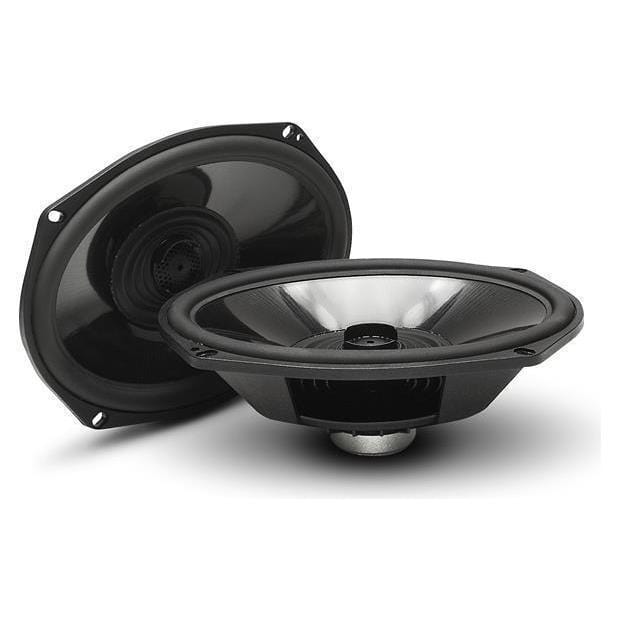

- TMS69 Element Ready 6x9" full-range speakers.
- Custom cut-out guide.
- Integrated grille assemblies.
- Direct-connect wiring harness.
- All installation hardware and accessories.
Compatible Models
| 2014-2023 | Road King (FLHR) |
| 2017–current | Road King Special (FLHRXS) |
| 2014-2023 | Electra Glide Ultra Classic (FLHTCU), Bat Wing |
| 2014-2023 | Electra Glide Ultra Limited (FLHTK), Bat Wing |
| 2017–current | Electra Glide Ultra Limited Low (FLHTKL), Bat Wing |
| 2015-2023 | Road Glide (FLTRX), Shark Nose |
| 2015-2023 | Road Glide Special (FLTRXS), Shark Nose |
| 2015-2023 | Road Glide Ultra (FLTRU), Shark Nose |
| 2014-2023 | Street Glide (FLHX), Bat Wing |
| 2014-2023 | Street Glide Special (FLHXS), Bat Wing |
The source chart also lists some CVO models, but the listing says the kit may not be compatible with CVO and Screaming Eagle models. Confirm CVO fitment with us before ordering.
Planning Notes
The kit is custom designed to retrofit onto 2014-2023 Harley-Davidson motorcycles with hard-shell bags. Because the lids are cut, use the included guide and confirm your model first. For the 1998–2013 version, see the 98-13 6x9 rear lid kit.
Related Paths
Rockford 2014-2023 6x9 Lid Kit FAQ
What does this kit do?
It adds rear 6x9" speakers to your existing factory hard-shell bag lids, so you do not need new lids or paint matching.
Which Harley models does it fit?
Street Glide, Road Glide, Road King and Electra Glide models, 2014-2023, as listed in the compatibility table above.
Do I need to flash my radio?
Yes. The listing notes your factory radio will need to be flashed.
Will it work with CVO models or a Power Lock kit?
It may not. The listing says it may not be compatible with CVO and Screaming Eagle models, or with the H-D Power Lock kit.
Can it be used with Tour-Pak speakers?
Plug-and-play operation is not compatible with Tour-Pak speakers. Contact support.
How much clearance do I need in the bag?

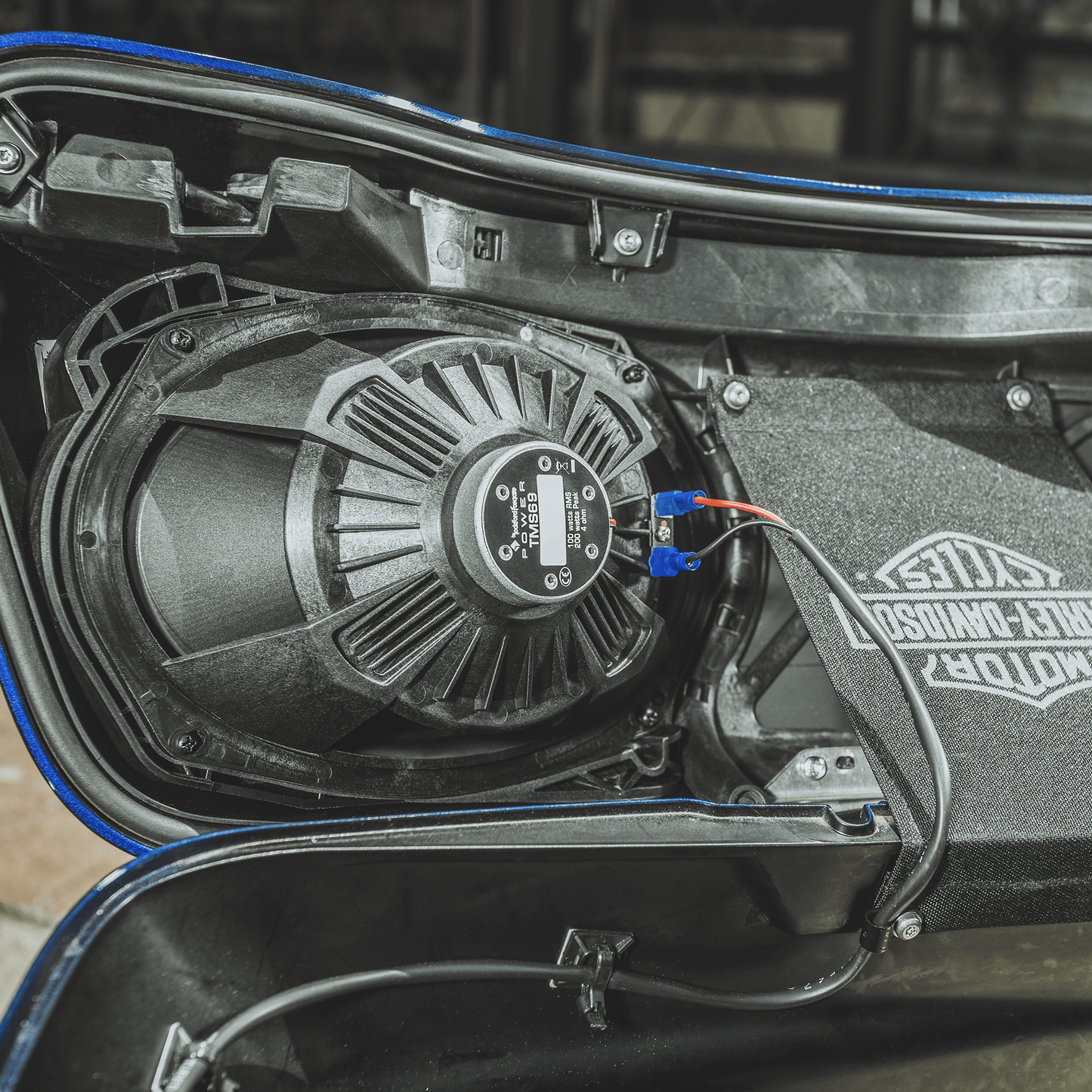

Leave 2" minimum clearance under the speaker magnet when packing your bags.
