Nagy's Customs 8" Subwoofer/Midbass Adapter Rings 98-23 (Front or Rear) (Pair)
Nagy's Customs 8" Subwoofer/Midbass Adapter Rings 98-23 (Front or Rear) (Pair)
Couldn't load pickup availability
Additional Payment Info
-
Description
-
Reviews
Nagy's Customs 8" Subwoofer/Midbass Adapter Rings 98-23 (Front or Rear) (Pair)

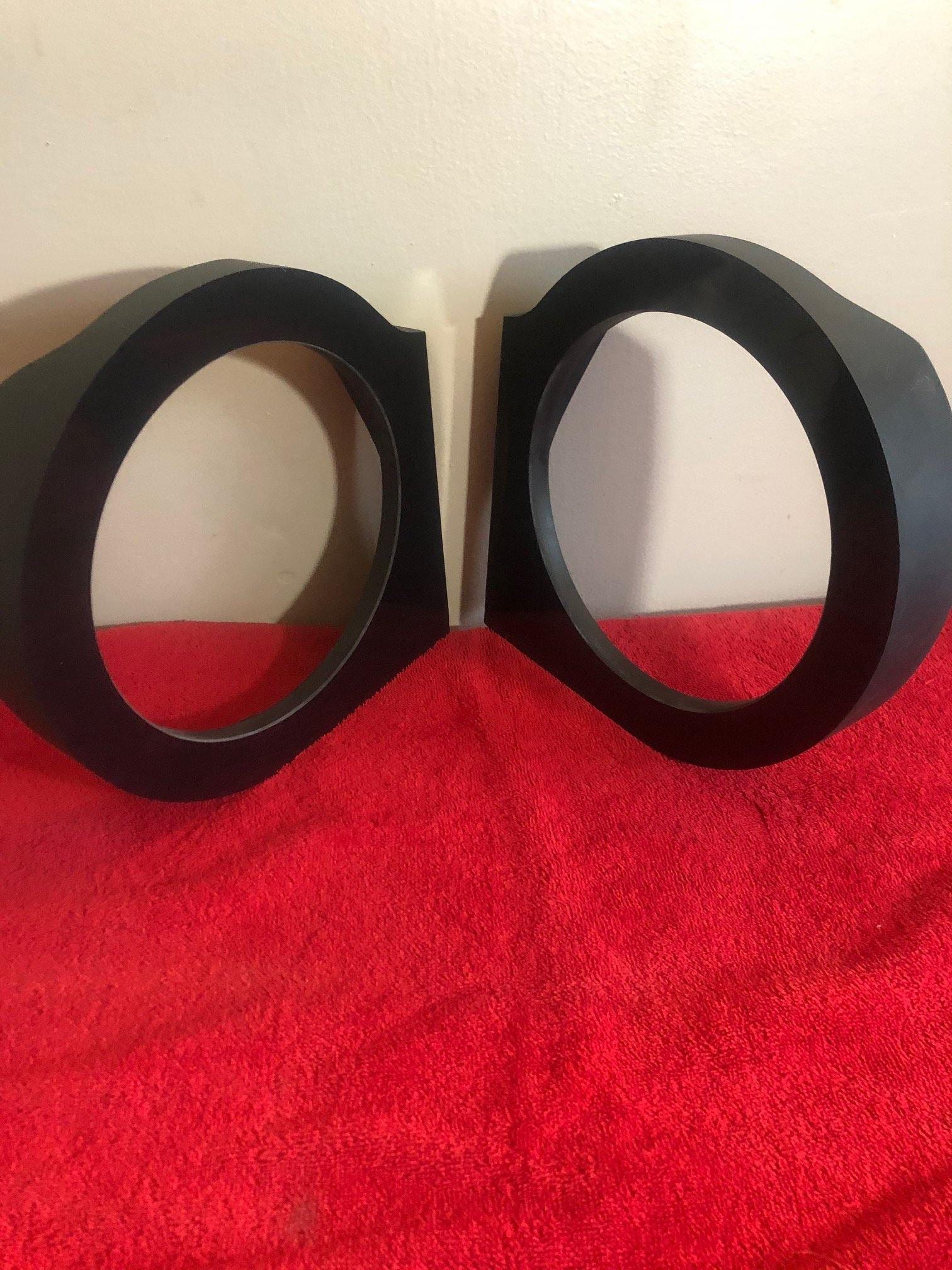

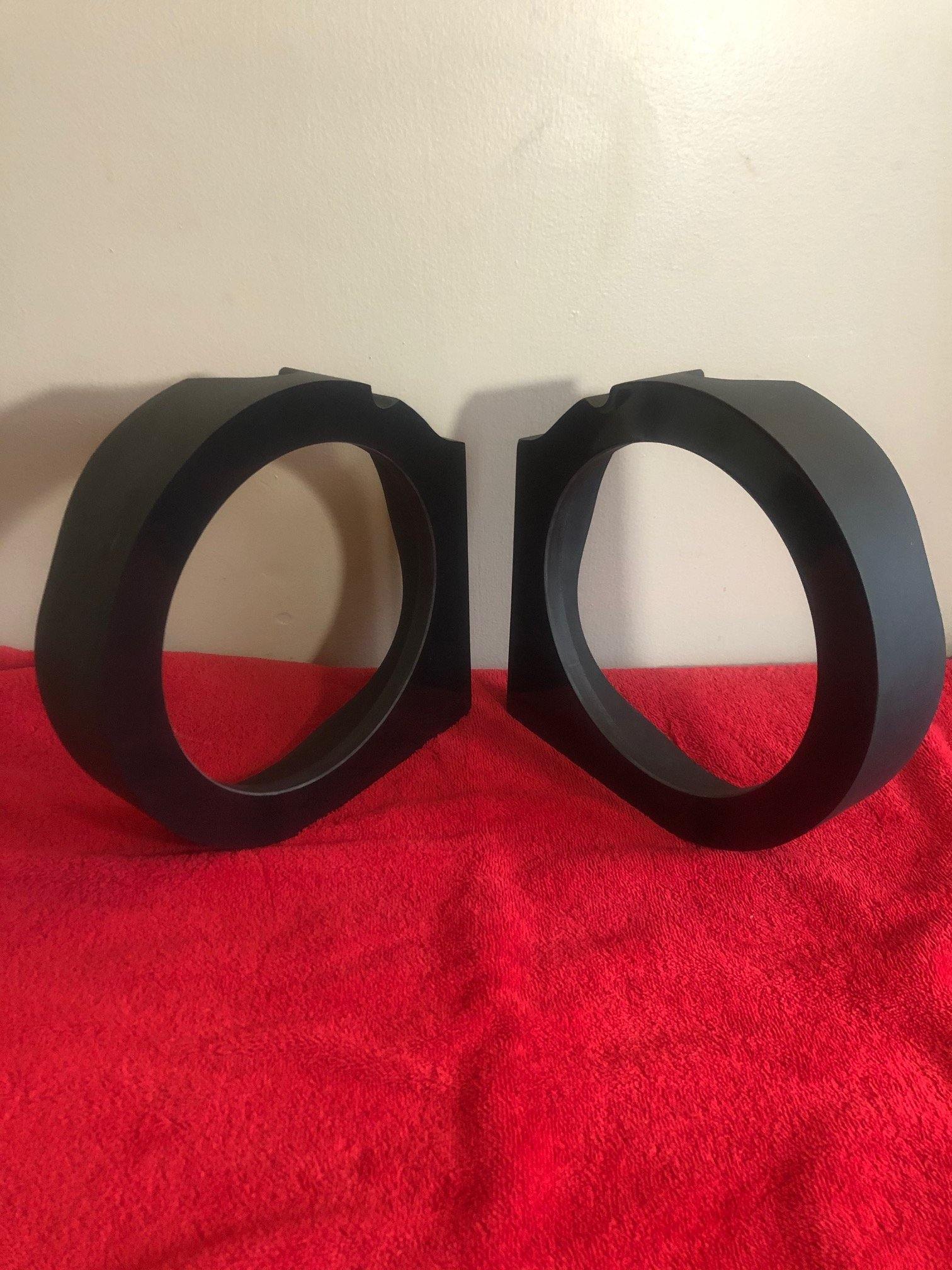

These Nagy’s Customs adapter rings are CNC-molded to mount an 8" subwoofer or midbass in a Harley-Davidson saddlebag. They are listed for front or rear positions and are sold as a pair. Front and rear sets match up, so you can add a second pair later and end up with quads.
CNC-molded rings for an 8" sub or midbass
Choose the front or rear position, then pair front and rear sets for a quad layout without redoing your saddlebags.
- Outer diameter 8.625", mounting diameter 7.125"
- Set back ½"
- Sold as a pair
Key Product Details
| Product | Nagy’s Customs 8" Subwoofer/Midbass Adapter Rings (Front or Rear) |
| Fitment (per product title) | Harley-Davidson 1998–2023 |
| Outer diameter | 8.625" |
| Mounting diameter | 7.125" |
| Set back | ½" |
| Tolerance | Slight variances of 1–3% |
| Uses | Accepts either an 8" midbass or an 8" subwoofer |
| Sold as | Pair |
Fitment varies by bag manufacturer. A quality aftermarket bag or a stock bag gives the best results.

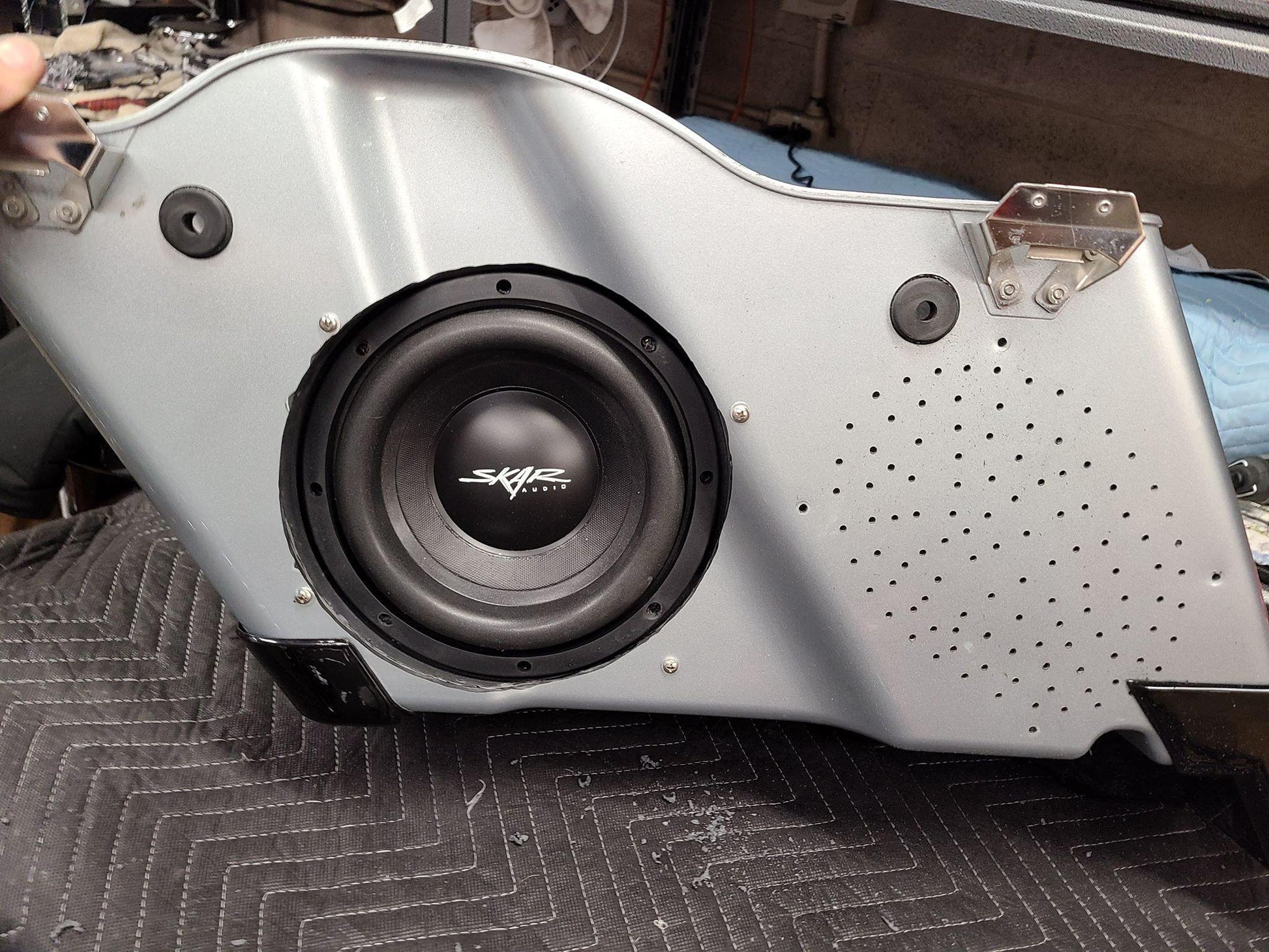

Front and Rear 8" Rings That Pair Into Quads

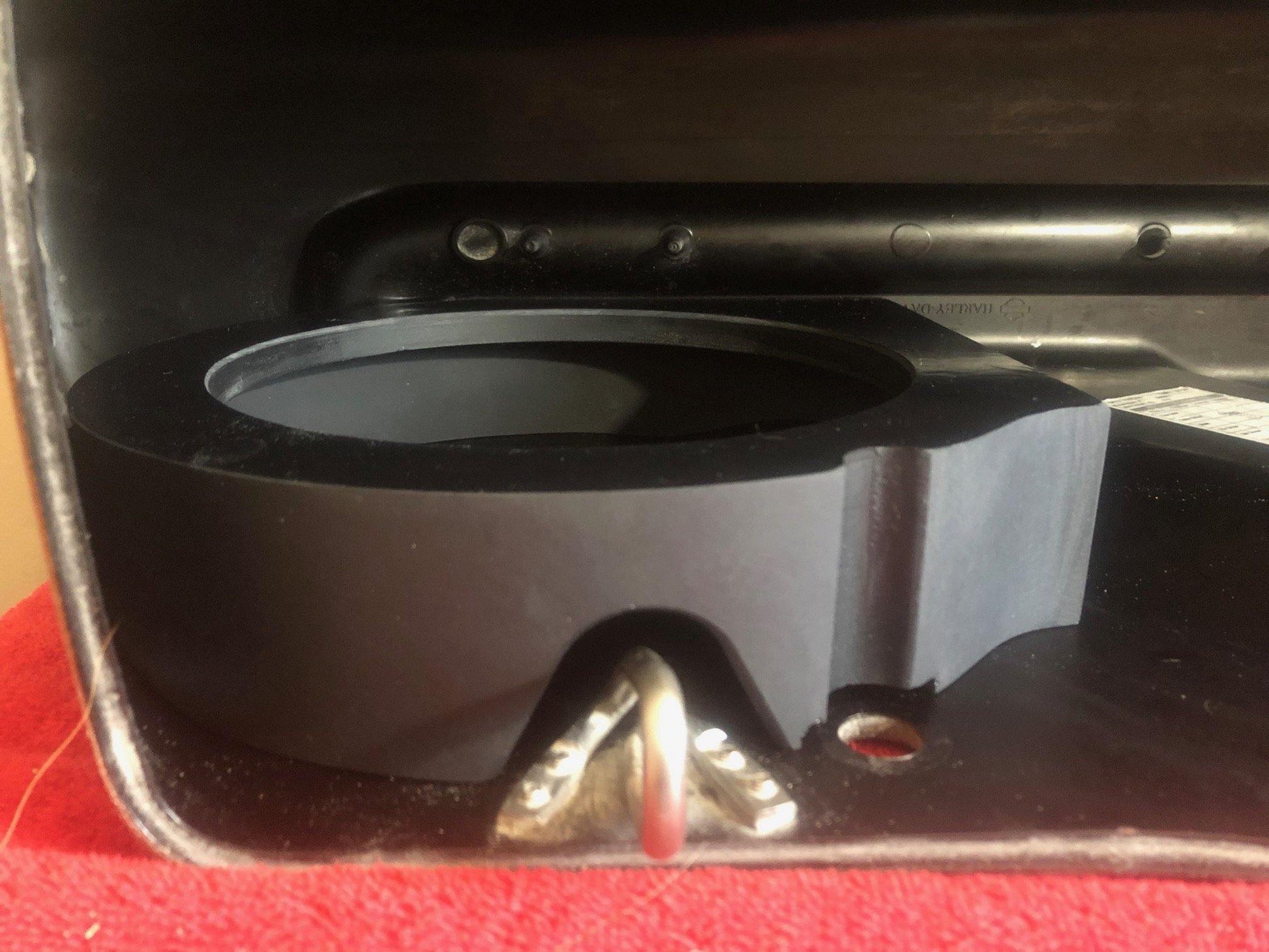

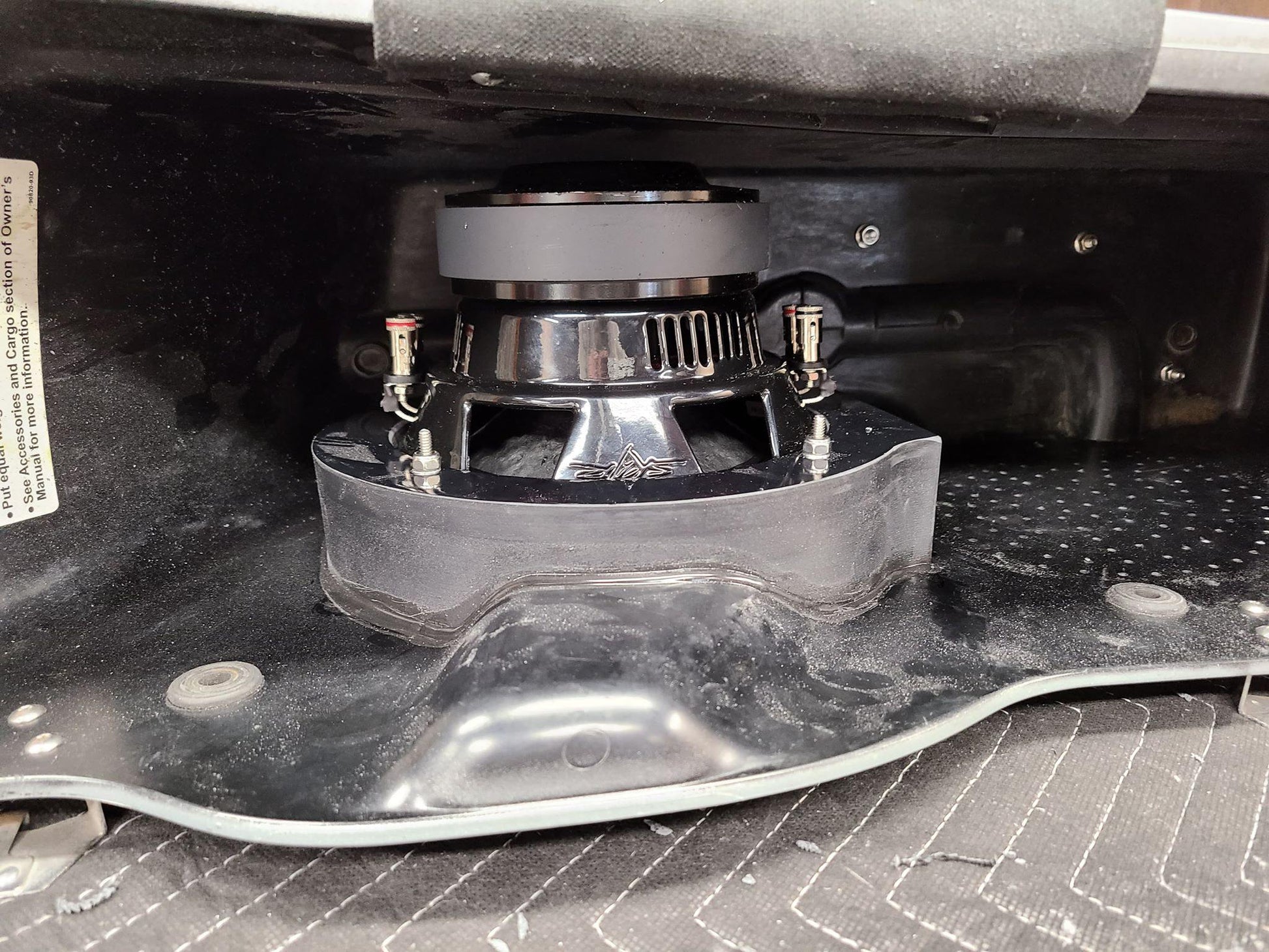

The front rings sit up front and accept either a midbass or a subwoofer. The rear rings use the same 8.625" outer diameter, 7.125" mounting diameter and ½" set back, and they pair with the front set.
If two 8" speakers are not enough, add the matching set. The front and rear pieces match up, so the saddlebags do not need to be redone to reach a quad layout.
Installation Notes
- Holes must be predrilled before using screws. Do not use self-tapping screws.
- A two-part epoxy is recommended but not required to bond the adapter to the saddlebag; the listing gives 3M 08115 as an example.
- Some bodywork knowledge is expected because the saddlebag has to be cut.
- These adapters were CNC-machined from stock bags. Depending on the bag, small modifications may be needed, such as sanding the mounting face of the adapter or filling small gaps with silicone caulk. A quality aftermarket or stock bag gives the easiest result.
- These are custom-made parts and all sales are final.
Protect the Speakers
Add a grille to protect the speakers. See the motorcycle grille collection for options.
Related Paths
Nagy’s 8" Adapter Rings FAQ
Are these rings for the front or the rear of the saddlebag?
The listing covers both a front and a rear mount adapter ring. Both use an 8.625" outer diameter, a 7.125" mounting diameter and a ½" set back, and the two sets pair up.
Can I mount a subwoofer or a midbass in them?
Yes. The rings accept either an 8" midbass or an 8" subwoofer.
What do I need to know before installing?
Predrill the holes before using screws and do not use self-tapping screws. A two-part epoxy such as 3M 08115 is recommended but not required, and you will be cutting the saddlebag.
Will they fit my saddlebags exactly?
Fitment varies by bag manufacturer. The rings were CNC-machined from stock bags, so small modifications such as sanding the mounting face or filling small gaps with silicone caulk may be needed.
Can I return custom-made rings?
These are custom-made parts and all sales are final.
Need Help Choosing?
Not sure which ring set fits your bags and speaker layout? Call or start a consultation and we will help you plan it.
