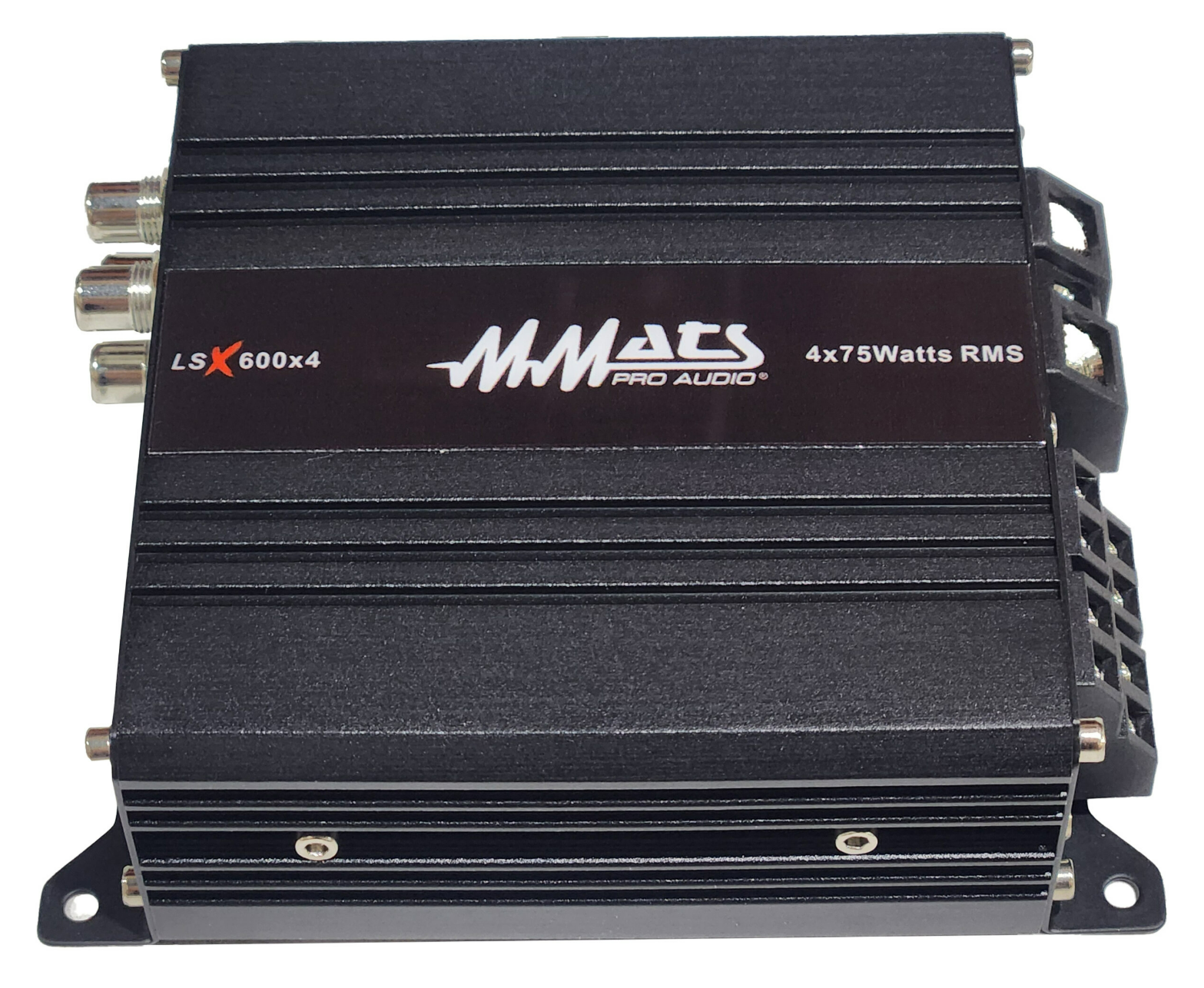

MMATS Pro Audio LSX600x4 4-Channel Class D Motorcycle Amplifier
The MMATS Pro Audio LSX600x4 is an ultra-compact 4-channel Class D motorcycle amplifier rated 100 watts x 4 at 4Ω and 150 watts x 4 at 2Ω. Measuring only 4.3 x 4.2 x 1.7 inches, it is a simple power upgrade for bagger, trike and powersports speaker systems with very little room.
Ultra-Compact Four-Channel Power
Class D efficiency in a chassis that fits almost anywhere on the bike.
MMATS LSX600x4 Specifications
| RMS Power at 4Ω | 100W x 4 |
| RMS Power at 2Ω | 150W x 4 |
| RMS Power at 1Ω | 300W x 2 |
| Frequency Response (-3dB) | 10Hz to 22kHz |
| THD | Under 0.1% |
| Signal-to-Noise Ratio | Over 96dB |
| Efficiency at Full Power | 94% |
| Dimensions | 4.3 x 4.2 x 1.7 inches |
Verify impedance, wiring and fusing before powering on.
A Tiny Amp for Tight Motorcycle Installs
The LSX600x4 is a good fit when space is limited: behind a fairing, under a seat or inside a small bag. It gives efficient speakers more power and control than factory output, and we can help set gains and wiring for your bike.
Build the Rest of the System
MMATS LSX600x4 FAQ
How much power does the LSX600x4 make?
100 watts x 4 at 4Ω, 150 watts x 4 at 2Ω, and 300 watts x 2 at 1Ω.
What speakers does it suit?
Efficient 6.5-inch speakers, lids and small motorcycle systems in 4Ω or 2Ω configurations.

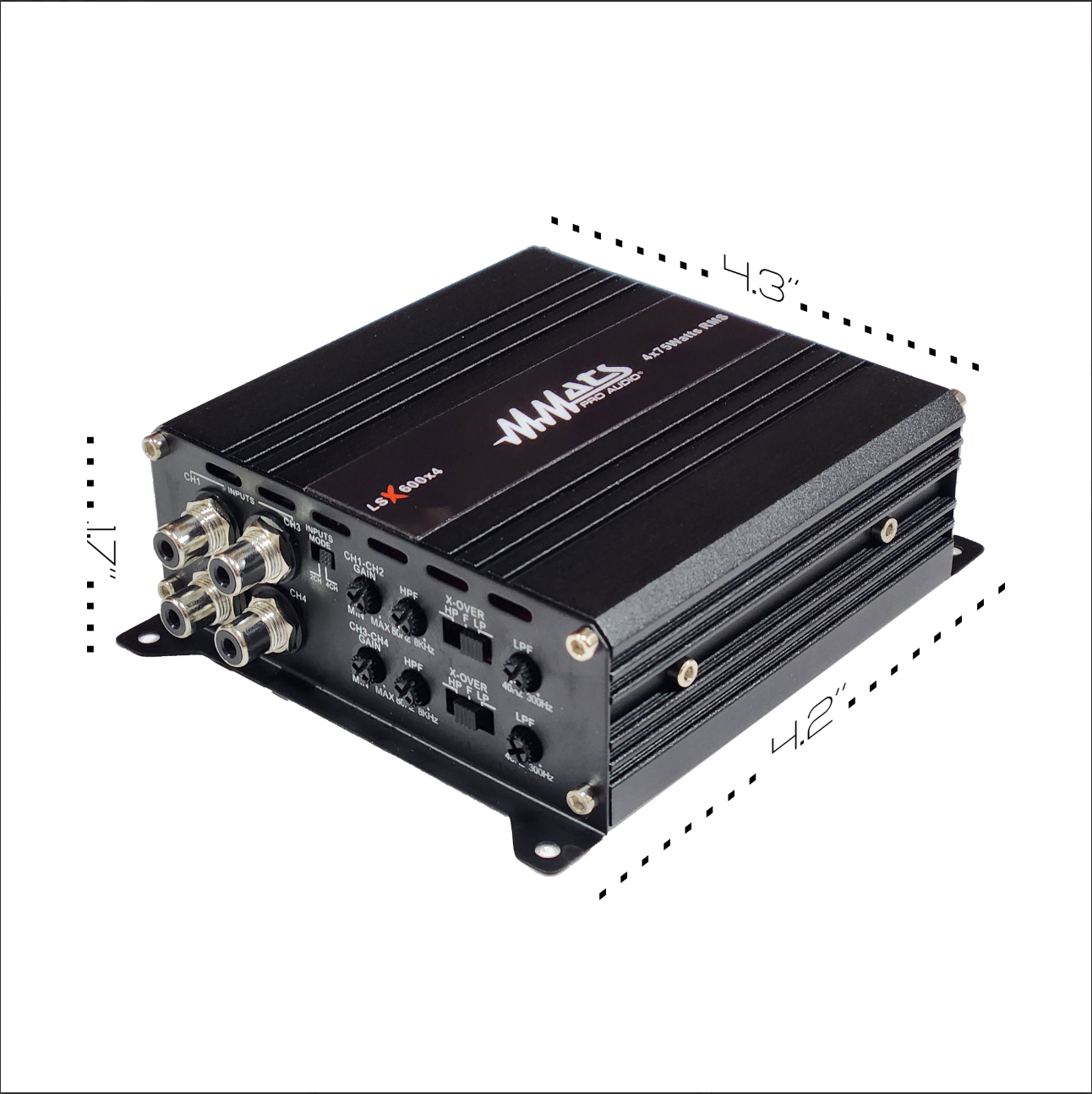

How big is it?
4.3 x 4.2 x 1.7 inches.

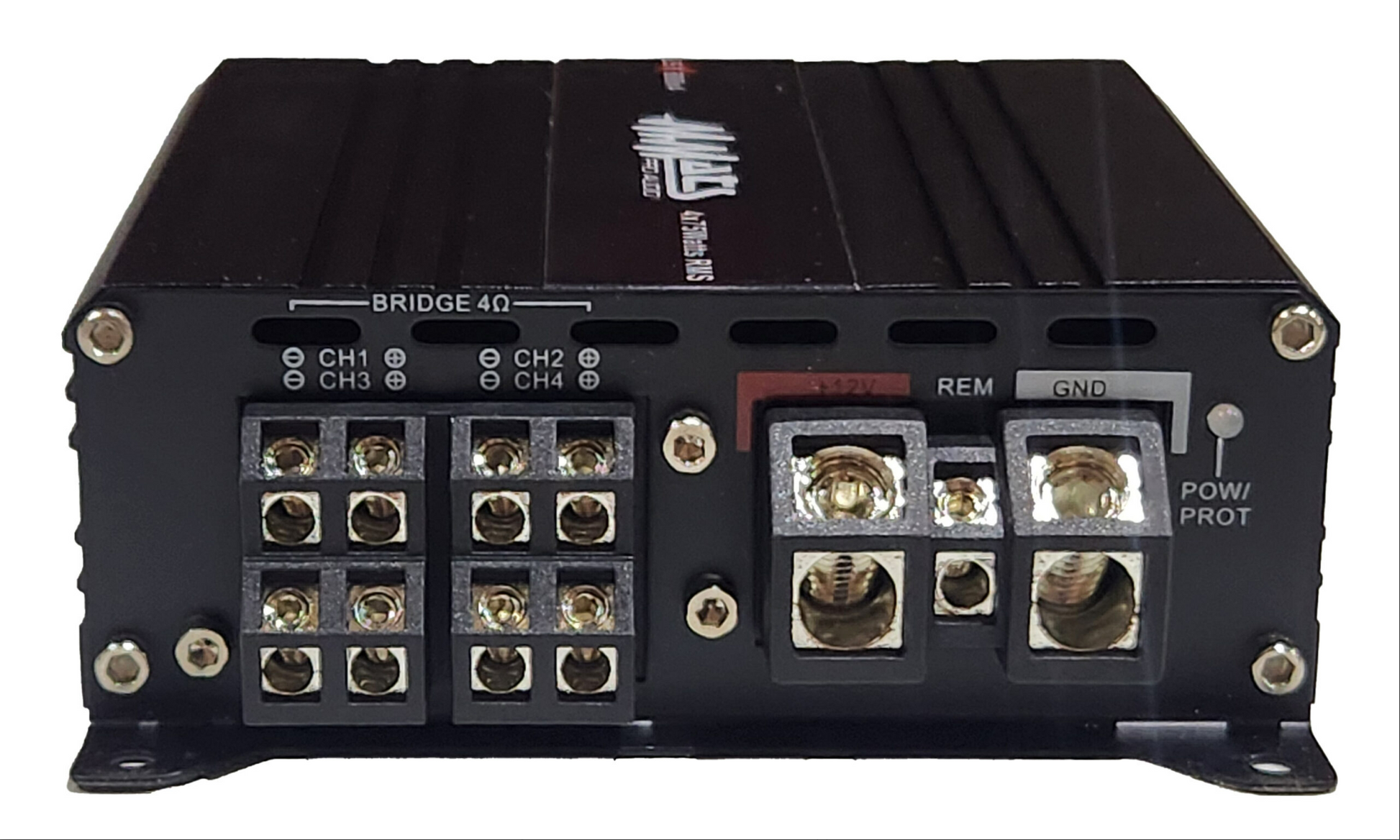

What wiring does it need?
OFC power and ground wire, battery-side fusing and short, solid grounds.
Can you help me choose?
Yes. Call us with your bike and speakers.
Need Help Choosing?
Tell us your bike, model year and what you want to add, and we will confirm fitment and the right parts before you order.
