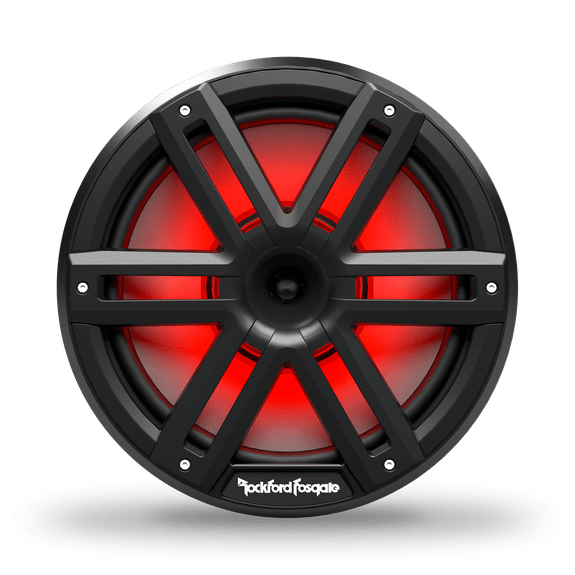

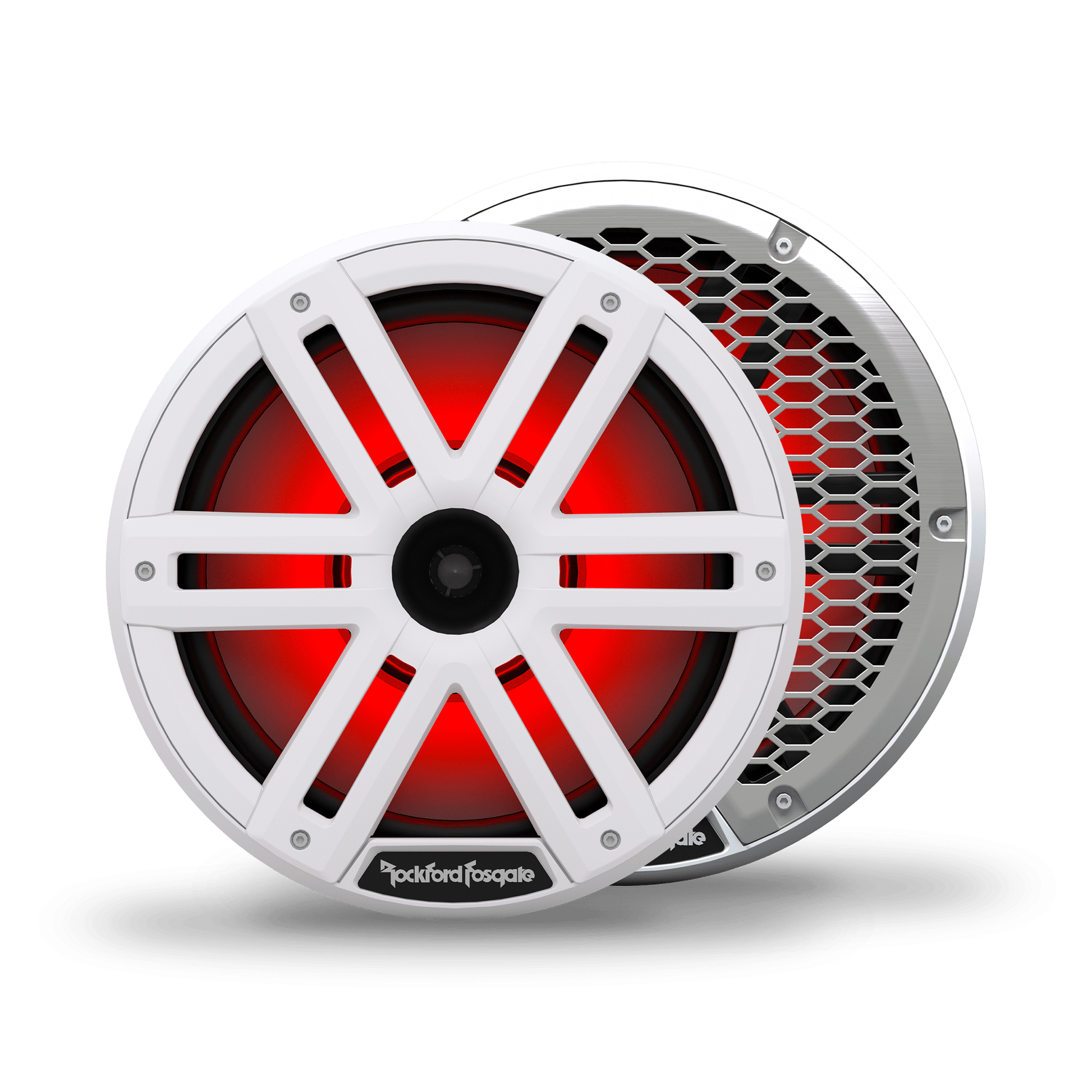

Rockford Fosgate M2 10" Color Optix™ 2-Way Horn Loaded Speaker
Rockford Fosgate's M2-10H is the 10 in M2 horn-loaded marine speaker, with a 1 in horn tweeter, 300W RMS / 1200W peak at 4Ω and a 20 Hz - 25 kHz range. Sensitivity is 94 dB (1W/1m), and the pair comes with Deutsch harnesses.
Loud, open-air 10" marine speaker with Color Optix lighting
Color Optix lighting, a 12dB/octave crossover and a 2-year warranty; Rockford Fosgate rates the M2 line IPX6 for water intrusion.
- 300W RMS / 1200W peak, 4Ω
- 94 dB sensitivity (1W/1m), 20 Hz - 25 kHz
- Sold in pairs with Deutsch harnesses
Key Product Details
| Speaker type | 2-way, horn loaded |
| Size | 10" |
| Power handling | 300W RMS / 1200W peak |
| Impedance | 4Ω |
| Sold as | Pair |
| Warranty | 2-Year Warranty |
Specifications are from the Rockford Fosgate M2-10H product page.
Design and Marine Construction

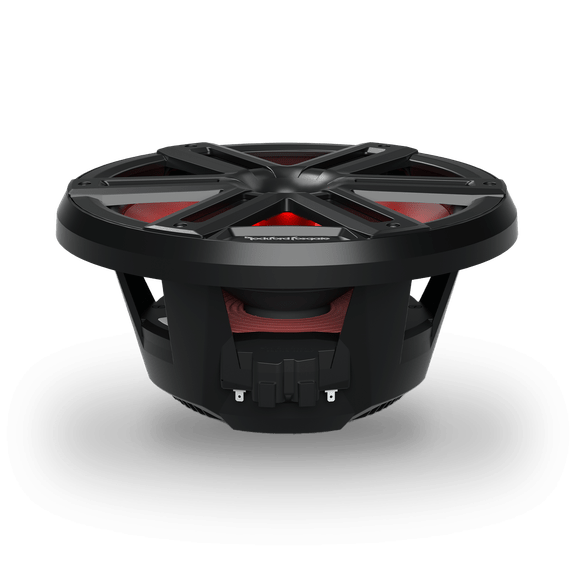

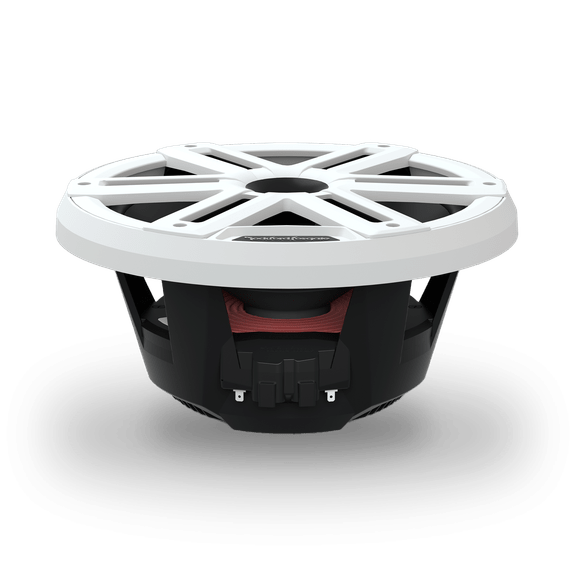

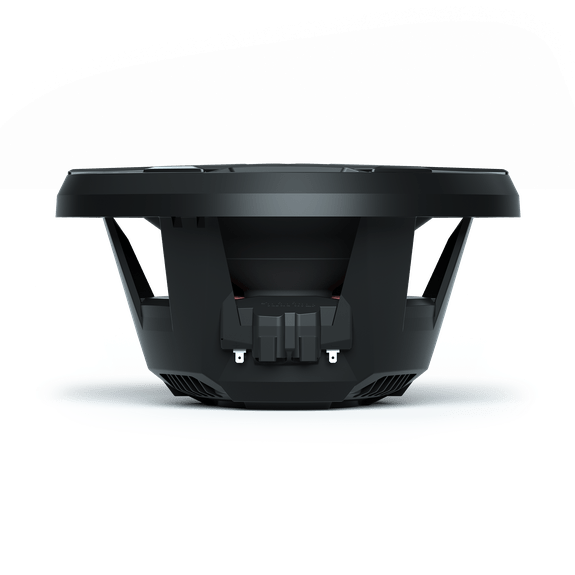

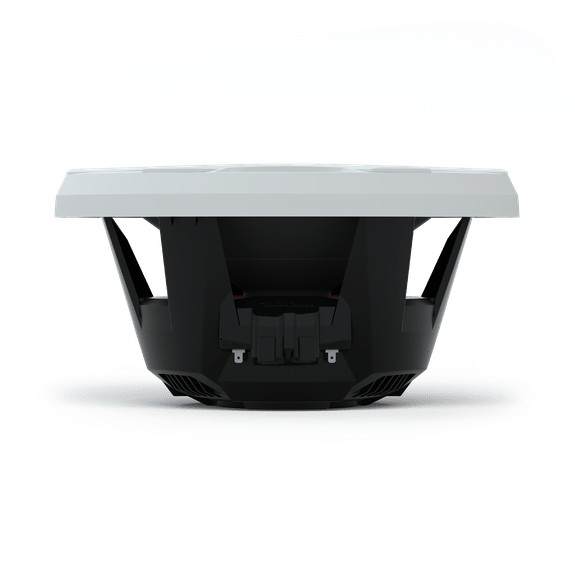

The M2 10" horn speaker uses a 1" (25 mm) high-efficiency horn tweeter with a 12dB/octave crossover, a fully sealed concealed crossover network and metallized polyester film capacitors. The cone body is injection-molded mineral-filled polypropylene with UV inhibitors, the surround is UV and salt-fog resistant TPE, and the frame is ultra-high-temperature PA66 with 30% glass fill and UV inhibitors.
Rockford Fosgate describes the 10" horn-loaded drivers as tuned for open-air environments.
Installation and Lighting

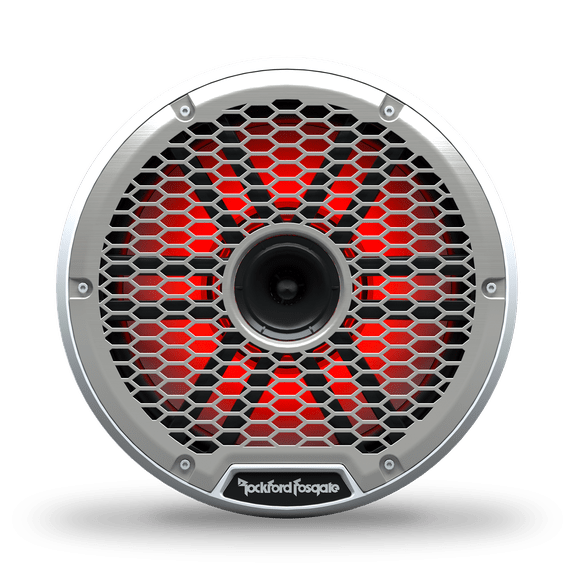

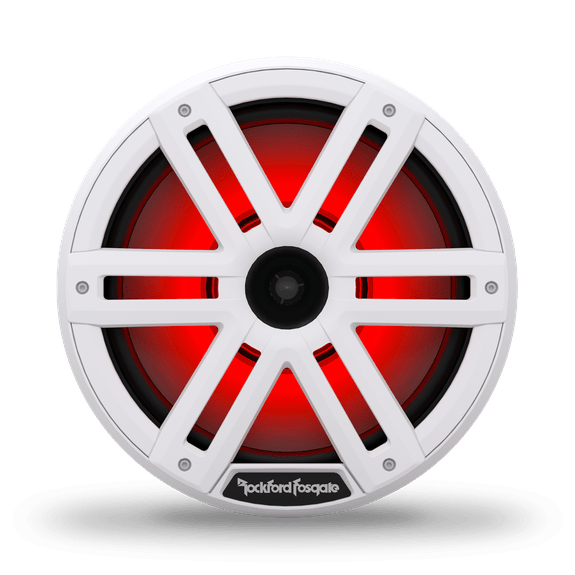

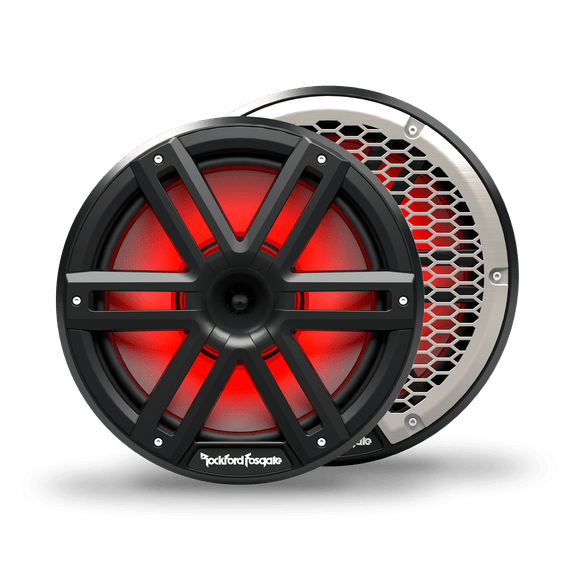

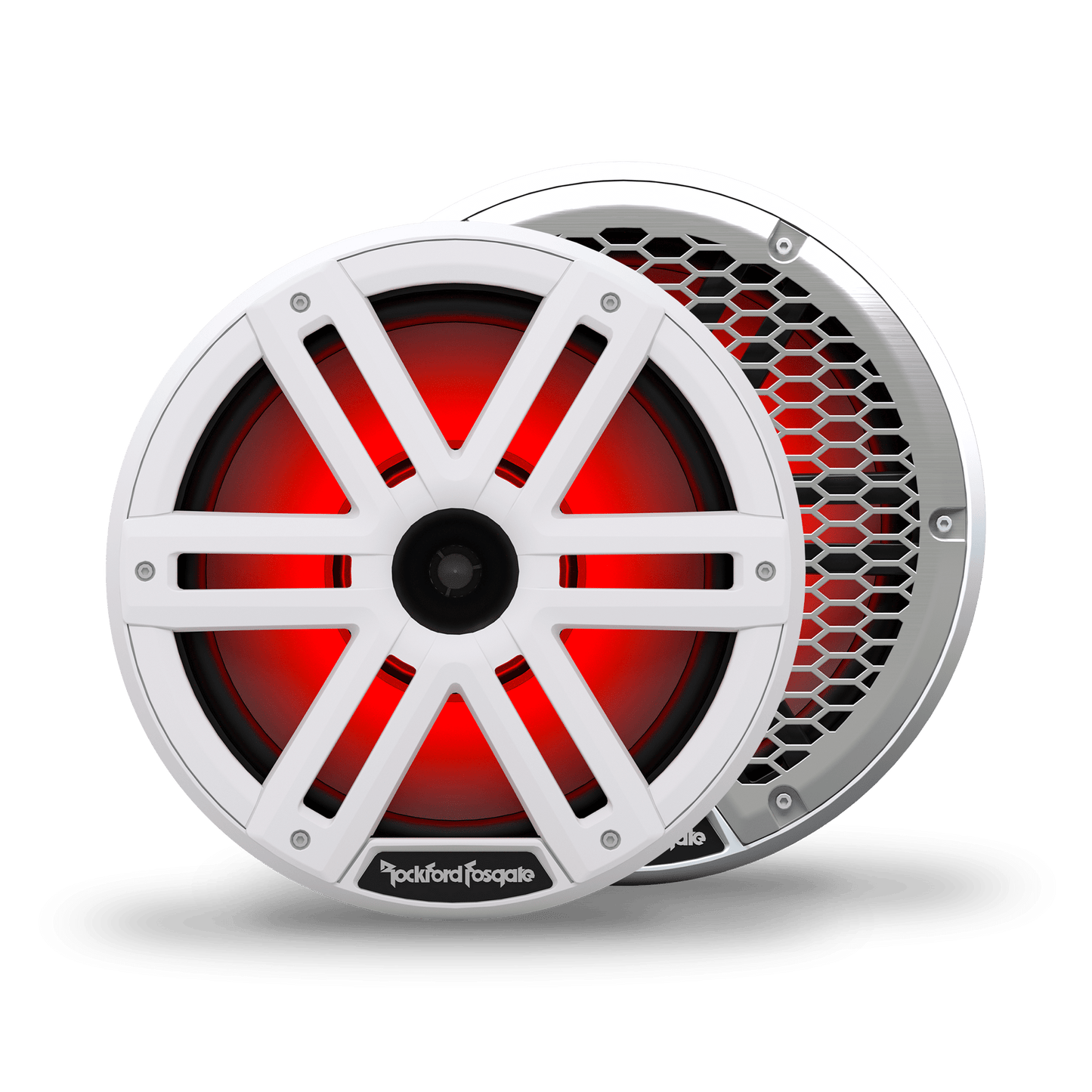

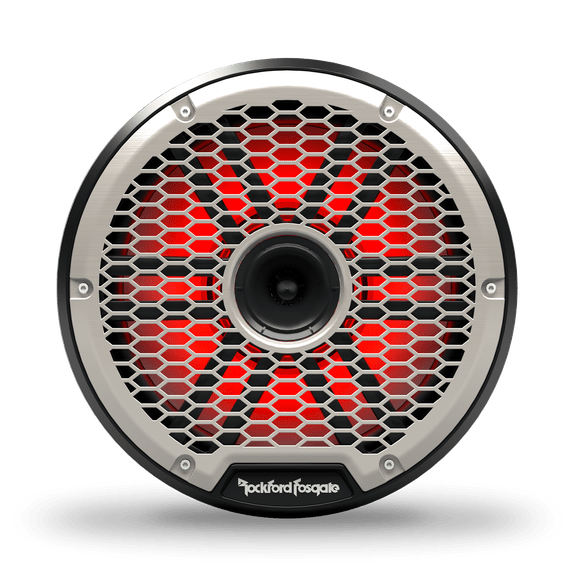

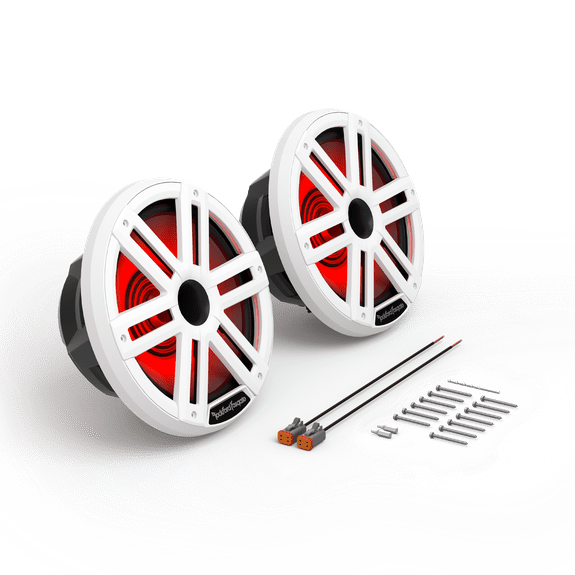

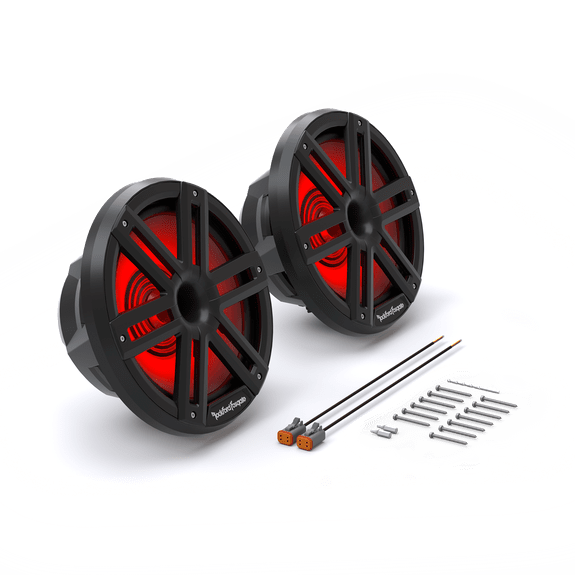

Mounting depth is 4.66" (118.4 mm). The box includes two 4-pin Deutsch harnesses, stainless grilles, white sport grilles, driver bits, a drill bit and 12 mounting screws. Check the mounting depth against your panel before cutting.
Lighting is a multiplexed RGB input with ultra-bright wide-angle LEDs. Adjust the colors with the optional Rockford Fosgate Color Optix controller and RF Connect app (sold separately). Plan amplifier power from the 4Ω, 300W RMS rating in our marine amplifiers.
Specifications
| Model | M2-10H |
| Speaker type | 2-way |
| Midrange size | 10" |
| Tweeter | 1" (25.4 mm) high-efficiency horn tweeter |
| Frequency response | 20 Hz - 25 kHz |
| Power handling | 300 Watts RMS / 1200 Watts peak |
| Impedance | 4-Ohm |
| Crossover | 12dB/Octave |
| Sensitivity | 94 dB (1W/1m), 97 dB (2.83V) |
| Midrange mounting depth | 4.66" (118.4 mm) |
| Shipping weight | 10.2 Lbs. (4.6 Kg) |
Related Paths
M2 10" Horn Speaker FAQ
Are these sold as a pair?
Yes, Rockford Fosgate sells the M2 10" horn speaker in pairs (2 each).
What is the mounting depth?
4.66" (118.4 mm). Confirm clearance behind your mounting surface.
How do I change the light colors?
Use the optional Rockford Fosgate Color Optix controller with the RF Connect app, sold separately.
What does the box include?
Two 4-pin Deutsch harnesses, stainless grilles, white sport grilles, driver bits, a drill bit and 12 mounting screws.
Is it water resistant?
Rockford Fosgate lists the M2 speakers as Element Ready and IPX6 water intrusion rated.
