Metra Install Bay 100 Amps Circuit Breaker Manual Reset (single)
PRODUCT INFORMATION
Metra Install Bay 100 Amps Circuit Breaker Manual Reset (single)
$48.99
Couldn't load pickup availability
Additional Payment Info
Metra Install Bay 100 Amps Circuit Breaker Manual Reset (single)
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews

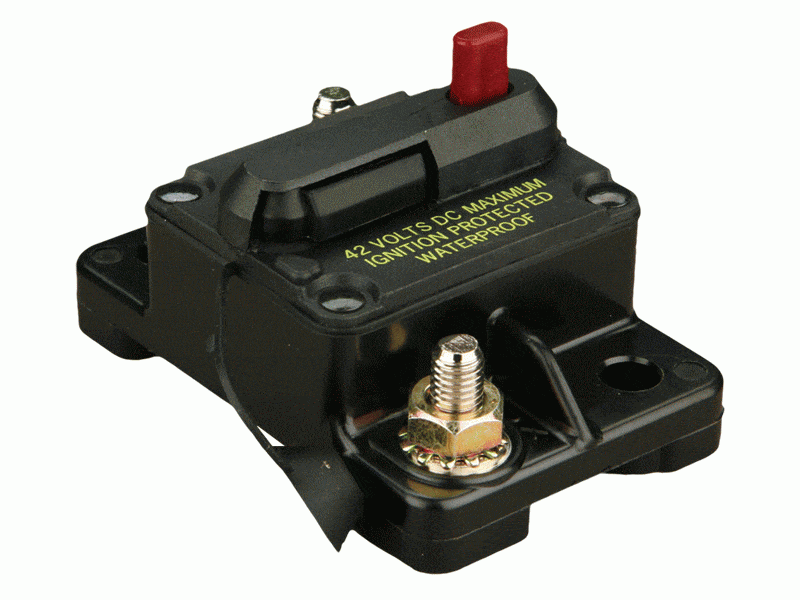

The Install Bay CB100MR is a 100 amp manual reset circuit breaker from Metra, sold here as a single unit. It protects the main power run on an aftermarket amplifier install and resets by hand after it trips.
Key Specs
- Rating: 100 A at 42 Vdc
- Type III manual reset with push-to-trip button
- Terminals: 1/4-28 threaded studs with SEMS nuts installed
- Flush mount, sealed housing described as waterproof
- Complies with SAE J1171 ignition protection
- Sold individually
Fitment and Installation Notes
Metra lists this breaker for auxiliary and accessory circuits and for battery charging systems that use battery isolators. Metra does not publish a wire gauge or dimensions, so confirm cable size against your amplifier setup before ordering.
