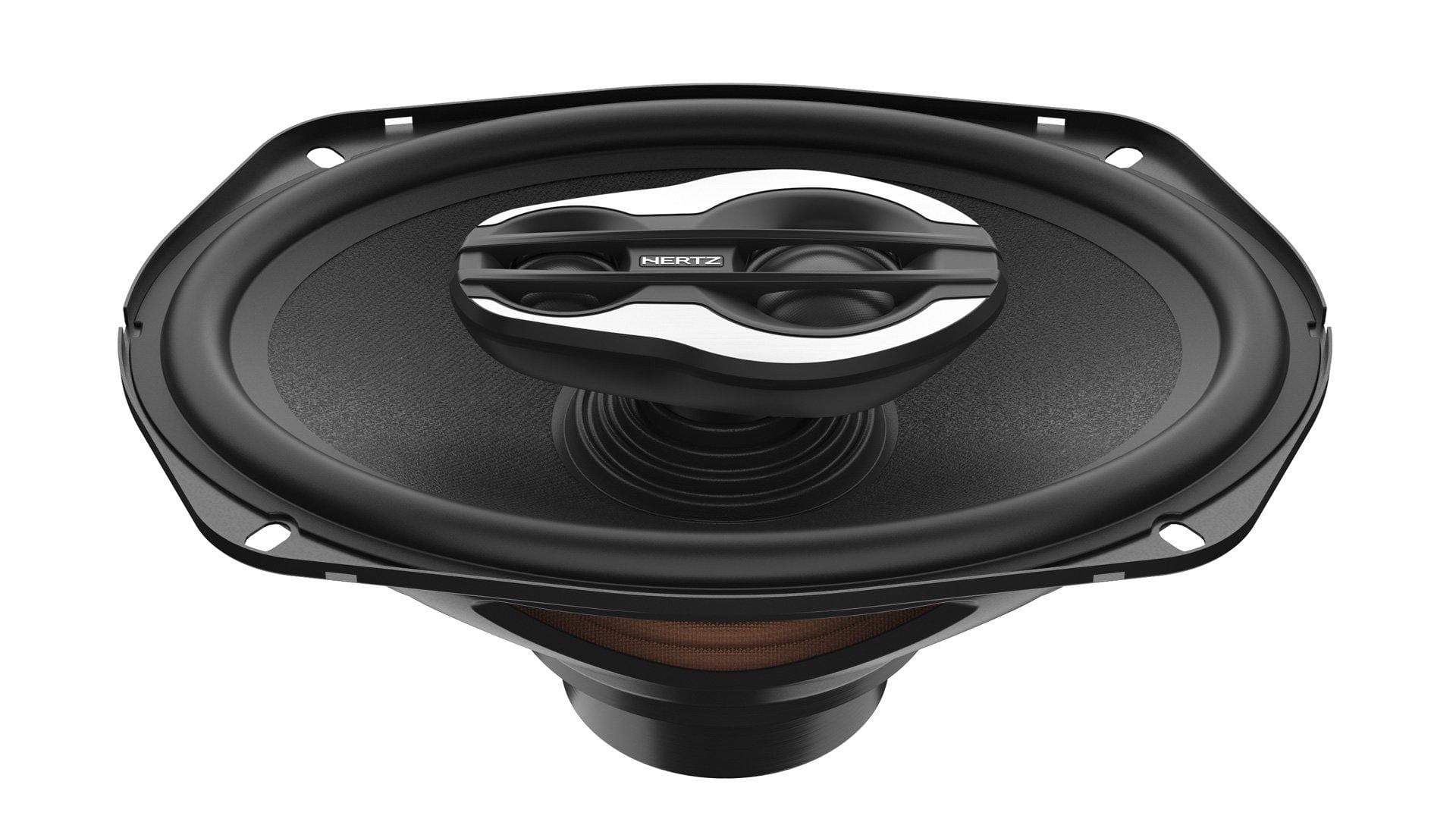

Hertz SX 690 NEO SPL COAXIAL

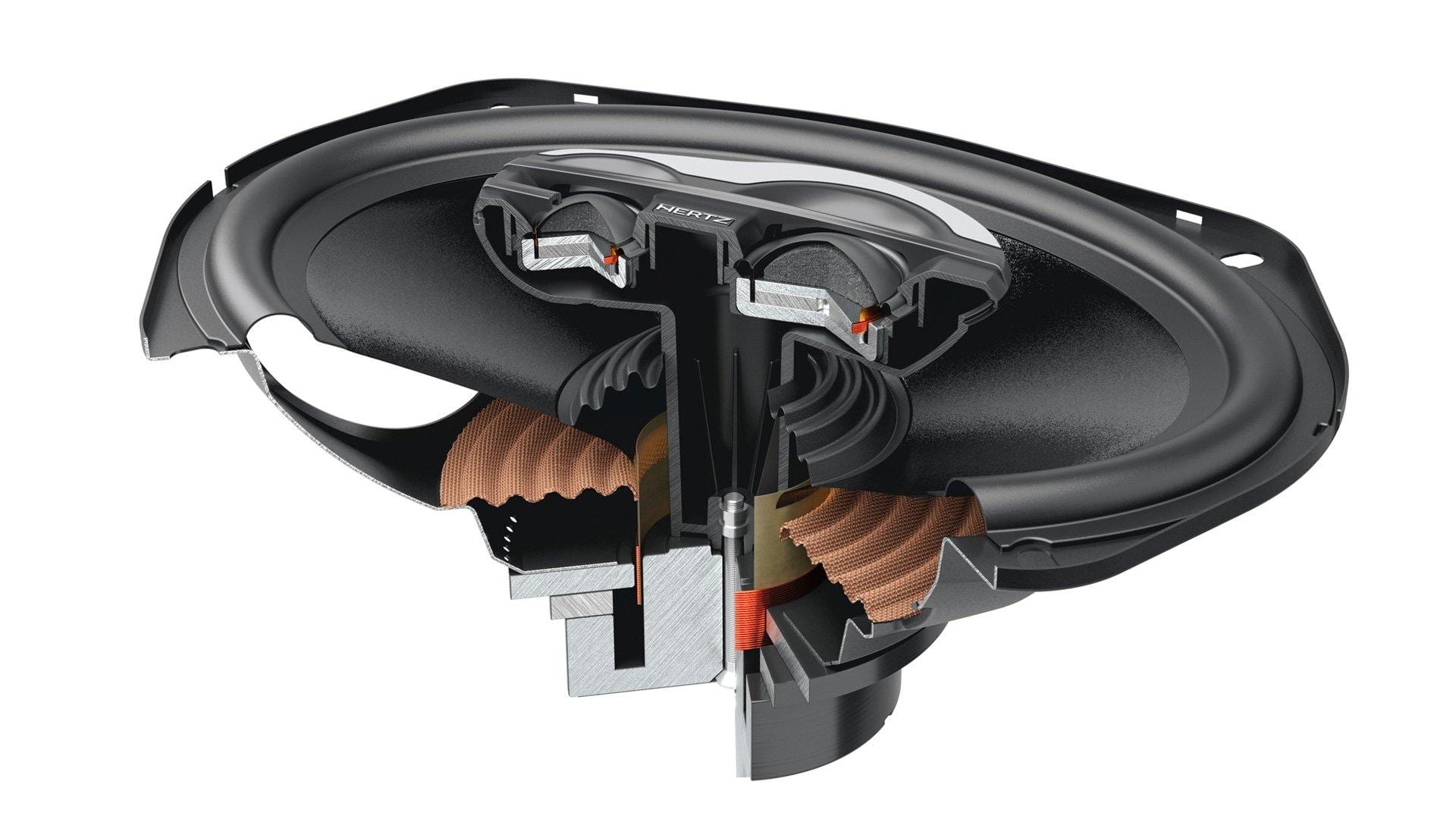

SX 690 is a real beast with an Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome supertweeter with resettable solid-state protection circuit. Cone are made with nature-proof high stiffness pressed-paper featuring innovative water/humidity resistant and anti-UV treatments. The double layer copper voice coil, wound on polyamide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.

Power Handling - Peak W	260
Power Handling - Continuous W	130
Impedance Ω	4
Frequency response Hz	65 ÷ 24k
Sensitivity dB SPL	94
Woofer size mm (in.)	in. 6 x 9
Midwoofer size mm (in.)	-
Tweeter size mm (in.)	29 (1.14)
Supertweeter size mm (in.)	20 (0.8)
Woofer Voice Coil Ø mm (in.)	38 (1.5)
Tweeter voice coil Ø mm (in.)	25 (1)
Woofer magnet	Special Neodymium N38 H
Midwoofer magnet	-
Tweeter magnet	Special Neodymium N38 H
Woofer cone	Water repellent pressed paper
Tweeter dome	Tetolon
Supertweeter dome	Tetolon
