Description:

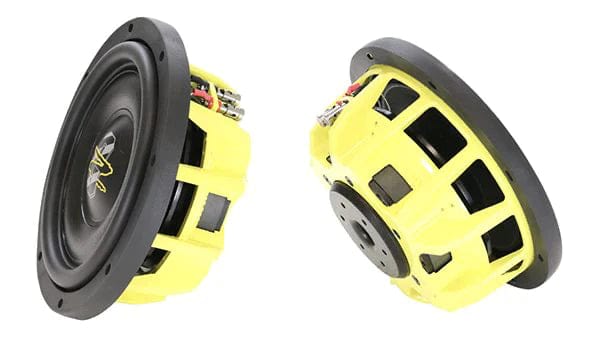

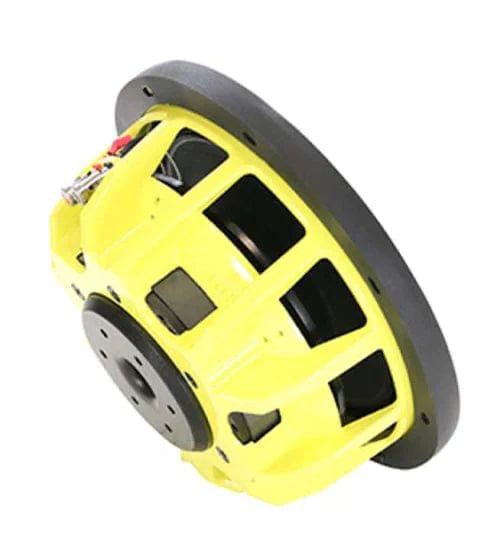

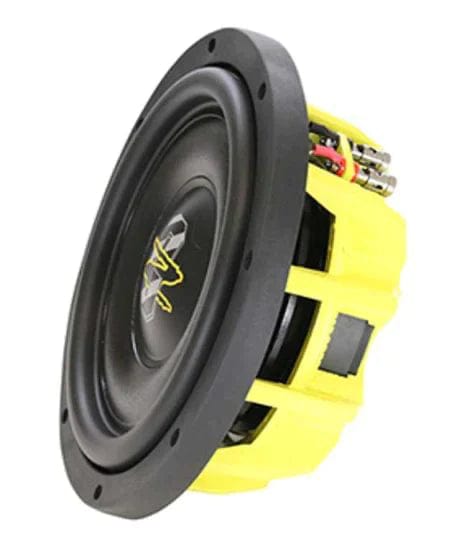

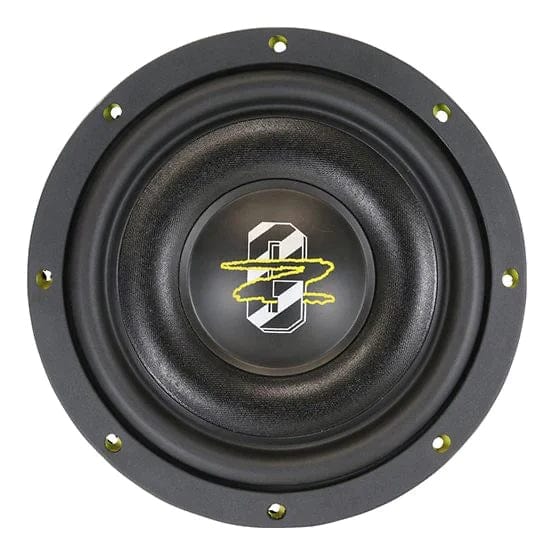

8″ high quality SPL subwoofer

1000 Watts SPL 8" Woofer

8″ high quality SPL subwoofer with reinforced paper cone

• 8″ high quality SPL subwoofer
• Klippel® optimized
• Reinforced paper cone
• Long stroke compound surround
• Solid aluminum cast basket
• 50 mm / 2″ copper voice coil
• Polycot spider
• IMPP dust cap with 3D structure logo
• Model. High-Quality SPL subwoofer

• Diameter. 20 cm / 8"

• Power Handling (RMS/SPL.). 500 / 1000 Watts

• Impedance. 2x 2 Ohms

• Efficiency. 84.6 dB

• Power Recommendation. 400 – 1000 Watts

• Voice Coil. 50 mm / 2" copper

• Membran Layout. Reinforced paper

• Max. Excursion (Xmax). 22 mm / 0.866"

• Mounting Ø. 182 mm / 7.17"

• Mounting Depth. 133 mm / 5.24"

• Resonance Frequency (Fs). 45.8 Hz

• Overall Qaulity (Qts). 0.36

• Equiv. Air Volume (Vas). 7.4 L / 0.26 cu.ft.
