DB Drive EX6NCX 6.5" 2‑Way NEO Loudspeaker

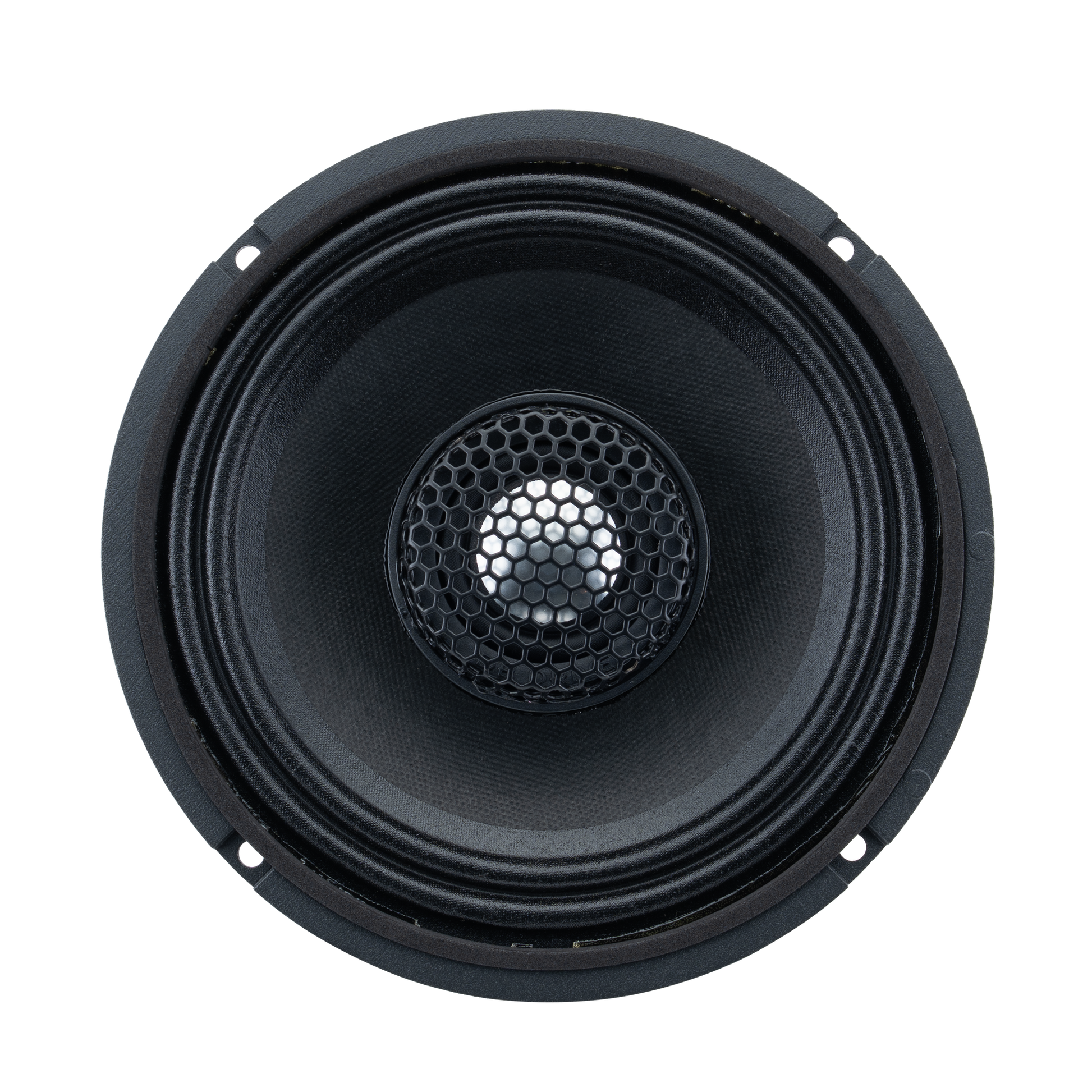

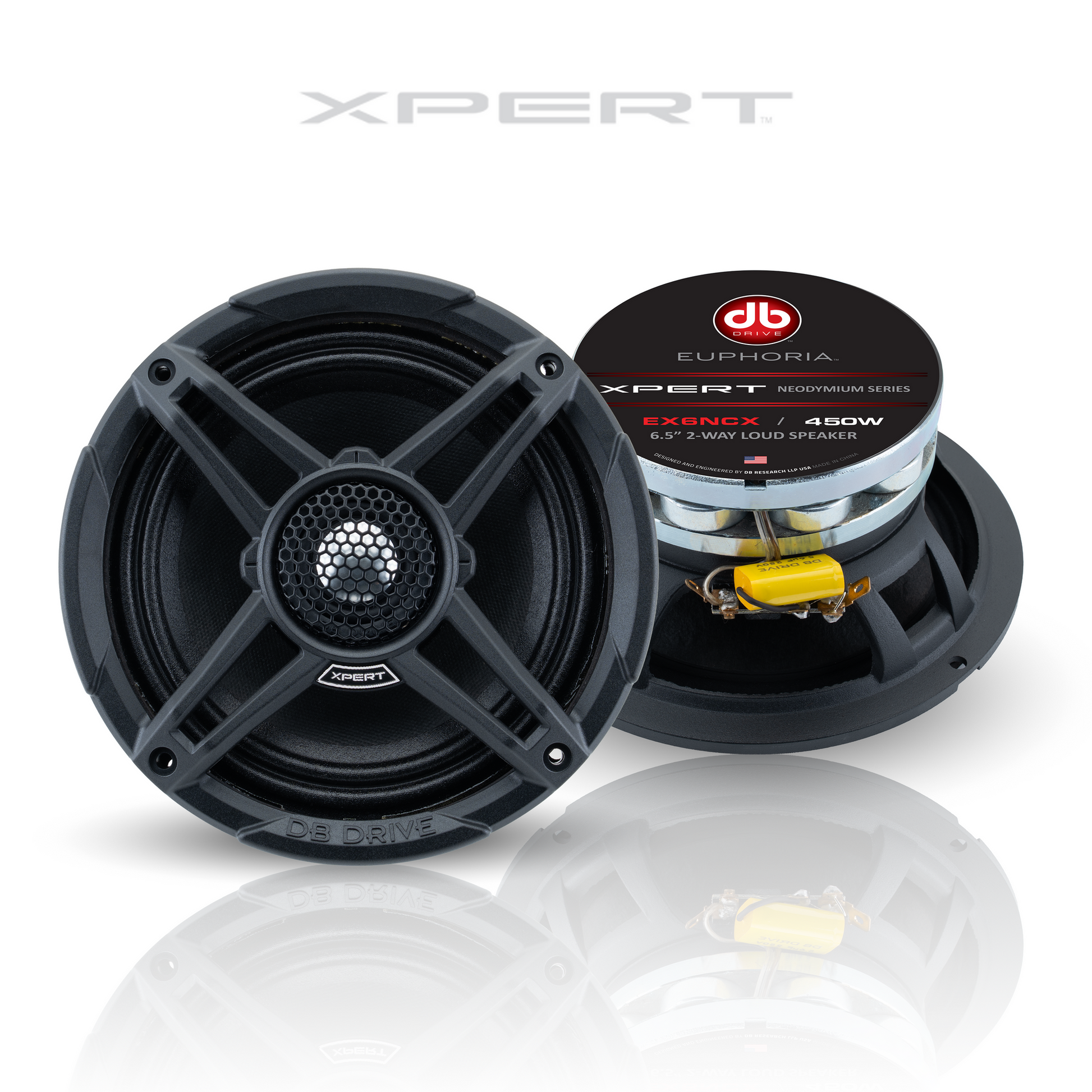

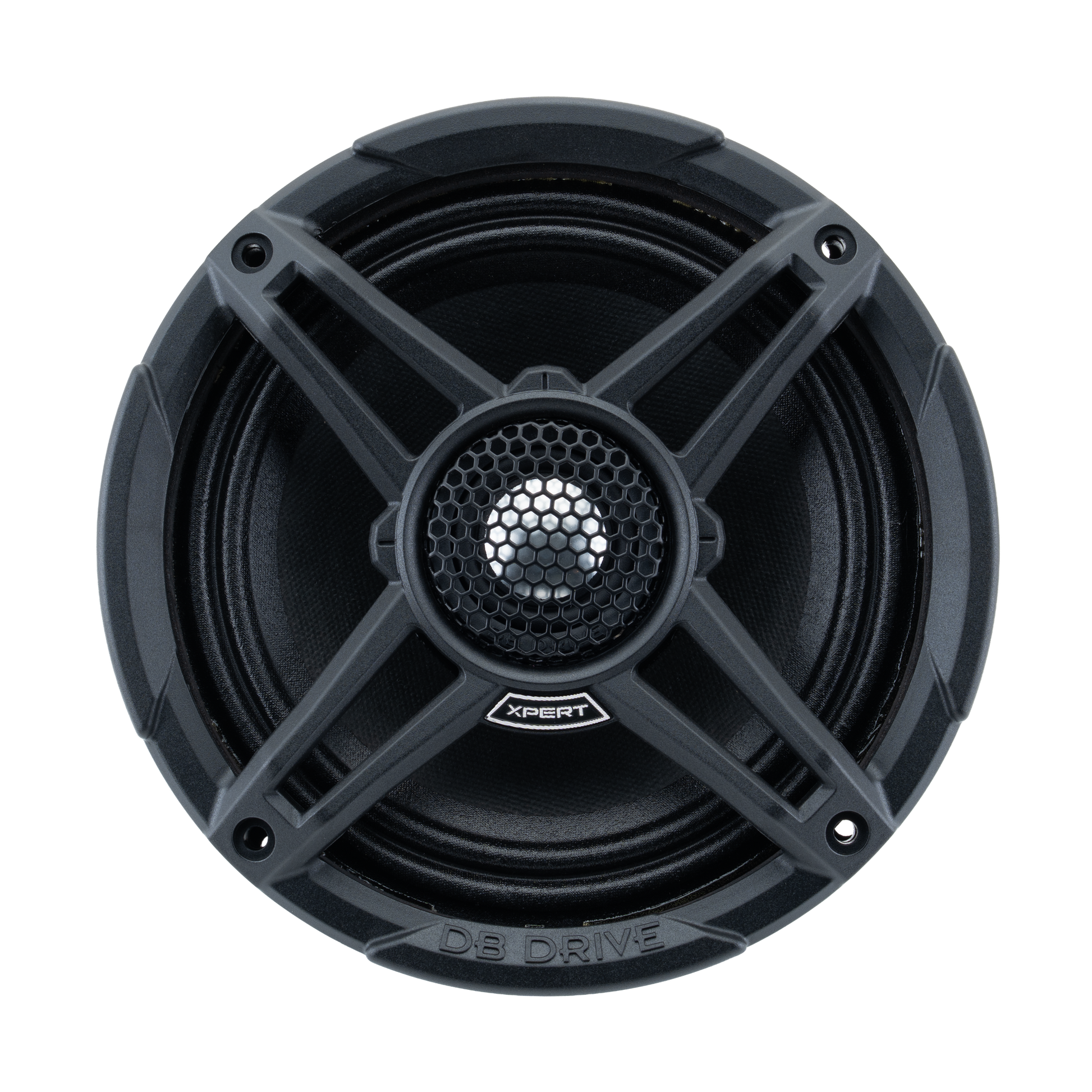

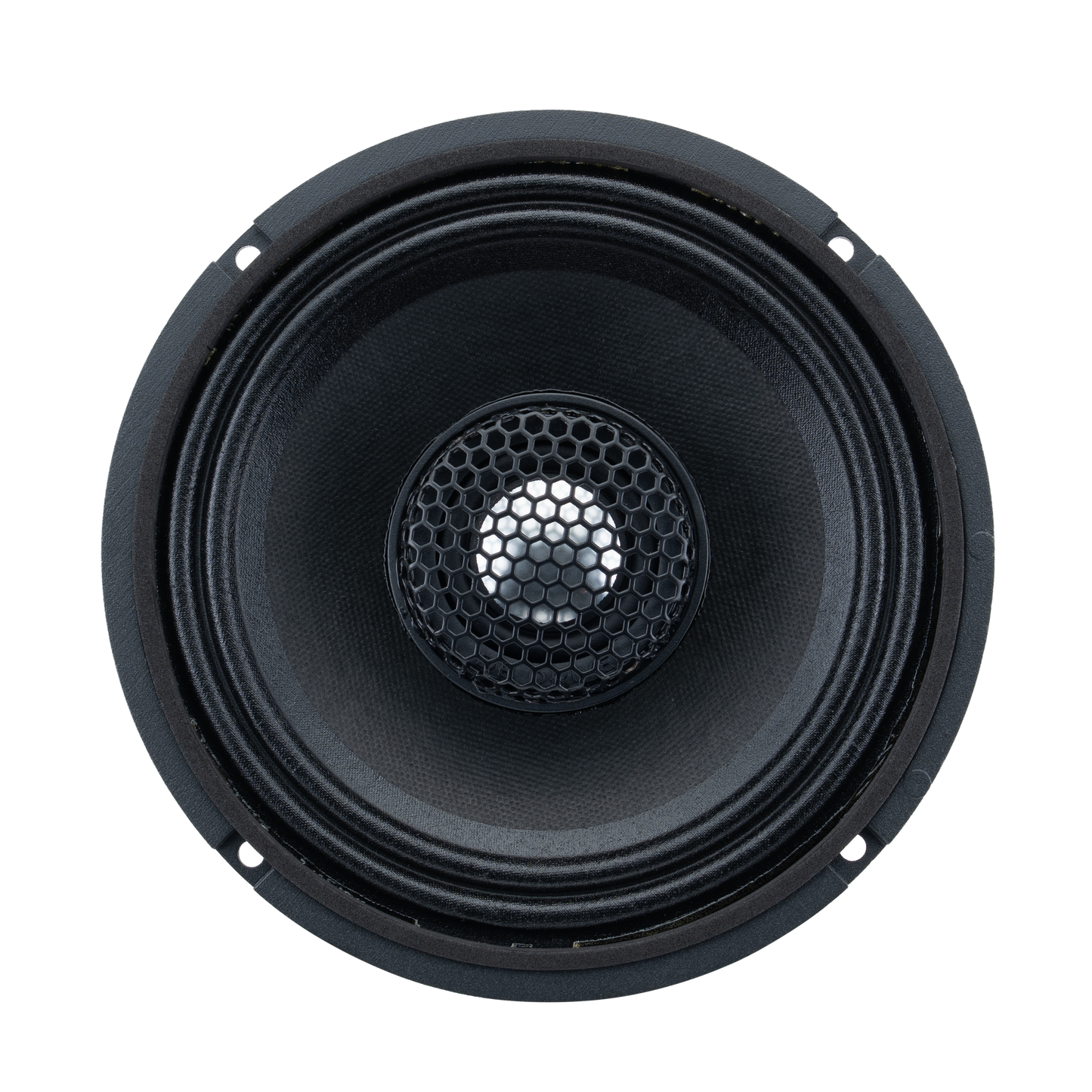

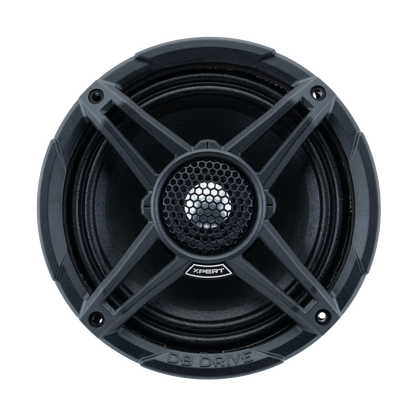

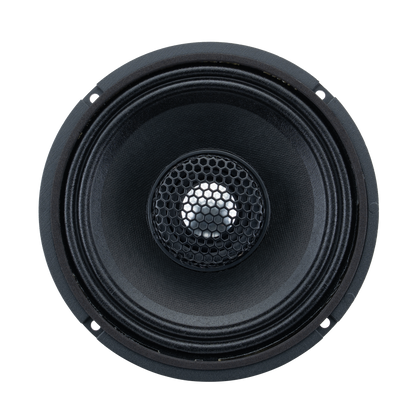

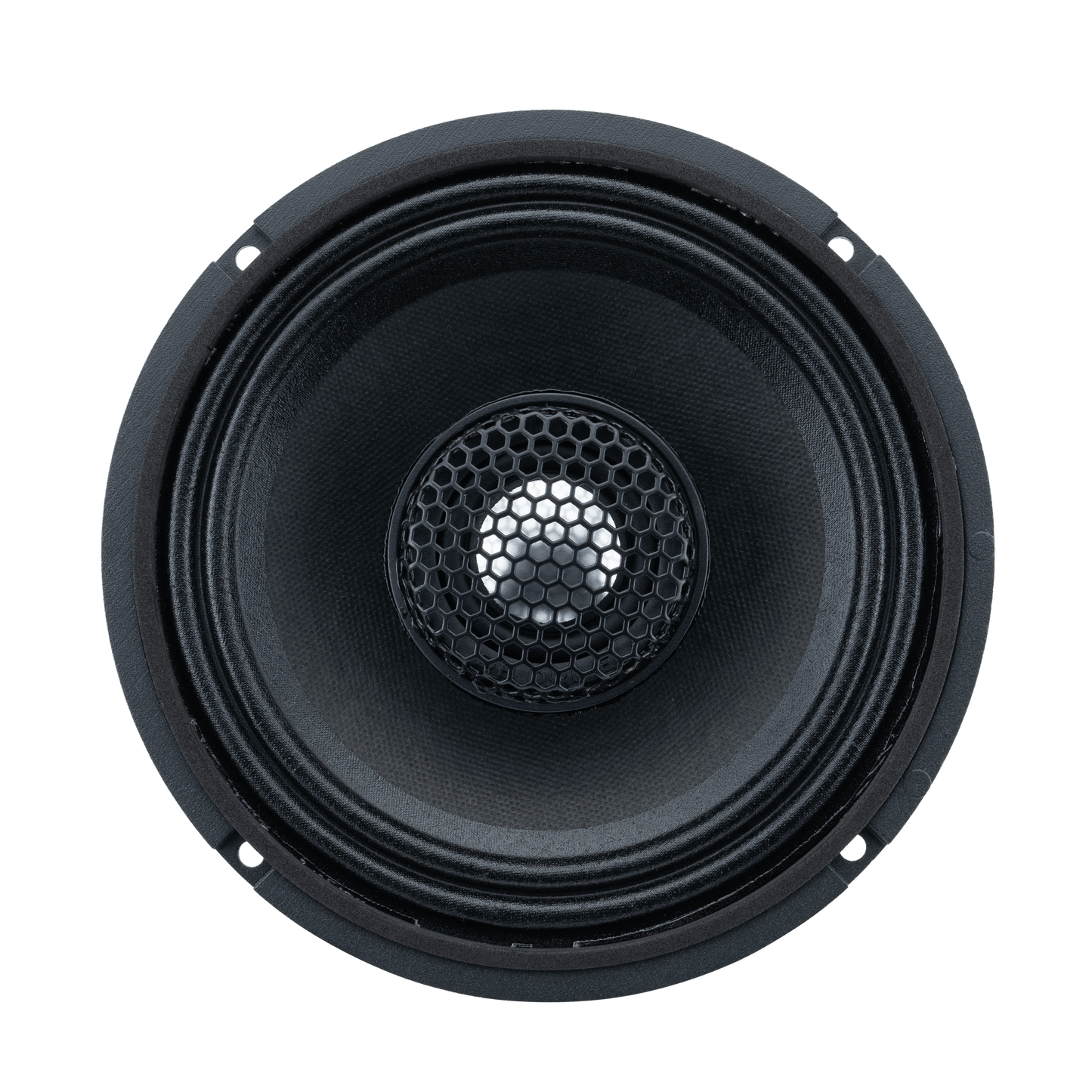

The DB Drive EX6NCX is a pair of 6.5" 2-way NEO loudspeakers with a wide-dispersion 1.25" aluminum dome tweeter and an IP52 paper cone. What sets it apart is the 2" voice coil and 97.6dB sensitivity, rated 225W (450W dynamic) at 4 ohm, and DB Drive does not list a specific motorcycle fitment for it.
High-sensitivity 6.5" NEO coaxial pair
A 4 ohm pair rated for 225W (450W dynamic) with grills included.
- 225W (450W dynamic), 4 ohm
- 97.6dB sensitivity; 85Hz-19kHz
- 2" voice coil, neodymium ring magnet
Key Product Details
| Product | DB Drive EX6NCX 6.5" 2-Way NEO Loudspeaker |
| Brand | DB Drive |
| Size | 6.5" |
| Type | 2-way with 1.25" aluminum dome tweeter |
| Sold | As a pair |
| Power handling | 225W (450W dynamic) |
| Impedance | 4 ohm |
| Fitment | No specific motorcycle fitment listed by DB Drive |
System Planning
Plan amplifier power around the 4 ohm impedance and the 225W rating per speaker. DB Drive does not list a specific motorcycle fitment for this speaker, so confirm the cutout and mounting depth in your lid, fairing or saddlebag before ordering.
Specifications
| Power handling | 225W (450W dynamic) |
| Nominal impedance | 4 ohm |
| Sensitivity | 97.6dB (1W/1m) |
| Frequency response | 85Hz-19kHz |
| Voice coil | 2" (51mm) |
| Magnet | Neodymium ring magnet |
| Cone | IP52 paper cone with treated cloth surround |
| Tweeter | Wide-dispersion 1.25" aluminum dome |
| Basket | Die-cast aluminum with radial venting |
| Grills | Included |
Related Paths
DB Drive EX6NCX FAQ
What is the power handling of the DB Drive EX6NCX?
It is rated for 225W, with 450W dynamic power handling, at 4 ohm.
Is the EX6NCX sold as a pair?
Yes. It is sold as a pair.
What is the sensitivity and frequency response?
Sensitivity is 97.6dB (1W/1m) and the response is 85Hz-19kHz.
What is it built from?
It has an IP52 paper cone with a treated cloth surround, a 2" voice coil with a neodymium ring magnet, and a die-cast aluminum basket with radial venting.
Does it list a motorcycle fitment?
No. DB Drive does not list a specific motorcycle fitment, so confirm cutout and mounting depth before ordering.
