Elite Sounds ES1250 10" 1250W RMS D4 Bagger Subwoofer
The Elite Sounds ES1250-3W-10D4 is a 10-inch, 1250-watt RMS dual 4-ohm subwoofer engineered specifically for high-output fiberglass bagger audio systems. It combines serious power handling with a compact 5-inch mounting depth for custom motorcycle saddlebag installations where space, output and durability all matter.
A water-resistant paper cone, carbon-fiber dust cap, 3-inch voice coil and heavy-duty push terminals make the ES1250 a purpose-built option for properly designed ported bagger systems rather than a generic automotive subwoofer adapted to motorcycle use.
High-Output Bass for Serious Bagger Builds
The ES1250 is optimized for fiberglass bagger audio applications and can be used in properly prepared stock or aftermarket saddlebags. It requires a correctly designed ported enclosure and should be matched with appropriate amplifier power, enclosure volume, port area and system tuning.
Key Specifications
Built Specifically for Bagger Audio
Motorcycle subwoofer installations create a very different set of packaging and acoustic challenges than conventional automotive systems. The Elite Sounds ES1250 is engineered around fiberglass bagger audio applications where usable saddlebag space, enclosure construction, mounting depth and high acoustic output must work together.
1250 Watts RMS
High RMS power handling gives properly designed systems the output capability needed to add meaningful low-frequency impact to a high-output motorcycle audio build.

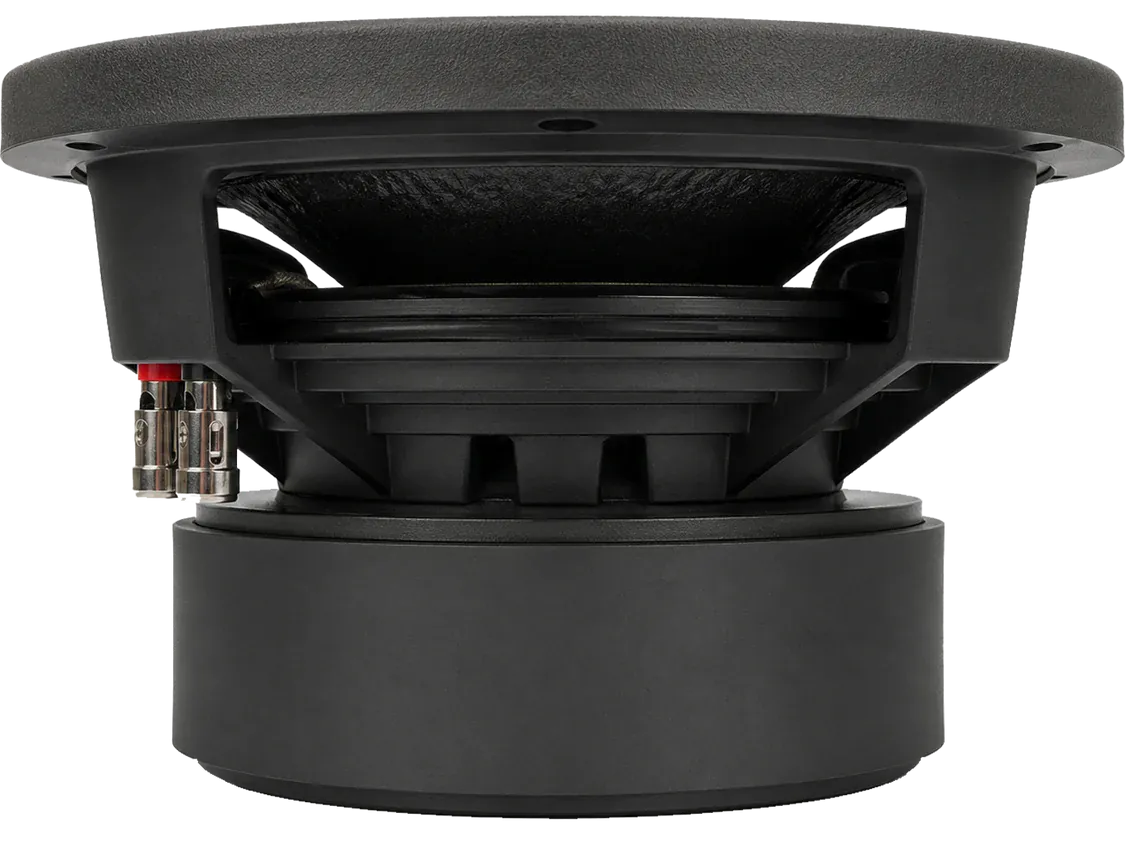

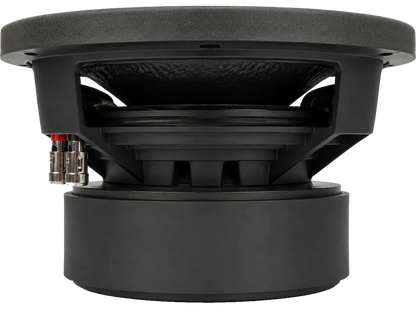

5-Inch Mounting Depth
The relatively compact mounting depth makes the ES1250 easier to integrate into purpose-built saddlebag enclosures where available depth is limited.
Dual 4-Ohm Voice Coils
Dual 4-ohm coils provide useful wiring flexibility when matching one or multiple ES1250 subwoofers with a compatible motorcycle audio amplifier.
Water-Resistant Cone and Carbon-Fiber Dust Cap
Water-Resistant Paper Cone
The cone is designed with water resistance appropriate for the demanding environment encountered in motorcycle bagger audio installations.

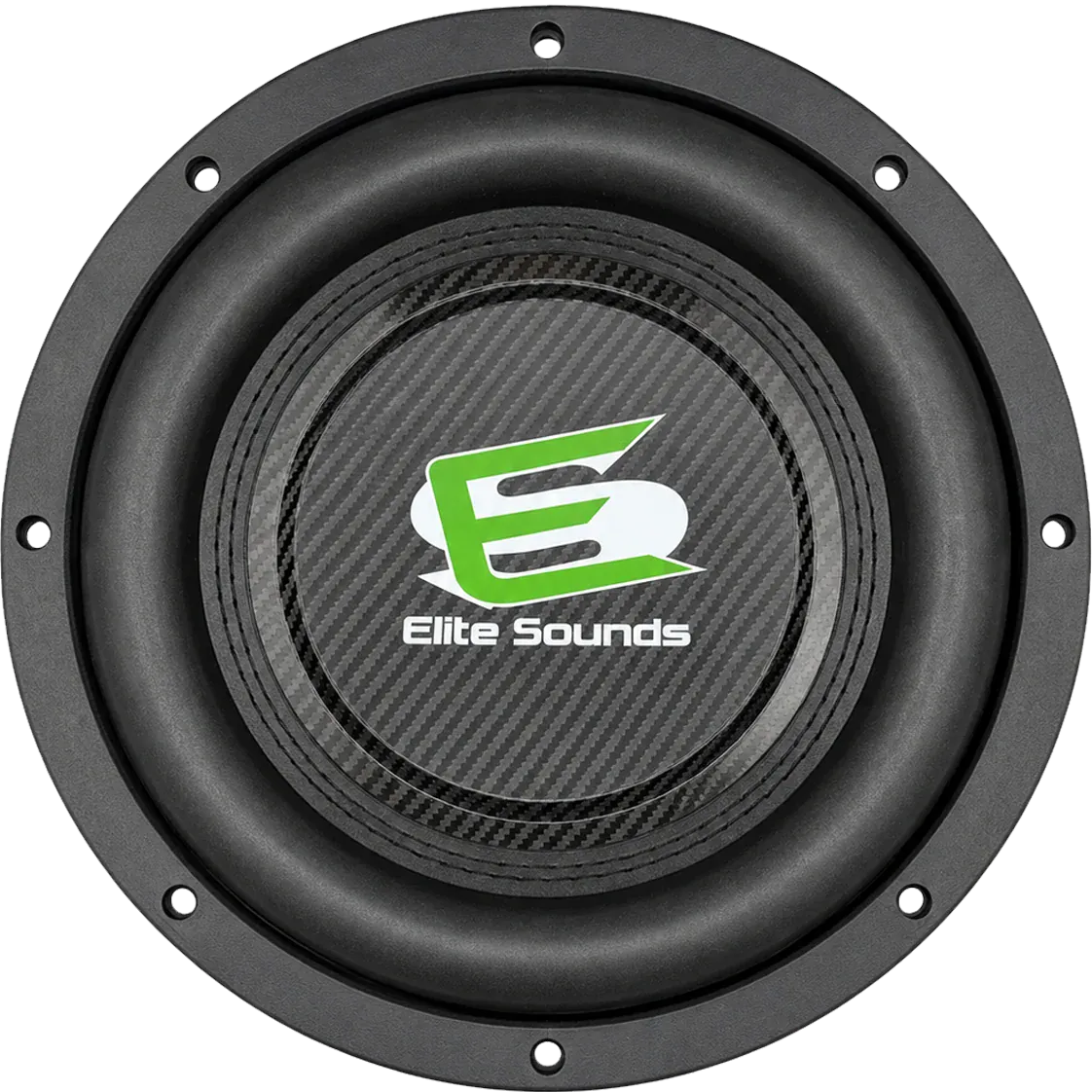

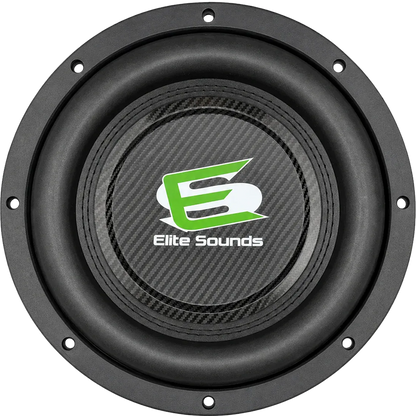

Carbon-Fiber Dust Cap
A carbon-fiber dust cap adds stiffness and gives the ES1250 the distinctive high-performance appearance visible through custom bagger installations.
3-Inch Voice Coil and Heavy-Duty Terminals
3-Inch Voice Coil
The large 3-inch voice coil is designed to support the ES1250's 1250-watt RMS power rating when the subwoofer is installed, powered and tuned correctly.
Push-Terminal Connections
Heavy-duty push terminals provide secure speaker-wire connections and simplify installation inside custom saddlebag enclosures.
Ported Saddlebag Installation Required
The Elite Sounds ES1250 is designed for use in a properly engineered ported enclosure. Installing the driver into an unmodified or sealed saddlebag without the correct enclosure design is not the intended application.
Stock Bags
The driver can be incorporated into properly modified factory-style saddlebags when sufficient mounting space, enclosure volume, reinforcement and porting are provided.
Aftermarket Bags
Custom and aftermarket fiberglass bags can also be used when the enclosure is built around the subwoofer's physical and acoustic requirements.
Ported Design
Port area, enclosure volume and tuning must be planned as part of the complete system rather than treating the saddlebag as a simple speaker mounting location.
Designed for Rider-Bike Bagger Systems
The ES1250 is not limited to extreme show or competition builds. Elite Sounds designed this platform for high-output rider-bike applications using properly prepared stock or aftermarket bags.
That makes it particularly useful for motorcycles where the goal is substantial low-frequency output without moving into the greater mounting-depth and system demands of a larger extreme-output subwoofer platform.
ES450 and ES3000 Design Influence
Elite Sounds describes the 1250-watt platform as a hybrid positioned between the company's ES450 and ES3000 designs. The result is a motorcycle-focused 10-inch driver aimed at riders who need considerably more low-frequency capability than a conventional mid-bass woofer while retaining a compact 5-inch mounting depth.
Amplifier and Wiring Considerations
A 1250-watt RMS subwoofer requires an amplifier and electrical system selected around the actual final impedance and number of subwoofers in the system.
Single D4 Subwoofer
A single dual 4-ohm driver can be wired according to the amplifier configuration and target impedance supported by the complete system.
Multiple Subwoofers
Multiple ES1250 drivers create additional wiring possibilities. Final impedance must remain within the amplifier manufacturer's supported operating range.
Electrical Support
High-power motorcycle subwoofer systems may require upgraded power and ground wiring, charging-system evaluation and battery capacity appropriate for the amplifier load.
DSP and System Tuning
Proper DSP setup is critical in a motorcycle subwoofer system. Gain structure, crossover frequencies, polarity, equalization, limiting and integration with the rest of the system should be established after the enclosure and amplifier configuration are finalized.
Complete Specifications
Fitment and Ordering Notes
- This is a universal custom-installation motorcycle audio subwoofer.
- It is not a direct drop-in replacement for every Harley-Davidson saddlebag.
- Verify at least 5.00 inches of usable mounting depth before fabrication.
- A properly designed ported enclosure is required.
- Confirm available enclosure volume and port location before cutting the bags.
- Reinforce fiberglass or factory-style bags as required by the installation.
- Verify amplifier impedance compatibility before wiring the dual 4-ohm voice coils.
- Match amplifier output to the complete subwoofer configuration and electrical system.
- Protect all speaker wiring from water, abrasion, exhaust heat and suspension movement.
- Professional enclosure design, installation and DSP tuning are strongly recommended.
Elite Sounds ES1250 FAQ
How much power does the Elite Sounds ES1250 handle?
The 10-inch ES1250-3W-10D4 is rated for 1250 watts RMS.
What impedance is this version?
This model uses dual 4-ohm voice coils.
How deep is the Elite Sounds ES1250?
Elite Sounds lists a 5.00-inch mounting depth.
Can it be installed in Harley-Davidson saddlebags?
It is designed specifically for custom fiberglass bagger audio applications and can be integrated into properly prepared stock or aftermarket bags when the required space, enclosure construction and porting are provided.
Does it require a ported bag?
Yes. Elite Sounds specifies a ported-bag installation for this subwoofer.
Is the cone waterproof?
Elite Sounds specifies a water-resistant paper cone. Water-resistant should not be interpreted as waterproof or submersible.
What size voice coil does it use?
The ES1250 uses a 3-inch voice coil.
What is the dust cap made from?
The dust cap is carbon fiber.
Is this sold individually or as a pair?
This listing is for one Elite Sounds ES1250 subwoofer.
Can Garage Bagger Stereo help design the complete system?
Yes. Garage Bagger Stereo can help plan amplifier power, enclosure requirements, bag fabrication, electrical support and DSP integration for a complete motorcycle subwoofer system.
