DS18 PRO-RY10.4NMB - 10" Pro Ryder Neo Water Resistant Mid-Bass Woofer (Single)

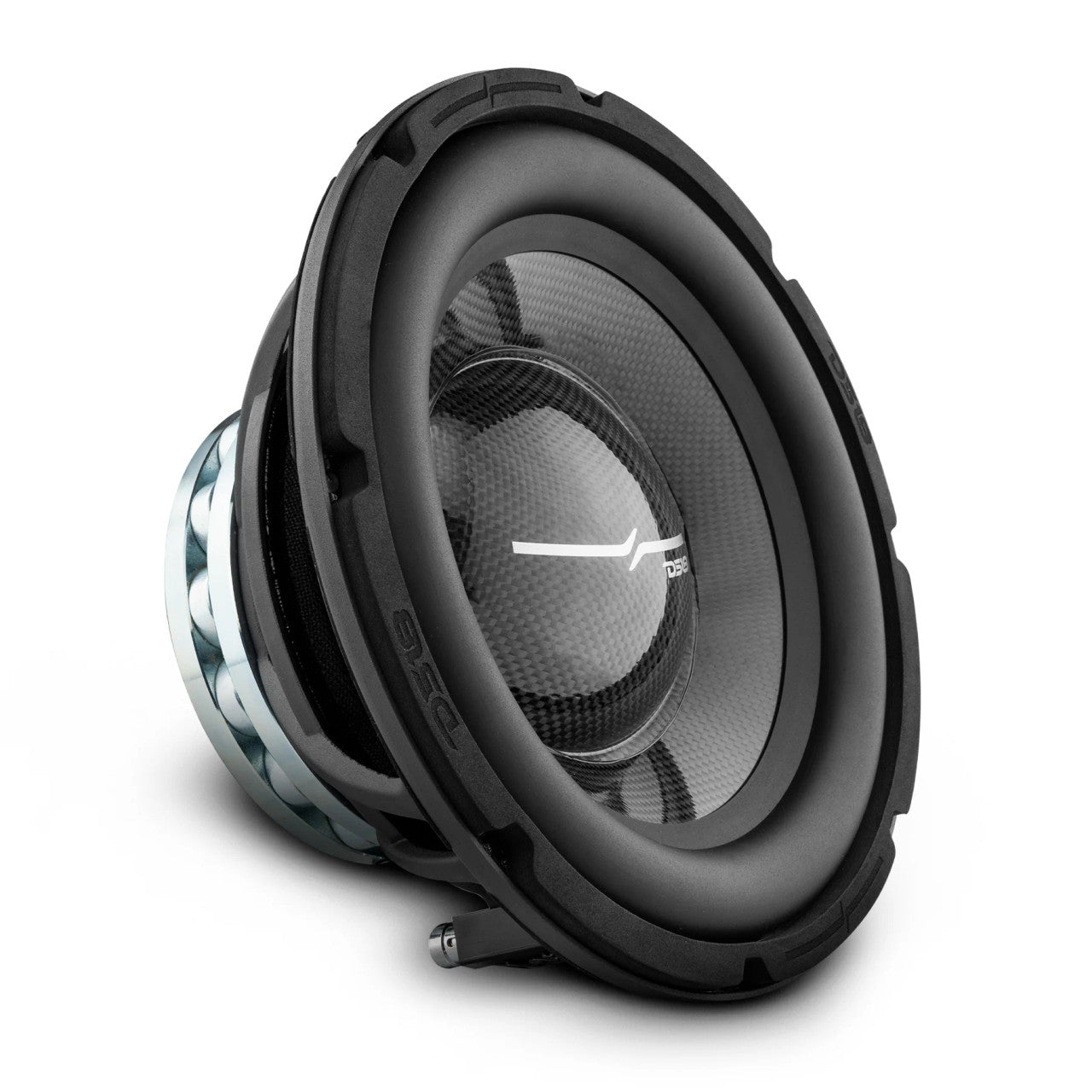

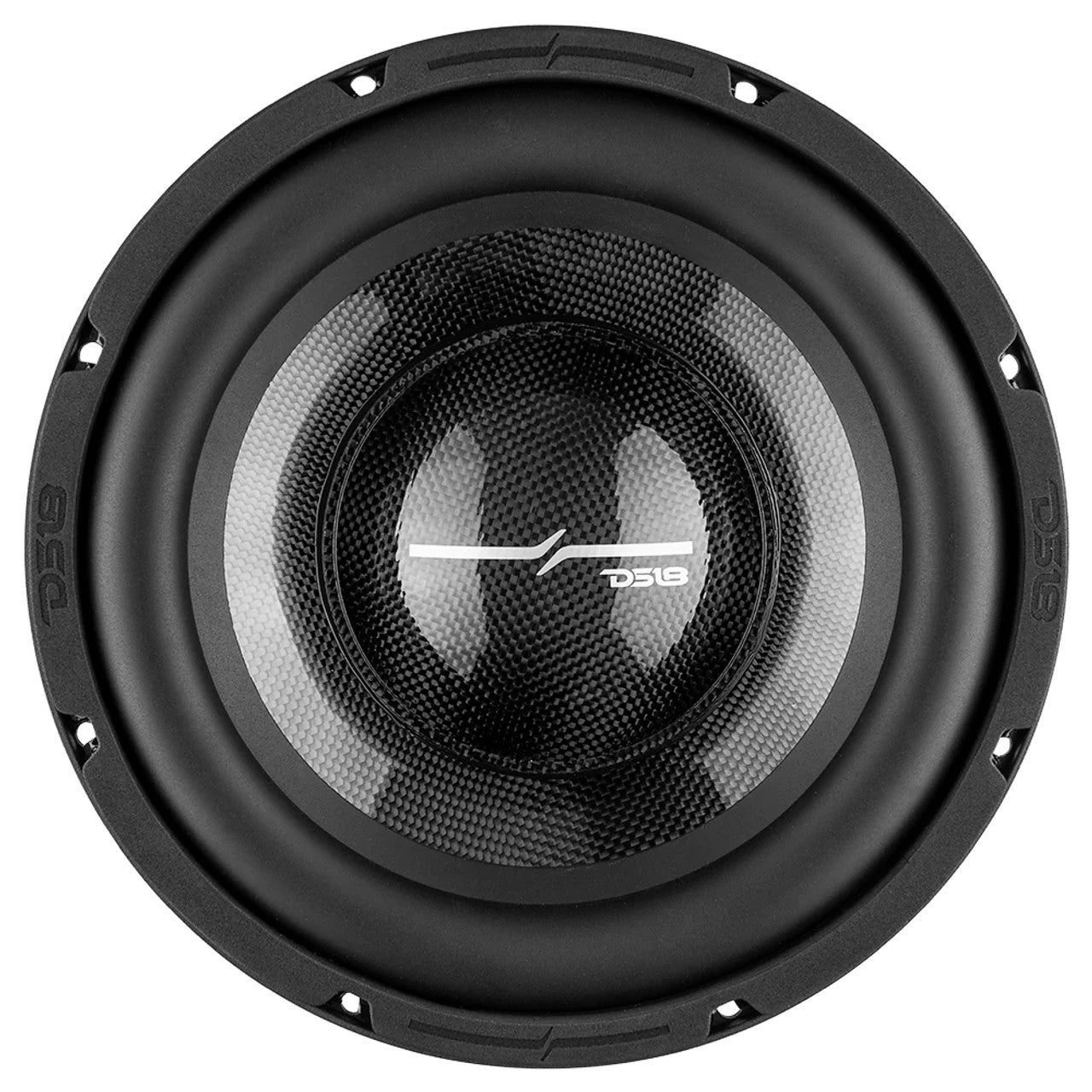

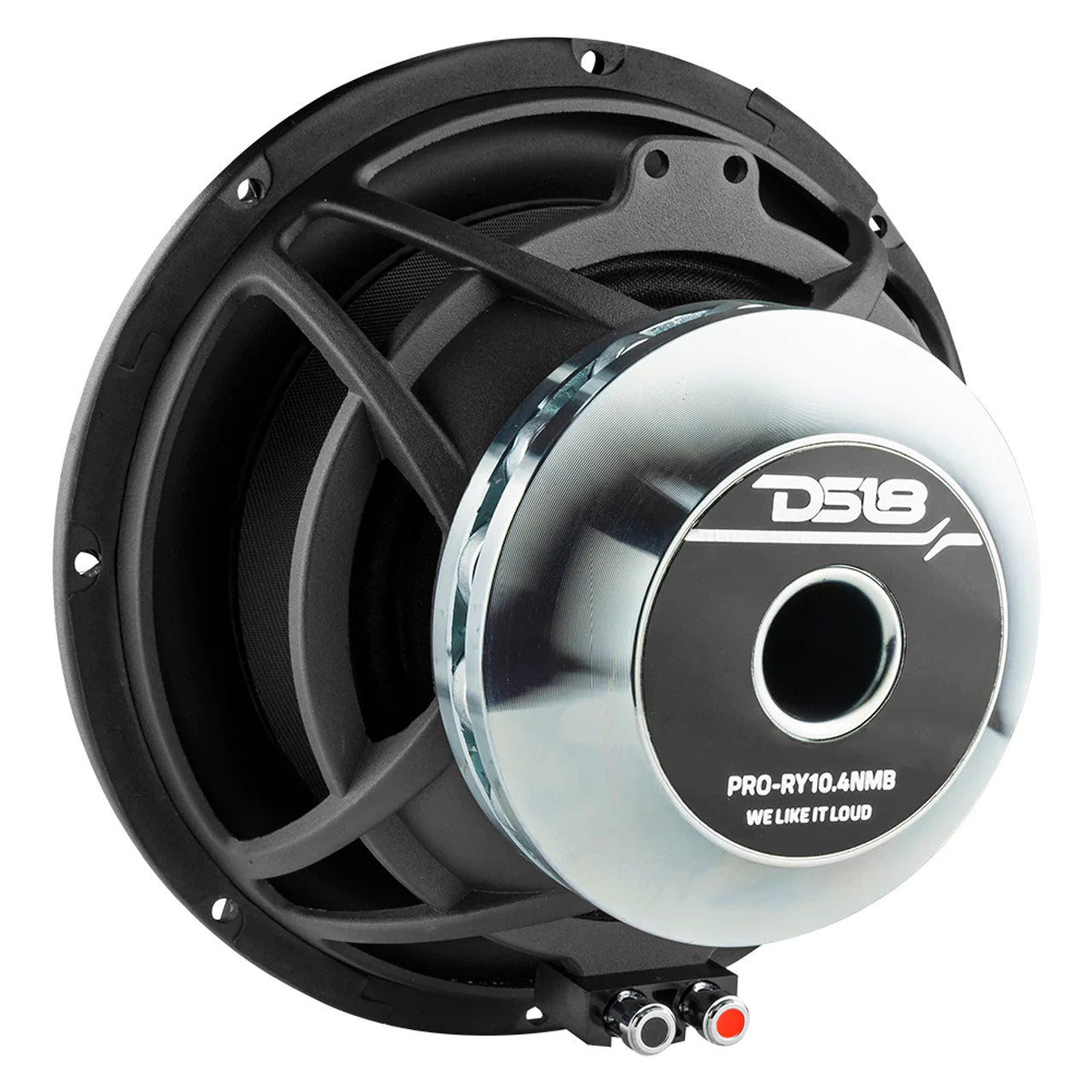

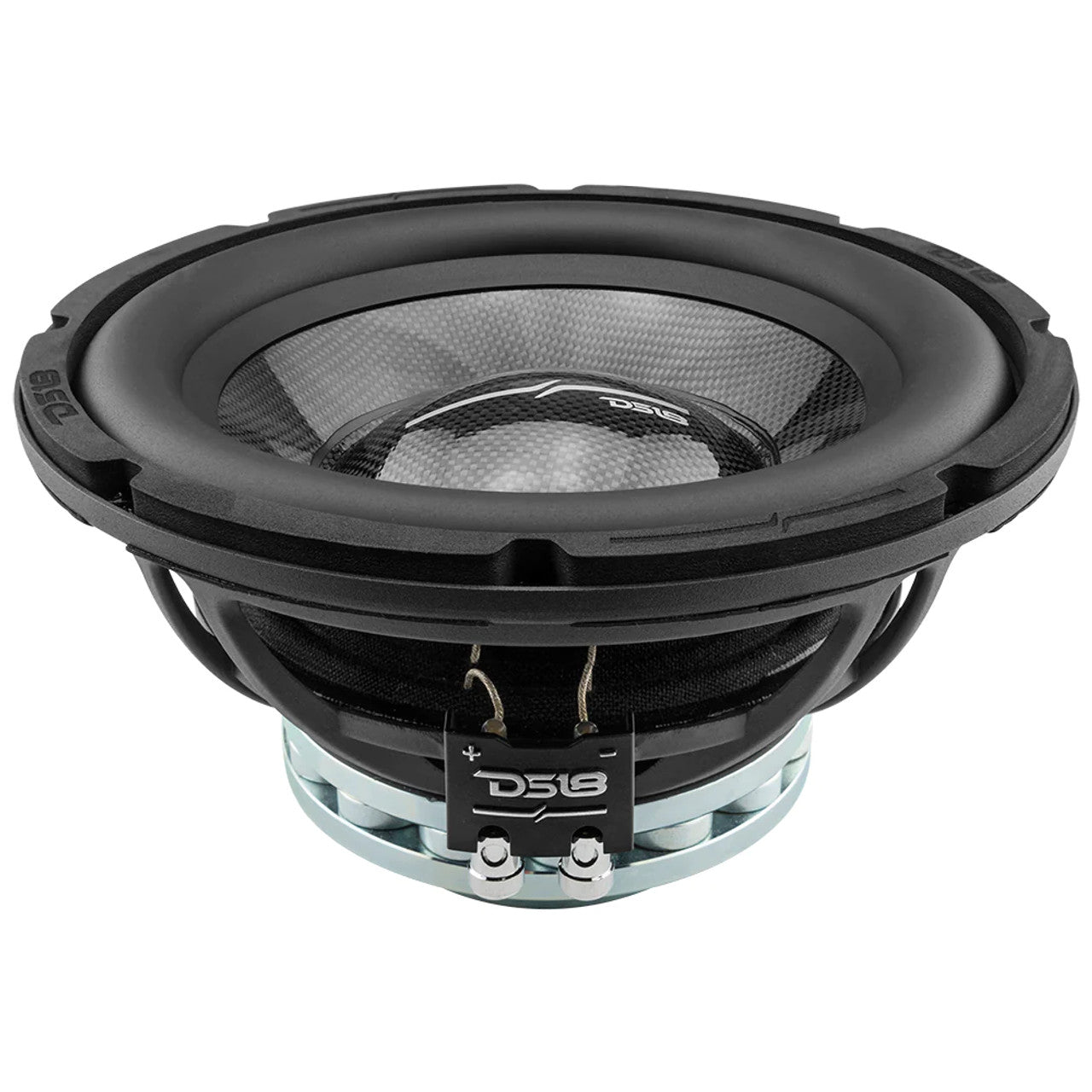

The DS18 PRO-RY10.4NMB is a 10-inch neodymium mid-bass woofer with a carbon fiber and resin cone and a 3-inch voice coil, rated 450W RMS and 900W max at 4Ω. DS18 designed it especially for motorcycles. It is sold as a single speaker.
450W RMS 10-inch woofer, 30Hz–6.3kHz
It can be used free air, but DS18 designed it for small sealed or ported enclosures for the best mid-bass response.
- 450W RMS / 900W max, 4Ω
- 30Hz–6.3kHz, 89dB
- 3 in voice coil, 6mm one-way Xmax
Key Product Details
| Product | DS18 PRO-RY10.4NMB 10" Pro Ryder Neo Water Resistant Mid-Bass Woofer |
| Size | 10 in / 254mm |
| Impedance | 4Ω |
| Power Handling | 450W RMS / 900W max |
| Frequency Response | 30Hz–6.3kHz |
| Mounting Depth | 5 in / 129mm |
| Sold As | Single |
Enclosure and System Planning
DS18 states the woofer can be used free air but is designed for small sealed or ported enclosures. Displacement is 0.84L (0.03 ft³), and the Thiele/Small data below supports enclosure design.
It needs a high-pass crossover at 300Hz per DS18 and an amplifier channel that matches 4Ω and 450W RMS. Mounting depth is 5 inches, so verify clearance in your lid, fairing or enclosure first.
Compare other midrange and mid-bass speakers.
Mounting rings: 10-inch speakers need mounting (adapter) rings. Browse the Nagy's Customs adapter rings collection, including the Nagy's Customs Monster Mega 10″ 98-23 HD Subwoofer or Midbass Adapter Rings (Pair), and confirm the right ring for your year and model with Garage Bagger Stereo before ordering.
Specifications
| Nominal Diameter | 10 in / 254mm |
| Impedance | 4Ω |
| Power Handling | 450W RMS / 900W max |
| Sensitivity | 89dB, 1W/1m |
| Frequency Response | 30Hz–6.3kHz |
| Recommended High-Pass | 300Hz |
| Voice Coil | 3 in / 76.5mm, TIL former, CCAW winding |
| Xmax | 6mm one way |
| Cone | Carbon fiber and resin, rubber surround |
| Basket | Aluminum |
| Magnet | Neodymium rings, 14.8 oz |
| Displacement | 0.84L / 0.03 ft³ |

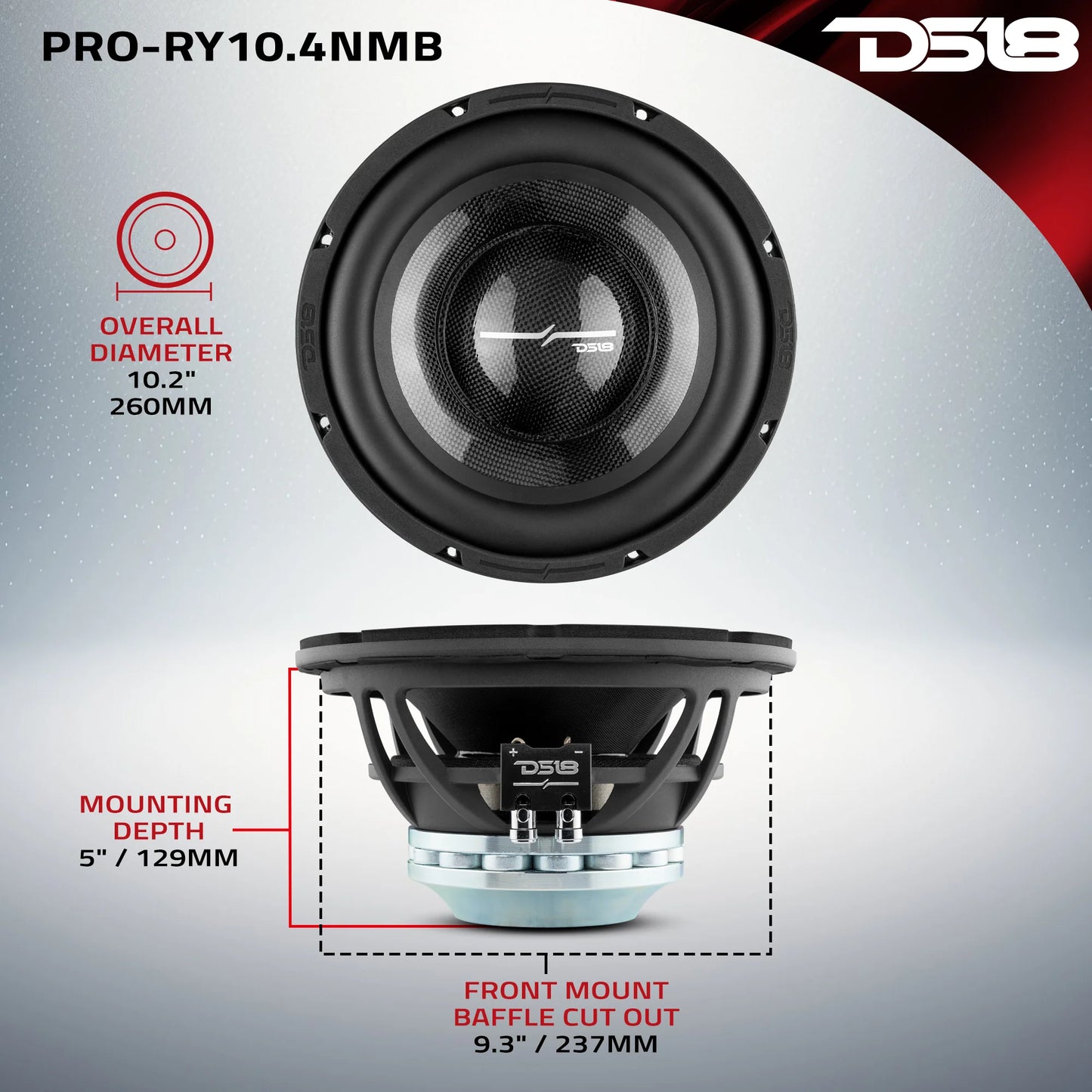

| Overall Diameter | 10.2 in / 260mm |
| Front Mount Cutout | 9.3 in / 237mm |
| Mounting Depth | 5 in / 129mm |
| Overall Depth | 5.6 in / 143mm |
Specifications per DS18.
Thiele/Small Parameters
| Fs | 47.7Hz |
| Qts / Qes / Qms | 0.81 / 0.93 / 6.4 |
| Re | 3.51Ω |
| Vas | 16.7L / 0.59 ft³ |
Related Paths
DS18 PRO-RY10.4NMB FAQ
What power can the PRO-RY10.4NMB handle?
450W RMS and 900W max at 4Ω.
Can it run free air?
Yes, but DS18 designed it for small sealed or ported enclosures.
What cutout and depth does it need?
Front-mount cutout is 9.3 in (237mm) and mounting depth is 5 in (129mm).
What high-pass crossover should I use?
DS18 recommends 300Hz.
Is it water resistant?
Yes. The cone is carbon fiber and resin with rubber surrounds, and DS18 states the parts are coated against corrosion.
Is it sold as a pair?
No. It is sold as a single woofer.
