DS18 PRO-INS6.4 Ultra Slim Midrange Speaker
The DS18 PRO-INS6.4 is a purpose-built 6.5-inch ultra slim midrange speaker engineered for installations where depth is the limiting factor. With a mounting depth of just 1.16 inches, this speaker is designed to fit into motorcycle fairings, saddlebag lids, doors, and compact custom pods where traditional midrange speakers physically cannot.
Build It Right the First Time
Solving a depth problem? Start with correct fitment, correct power, and correct filtering.
Key Specifications
| Speaker Type | Ultra Slim Midrange Speaker |
| Size | 6.5 inch |
| Sold As | Single Speaker |
| Power Handling | 120 watts RMS / 240 watts Max |
| Impedance | 4 ohm |
| Sensitivity | 95 dB |
| Frequency Response | 80 Hz – 6 kHz |
| Recommended High-Pass Filter | 120 Hz or higher |
| Voice Coil | 1.5 inch KSV CCAW |
| Magnet Structure | Neodymium |
| Cone Material | Paper |
| Surround Material | Cloth |
| Basket | Matte Black Steel |
| Grille | Included |

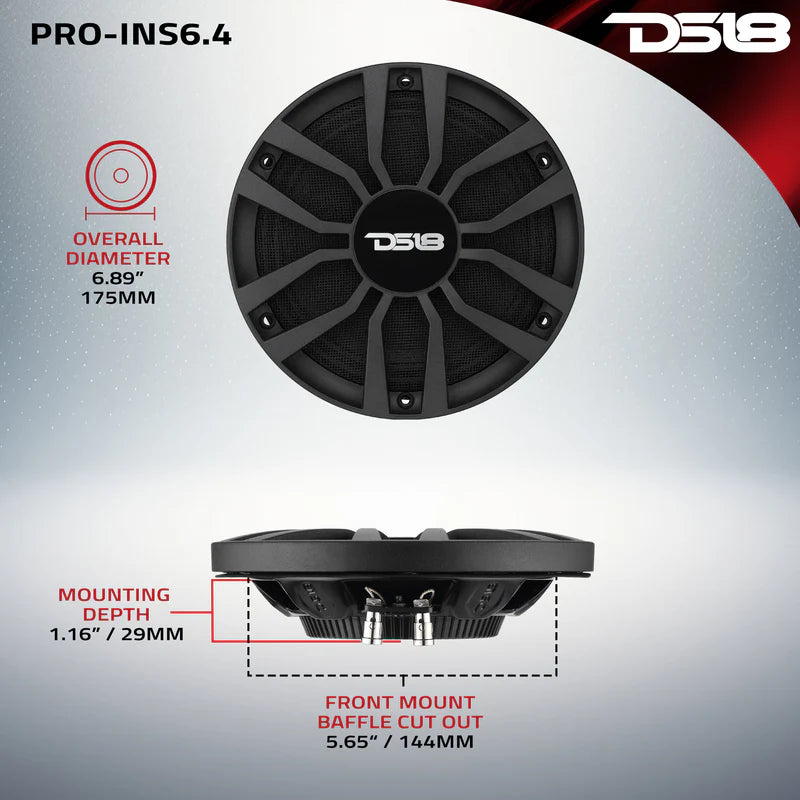

| Mounting Depth | 1.16 in / 29 mm |
Specs summarized from manufacturer technical data. Always verify fitment and filtering before installation.
Amplification and Filtering Matter
The PRO-INS6.4 is best suited for use with dedicated amplification and an active or DSP-controlled high-pass filter. Its design prioritizes midrange projection and intelligibility rather than low-frequency output, making proper crossover configuration essential in motorcycle and high-output audio systems.
Build the correct signal path: Motorcycle DSP Processors and Motorcycle Amplifiers.
Built for Tight Installs
With a 1.16-inch mounting depth, the PRO-INS6.4 is designed for fairings, lids, doors, and compact pods where standard midrange speakers will not fit.
High-Efficiency Midrange Output
A neodymium motor and lightweight moving mass deliver clean vocal and midband clarity that stays controlled at elevated volume levels.
