DS18 PRO-HY6.4MSL - 6.5" Slim Pro Coaxial (Single)

Name: DS18 PRO-HY6.4MSL - 6.5" Slim Pro Coaxial (Single)
Brand: DS18 Motorcycle
SKU: DS-PRO-HY6.4MSL
Price: 66.95 USD
Availability: InStock

TYPE: Speakers 6.5" Pro Coax

VENDOR: DS18 Motorcycle

1 6

PRODUCT INFORMATION

DS18 PRO-HY6.4MSL - 6.5" Slim Pro Coaxial (Single)

TYPE: Speakers 6.5" Pro Coax

VENDOR: DS18 Motorcycle

Type: Speakers 6.5" Pro Coax

Vendor: DS18 Motorcycle

{"id":8773499257058,"title":"DS18 PRO-HY6.4MSL - 6.5\" Slim Pro Coaxial (Single)","handle":"ds18-pro-hy6-4msl-pro-6-5-shallow-coaxial-hybrid-mid-range-speakers","description":"\u003ch1 style=\"text-align: center;\"\u003eDS18 PRO-HY6.4MSL\u003c\/h1\u003e\n\u003ch2 class=\"product-meta__title heading h3\" style=\"text-align: center;\"\u003e\n\u003cspan class=\"red\"\u003ePRO\u003c\/span\u003e 6.5\" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 4-Ohm Grill Included\u003c\/h2\u003e\n\u003cdiv class=\"page\" title=\"Page 1\"\u003e\n\u003cdiv class=\"section\"\u003e\n\u003cdiv class=\"layoutArea\"\u003e\n\u003cdiv class=\"column\"\u003e\n\u003ch3 style=\"text-align: center;\"\u003e(Sold in Singles)\u003c\/h3\u003e\n\u003cul\u003e\n\u003cli\u003e6.5\" Shallow Hybrid Coaxial Mid-Range w\/Driver\u003c\/li\u003e\n\u003cli\u003eRMS Power: 150 Watts(300 Watts Peak)\u003c\/li\u003e\n\u003cli\u003eImpedance: 4 Ohm\u003c\/li\u003e\n\u003cli\u003eFerrite \u0026amp; Neodymium Magnets\u003c\/li\u003e\n\u003cli\u003eWith Grill\u003cbr\u003e\u003cu\u003e\u003c\/u\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"container accordion\"\u003e\u003cheader class=\"section__header container text-container technical-data-header\"\u003e\n\u003ch3 class=\"heading h3 keyFeature-title\"\u003e\n\u003cspan class=\"red\"\u003eTECHNICAL\u003c\/span\u003e DATA\u003c\/h3\u003e\n\u003cbr\u003e\u003c\/header\u003e\u003c\/div\u003e\n\u003cdiv class=\"panel\"\u003e\n\u003cdiv class=\"container load-more\"\u003e\n\u003cdiv class=\"text-with-icons\"\u003e\n\u003cdiv class=\"text-with-icons__list hide-scrollbar\"\u003e\n\u003cdiv class=\"text-with-icons__item technicalDataLoop\"\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp class=\"heading heading--small red\"\u003e\u003cstrong\u003eSPECS\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSKU \u003c\/strong\u003ePRO-HY6.4MSL\u003cbr\u003e\u003cstrong\u003eNominal Diameter \u003c\/strong\u003e6.5\" \/ 165.1mm\u003cbr\u003e\u003cstrong\u003eNominal Impedance \u003c\/strong\u003e4 Ohm\u003cbr\u003e\u003cstrong\u003eRMS Power Handling \u003c\/strong\u003e150W\u003cbr\u003e\u003cstrong\u003eMAX Power Handling \u003c\/strong\u003e300W\u003cbr\u003e\u003cstrong\u003eSensitivity (1w\/1m) \u003c\/strong\u003e93dB\u003cbr\u003e\u003cstrong\u003eFrequency Response \u003c\/strong\u003e100Hz-20Khz\u003cbr\u003e\u003cstrong\u003eRecommended HI Pass Crossover \u003c\/strong\u003e140Hz\u003cbr\u003e\u003cstrong\u003eNumber of ways \u003c\/strong\u003eTwo ways\u003cbr\u003e\u003cstrong\u003ePair or Single \u003c\/strong\u003eSingle\u003cbr\u003e\u003cstrong\u003eGrill Included \u003c\/strong\u003eYes\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__item technicalDataLoop\"\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp class=\"heading heading--small red\"\u003e\u003cstrong\u003eWOOFER SPECIFICATIONS\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eVoice Coil Diameter \u003c\/strong\u003e1.5\" \/ 38.6mm\u003cbr\u003e\u003cstrong\u003eVoice Coil Former Material \u003c\/strong\u003eKSV\u003cbr\u003e\u003cstrong\u003eWinding Material \u003c\/strong\u003eCCAW\u003cbr\u003e\u003cstrong\u003eCone Material \u003c\/strong\u003ePaper\u003cbr\u003e\u003cstrong\u003eSurround Material \u003c\/strong\u003eCloth\u003cbr\u003e\u003cstrong\u003eBasket Material \u003c\/strong\u003eSteel\u003cbr\u003e\u003cstrong\u003eBasket Color\/Finish \u003c\/strong\u003eGlossy Red\u003cbr\u003e\u003cstrong\u003eMagnet Material \u003c\/strong\u003eFerrite\u003cbr\u003e\u003cstrong\u003eMagnet Weight \u003c\/strong\u003e17.5 Oz\u003cbr\u003e\u003cstrong\u003eDisplacement Volume\u003cbr\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__item technicalDataLoop\"\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp class=\"heading heading--small red\"\u003e\u003cstrong\u003eTHIELE \u0026amp; SMALL PARAMETERS\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eEquivalent Volume Vas \u003c\/strong\u003e3.21L \/ 0.11ft3\u003cbr\u003e\u003cstrong\u003eExcursion (one way) Xmax \u003c\/strong\u003e2mm\u003cbr\u003e\u003cstrong\u003eFree Air Resonance Fs \u003c\/strong\u003e160Hz\u003cbr\u003e\u003cstrong\u003eMechanical Factor Qms \u003c\/strong\u003e8.12\u003cbr\u003e\u003cstrong\u003eElectrical Factor Qes \u003c\/strong\u003e1.245\u003cbr\u003e\u003cstrong\u003eTotal Factor Qts \u003c\/strong\u003e1.086\u003cbr\u003e\u003cstrong\u003eMechanical Mass Mms \u003c\/strong\u003e7.452g\u003cbr\u003e\u003cstrong\u003eMechanical Compliance Cms \u003c\/strong\u003e182.236 mm\/N\u003cbr\u003e\u003cstrong\u003eBL Factor BL \u003c\/strong\u003e4.705\u003cbr\u003e\u003cstrong\u003eVoice Coil Inductance Le \u003c\/strong\u003e16.78mH\u003cbr\u003e\u003cstrong\u003eCone Area Sd \u003c\/strong\u003e136.848 Cm2\u003cbr\u003e\u003cstrong\u003eDC Resistance Re \u003c\/strong\u003e3.2 ohm\u003cbr\u003e\u003cstrong\u003eMechanical Mass w\/o air Mmd \u003c\/strong\u003e8.60g\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__item technicalDataLoop\"\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp class=\"heading heading--small red\"\u003e\u003cstrong\u003eDRIVER SPECIFICATIONS\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eVoice Coil Diameter \u003c\/strong\u003e1\" \/ 25.4mm\u003cbr\u003e\u003cstrong\u003eVoice Coil Former Material \u003c\/strong\u003eKapton\u003cbr\u003e\u003cstrong\u003eWinding Material \u003c\/strong\u003eCCAW\u003cbr\u003e\u003cstrong\u003eDiaphragm Material \u003c\/strong\u003eTitanium\u003cbr\u003e\u003cstrong\u003eMagnet Material \u003c\/strong\u003eNeodymium\u003cbr\u003e\u003cstrong\u003eHorn Diameter \u003c\/strong\u003e3\" \/ 76.2mm\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__item technicalDataLoop\"\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp class=\"heading heading--small red\"\u003e\u003cstrong\u003eSPEAKER MEASUREMENT\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eOverall Diameter \u003c\/strong\u003e6.92\" \/ 176mm\u003cbr\u003e\u003cstrong\u003eOverall Depth \u003c\/strong\u003e3.52\" \/ 89.5mm\u003cbr\u003e\u003cstrong\u003eFront Mount Baffle Cutout \u003c\/strong\u003e5.6\" \/ 142mm\u003cbr\u003e\u003cstrong\u003eMounting Depth \u003c\/strong\u003e2.77\" \/ 70.5mm\u003cbr\u003e\u003cstrong\u003eMotor Diameter \u003c\/strong\u003e4.33\" \/ 110mm\u003cstrong\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003ch4 class=\"heading heading--small\"\u003e\n\u003cspan\u003eDS18 PRO-HY6.4MSL\u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\n\u003c\/h4\u003e\n\u003cdiv class=\"image-with-text__text-wrapper\"\u003e\n\u003cp\u003e\u003cspan\u003ePerfect audio is possible with the PRO-HY6.4MSL! We've taken one of our Pro-Audio midrange merged it seamlessly with a high-intensity driver, and packaged it into a shallow and slim design. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith 300W MAX power handling, and 150W RMS power handling, the PRO-HY6.4MSL gets extremely loud with remarkable clarity. Thanks to the frequency response range of 100Hz to 20KHz, the PRO-HY8.4MSL excels in reproducing crystal-clear audio with astonishing depth and precision. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith its sleek dimensions and a mounting depth of 2.77 inches, this speaker is incredibly versatile and fits effortlessly into a wide range of applications.\u003cbr\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eOne of the standout features of this speaker is its titanium diaphragm driver. Titanium is known for its exceptional stiffness-to-weight ratio, resulting in fast and accurate response across a wide frequency range. The magnet used in the driver is made of neodymium which allows the driver to efficiently convert electrical signals into sound waves, contributing to its overall performance and power handling capabilities. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eTo further optimize the driver's performance, a 3-inch horn diameter is incorporated. The horn aids in directing and focusing the sound waves, ensuring maximum dispersion and projection. It also features the DS18 branding, so you can show the world you like it!\u003cbr\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePrepare to be blown away by the power, clarity, and precision of the PRO-HY6.4MSL.\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2024-12-18T16:32:29-05:00","created_at":"2024-12-18T12:14:43-05:00","vendor":"DS18 Motorcycle","type":"Speakers 6.5\" Pro Coax","tags":["6.5","6.5 coax","6.5 coaxial","6.5 inch speakers","6.5 midrange speakers","6.5 pro coaxial speaker","6.5 speaker","6.5\" MID-BASS \/ BASS SPEAKER","Bagger Audio","ds18","DS18 PRO-HY6.4MSL","ds18 speaker","Loudspeaker","mid bass","mid range 6.5","mid range speakers","Midbass","pro coax","Pro Coaxial Horn Speaker","PRO-HY6.4MSL","shallow"],"price":6695,"price_min":6695,"price_max":6695,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":46201009504482,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"DS-PRO-HY6.4MSL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DS18 PRO-HY6.4MSL - 6.5\" Slim Pro Coaxial (Single)","public_title":null,"options":["Default Title"],"price":6695,"weight":1701,"compare_at_price":null,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL1.jpg?v=1734557326","\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL2.jpg?v=1734557326","\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL3.jpg?v=1734557326","\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL4.jpg?v=1734557326","\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL8.webp?v=1734557326","\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BaggersandBoatsYourAudioSpecialist_a40a094a-bdec-489e-9899-6dea80f399b8.png?v=1734557830"],"featured_image":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL1.jpg?v=1734557326","options":["Title"],"media":[{"alt":"DS18 PRO-HY6.4MSL","id":35049661595874,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL1.jpg?v=1734557326"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL1.jpg?v=1734557326","width":1280},{"alt":"DS18 PRO-HY6.4MSL","id":35049661661410,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL2.jpg?v=1734557326"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL2.jpg?v=1734557326","width":1280},{"alt":"DS18 PRO-HY6.4MSL","id":35049661628642,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL3.jpg?v=1734557326"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL3.jpg?v=1734557326","width":1280},{"alt":"DS18 PRO-HY6.4MSL","id":35049661563106,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1280,"width":1280,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL4.jpg?v=1734557326"},"aspect_ratio":1.0,"height":1280,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL4.jpg?v=1734557326","width":1280},{"alt":"DS18 PRO-HY6.4MSL","id":35048581791970,"position":5,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL8.webp?v=1734557326"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/PRO-HY6.4MSL8.webp?v=1734557326","width":2000},{"alt":"DS18 PRO-HY8.4MSL","id":31922142576866,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BaggersandBoatsYourAudioSpecialist_a40a094a-bdec-489e-9899-6dea80f399b8.png?v=1734557830"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/garagebaggerstereo.com\/cdn\/shop\/files\/BaggersandBoatsYourAudioSpecialist_a40a094a-bdec-489e-9899-6dea80f399b8.png?v=1734557830","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch1 style=\"text-align: center;\"\u003eDS18 PRO-HY6.4MSL\u003c\/h1\u003e\n\u003ch2 class=\"product-meta__title heading h3\" style=\"text-align: center;\"\u003e\n\u003cspan class=\"red\"\u003ePRO\u003c\/span\u003e 6.5\" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 4-Ohm Grill Included\u003c\/h2\u003e\n\u003cdiv class=\"page\" title=\"Page 1\"\u003e\n\u003cdiv class=\"section\"\u003e\n\u003cdiv class=\"layoutArea\"\u003e\n\u003cdiv class=\"column\"\u003e\n\u003ch3 style=\"text-align: center;\"\u003e(Sold in Singles)\u003c\/h3\u003e\n\u003cul\u003e\n\u003cli\u003e6.5\" Shallow Hybrid Coaxial Mid-Range w\/Driver\u003c\/li\u003e\n\u003cli\u003eRMS Power: 150 Watts(300 Watts Peak)\u003c\/li\u003e\n\u003cli\u003eImpedance: 4 Ohm\u003c\/li\u003e\n\u003cli\u003eFerrite \u0026amp; Neodymium Magnets\u003c\/li\u003e\n\u003cli\u003eWith Grill\u003cbr\u003e\u003cu\u003e\u003c\/u\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cdiv class=\"container accordion\"\u003e\u003cheader class=\"section__header container text-container technical-data-header\"\u003e\n\u003ch3 class=\"heading h3 keyFeature-title\"\u003e\n\u003cspan class=\"red\"\u003eTECHNICAL\u003c\/span\u003e DATA\u003c\/h3\u003e\n\u003cbr\u003e\u003c\/header\u003e\u003c\/div\u003e\n\u003cdiv class=\"panel\"\u003e\n\u003cdiv class=\"container load-more\"\u003e\n\u003cdiv class=\"text-with-icons\"\u003e\n\u003cdiv class=\"text-with-icons__list hide-scrollbar\"\u003e\n\u003cdiv class=\"text-with-icons__item technicalDataLoop\"\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp class=\"heading heading--small red\"\u003e\u003cstrong\u003eSPECS\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSKU \u003c\/strong\u003ePRO-HY6.4MSL\u003cbr\u003e\u003cstrong\u003eNominal Diameter \u003c\/strong\u003e6.5\" \/ 165.1mm\u003cbr\u003e\u003cstrong\u003eNominal Impedance \u003c\/strong\u003e4 Ohm\u003cbr\u003e\u003cstrong\u003eRMS Power Handling \u003c\/strong\u003e150W\u003cbr\u003e\u003cstrong\u003eMAX Power Handling \u003c\/strong\u003e300W\u003cbr\u003e\u003cstrong\u003eSensitivity (1w\/1m) \u003c\/strong\u003e93dB\u003cbr\u003e\u003cstrong\u003eFrequency Response \u003c\/strong\u003e100Hz-20Khz\u003cbr\u003e\u003cstrong\u003eRecommended HI Pass Crossover \u003c\/strong\u003e140Hz\u003cbr\u003e\u003cstrong\u003eNumber of ways \u003c\/strong\u003eTwo ways\u003cbr\u003e\u003cstrong\u003ePair or Single \u003c\/strong\u003eSingle\u003cbr\u003e\u003cstrong\u003eGrill Included \u003c\/strong\u003eYes\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__item technicalDataLoop\"\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp class=\"heading heading--small red\"\u003e\u003cstrong\u003eWOOFER SPECIFICATIONS\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eVoice Coil Diameter \u003c\/strong\u003e1.5\" \/ 38.6mm\u003cbr\u003e\u003cstrong\u003eVoice Coil Former Material \u003c\/strong\u003eKSV\u003cbr\u003e\u003cstrong\u003eWinding Material \u003c\/strong\u003eCCAW\u003cbr\u003e\u003cstrong\u003eCone Material \u003c\/strong\u003ePaper\u003cbr\u003e\u003cstrong\u003eSurround Material \u003c\/strong\u003eCloth\u003cbr\u003e\u003cstrong\u003eBasket Material \u003c\/strong\u003eSteel\u003cbr\u003e\u003cstrong\u003eBasket Color\/Finish \u003c\/strong\u003eGlossy Red\u003cbr\u003e\u003cstrong\u003eMagnet Material \u003c\/strong\u003eFerrite\u003cbr\u003e\u003cstrong\u003eMagnet Weight \u003c\/strong\u003e17.5 Oz\u003cbr\u003e\u003cstrong\u003eDisplacement Volume\u003cbr\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__item technicalDataLoop\"\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp class=\"heading heading--small red\"\u003e\u003cstrong\u003eTHIELE \u0026amp; SMALL PARAMETERS\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eEquivalent Volume Vas \u003c\/strong\u003e3.21L \/ 0.11ft3\u003cbr\u003e\u003cstrong\u003eExcursion (one way) Xmax \u003c\/strong\u003e2mm\u003cbr\u003e\u003cstrong\u003eFree Air Resonance Fs \u003c\/strong\u003e160Hz\u003cbr\u003e\u003cstrong\u003eMechanical Factor Qms \u003c\/strong\u003e8.12\u003cbr\u003e\u003cstrong\u003eElectrical Factor Qes \u003c\/strong\u003e1.245\u003cbr\u003e\u003cstrong\u003eTotal Factor Qts \u003c\/strong\u003e1.086\u003cbr\u003e\u003cstrong\u003eMechanical Mass Mms \u003c\/strong\u003e7.452g\u003cbr\u003e\u003cstrong\u003eMechanical Compliance Cms \u003c\/strong\u003e182.236 mm\/N\u003cbr\u003e\u003cstrong\u003eBL Factor BL \u003c\/strong\u003e4.705\u003cbr\u003e\u003cstrong\u003eVoice Coil Inductance Le \u003c\/strong\u003e16.78mH\u003cbr\u003e\u003cstrong\u003eCone Area Sd \u003c\/strong\u003e136.848 Cm2\u003cbr\u003e\u003cstrong\u003eDC Resistance Re \u003c\/strong\u003e3.2 ohm\u003cbr\u003e\u003cstrong\u003eMechanical Mass w\/o air Mmd \u003c\/strong\u003e8.60g\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__item technicalDataLoop\"\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp class=\"heading heading--small red\"\u003e\u003cstrong\u003eDRIVER SPECIFICATIONS\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eVoice Coil Diameter \u003c\/strong\u003e1\" \/ 25.4mm\u003cbr\u003e\u003cstrong\u003eVoice Coil Former Material \u003c\/strong\u003eKapton\u003cbr\u003e\u003cstrong\u003eWinding Material \u003c\/strong\u003eCCAW\u003cbr\u003e\u003cstrong\u003eDiaphragm Material \u003c\/strong\u003eTitanium\u003cbr\u003e\u003cstrong\u003eMagnet Material \u003c\/strong\u003eNeodymium\u003cbr\u003e\u003cstrong\u003eHorn Diameter \u003c\/strong\u003e3\" \/ 76.2mm\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"text-with-icons__item technicalDataLoop\"\u003e\n\u003cdiv class=\"text-with-icons__content-wrapper\"\u003e\n\u003cp class=\"heading heading--small red\"\u003e\u003cstrong\u003eSPEAKER MEASUREMENT\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eOverall Diameter \u003c\/strong\u003e6.92\" \/ 176mm\u003cbr\u003e\u003cstrong\u003eOverall Depth \u003c\/strong\u003e3.52\" \/ 89.5mm\u003cbr\u003e\u003cstrong\u003eFront Mount Baffle Cutout \u003c\/strong\u003e5.6\" \/ 142mm\u003cbr\u003e\u003cstrong\u003eMounting Depth \u003c\/strong\u003e2.77\" \/ 70.5mm\u003cbr\u003e\u003cstrong\u003eMotor Diameter \u003c\/strong\u003e4.33\" \/ 110mm\u003cstrong\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003ch4 class=\"heading heading--small\"\u003e\n\u003cspan\u003eDS18 PRO-HY6.4MSL\u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\n\u003c\/h4\u003e\n\u003cdiv class=\"image-with-text__text-wrapper\"\u003e\n\u003cp\u003e\u003cspan\u003ePerfect audio is possible with the PRO-HY6.4MSL! We've taken one of our Pro-Audio midrange merged it seamlessly with a high-intensity driver, and packaged it into a shallow and slim design. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith 300W MAX power handling, and 150W RMS power handling, the PRO-HY6.4MSL gets extremely loud with remarkable clarity. Thanks to the frequency response range of 100Hz to 20KHz, the PRO-HY8.4MSL excels in reproducing crystal-clear audio with astonishing depth and precision. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith its sleek dimensions and a mounting depth of 2.77 inches, this speaker is incredibly versatile and fits effortlessly into a wide range of applications.\u003cbr\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eOne of the standout features of this speaker is its titanium diaphragm driver. Titanium is known for its exceptional stiffness-to-weight ratio, resulting in fast and accurate response across a wide frequency range. The magnet used in the driver is made of neodymium which allows the driver to efficiently convert electrical signals into sound waves, contributing to its overall performance and power handling capabilities. \u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eTo further optimize the driver's performance, a 3-inch horn diameter is incorporated. The horn aids in directing and focusing the sound waves, ensuring maximum dispersion and projection. It also features the DS18 branding, so you can show the world you like it!\u003cbr\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003ePrepare to be blown away by the power, clarity, and precision of the PRO-HY6.4MSL.\u003c\/span\u003e\u003c\/p\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

Product variants

$66.95

Sale Sold out

Tax included. Shipping calculated at checkout.

QTY

Additional Payment Info

View full details

Description
Reviews

DS18 PRO-HY6.4MSL

PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 4-Ohm Grill Included

(Sold in Singles)

6.5" Shallow Hybrid Coaxial Mid-Range w/Driver
RMS Power: 150 Watts(300 Watts Peak)
Impedance: 4 Ohm
Ferrite & Neodymium Magnets
With Grill

TECHNICAL DATA

SPECS

SKU PRO-HY6.4MSL
Nominal Diameter 6.5" / 165.1mm
Nominal Impedance 4 Ohm
RMS Power Handling 150W
MAX Power Handling 300W
Sensitivity (1w/1m) 93dB
Frequency Response 100Hz-20Khz
Recommended HI Pass Crossover 140Hz
Number of ways Two ways
Pair or Single Single
Grill Included Yes

WOOFER SPECIFICATIONS

Voice Coil Diameter 1.5" / 38.6mm
Voice Coil Former Material KSV
Winding Material CCAW
Cone Material Paper
Surround Material Cloth
Basket Material Steel
Basket Color/Finish Glossy Red
Magnet Material Ferrite
Magnet Weight 17.5 Oz
Displacement Volume

THIELE & SMALL PARAMETERS

Equivalent Volume Vas 3.21L / 0.11ft3
Excursion (one way) Xmax 2mm
Free Air Resonance Fs 160Hz
Mechanical Factor Qms 8.12
Electrical Factor Qes 1.245
Total Factor Qts 1.086
Mechanical Mass Mms 7.452g
Mechanical Compliance Cms 182.236 mm/N
BL Factor BL 4.705
Voice Coil Inductance Le 16.78mH
Cone Area Sd 136.848 Cm2
DC Resistance Re 3.2 ohm
Mechanical Mass w/o air Mmd 8.60g

DRIVER SPECIFICATIONS

Voice Coil Diameter 1" / 25.4mm
Voice Coil Former Material Kapton
Winding Material CCAW
Diaphragm Material Titanium
Magnet Material Neodymium
Horn Diameter 3" / 76.2mm

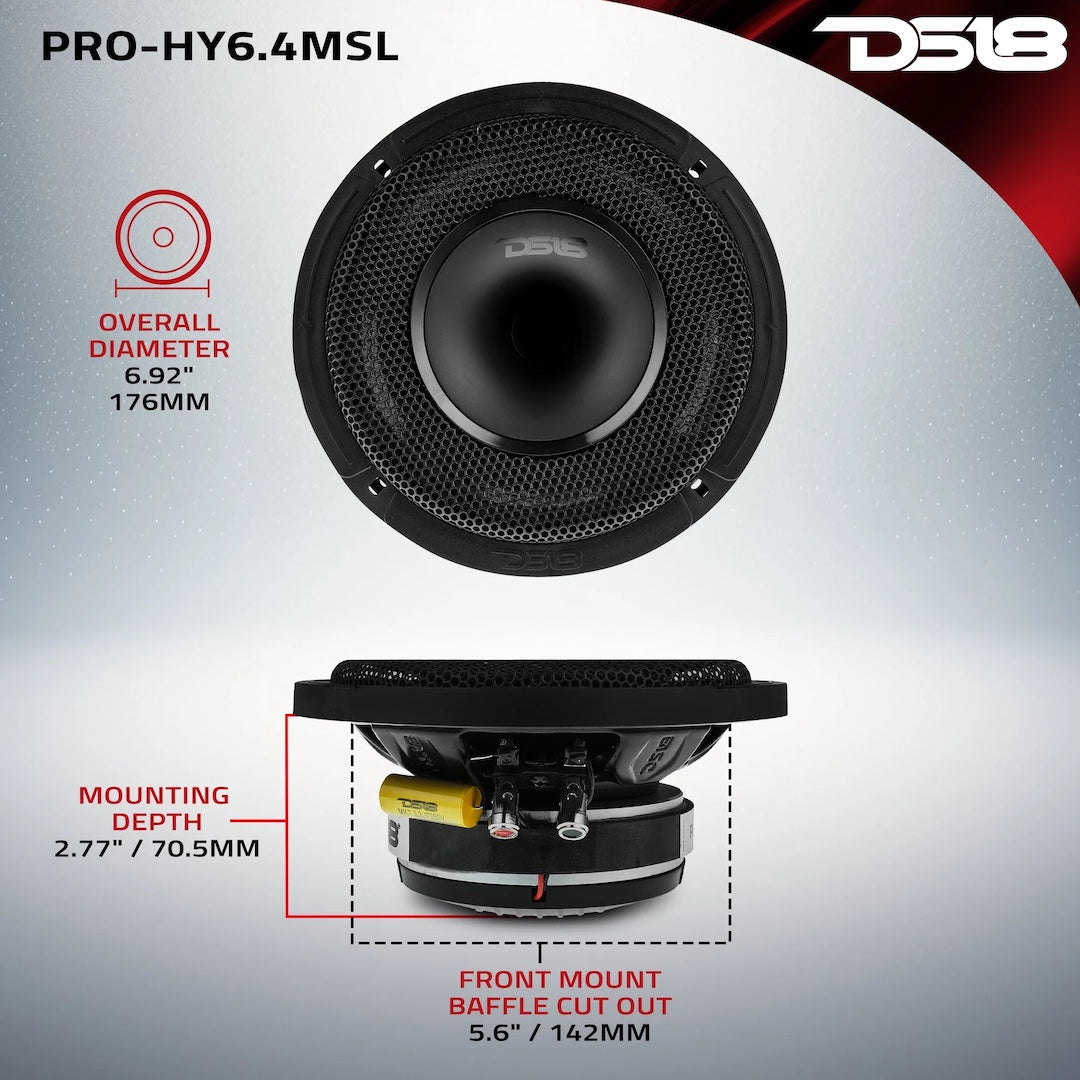

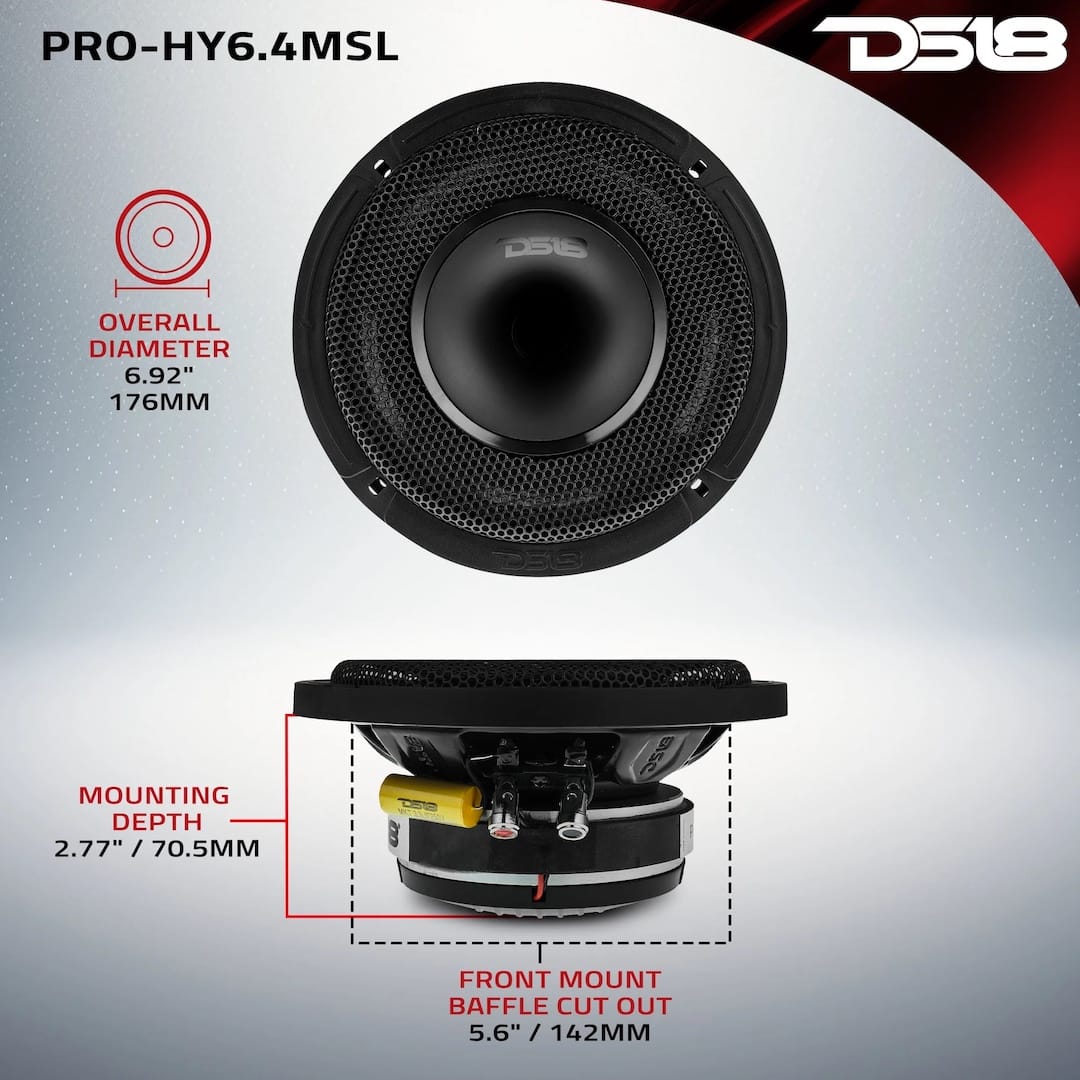

SPEAKER MEASUREMENT

Overall Diameter 6.92" / 176mm
Overall Depth 3.52" / 89.5mm
Front Mount Baffle Cutout 5.6" / 142mm
Mounting Depth 2.77" / 70.5mm
Motor Diameter 4.33" / 110mm

DS18 PRO-HY6.4MSL

Perfect audio is possible with the PRO-HY6.4MSL! We've taken one of our Pro-Audio midrange merged it seamlessly with a high-intensity driver, and packaged it into a shallow and slim design.

With 300W MAX power handling, and 150W RMS power handling, the PRO-HY6.4MSL gets extremely loud with remarkable clarity. Thanks to the frequency response range of 100Hz to 20KHz, the PRO-HY8.4MSL excels in reproducing crystal-clear audio with astonishing depth and precision.

With its sleek dimensions and a mounting depth of 2.77 inches, this speaker is incredibly versatile and fits effortlessly into a wide range of applications.

One of the standout features of this speaker is its titanium diaphragm driver. Titanium is known for its exceptional stiffness-to-weight ratio, resulting in fast and accurate response across a wide frequency range. The magnet used in the driver is made of neodymium which allows the driver to efficiently convert electrical signals into sound waves, contributing to its overall performance and power handling capabilities.

To further optimize the driver's performance, a 3-inch horn diameter is incorporated. The horn aids in directing and focusing the sound waves, ensuring maximum dispersion and projection. It also features the DS18 branding, so you can show the world you like it!

Prepare to be blown away by the power, clarity, and precision of the PRO-HY6.4MSL.
