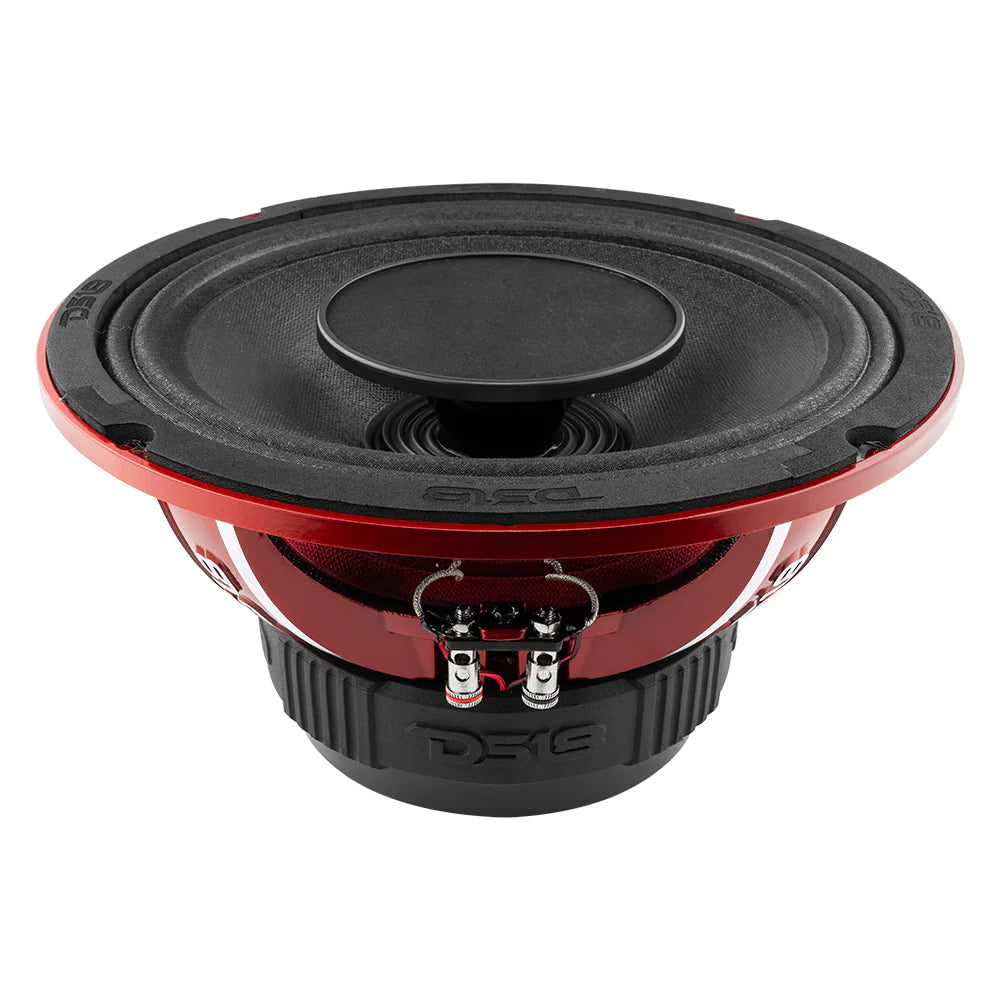

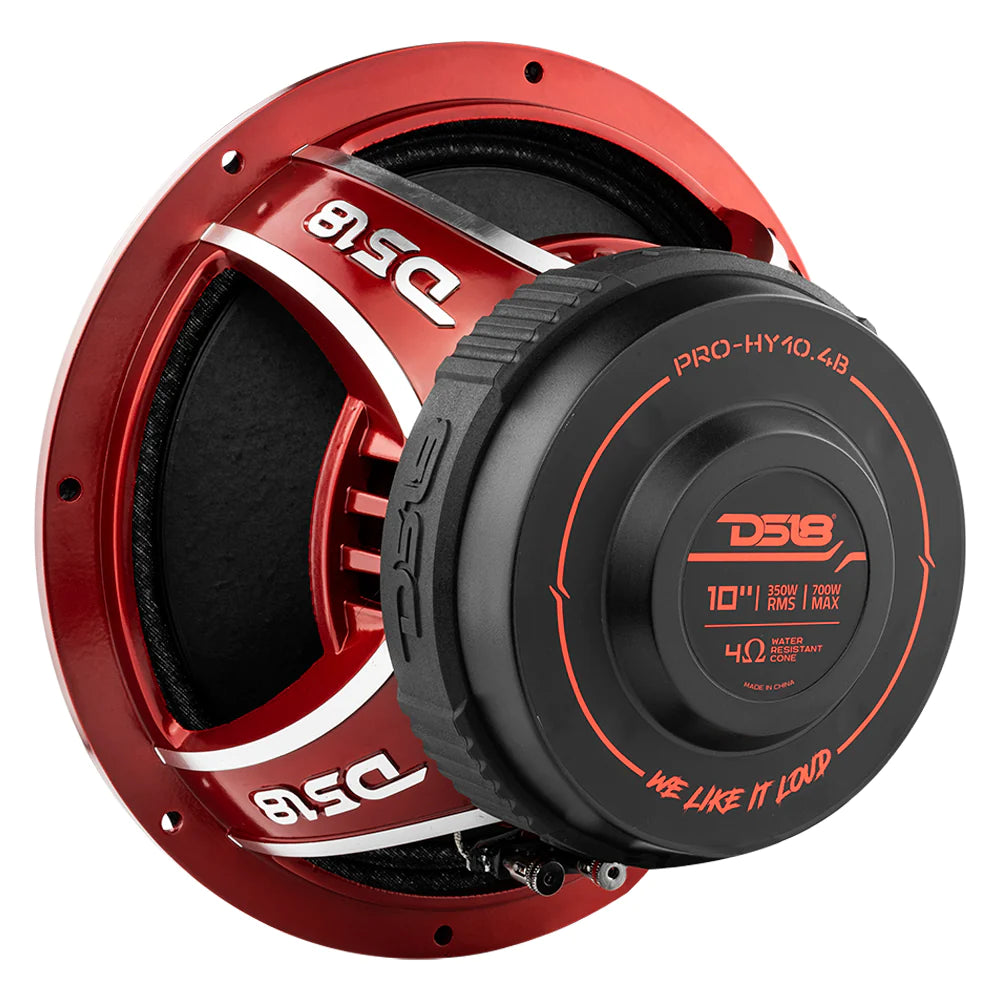

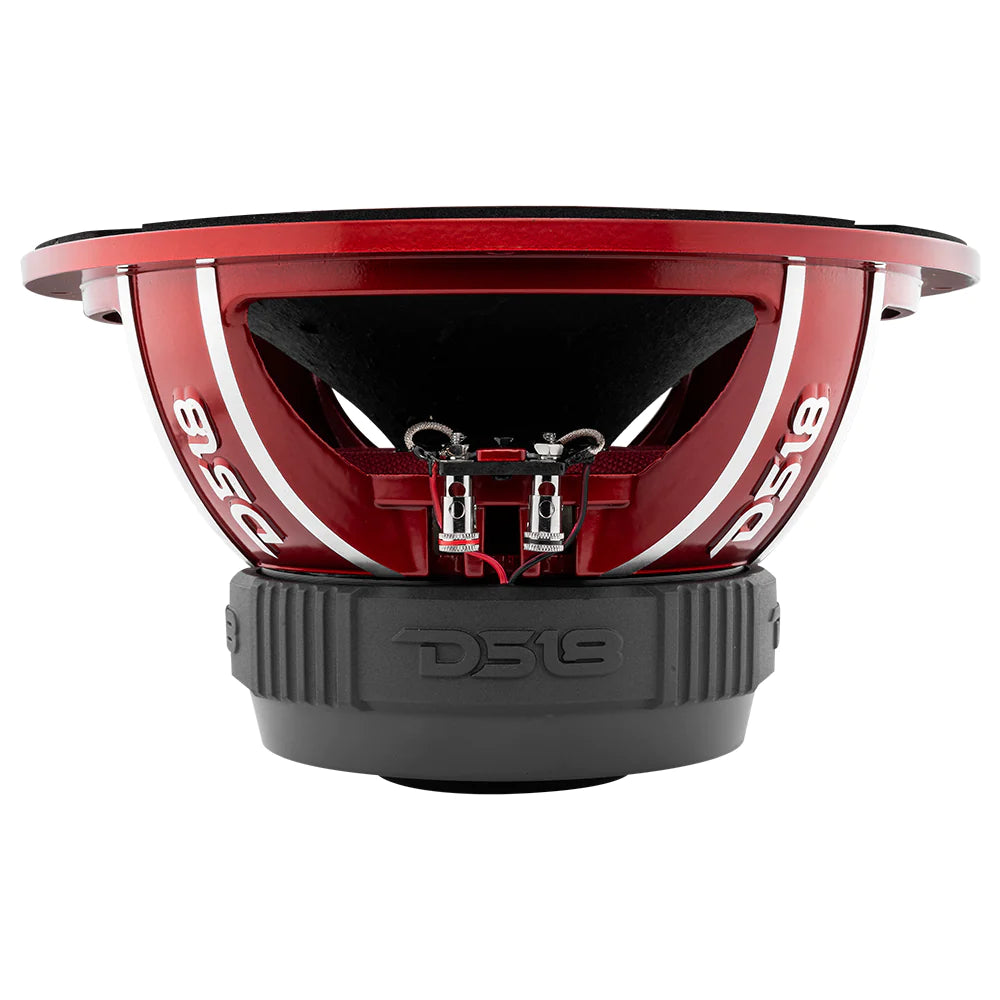

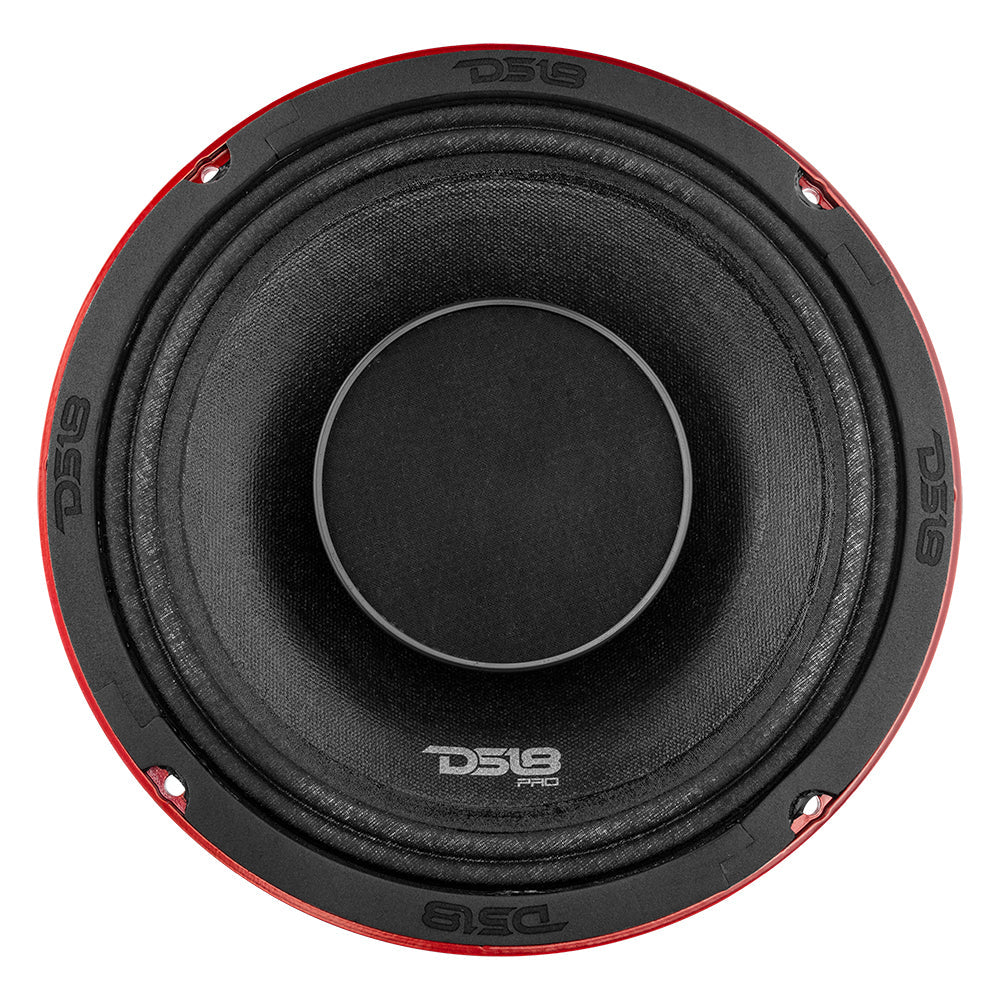

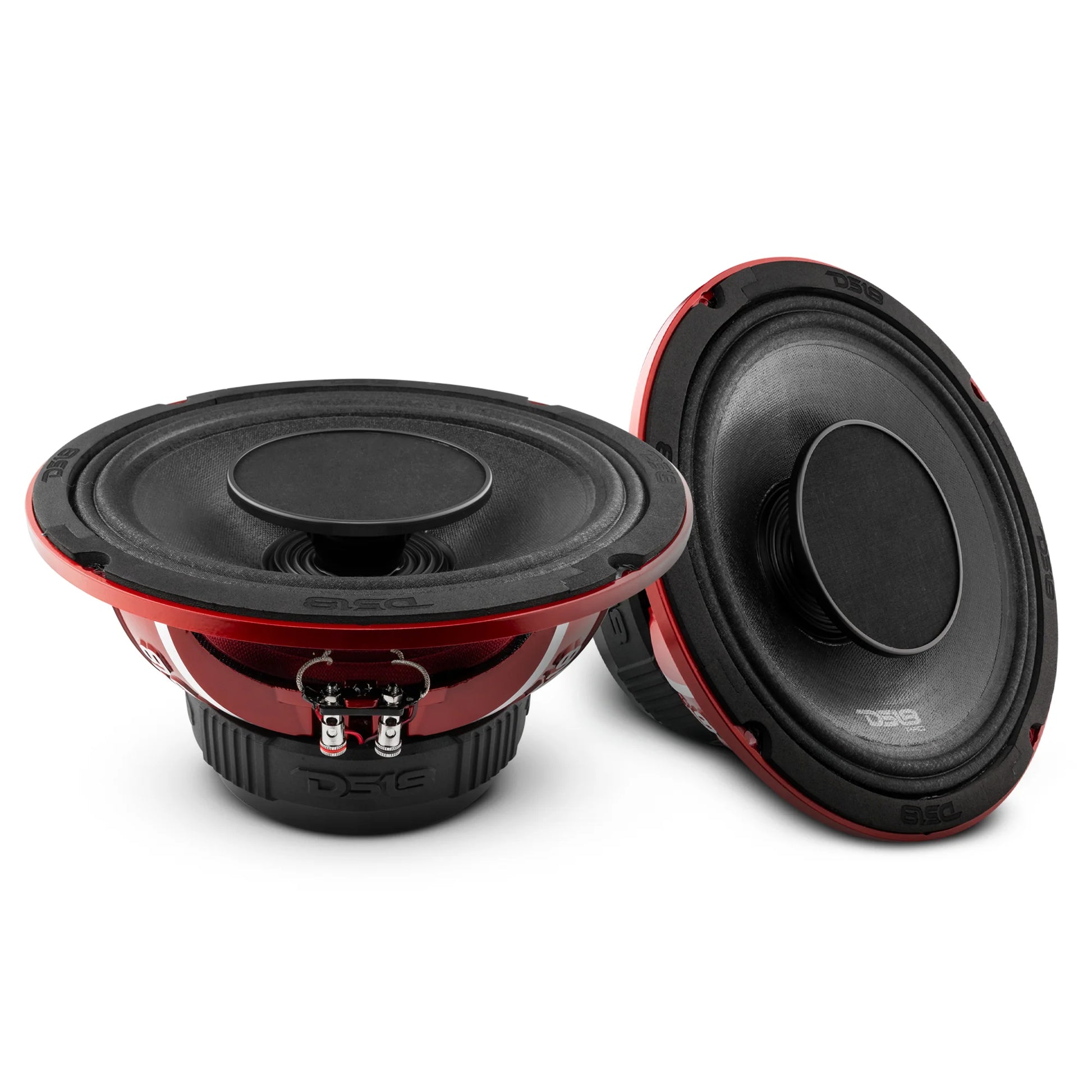

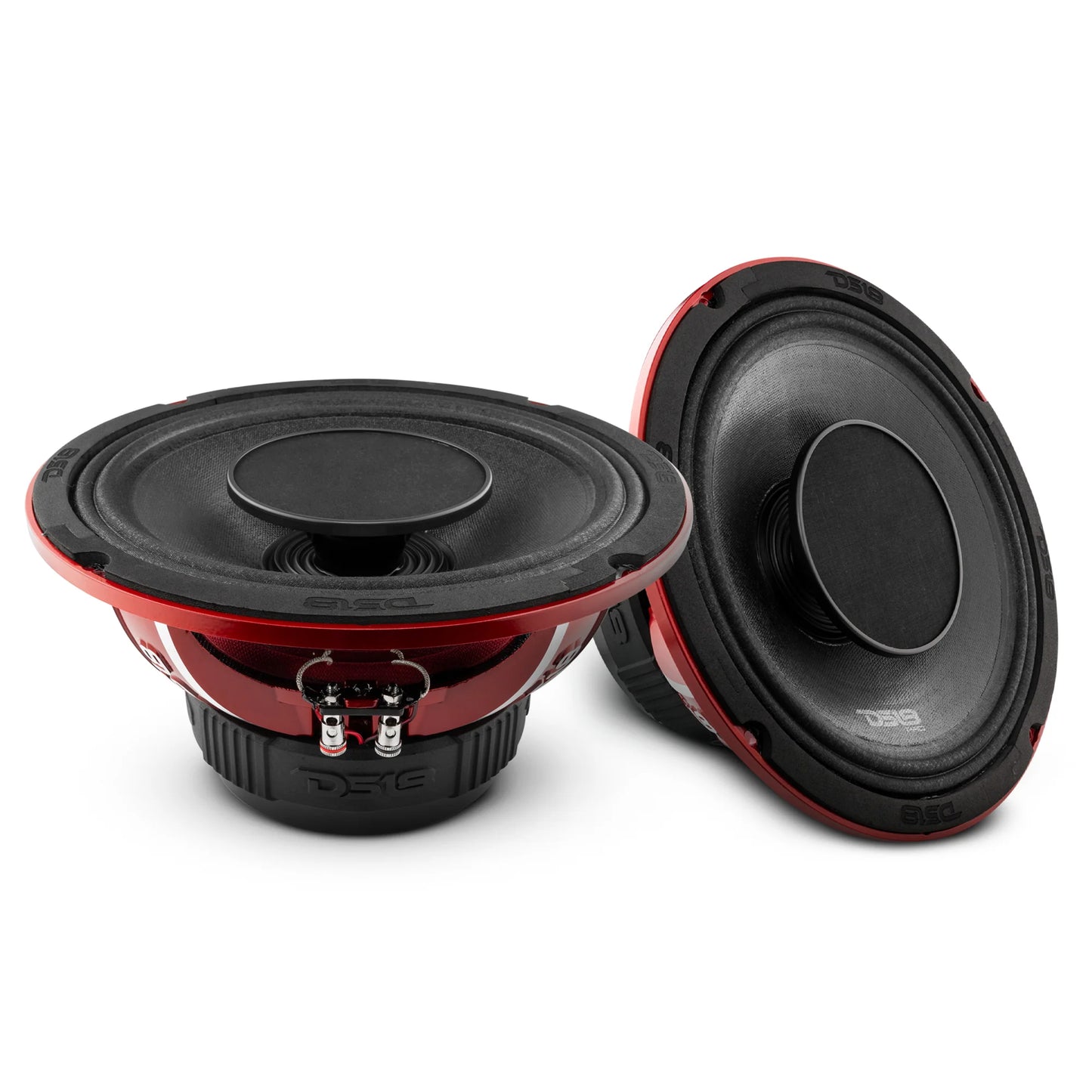

DS18 PRO-HY10.4B 10" Pro Coaxial Speaker
Rated 350W RMS / 700W max at 4 ohm and 100dB, the PRO-HY10.4B is the 10 in hybrid, using a 1.5 in titanium-diaphragm neodymium compression horn. It reaches down to 40Hz, needs a 5.31 in mounting depth and 5.7 in overall depth, and DS18 recommends a 70Hz high-pass.
10 in hybrid mid with a 1.5 in titanium horn, to 40Hz
Rated 350W RMS / 700W max at 4 ohm. Mounting depth is 5.31", so it needs deep mounting space.
- 350W RMS / 700W max
- 100dB sensitivity, 4 ohm
- 40Hz-20kHz response
Key Product Details
| Brand | DS18 |
| Model | PRO-HY10.4B |
| Size | 10" hybrid mid-range |
| Sold as | Single |
| Impedance | 4 ohm |
| Built-in driver | 1.5" compression driver horn |
Verify depth clearance before ordering.
Depth and clearance
At 5.31" mounting depth this driver needs deep mounting space, so verify clearance before ordering.
Mounting rings: 10-inch speakers need mounting (adapter) rings. Browse the Nagy's Customs adapter rings collection, including the Nagy's Customs Monster Mega 10″ 98-23 HD Subwoofer or Midbass Adapter Rings (Pair), and confirm the right ring for your year and model with Garage Bagger Stereo before ordering.
Crossover
DS18 recommends a 70Hz high-pass crossover. The built-in compression driver means no separate tweeter is required.
Specifications
| Power handling | 350W RMS / 700W max |
| Nominal impedance | 4 ohm |
| Sensitivity | 100dB (1W/1m) |
| Frequency response | 40Hz-20kHz |
| Recommended high-pass | 70Hz |
| Cone | Water-resistant |
| Overall diameter | 10.3" |
| Overall depth | 5.7" |
| Mounting depth | 5.31" |
| Compression driver | 1.5", titanium diaphragm, neodymium magnet |
Related Paths
DS18 PRO-HY10.4B FAQ
What size is the PRO-HY10.4B?
It is a 10" hybrid mid-range loudspeaker with a built-in 1.5" compression driver horn, sold as a single.
What are its power and impedance ratings?
350W RMS and 700W max at 4 ohm.
How deep is it?
Mounting depth is 5.31", overall depth 5.7" and overall diameter 10.3".
What high-pass crossover is recommended?
70Hz.
Do I need a separate tweeter?
No. The built-in horn with titanium diaphragm covers the highs.
