DS18 Marine And Powersports Waterproof Rocker Switch
The DS18 RKS-BT is a marine and powersports Bluetooth rocker switch audio receiver with controls. It drops into a boat’s rocker switch panel to stream audio, switch sources and turn on an amplifier.
A Bluetooth audio streamer that fits a standard rocker switch cutout
DS18 rates the RKS-BT IPX6 and adds RCA pre-outs, an auxiliary input and a remote output for an external amplifier.
- Bluetooth v5.0, range over 130 ft
- IPX6 water resistance rating
- Stereo 2.5V pre-out RCA and remote output
Key Product Details
| Function | Bluetooth audio receiver with source and volume controls |
| Water rating | IPX6 |
| Operating voltage | DC 10 - 15V |
| Fuse | 2 Amp |
| Bluetooth | Version 5.0, range over 130 ft (conditions may vary) |
| Mounting hole | 21.5 mm x 36 mm |
Specifications are from the DS18 RKS-BT product page.
Switch-Panel Audio Control

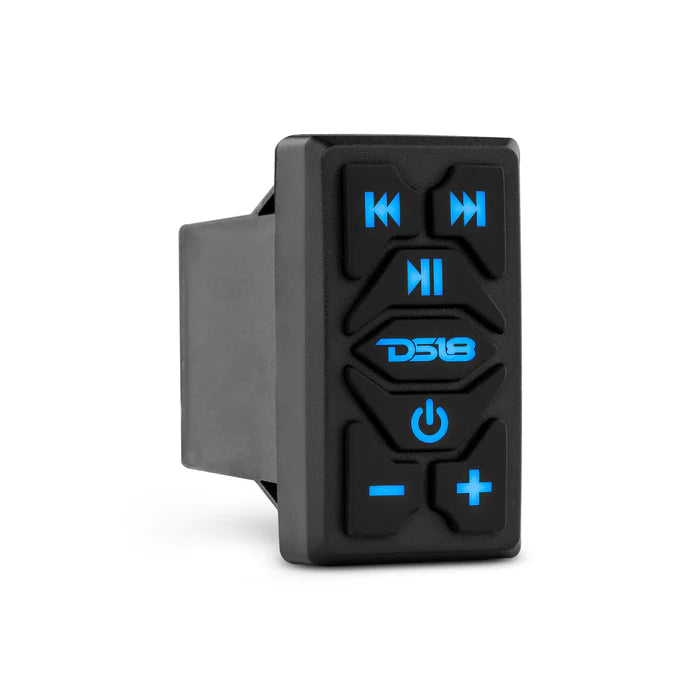

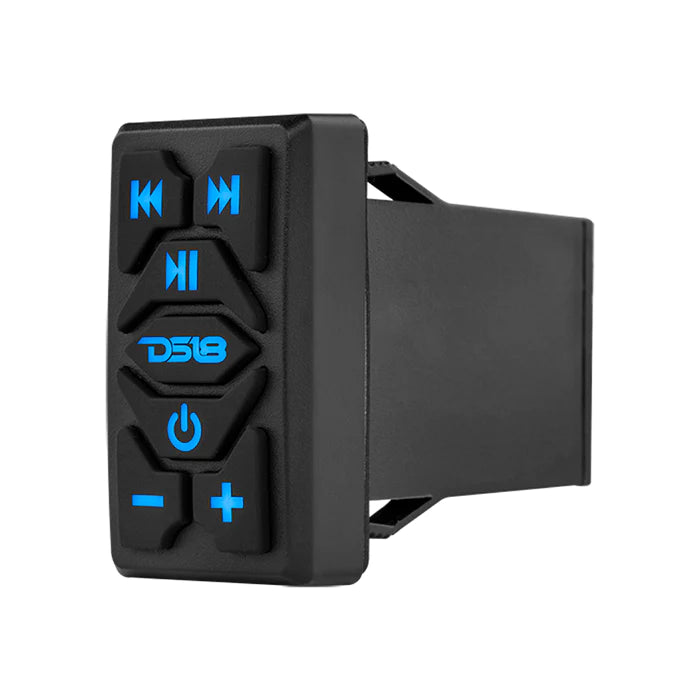

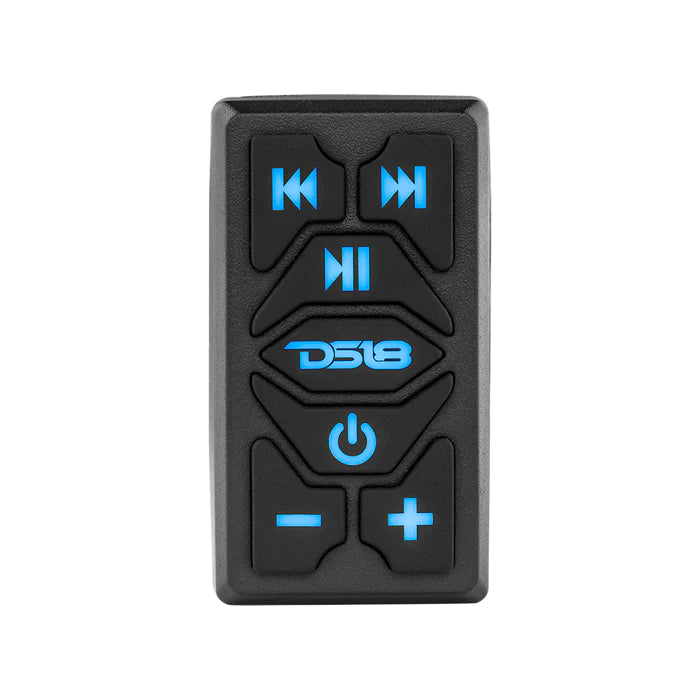

The RKS-BT uses DS18’s universal rocker switch mount so it installs in a boat’s rocker switch panel. The blue back-lit silicone buttons cover Power, Source, Play/Pause, Next, Previous and Volume up/down.
It can also turn an amplifier on through a remote output (under 200 mA), so it works as a stand-alone receiver and head unit.
Connections and Installation

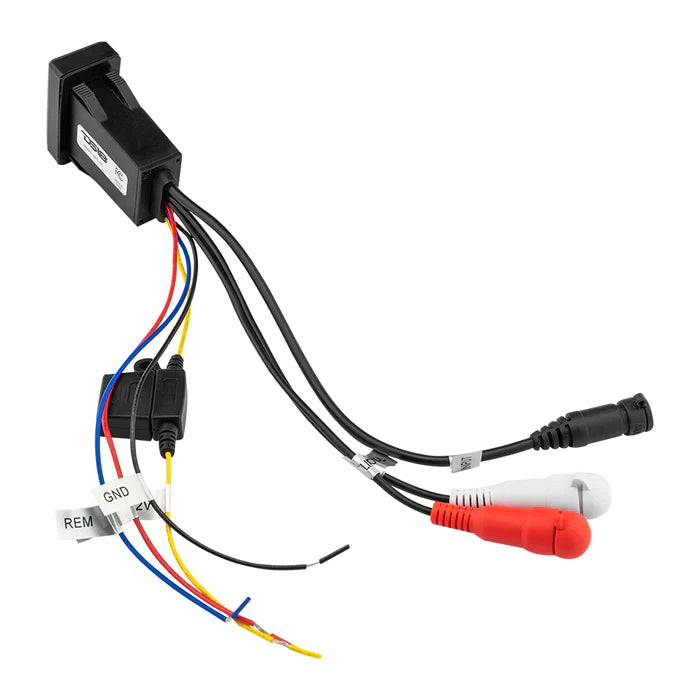

Outputs are one pair of RCA line outs (2.5V) and the remote output; inputs include an auxiliary audio input. An integrated power wiring harness is included and the unit has overload and power protection circuitry.
Overall size is 1.1" long, 2" high and 2.8" deep with a 2.3" (58 mm) mounting depth. Pair it with an amplifier from our marine amplifiers.
Specifications
| Frequency response | 20 Hz - 20 kHz |
| Signal-to-noise ratio | >80 dB |
| THD | <0.1% |
| Channel separation | >60 dB |
| Voltage operation | DC 10 - 15V |
| Fuse size | 2 Amp |
| Bluetooth version | 5.0 |
| Waterproof rating | IPX6 |
| RCA line out | 1 pair (L & R), 2.5V |
| Remote out | <200 mA |
| Overall length / height / depth | 1.1" / 2" / 2.8" (28 / 51 / 72 mm) |
| Mounting depth | 2.3" / 58 mm |
| Body | PP black housing, silicone buttons |
Related Paths
RKS-BT Rocker Switch FAQ
What hole size does it need?
A 21.5 mm x 36 mm cutout.
What is the water rating?
DS18 lists the RKS-BT as IPX6 water resistant.
Can it turn on my amplifier?
Yes. It has a remote output (under 200 mA) to control an external amplifier.
What voltage does it run on?
DC 10 - 15V with a 2 Amp fuse.
What outputs does it have?
One pair of 2.5V RCA line outs and a remote output.
