2014–2023 Harley-Davidson 2-Speaker Plug-and-Play Audio System | DS18
Upgrade a compatible 2014–2023 Harley-Davidson Road Glide or Street Glide with a complete two-speaker audio system built around a DS18 ION1600.4D amplifier, two high-output 6.5-inch hybrid speakers, factory-radio integration and the primary power, mounting and installation components required for the selected motorcycle.
Select Road Glide or Street Glide before ordering so the system can be supplied with the correct fairing-specific amplifier mounting configuration. Two amplifier channels power the included speakers, while two channels remain available for a properly matched future rear-speaker upgrade.
Complete Two-Speaker Audio System
- Road Glide and Street Glide options
- Compatible 2014–2023 Harley-Davidson Touring platform
- DS18 ION1600.4D four-channel Class-D amplifier
- Two DS18 PRO-HY6.4MSL 6.5-inch hybrid speakers
- 4-ohm nominal impedance per speaker
- 150 watts RMS per included speaker
- Built-in 1-inch titanium compression drivers
- DS18 factory-radio plug-and-play harness
- 4-AWG amplifier power wiring
- Bike-specific amplifier mounting solution
- Two amplifier channels available for future expansion
Complete 2-Speaker Plug-and-Play System Overview
This Garage Bagger Stereo package combines the amplifier, front fairing speakers, factory-radio signal interface, power wiring and motorcycle-specific mounting components required to build a complete two-speaker audio system in a compatible 2014–2023 Harley-Davidson Road Glide or Street Glide.
The included DS18 PRO-HY6.4MSL speakers combine a shallow 6.5-inch midrange driver with a built-in 1-inch titanium compression driver. The hybrid design delivers the midrange projection and high-frequency output needed to overcome motorcycle, road and wind noise.
The DS18 ION1600.4D provides four channels of full-range Class-D power. Two channels operate the included fairing speakers. The remaining two channels can support a compatible rear-speaker pair after the correct speakers, wiring, mounting hardware and amplifier setup are added.
Road Glide and Street Glide Fitment
Road Glide Option
Select Road Glide for a compatible 2014–2023 sharknose-fairing motorcycle. This option must include the amplifier rack and front-speaker installation components configured for the Road Glide fairing.
- 2014–2023 Road Glide fairing configuration
- Road Glide-specific amplifier mounting solution
- Two front fairing speakers
- Factory-radio integration harness
Street Glide Option
Select Street Glide for a compatible 2014–2023 batwing-fairing motorcycle. This option must include the amplifier rack and front-speaker installation components configured for the Street Glide fairing.
- 2014–2023 Street Glide fairing configuration
- Street Glide-specific amplifier mounting solution
- Two front fairing speakers
- Factory-radio integration harness

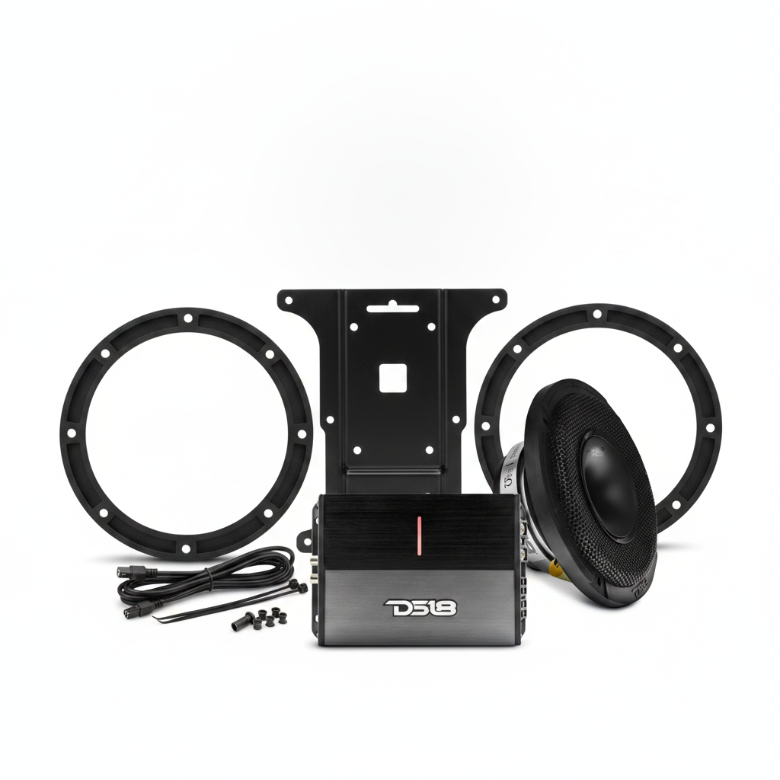

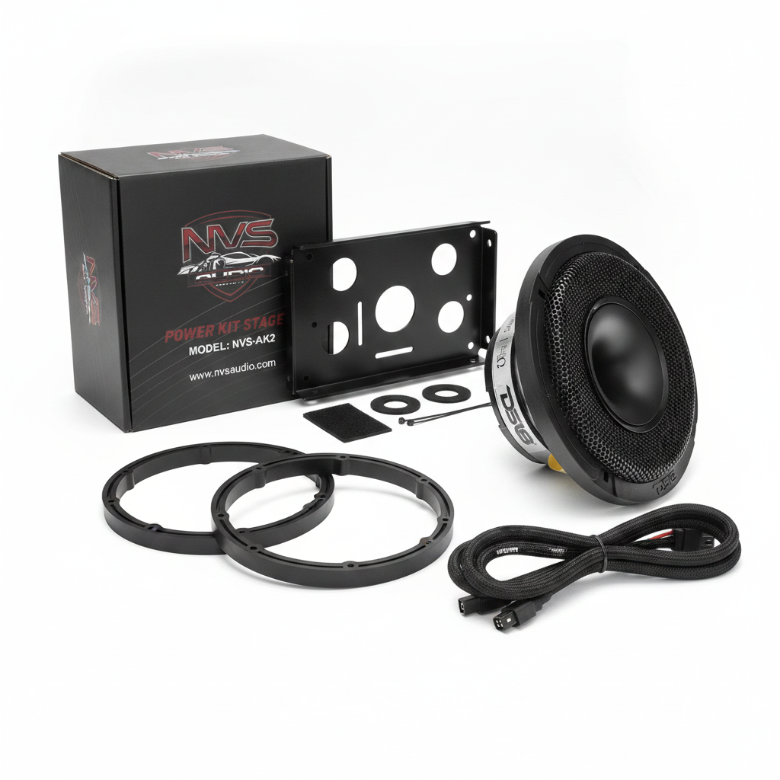

Everything Included in the Audio System
DS18 ION1600.4D Amplifier
One compact four-channel full-range Class-D amplifier rated for 240 watts RMS × 4 at 4 ohms, 400 watts RMS × 4 at 2 ohms and 800 watts RMS × 2 bridged at 4 ohms.
Two DS18 PRO-HY6.4MSL Speakers
One pair of 6.5-inch shallow hybrid speakers with 4-ohm impedance, 150-watt RMS power handling and built-in 1-inch titanium compression drivers.
DS18 RY-HARNESS.HD
A factory-radio plug-and-play amplifier harness with four-channel RCA pre-output, oxygen-free copper wiring and water-resistant construction.
NVS 4-AWG Amplifier Power Kit
Heavy-gauge amplifier power and ground wiring with quick-disconnect hardware for cleaner installation, saddlebag removal and future servicing.
Front-Speaker Installation Components
Fairing-specific speaker spacers, mounting hardware and installation components are supplied according to the selected Road Glide or Street Glide configuration.
Bike-Specific Amplifier Rack
The selected motorcycle option includes a Road Glide- or Street Glide-specific amplifier mounting solution for a secure, vibration-resistant installation.
Speaker Impedance and Amplifier Channel Configuration
Front-Left Speaker
One PRO-HY6.4MSL speaker presents a nominal 4-ohm load to its dedicated ION1600.4D amplifier channel.
Front-Right Speaker
The second PRO-HY6.4MSL speaker presents a nominal 4-ohm load to its dedicated amplifier channel.
Two Available Channels
Two amplifier channels remain available for compatible future rear speakers after the required wiring and mounting components are installed.
DS18 ION1600.4D Four-Channel Amplifier
The DS18 ION1600.4D is a compact full-range Class-D amplifier that provides substantial output from a motorcycle-friendly chassis. It can power the included two-speaker system while retaining two channels for a properly designed future expansion.
240W × 4 at 4Ω
Published four-channel output for compatible 4-ohm speaker systems.
400W × 4 at 2Ω
Available for separately designed compatible 2-ohm speaker systems.
800W × 2 Bridged
Published bridged output into compatible 4-ohm speaker loads.
Four Full-Range Channels
Two channels operate the included speakers while two remain available for future rear-speaker expansion.
Compact Chassis
The amplifier is designed to deliver high output from a compact installation footprint.
System Setup Controls
Gain and crossover controls allow the output to be configured for the included hybrid speakers.
DS18 PRO-HY6.4MSL 6.5-Inch Hybrid Speakers
Each PRO-HY6.4MSL combines a shallow 6.5-inch midrange driver with a built-in 1-inch titanium compression driver. The two-way hybrid design provides both midrange and upper-frequency output from the front fairing speaker locations.
150W RMS
Each included speaker is rated for 150 watts RMS and 300 watts maximum.
4-Ohm Impedance
Each speaker presents a nominal 4-ohm load to its dedicated amplifier channel.
Hybrid Two-Way Design
A built-in titanium compression driver supplies high-frequency output without a separately mounted tweeter.
Shallow Mounting Depth
The 2.82-inch mounting depth supports tighter motorcycle fairing installations.
IP65 Rated
Water-resistant construction helps protect the speakers in motorcycle and powersports environments.
140Hz High-Pass Reference
DS18 publishes 140Hz as the recommended high-pass crossover reference for this speaker.
Factory Harley-Davidson Radio Integration
The DS18 RY-HARNESS.HD connects a compatible 2014–2023 factory Harley-Davidson radio system to the aftermarket amplifier without cutting the primary factory-radio signal wiring.
OEM Plug-and-Play Connection
Factory-style connections simplify amplifier signal integration.
Four-Channel RCA Pre-Output
Four RCA channels support the included four-channel amplifier and future rear-speaker expansion.
OFC Wiring
Oxygen-free copper conductors and noise-rejecting RCA connections support reliable signal transfer.
- Designed for compatible 2014–2023 Street Glide and Road Glide models
- Factory-radio plug-and-play connection
- Four-channel RCA pre-output
- Oxygen-free copper wiring
- Water-resistant harness construction
- No cutting of the primary factory-radio signal wiring
Power Wiring and Amplifier Mounting
4-AWG Amplifier Wiring
The included NVS power kit provides the heavy-gauge power and ground wiring needed for the amplifier, along with quick-disconnect connections for serviceability.
Road Glide or Street Glide Rack
Road Glide and Street Glide fairings use different amplifier mounting layouts. The selected motorcycle option determines the mounting solution supplied with the kit.
- Disconnect the motorcycle battery before installation.
- Mount the amplifier securely with adequate airflow.
- Install the correct fuse protection near the battery connection.
- Protect wiring from steering movement, sharp edges and heat.
- Use clean, secure power and ground connections.
- Verify all rack and fairing hardware before final assembly.
- Inspect battery and charging-system condition before high-output use.
Gain and Crossover Setup
Correct setup is required because the ION1600.4D can produce more continuous power at 4 ohms than each included speaker is rated to handle.
- Connect one included speaker to each of two amplifier channels.
- Do not bridge the amplifier channels for the included speakers.
- Configure the two active channels for high-pass operation.
- Use 140Hz as the published speaker high-pass reference.
- Adjust the final crossover for the fairing and intended output level.
- Set amplifier gain using measured clean output.
- Do not use the amplifier gain control as a volume control.
- Reduce output immediately if distortion or mechanical noise is heard.
- Verify speaker polarity before closing the fairing.
Future Rear-Speaker Expansion
The two unused amplifier channels provide a direct path for a future rear-speaker upgrade. Rear expansion must be designed around compatible speaker impedance, RMS power handling, mounting depth, wiring and crossover requirements.
Already Available in the System
- Two unused amplifier channels
- Four-channel factory-radio interface
- Independent amplifier channel controls
- 4-AWG amplifier power foundation
Required for Rear Expansion
- Compatible rear speakers
- Saddlebag lids, adapters or speaker pods
- Rear-speaker wiring and connectors
- Correct impedance and RMS-power matching
- Final crossover and gain setup
Complete System Specifications
Fitment and Ordering Notes
- Select Road Glide or Street Glide before adding the kit to the cart.
- The package includes two front fairing speakers.
- Each included speaker has a nominal 4-ohm impedance.
- Two amplifier channels remain available for future expansion.
- The amplifier does not include built-in DSP.
- Factory-amplified motorcycles may require additional integration.
- Speaker pod modification or additional spacing may be required.
- Correct gain and high-pass crossover setup are required.
- Rear speakers and rear mounting components are not included.
- Professional installation and system setup are recommended.
Best For
- 2014–2023 Harley-Davidson Road Glide audio upgrades
- 2014–2023 Harley-Davidson Street Glide audio upgrades
- Riders retaining a compatible factory Harley-Davidson radio
- High-output two-speaker fairing systems
- Riders planning to add saddlebag speakers later
- Four-channel systems designed for staged expansion
- Professional motorcycle audio installations
Related Motorcycle Audio Categories
Speakers and Amplifiers
Signal and Electrical Support
DS18 2-Speaker Plug-and-Play Audio System FAQ
How many speakers are included?
The system includes two DS18 PRO-HY6.4MSL 6.5-inch hybrid speakers for the front fairing.
What impedance are the included speakers?
Each included speaker has a nominal impedance of 4 ohms.
How much power can each speaker handle?
Each PRO-HY6.4MSL is rated for 150 watts RMS and 300 watts maximum.
How much power does the amplifier produce at 4 ohms?
The ION1600.4D is rated for up to 240 watts RMS on each of its four channels at 4 ohms.
Is the amplifier too powerful for the speakers?
The amplifier can produce more continuous power than each speaker is rated to handle. It can be used safely when gain, high-pass crossover and maximum clean output are configured correctly.
Are all four amplifier channels used?
No. The supplied two-speaker system uses two channels. Two additional channels remain available for a compatible future rear-speaker pair.
Does the system work with the factory Harley-Davidson radio?
The included RY-HARNESS.HD is designed to integrate an aftermarket amplifier with compatible 2014–2023 Harley-Davidson factory radios.
Does the factory radio wiring need to be cut?
The compatible factory-radio signal connection uses a plug-and-play harness and does not require cutting the primary factory signal wiring.
Does the amplifier include DSP?
No. The ION1600.4D provides conventional gain and crossover controls but does not include digital signal processing.
Are the speakers weather resistant?
Yes. The speakers are IP65 rated and use a water-resistant treated paper cone. They should not be described as submersible.
Can rear speakers be added later?
Yes. The two available amplifier channels can power a properly matched rear-speaker pair after the required speakers, mounting hardware, wiring and system setup are added.
Is the Road Glide amplifier rack the same as the Street Glide rack?
No. Road Glide and Street Glide fairings require different amplifier mounting configurations. Select the correct motorcycle option before ordering.
Will the speakers fit without modification?
Fitment depends on the exact fairing enclosure and existing equipment. Speaker pod modification, additional spacing or other clearance work may be required.
Are saddlebag speakers included?
No. This is a two-speaker audio system. Rear speakers, saddlebag mounting components and rear-speaker wiring must be purchased separately.
