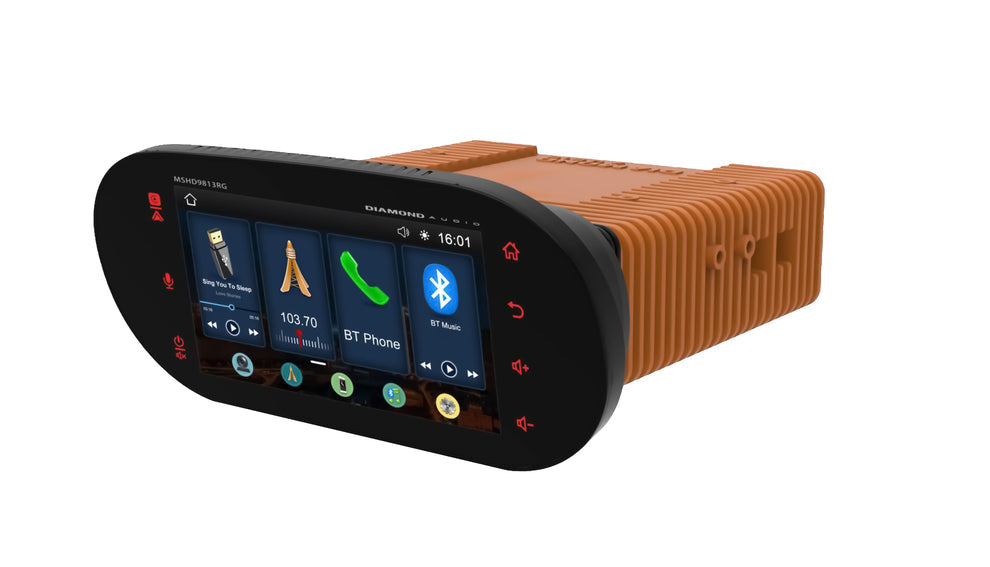

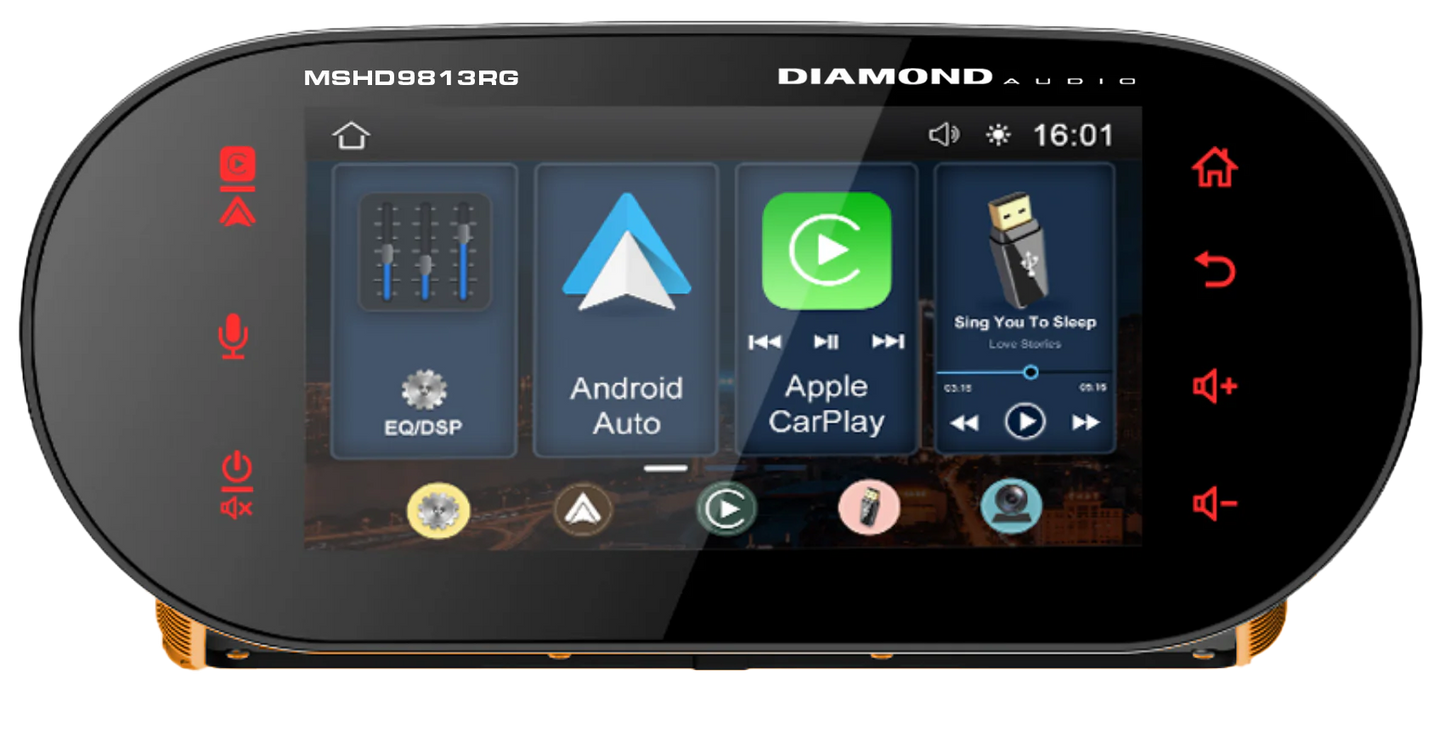

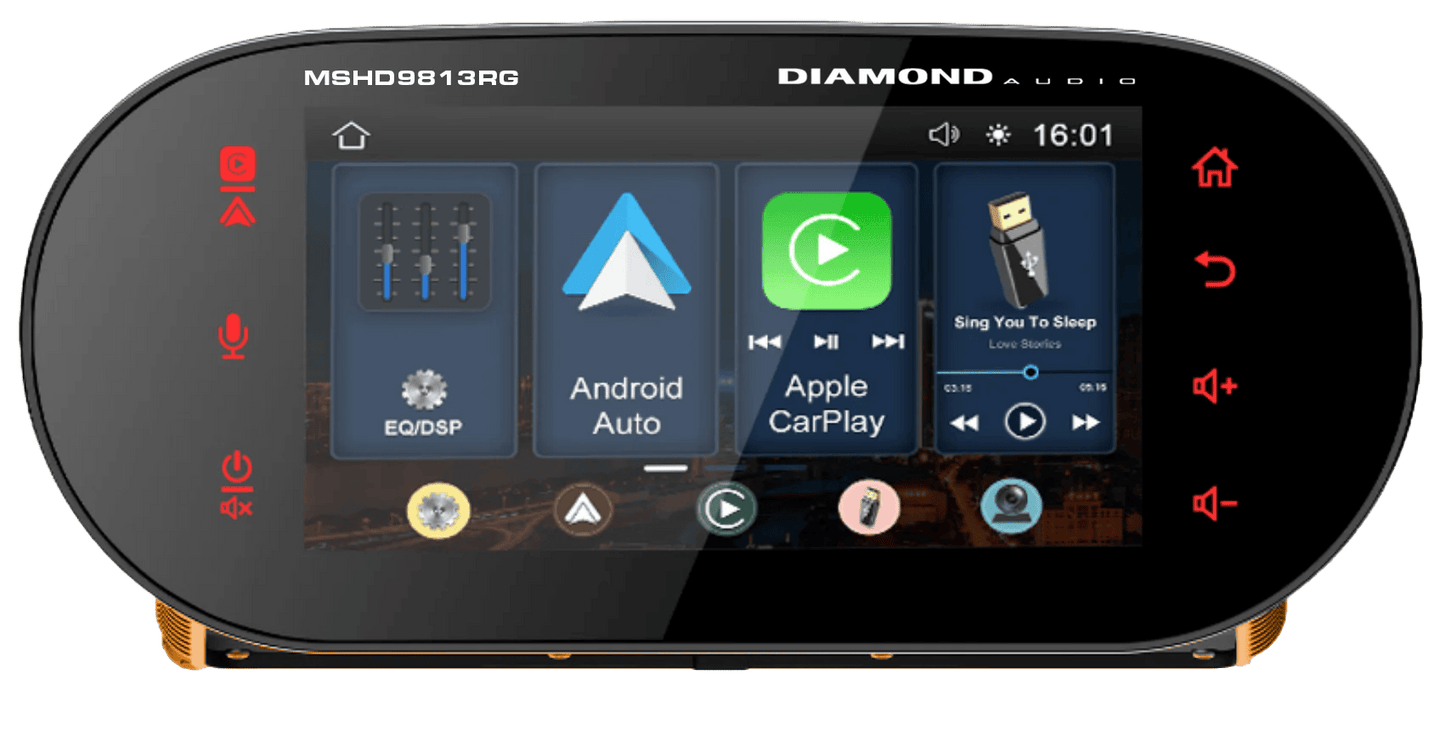

Diamond Audio MSHD9813RG - Plug N-Play Radio 1998-2013 HD Road Glide
The Diamond Audio MSHD9813RG is the Road Glide version of this plug-and-play digital media receiver, made for 1998-2013 Harley-Davidson Road Glide models. Street Glide owners should look at the MSHD9813SG instead. It pairs a 7 inch 1000 nit touchscreen with wireless Apple CarPlay and a 10-channel DSP.
Road Glide plug-and-play receiver with 10-channel DSP and wireless CarPlay
Built for the 1998-2013 Road Glide and designed in the USA, the MSHD9813RG offers six RCA outputs and four amplified outputs, six independent EQs and IPX6 water resistance with a weatherproof trim gasket.
- 7 inch 1000 nit LCD touchscreen
- 10 channel DSP with six independent EQs
- Wireless Apple CarPlay and Bluetooth 5.2
Key Product Details
| Brand | Diamond Audio |
| Model | MSHD9813RG |
| Fits | 1998-2013 Harley-Davidson Road Glide |
| Display | 7 inch ultra-bright 1000 nit LCD touchscreen |
| Outputs | (6) 5V RMS RCA outputs and (4) 50x4 @ 2 ohm / 25x4 @ 4 ohm RMS clip-free outputs |
| Smartphone | Wireless Apple CarPlay |
| Bluetooth | 5.2 streaming and hands-free calling |
| Water resistance | IPX6 with weatherproof trim gasket |
Plug-and-play receiver for the 1998-2013 Road Glide.
DSP, EQ and Output Control
The receiver has 10 channels of clip-free independent outputs. DSP features include a time delay, HP/LP/BP crossovers with adjustable slopes, and independent channels that can be linked or separated from fader control. Six independent EQs, one global and five setup EQs, let you tune each system layout.
Six 5V RMS RCA outputs feed external amplifiers, while the four built-in outputs deliver 50 watts x4 at 2 ohm or 25 watts x4 at 4 ohm RMS.
Features and Specifications
| Display | 7 inch ultra-bright 1000 nit LCD touchscreen, designed to be glove-friendly |
| Channels | 10 channel clip-free independent outputs |
| RCA outputs | (6) 5V RMS |
| Amplified outputs | (4) 50x4 @ 2 ohm / 25x4 @ 4 ohm RMS |
| EQ | 6 independent EQs (one global, five setup EQs) |
| DSP | Time delay, HP/LP/BP crossovers with adjustable slopes |
| Smartphone integration | Wireless Apple CarPlay |
| Bluetooth | 5.2 streaming and hands-free calling |
| Media formats | MP3, AAC, WMA and more |
| USB | Media input and 2.1A charger |
| Camera | Backup camera input |
| Water resistance | IPX6, weatherproof trim gasket |
Related Paths
MSHD9813RG FAQ
Which motorcycles does the MSHD9813RG fit?
It is a plug-and-play digital media receiver for 1998-2013 Harley-Davidson Road Glide models.
Does it have wireless Apple CarPlay?
Yes. It supports wireless Apple CarPlay and Bluetooth 5.2 streaming with hands-free calling.
What outputs does it have?
Six 5V RMS RCA outputs and four 50x4 @ 2 ohm / 25x4 @ 4 ohm RMS clip-free outputs.
Is it weather resistant?
It has IPX6 water resistance and comes with a weatherproof trim gasket.
Can I add a backup camera?
Yes. It has a backup camera input for a compatible camera.
What can I plug into the USB port?
The USB media input also acts as a 2.1A charger, and the media player supports MP3, AAC, WMA and more.
