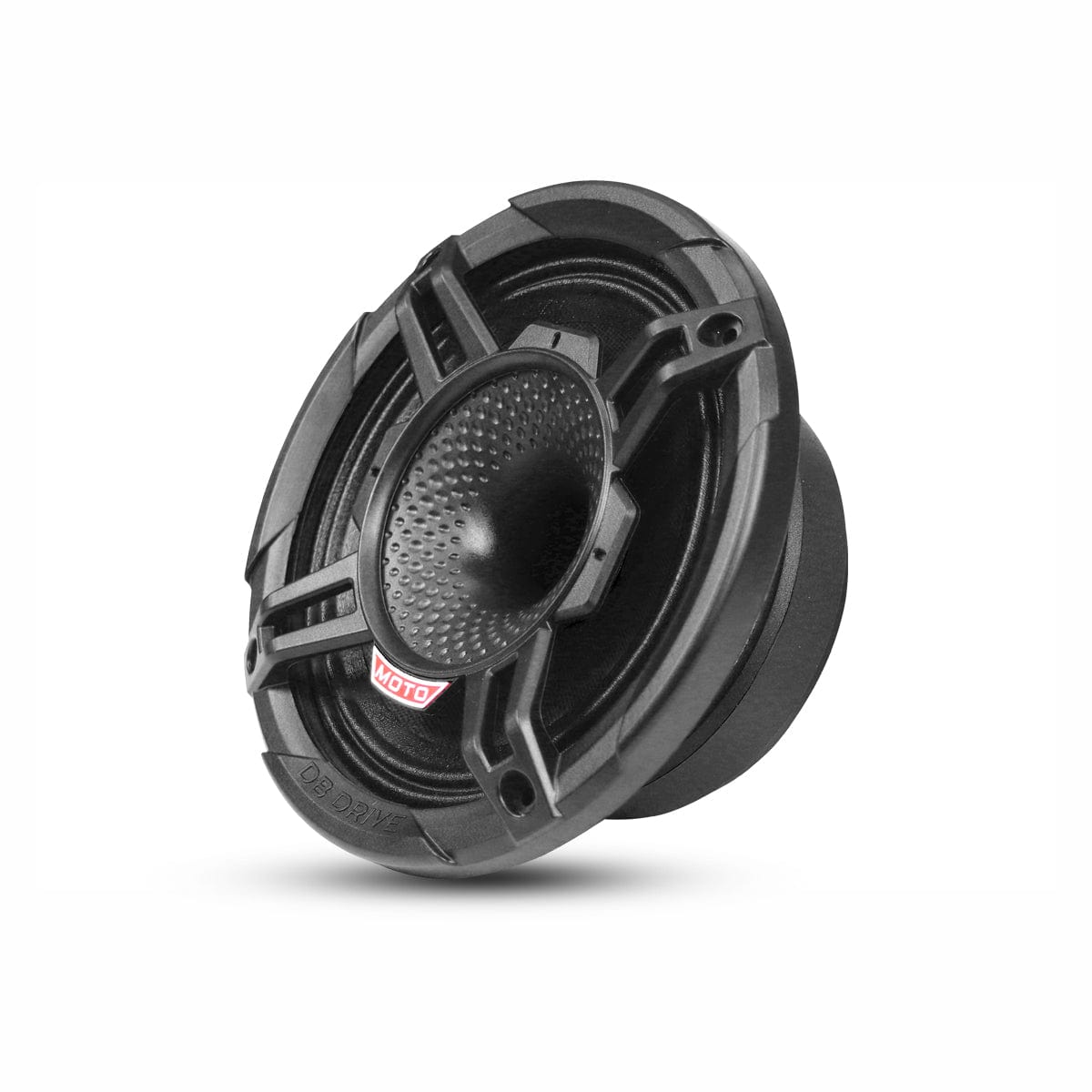

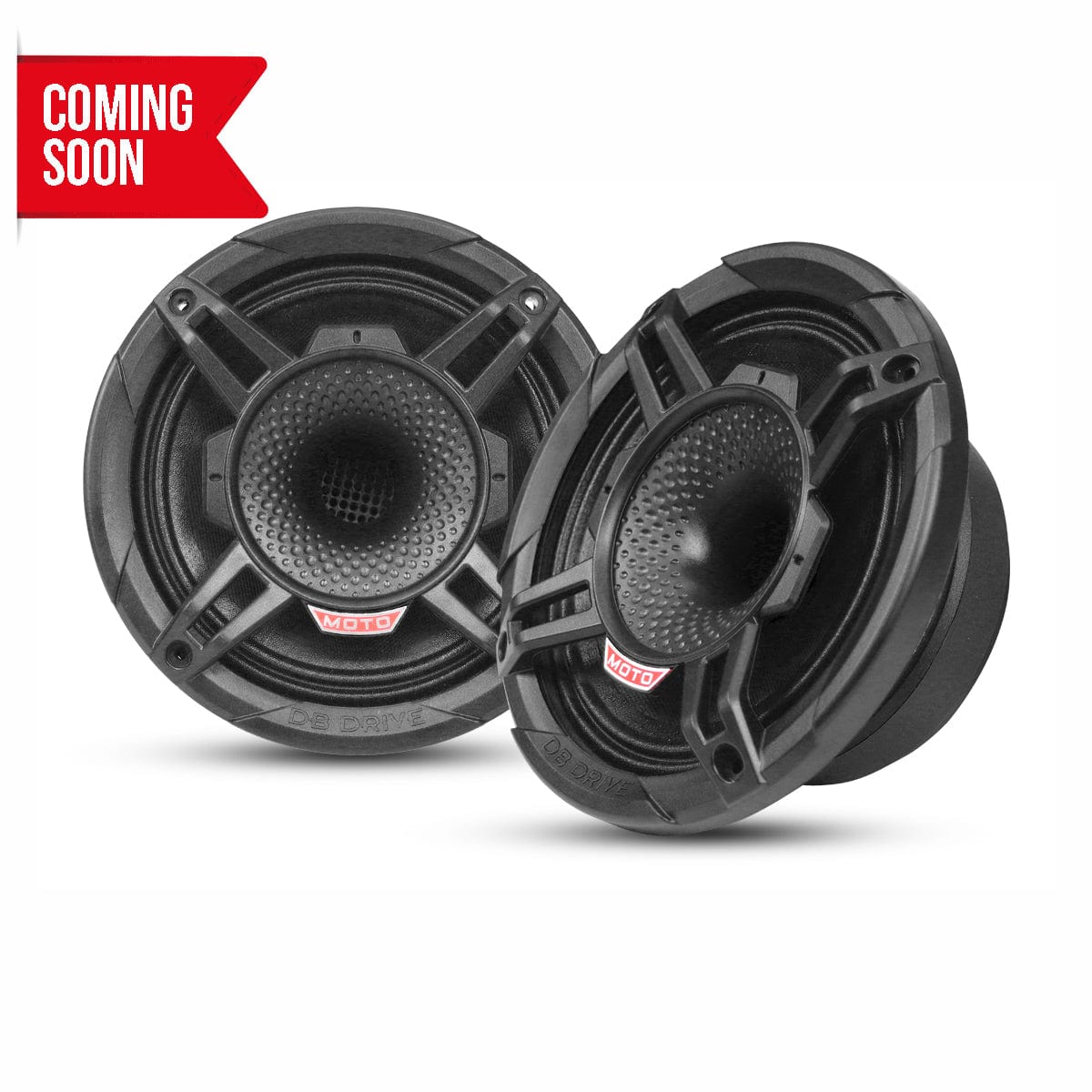

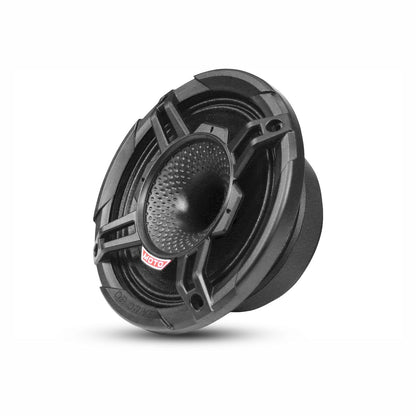

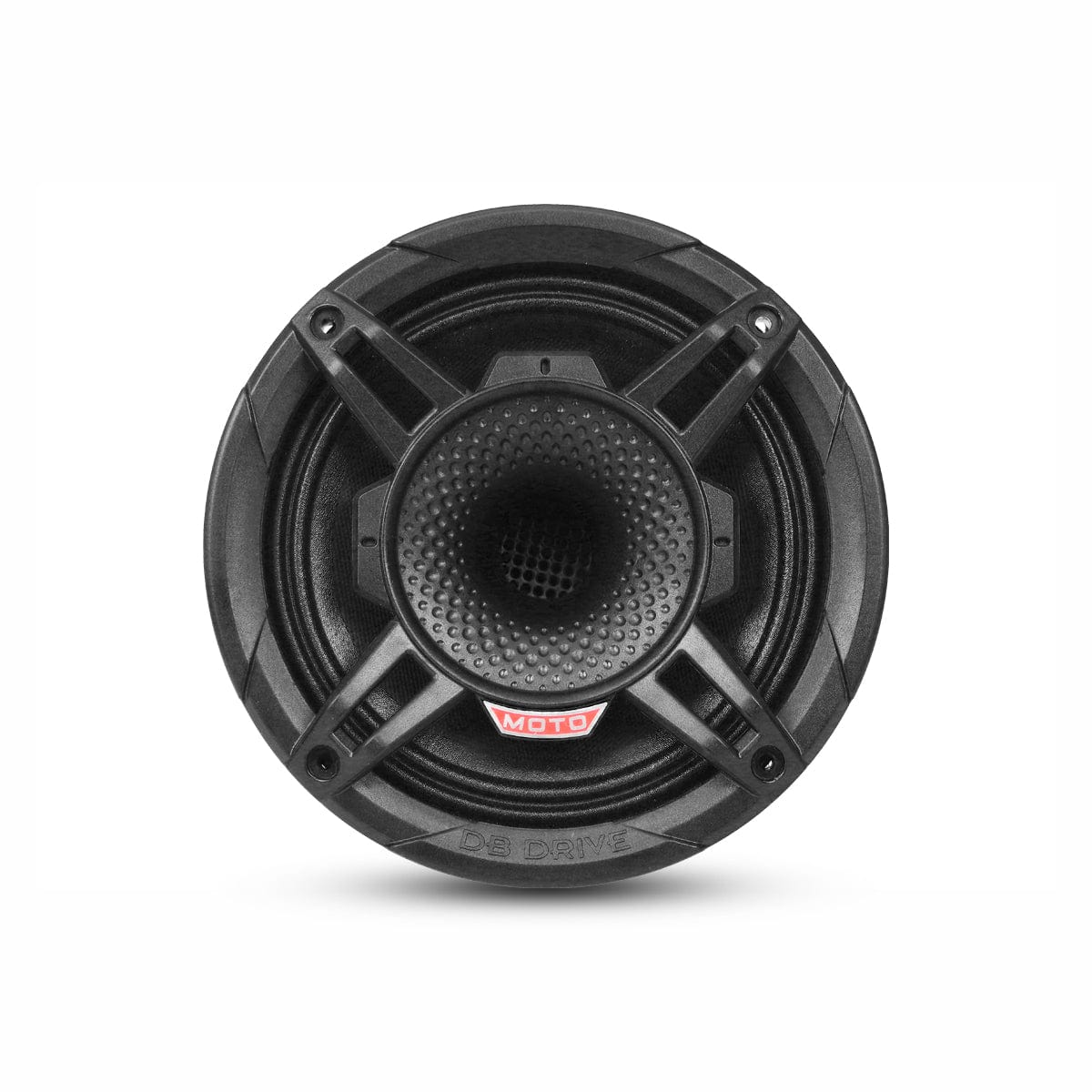

DB Drive WDX6MOTO-CD (pairs)
The DB Drive WDX6MOTO-CD is a 6.5" 2-way coaxial speaker pair with a rear-mounted compression driver behind a 1" aluminum tweeter element. It is a high-efficiency pro coaxial for 6.5" speaker locations.
High-efficiency 6.5" coaxial with a compression driver
Sold as a pair with the protective grill included, rated 250W nominal and 500W max at 4 ohm.
- 250W nominal / 500W max
- 102.7dB sensitivity, 4 ohm
- 3.08" depth, 5.67" cutout
Key Product Details
| Brand | DB Drive |
| Model | WDX6MOTO-CD |
| Size | 6.5" 2-way coaxial |
| Sold as | Pair |
| Nominal impedance | 4 ohm |
| Grill | Protective grill included |
Confirm the cutout and mounting depth against your lid, fairing or saddlebag before ordering.
Compression driver coaxial design
The WDX6MOTO-CD uses a rear-mounted compression driver behind a 1" aluminum compression-style tweeter element, with a 1.5" high-output midrange voice coil and a bi-ribbed treated cloth surround.
Planning the system around this speaker
At 102.7dB sensitivity and 4 ohm, this speaker is a high-efficiency option for 6.5" locations. Match it to an amplifier channel that suits its 250W nominal rating, and verify the 5.67" cutout and 3.08" depth in your lid, fairing or saddlebag first.
Specifications
| Tweeter | 1" aluminum compression-style |
| Midrange voice coil | 1.5" high-output |
| Surround | Bi-ribbed treated cloth |
| Power | 250W nominal / 500W max |
| Frequency response | 90Hz-18kHz |
| Sensitivity | 102.7dB |
| Nominal impedance | 4 ohm |
| Depth | 3.08" |
| Cutout diameter | 5.67" |
Related Paths
DB Drive WDX6MOTO-CD FAQ
What size is the DB Drive WDX6MOTO-CD?
It is a 6.5" 2-way coaxial speaker, sold as a pair.
What are its power and impedance ratings?
250W nominal and 500W max, with a 4 ohm nominal impedance.
What cutout and depth do I need?
The cutout diameter is 5.67" and the depth is 3.08". Check both against your lid, fairing or saddlebag before ordering.
Is a grill included?
Yes, a protective grill is included.
Does it have a compression driver?
Yes. A rear-mounted compression driver sits behind a 1" aluminum tweeter element.
Need Help Choosing?
Tell us your bike, model year and what you want to add, and we will confirm fitment and the right parts before you order.
