EX3000.1 : Monoblock Full Range Class D Amplifier

Achieve superior audio performance with the XPERT EX3000.1, engineered for high output in a compact design—ideal for motorcycle and space-limited applications. Capable of powering high-performance tweeter, compression drivers, and midranges with ease.

Features

• ACT - Adaptive Crossover Technology
• High efficiency Full Range Class D Technology

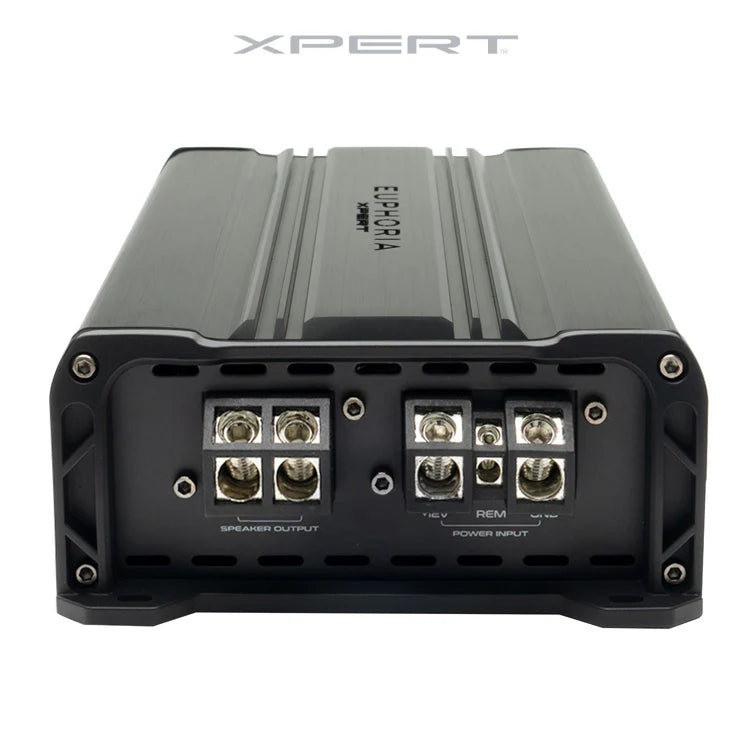

• Direct Connect Speaker Terminals
• Large Gauge Power Wire Inputs
• APC - Audio Protection Circuit
• SESI - Signal Evaluation Status Indicator
• $799.98

Specifications

@14.4 Volts - 1% THD

• 1 x 3000 Watts @ 1 Ohm

• 1 x 1500 Watts @ 2 Ohm


• 1 x 750 Watts @ 4 Ohm


• Working Voltage: 10 - 16 Volts


• Frequency Response: 10Hz - 20KHz


• Signal to Noise Ratio: < 95dB


• Damping Factor @ 4 Ohm > 53/ 1KHz


• Low Level Input: 6V - 0.2V

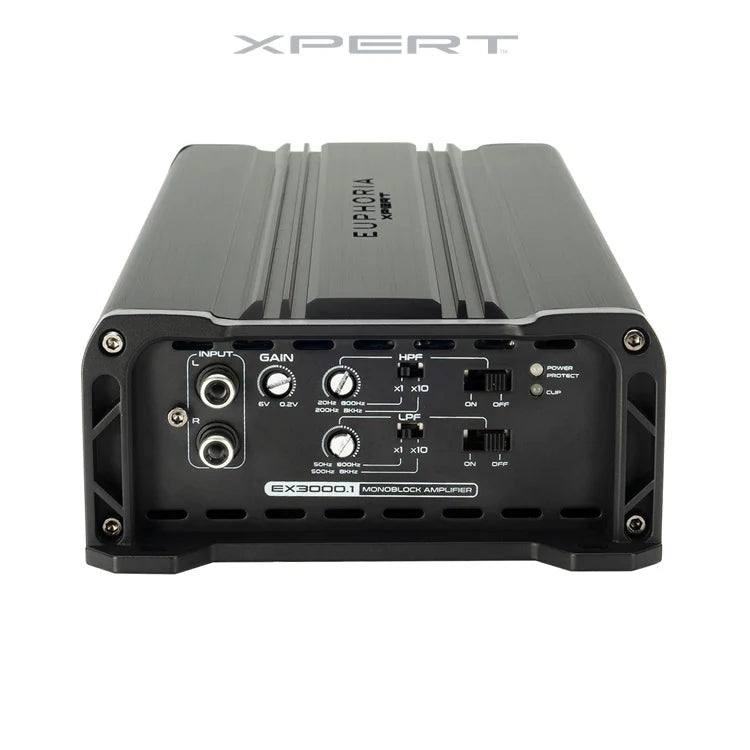

• High Pass VariableFilter: 20Hz - 800Hz / 200Hz - 8KHz


• Low Pass Variable Filter: 50Hz - 800Hz / 500 Hz - 8KHz

• Minimum Working Impedance: 1 Ohm Stereo

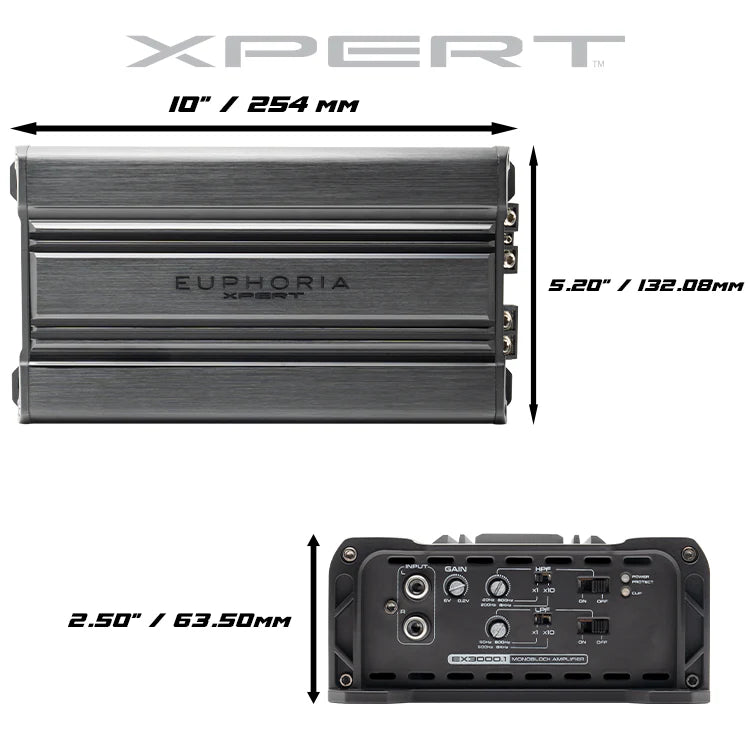

  Dimensions

  • • L - 10" / 254mm

    • W - 5.20" / 132.08mm

    • H - 2.50" / 63.50mm
