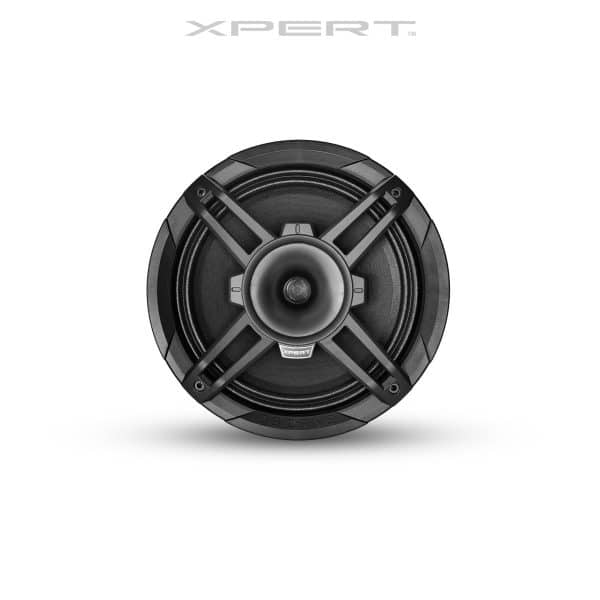

DB Drive Euphoria XPERT EX10NCD 10″ 2-Way Loudspeaker
The DB Drive Euphoria XPERT EX10NCD is a 10" 2-way loudspeaker with a rear-mounted full-size compression driver. It is a pro coaxial design for high-efficiency bagger builds.
10" pro coaxial with a rear-mounted compression driver
Rated for 500W (1000W dynamic) with a 12dB passive crossover and grills included.
- 500W (1000W dynamic); 5.2 ohm nominal
- 106.1dB sensitivity; 70Hz-20kHz
- 2.5" (63.5mm) voice coil
Key Product Details
| Product | DB Drive Euphoria XPERT EX10NCD 10″ 2-Way Loudspeaker |
| Brand | DB Drive Euphoria XPERT |
| Size | 10" |
| Type | 2-way pro coaxial with rear-mounted compression driver |
| Power handling | 500W (1000W dynamic) |
| Impedance | 5.2 ohm nominal |
| Frequency response | 70Hz-20kHz |
10-inch speakers always need mounting rings. Check the depth and cutout against your lid or bag before ordering.
System Planning
Match the amplifier channel to the 5.2 ohm nominal impedance and 500W rating. The 12dB passive crossover is included. Check the depth and cutout against your lid or bag.
Mounting rings: 10-inch speakers always need mounting rings. Browse the Nagy's Customs adapter rings, including the Nagy's Customs 10" 98-23 Harley subwoofer and midbass adapter rings and the Nagy's Customs Monster Mega 10" 98-23 adapter rings, and check them against your lid or bag before ordering.
Specifications
| Power handling | 500W (1000W dynamic) |
| Nominal impedance | 5.2 ohm |
| Sensitivity | 106.1dB (1W/1m) |
| Frequency response | 70Hz-20kHz |
| Voice coil | 2.5" (63.5mm) |
| Magnet | Neodymium ring magnet |

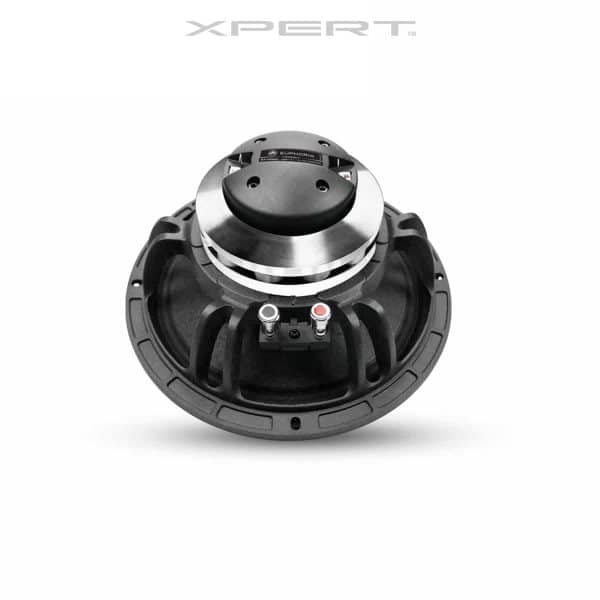

| HF driver | Rear-mounted compression driver, 1.4" (36mm) polyester diaphragm, conical HF waveguide |
| Cone | IP52 rated paper cone with treated cloth surround |
| Basket | Die-cast aluminum |

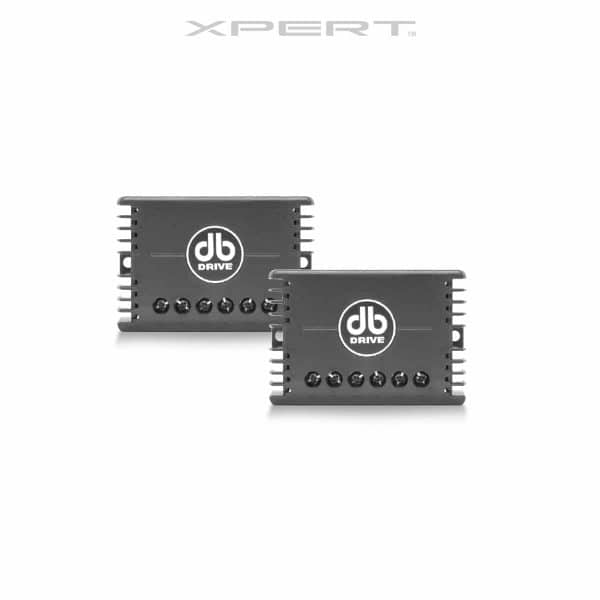

| Crossover | 12dB passive crossover included |
| Grills | Protective grills included |
Related Paths
DB Drive EX10NCD FAQ
What is the power handling of the DB Drive EX10NCD?
It is rated for 500W, with 1000W dynamic power handling, at a 5.2 ohm nominal impedance.
How sensitive is it and what is the frequency response?
Sensitivity is 106.1dB (1W/1m) and the response is 70Hz-20kHz.
What is included with the speaker?
A 12dB passive crossover and protective grills are included.
What is the high-frequency section?
A rear-mounted compression driver with a 1.4" (36mm) polyester diaphragm and a conical HF waveguide.
What should I check before installing it?
10-inch speakers always need mounting rings. Check the depth and cutout against your lid or bag before ordering.
Can Garage Bagger Stereo confirm fitment before I order?
Yes. Start a Build Consultation or call 864-334-6131 with your bike, model year and where the speaker will mount, and we will confirm fitment and the right parts before you order.
