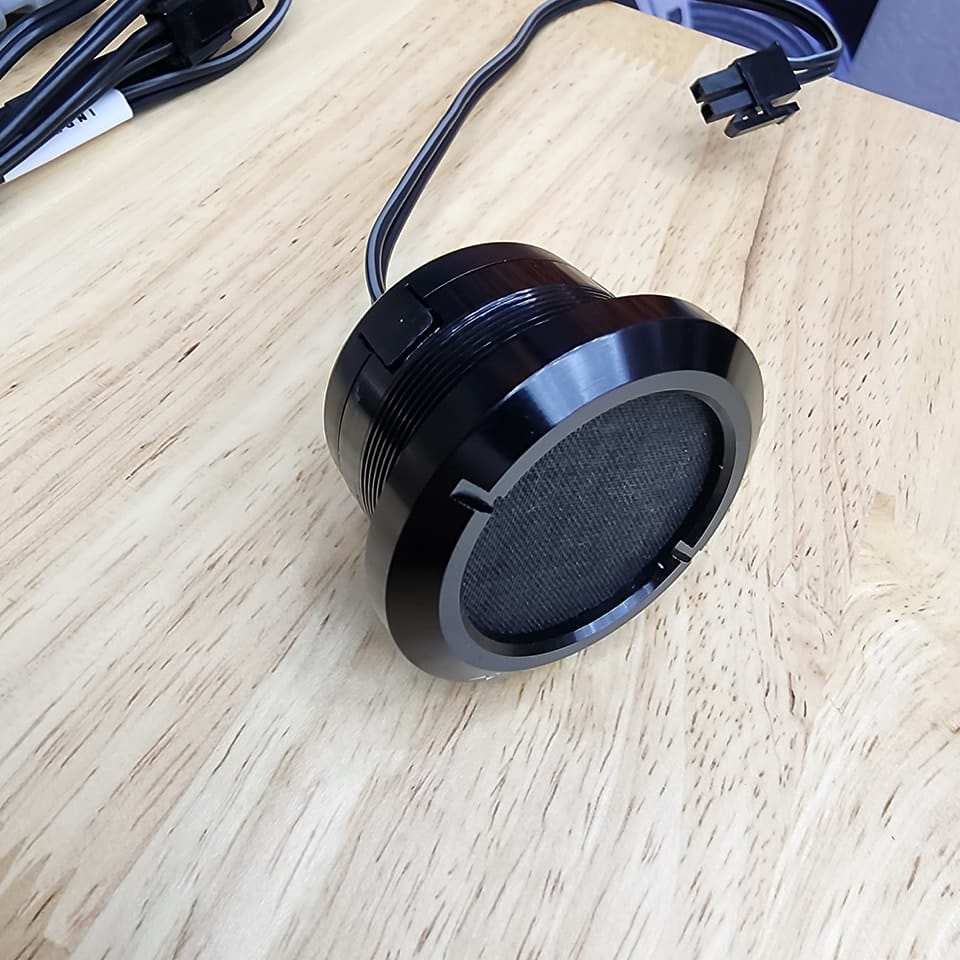

Cicada Audio RR05T Ring Radiator Horn Tweeters (Pair)
The Cicada Audio RR05T ring radiator tweeters are made for bagger audio Harleys. They are a relatively easy, shallow fit, though they may still need custom installation, which makes them well suited to custom coaxial mounting in-grill. They offer surface and flush mounting options and are sold only in pairs.
Shallow Tweeters With Two Mounting Options
- 40W RMS / 80W max
- 99 dB sensitivity
- Titanium tweeter dome
- Surface and flush mounting
- 2-year warranty
RR05T Specifications
| Power Handling | 40W RMS / 80W max |
| Impedance | 4 ohm |
| Magnet | Neodymium |
| Basket | Heavy-duty die-cast aluminum |
| Phase Plug | V9 phase plug for increased dispersion and sound quality (Cicada exclusive) |
| Voice Coil | 0.75-inch / 19mm |
| Tweeter Dome | Titanium |
| Frequency Response | 3 kHz - 20 kHz +/-3 dB |
| Sensitivity | 99 dB, 1W / 1M |
| Crossover | 7 kHz / 12 dB in a custom-tooled, vented case |
| Flush Mounting | 0.85-inch / 21.7mm deep (from back of bezel ring), 1.75-inch / 38.1mm diameter |
| Surface Mounting | 1.1-inch / 28mm protrusion, 1.8-inch / 46.1mm diameter |
| Weather Design | Rain or Shine all-weather performance design |
| Warranty | 2 years |
| Sold As | Pair only |
Related Paths
RR05T Frequently Asked Questions
Can the RR05T be flush or surface mounted?
Yes. It supports both. Flush mounting needs 0.85 inches (21.7 mm) of depth and a 1.75-inch (38.1 mm) opening, and surface mounting protrudes 1.1 inches (28 mm) on a 1.8-inch (46.1 mm) diameter.
Is the RR05T sold as a pair?
Yes. It is sold only in pairs.
What impedance and crossover does it use?
It is a 4-ohm tweeter with a 7 kHz / 12 dB crossover in a custom-tooled, vented case.
Will it fit my bagger?
It is a relatively easy, shallow fit but may still need custom installation. Garage Bagger Stereo can confirm fitment.
