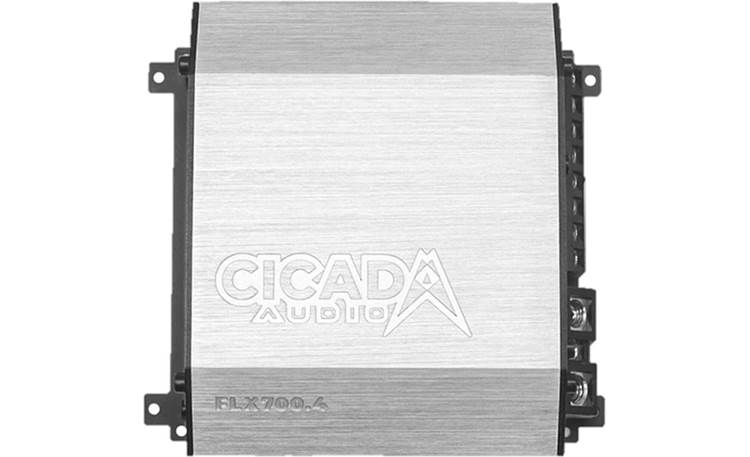

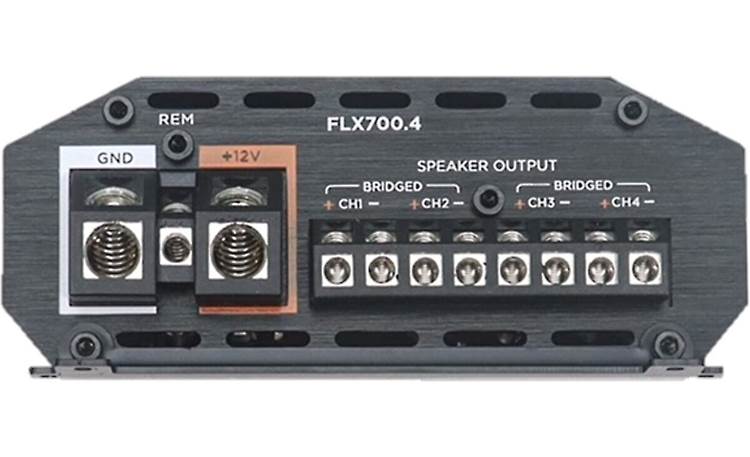

Cicada Audio FLX700.4 Amplifier
4 channel Motorcycle Audio Amplifier
175w x 4 CH Micro Amplifier
4 CHANNEL POWER AMPLIFIER
- 4 X 110 WRMS into 4 ohms @ 12.5 Vdc
- 4 X 128 WRMS into 4 ohms @ 14.4 Vdc
- 4 X 140 WRMS into 2 ohms @ 12.5 Vdc
- 4 X 175 WRMS into 2 ohms @ 14.4 Vdc
BRIDGED MONO – 2 CHANNEL
- 2 X 261 WRMS into 4 ohms @ 12.5 Vdc
- 2 X 302 WRMS into 4 ohms @ 14.4 Vdc
- Frequency response – 20-20,000 +/- 3 dB THD < 0.5%
- Operating Voltage: 8 V – 16 V
- Current Draw (Music): 60 A
- Current Draw (Max): 116 A
- Recommended Fuse (Music): 120 A
- Total Efficiency: 79%
- Damping Factor: 200
- SNR: 91dB
- Crossover LPF/FULL/HPF: 30 TO 300 Hz
- Slope:12 dB per octave
- Gain: 0.2 V – 12 Vac
- Turn-On Configuration: REM/DC
- THD + N (10% Rated Power): 0.1%
- Product Dimensions (Inches / Millimeters): 4.5 x 4.9 x 2.0 in / 114 x 124 x 51 mm
