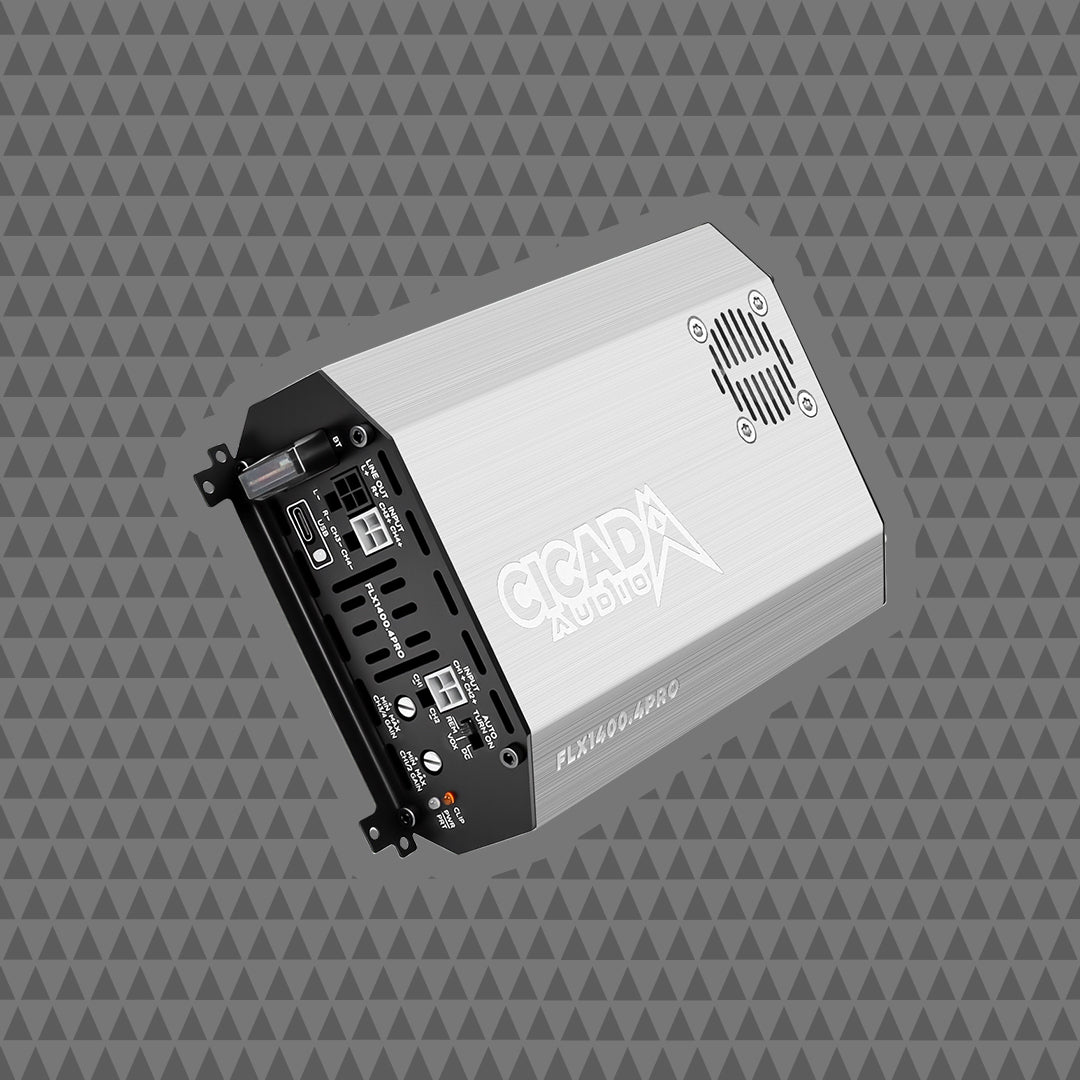

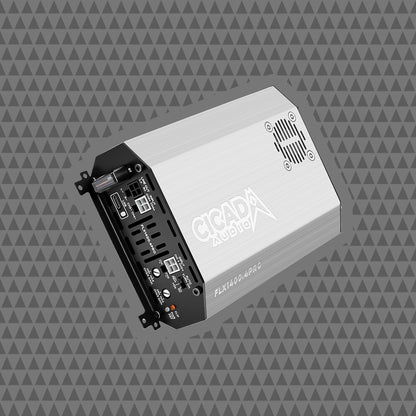

Four Amplified Channels Plus Two DSP Expansion Channels

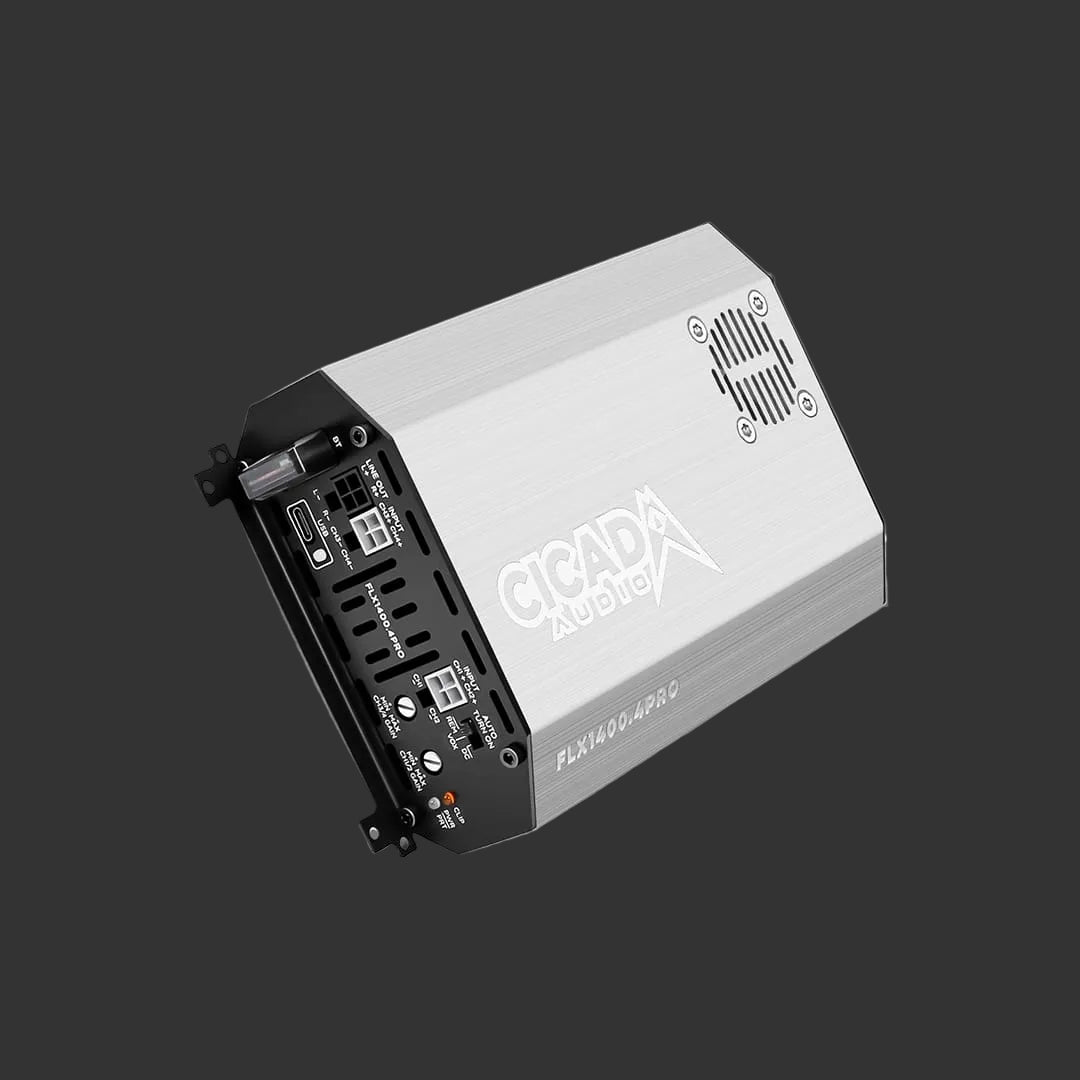

The FLX1400.4PRO is more than a four-channel amplifier. Its integrated DSP provides six processed outputs: four channels feed the internal Class-D amplifier while two additional DSP channels provide processed pass-through outputs for compatible future amplifiers.

Built-In Six-Channel DSP

Motorcycle audio requires more than amplifier power. Speaker location, wind noise, road noise, open-air listening and unequal distances from the rider all affect the final sound. The FLX1400.4PRO integrates the DSP control required to build the system around the motorcycle rather than relying only on basic amplifier controls.

• Six total DSP channels.
• Four internally amplified DSP outputs.
• Two processed pass-through outputs for compatible expansion.
• High-pass, band-pass and low-pass crossover modes.
• 20 Hz to 20 kHz crossover adjustment range.
• 6, 12, 24 and 48 dB-per-octave selectable slopes.
• Bluetooth audio streaming.
• USB-C computer tuning.
• Cicada DIALD PC and app-based DSP configuration.

Built for Harley-Davidson Bagger Audio

Cicada engineered the FLX1400.4PRO around motorcycle installations, including direct mounting compatibility with compatible Harley-Davidson Road Glide and Street Glide amplifier rack locations.

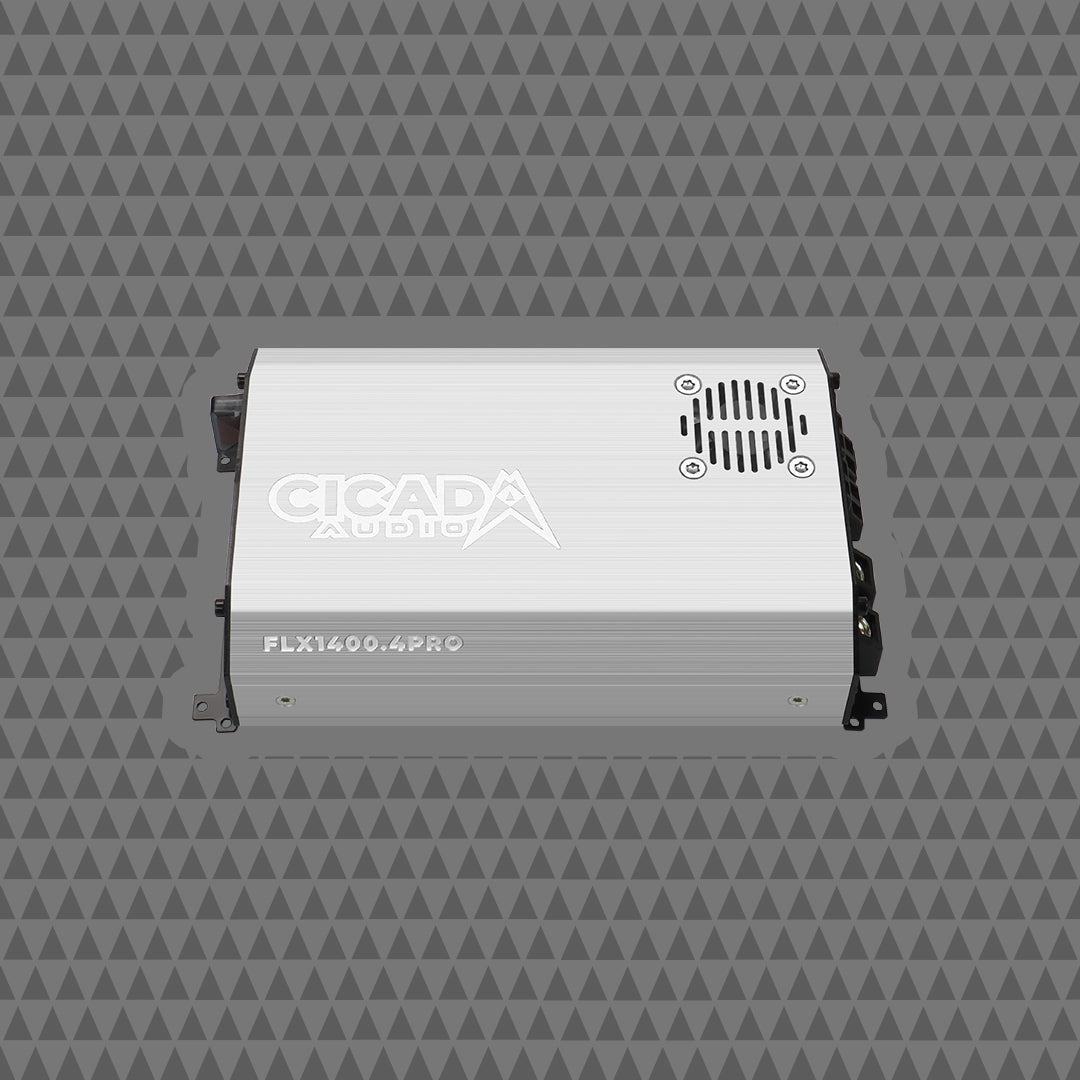

Its compact aluminum chassis delivers serious output without requiring the physical space normally associated with a 1400-watt four-channel amplifier.

Motorcycle-Ready Construction

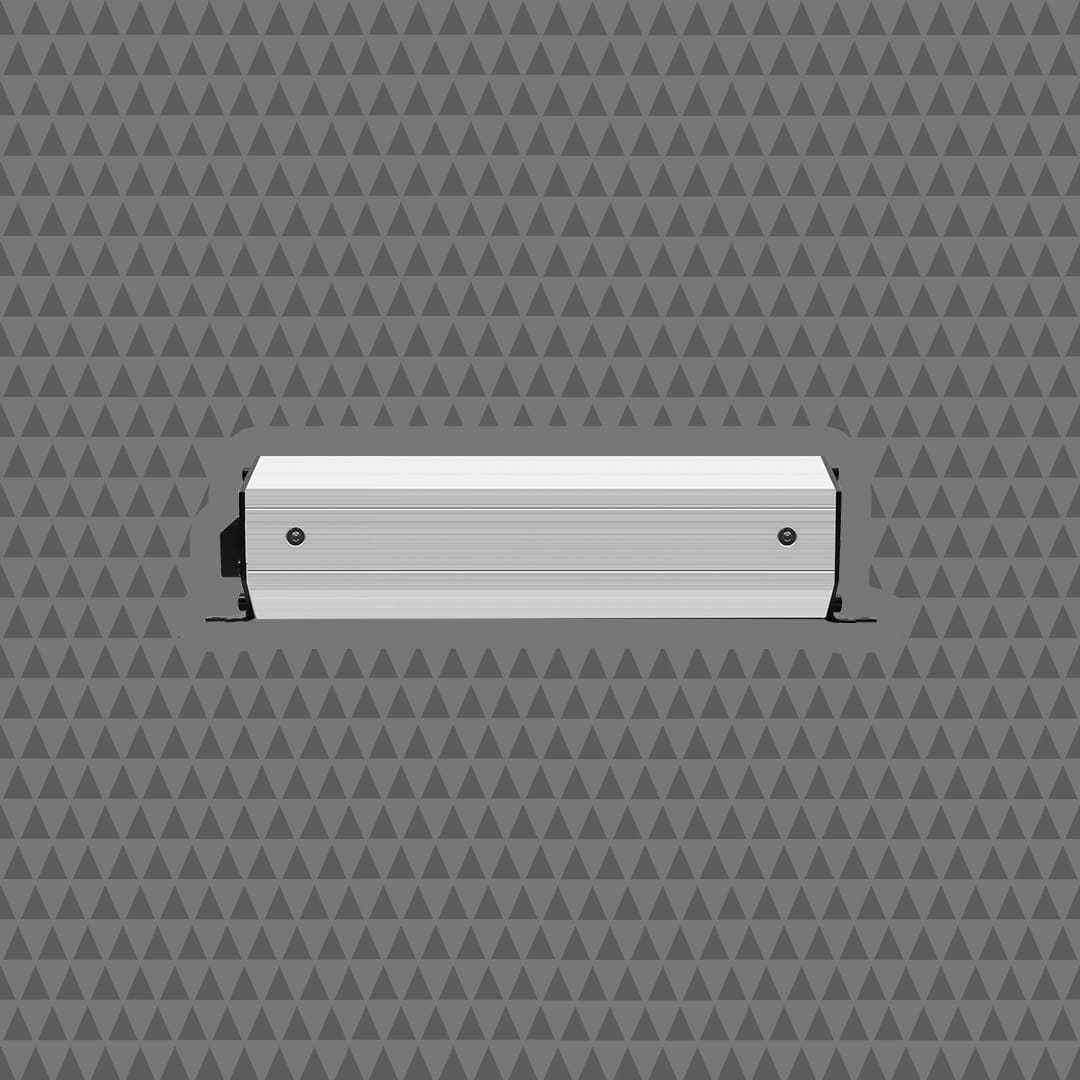

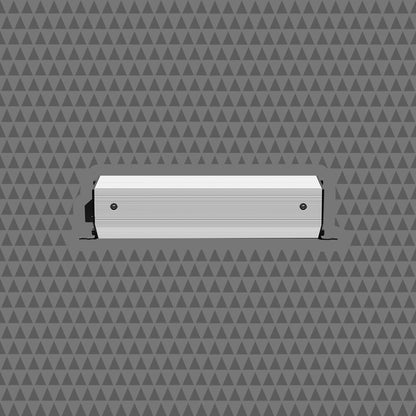

The FLX1400.4PRO uses an extruded aluminum heatsink and a conformal-coated circuit board to improve resistance to the vibration, moisture and dust encountered in motorcycle audio installations.

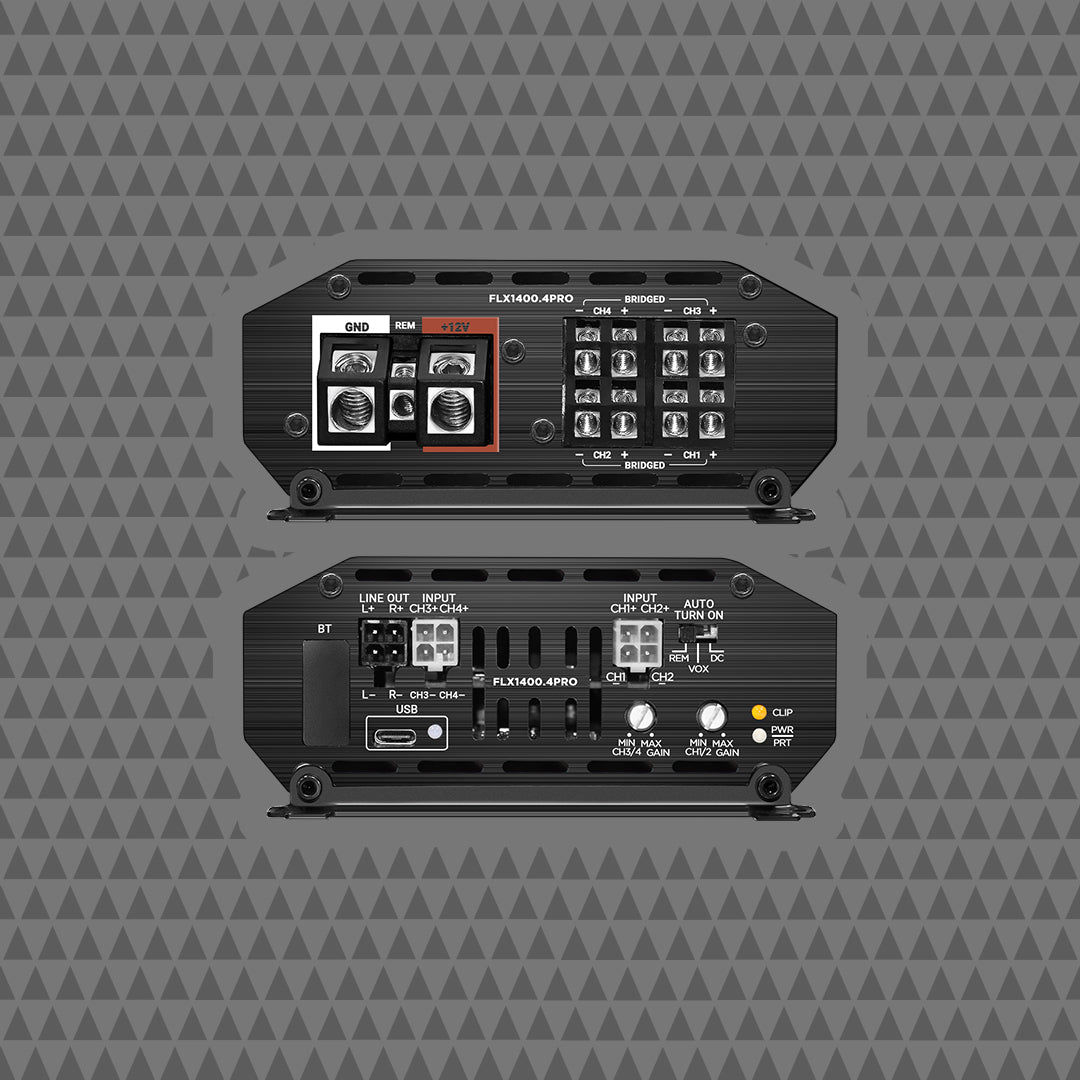

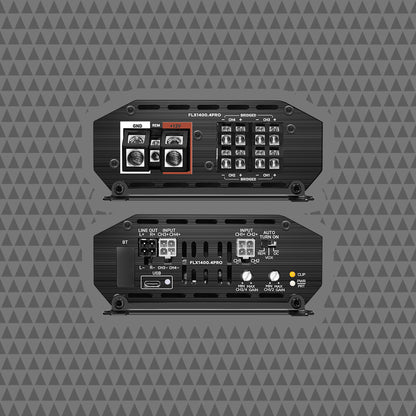

• Conformal-coated circuit board.
• Extruded aluminum amplifier chassis.
• Cicada ICAD overload protection circuitry.
• Status and clipping LED indicators.
• 4 AWG power connections.
• 12 AWG busbar-style speaker outputs.
• REM, DC and VOX turn-on modes.
• Molex input system supporting RCA or compatible Harley-specific termination.

Bluetooth Audio and USB-C DIALD Tuning

Built-in Bluetooth audio streaming provides a direct playback source for compatible testing, setup and listening. For deeper tuning control, USB-C connectivity allows a computer to connect directly to the amplifier's DSP.

Cicada's DIALD platform provides PC and compatible app-based control over the FLX1400.4PRO DSP, giving installers the tools required to configure crossover behavior and system response around the actual motorcycle and speaker layout.

Designed for Front, Rear and Component Systems

Four high-output amplifier channels make the FLX1400.4PRO suitable for multiple motorcycle audio layouts. It can power front and rear speakers, component networks, saddlebag systems, lowers, fairing speakers or other properly matched combinations.

• Fairing and saddlebag speaker systems.
• Front and rear component configurations.
• 2-ohm high-output motorcycle speakers.
• 4-ohm coaxial and component systems.
• Mid-bass and pro-audio motorcycle speaker systems.
• Systems requiring processed outputs for an additional amplifier.

Electrical System Requirements

Cicada specifies approximately 70 amps of music current draw and up to 150 amps maximum for the FLX1400.4PRO, with a recommended 100-amp fuse for the published music-load specification.

• Use properly sized OFC power and ground wiring.
• FLX1400.4PRO accepts 4 AWG power connections.
• Install appropriate battery-side fuse protection.
• Keep power and ground connections short, clean and secure.
• Confirm motorcycle battery condition before installation.
• Evaluate charging-system capacity for sustained high-output operation.
• Protect all wiring from heat, abrasion, sharp edges and moving components.

Plug-and-Play Integration Options

Garage Bagger Stereo offers this amplifier with optional bike-specific integration packages for multiple Harley-Davidson Touring generations. Choose the correct option for your motorcycle and radio configuration when ordering.

• Amplifier only.
• 2023.5+ Harley A2B integration without an additional external DSP.
• 2014–2023 Harley Touring with factory radio.
• 2014–2023 Harley Touring with aftermarket radio.
• 1998–2013 Harley Touring with factory radio.
• 1998–2013 Harley Touring with aftermarket radio.

The exact harnessing and integration hardware varies by selected motorcycle generation and radio configuration. Verify your year, model, factory audio system and current radio before ordering.

Installation and Tuning

• Verify final speaker impedance before connecting amplifier outputs.
• Confirm all power, ground and fuse requirements before installation.
• Mount the amplifier securely with adequate ventilation.
• Use correct signal integration for the motorcycle's radio and factory audio architecture.
• Set DSP crossover points around the actual speakers and enclosure configuration.
• Establish proper gain structure throughout the source, integration device and amplifier.
• Complete final DSP tuning after the motorcycle is fully assembled.
• Professional installation and system tuning are strongly recommended for high-output systems.

Need Help Matching the FLX1400.4PRO to Your Bike?

The right amplifier is only one part of a properly designed motorcycle audio system. Speaker impedance, radio integration, electrical capacity, crossover strategy, mounting location, wiring and DSP tuning all affect the final performance.

Tell Garage Bagger Stereo your motorcycle year, model, radio, speakers and performance goal and we can help determine the correct FLX1400.4PRO configuration and integration path.
