Cicada Audio CXK69 6x9" Component Speaker Kit | 2-Ohm or 4-Ohm

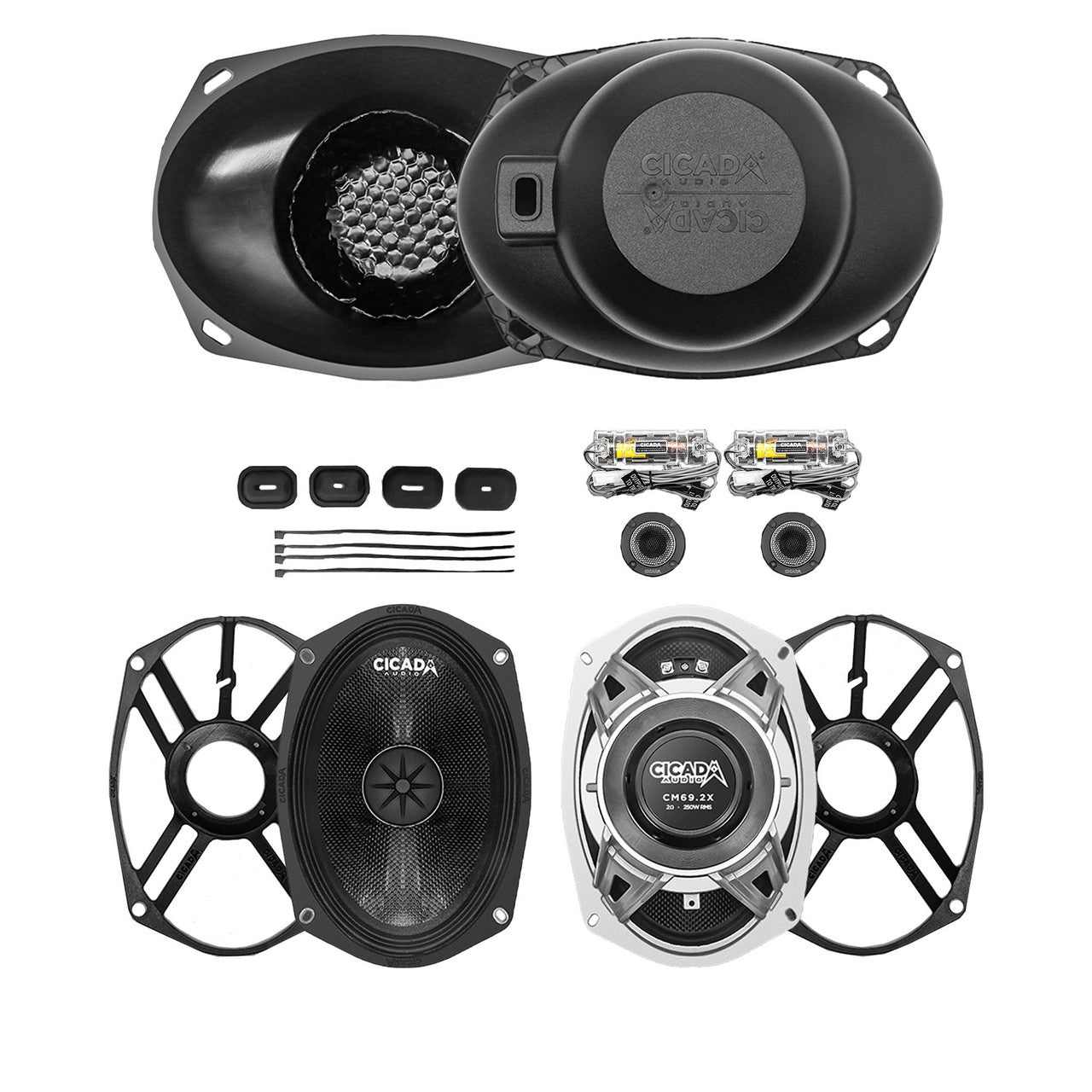

The Cicada Audio CXK69 is a complete 6x9-inch component speaker kit: a mid-bass driver plus a 1-inch ring radiator horn tweeter with external crossover. It is available with a 2-ohm or 4-ohm mid-bass driver.
Mid-bass plus ring radiator horn tweeter
Choose a 2-ohm or 4-ohm mid-bass driver; the tweeter is 4 ohm.
- Mid-bass: 250W RMS / 500W max, 94 dB
- Tweeter: 50W RMS / 100W max, 101 dB
- Two-year warranty
Key Product Details
| Brand | Cicada Audio |
| Kit | 6x9 mid-bass driver, 1-inch ring radiator horn tweeter, external crossover |
| Mid-bass impedance | 2 ohm or 4 ohm |
| Mid-bass power | 250W RMS / 500W max |
| Tweeter | 4 ohm 1-inch aluminum dome, 50W RMS / 100W max |
| Warranty | Two years |
Cicada does not name a specific bike for this kit. Measure your 6x9 location against the depth and diameter below before ordering.
Planning Your Install
Check the mid-bass mounting depth of 3.26 in (83mm) and the 5.7 in x 8.5 in (145mm x 216mm) mounting diameter against your lid or fairing opening. Match the 2-ohm or 4-ohm driver to your amplifier.
Specifications
| Mid-bass sensitivity | 94 dB |
| Mid-bass frequency response | 70Hz-10kHz (+/-3 dB) |
| Mid-bass cone | Carbon Matrix Composite |
| Mid-bass magnet and basket | N35SH neodymium, die-cast aluminum |
| Mid-bass mounting depth | 3.26 in (83mm) |
| Mid-bass mounting diameter | 5.7 in x 8.5 in (145mm x 216mm) |
| Tweeter sensitivity | 101 dB |
| Tweeter crossover | 12dB/7kHz |
| Tweeter mounting depth | 1.1 in (28mm) |
| Tweeter diameter | 2 in (50.8mm) |
Related Paths
CXK69 FAQ
Is the CXK69 a complete kit?
Yes. It includes a 6x9 mid-bass driver and a 1-inch ring radiator horn tweeter with external crossover.
What impedance options are there?
The mid-bass driver is available in 2-ohm or 4-ohm. The tweeter is 4 ohm.
What power does it handle?
Mid-bass: 250W RMS / 500W max. Tweeter: 50W RMS / 100W max.
How deep is it?
The mid-bass needs 3.26 in (83mm) of mounting depth; the tweeter needs 1.1 in (28mm).
Which motorcycles does it fit?
Cicada does not name a specific bike for this kit. Measure your 6x9 location against the listed depth and diameter, or call 864-334-6131 for help.
What warranty does it have?
Two years.
