Cicada Audio 24HDRINGT Direct-Fit 8" & 10" Saddlebag Template Kit
The Cicada Audio 24HDRINGT is a direct-fit installation template kit designed for compatible factory saddlebags on 2024 and newer Harley-Davidson motorcycles. Its custom-molded left and right ABS templates provide pre-marked guides for Cicada 8-inch and 10-inch mid-bass speakers, 24HDPORT3 port locations and saddlebag-brace installation.
Accurate Saddlebag Modification
- Designed for compatible 2024+ Harley-Davidson saddlebags
- Custom-molded left and right ABS templates
- Pre-marked guide for CMB8.S4 8-inch mid-bass
- Pre-marked guide for CMB10.S4 10-inch mid-bass
- Pre-marked guide for CMB10.S4NEO 10-inch mid-bass
- Pre-marked 24HDPORT3 port locations
- Left and right saddlebag-brace templates
- One template kit supports both 8-inch and 10-inch layouts
Cicada 24HDRINGT Template Kit Overview
The Cicada Audio 24HDRINGT removes much of the measuring and positioning guesswork from a large-driver saddlebag installation. Each molded template is shaped to align with its corresponding 2024 and newer Harley-Davidson saddlebag.
The templates identify the intended cutout and drilling locations for compatible Cicada 8-inch and 10-inch mid-bass speakers. They also provide guides for the 24HDPORT3 port system and separately installed saddlebag braces.
This is one universal template-kit SKU for the supported layouts. You do not need to choose an 8-inch or 10-inch template variant.

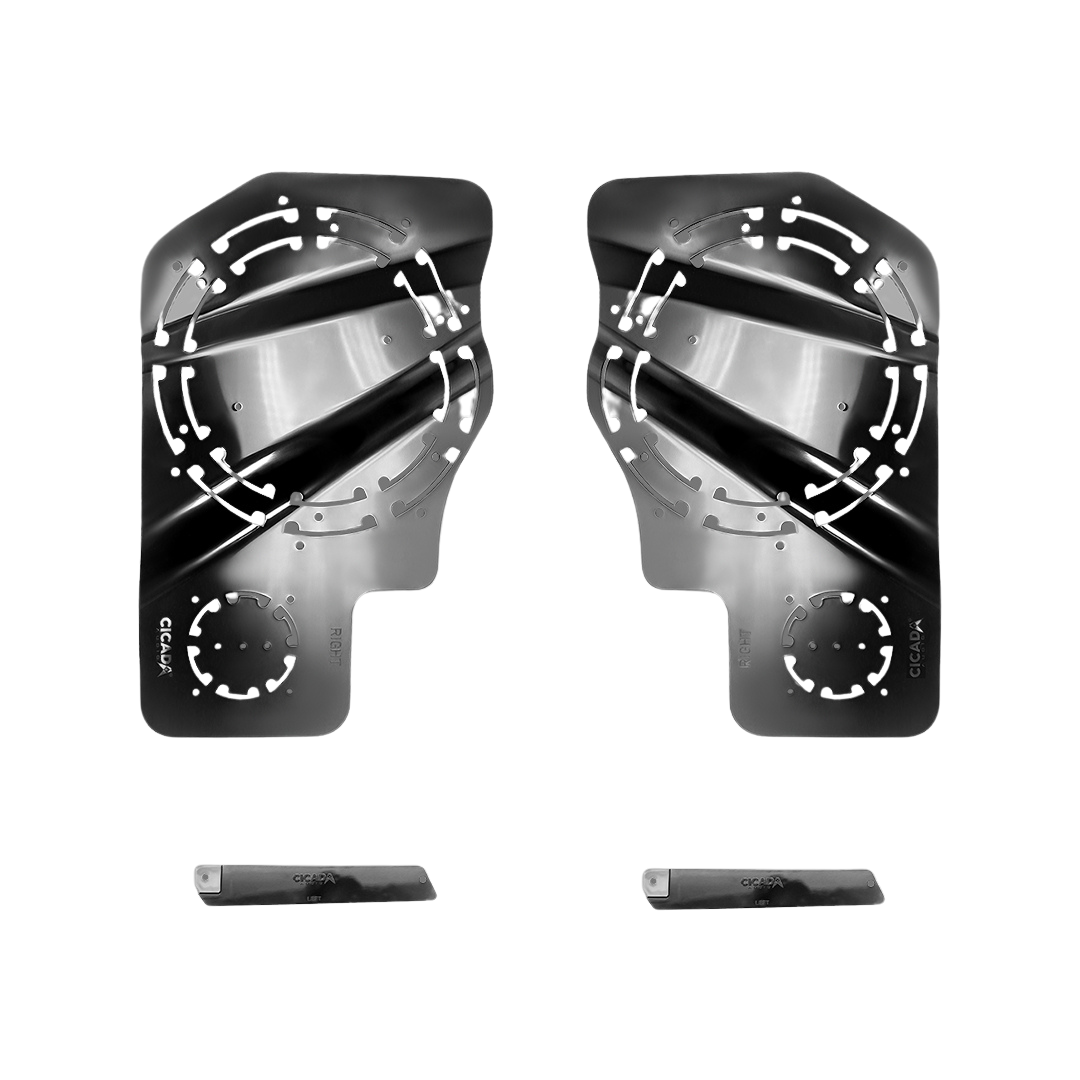

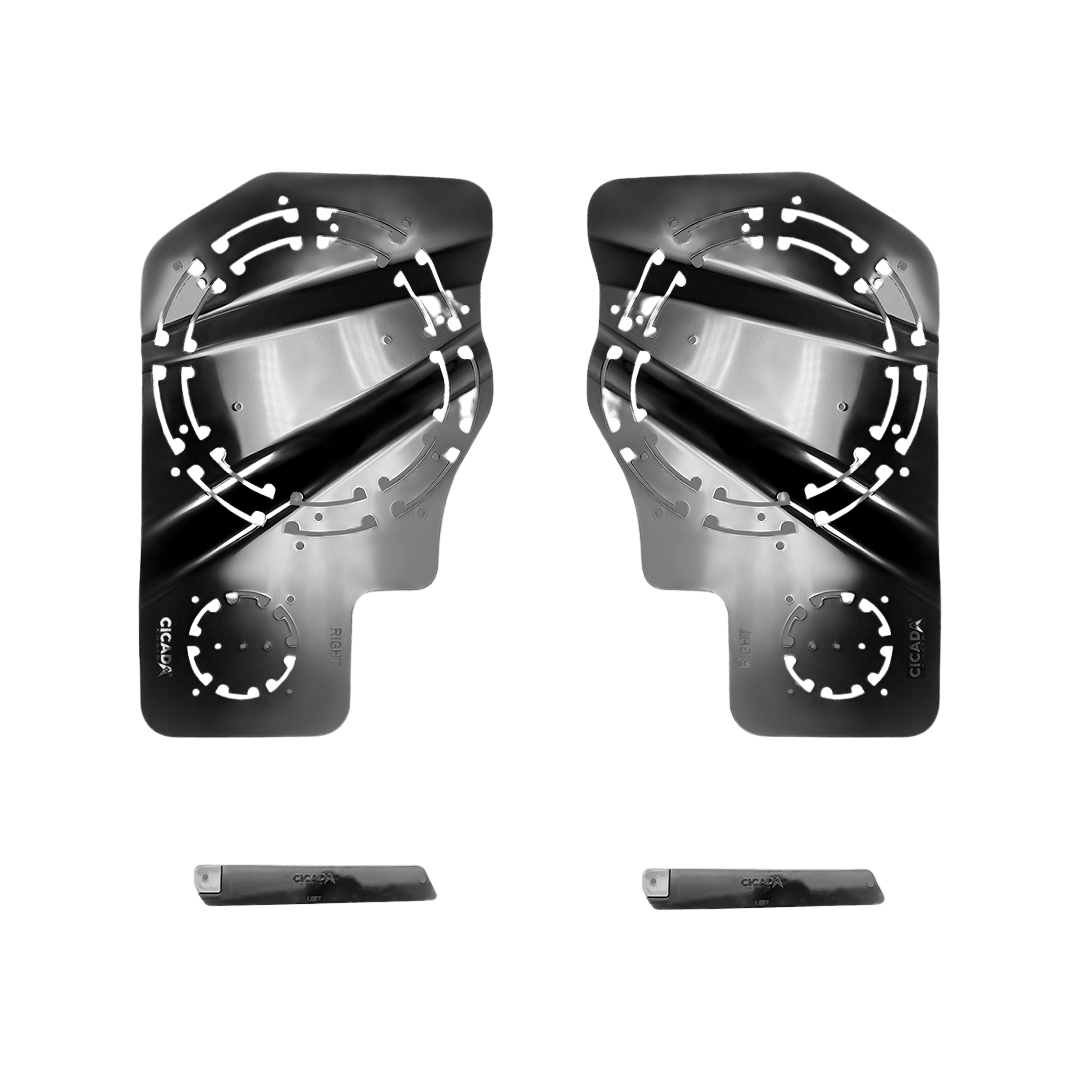

What Comes in the Kit
- Custom-molded high-grade ABS left saddlebag template
- Custom-molded high-grade ABS right saddlebag template
- Pre-marked CMB8.S4 8-inch speaker cutout guides
- Pre-marked CMB10.S4 10-inch speaker cutout guides
- Pre-marked CMB10.S4NEO 10-inch speaker cutout guides
- Pre-marked guidelines for 24HDPORT3 port cutouts
- Left and right saddlebag-brace templates
- Alignment guides for brace drilling and installation
Compatible Cicada Speaker Guides
CMB8.S4
Includes pre-marked cutout guides for the Cicada Audio CMB8.S4 8-inch Pro Mid-Bass driver.
CMB10.S4
Includes pre-marked cutout guides for the Cicada Audio CMB10.S4 10-inch Pro Mid-Bass driver.
CMB10.S4NEO
Includes pre-marked cutout guides for the CMB10.S4NEO 10-inch mid-bass driver with CMC™ cone and neodymium motor technology.
Why Installers Use the 24HDRINGT
Direct-Fit Shape
Each side-specific template is formed to sit against the corresponding factory saddlebag for accurate positioning.
Multiple Speaker Layouts
One kit includes marked layouts for compatible Cicada 8-inch and 10-inch Pro Mid-Bass drivers.
Port Location Guides
Pre-marked 24HDPORT3 locations help coordinate the speaker cutout, port position and complete saddlebag layout.
Brace Alignment
Separate brace templates and drilling guides help position the left and right saddlebag reinforcement components.
Repeatable Installation
Molded templates help produce consistent left and right saddlebag layouts without relying only on manual measurements.
Professional Results
Accurate cutout and mounting locations support a cleaner finished installation and proper alignment of the audio components.
Used with the 24HDRING System
The 24HDRINGT provides the cutting and drilling guides needed to prepare the saddlebags. The appropriate size-specific mounting ring and grille kit must be selected separately.
24HDRING8
Select the separate 24HDRING8 mounting ring and grille kit when installing a compatible Cicada 8-inch mid-bass driver.
24HDRING10
Select the separate 24HDRING10 mounting ring and grille kit when installing a compatible Cicada 10-inch Pro Mid-Bass driver.
Port and Brace Layout Guides
24HDPORT3 Port Cutouts
The main saddlebag templates include marked cutout locations for the separately sold Cicada Audio 24HDPORT3 right-angle port system.
Saddlebag Brace Templates
Left and right brace templates provide alignment guides for accurately drilling the mounting locations for compatible saddlebag braces.
Installation Requirements
- Remove both saddlebags from the motorcycle before beginning.
- Protect all painted surfaces with smooth masking tape.
- Identify the correct left and right templates before positioning.
- Select the cutout guide matching the exact speaker model.
- Confirm the intended port and brace layout before marking.
- Secure each template before tracing or drilling.
- Drill pilot and mounting holes before removing the template.
- Use cutting tools and blades suitable for the saddlebag material.
- Cut conservatively and finish the opening to the final marked dimensions.
- Remove all plastic debris before installing audio components.
- Verify ring, speaker, port and brace fitment before final assembly.
- Professional installation is strongly recommended.
Important Cutting and Layout Notes
- Confirm the selected speaker model before choosing a marked cutout.
- Do not combine markings from different speaker layouts.
- Check speaker-basket and motor clearance inside the saddlebag.
- Confirm grille clearance on the exterior of each bag.
- Verify terminal orientation and wire-routing space.
- Account for amplifier racks, wiring and quick-disconnect components.
- Confirm the complete ported or sealed enclosure design before cutting.
- Measure and inspect every marked location before using power tools.
Product Details
Fitment and Ordering Notes
- This listing includes one 24HDRINGT template kit.
- There are no separate 8-inch and 10-inch template variants.
- The same template kit contains the published guides for both sizes.
- The matching 24HDRING8 or 24HDRING10 ring kit is sold separately.
- The 24HDPORT3 port assemblies are sold separately.
- Compatible saddlebag braces are sold separately.
- Mid-bass speakers and audio equipment are sold separately.
- Factory saddlebags must be permanently cut and drilled.
- Professional installation is strongly recommended.
Best For
- 2024+ Harley-Davidson saddlebag mid-bass installations
- Cicada CMB8.S4 8-inch speaker installations
- Cicada CMB10.S4 10-inch speaker installations
- Cicada CMB10.S4NEO 10-inch speaker installations
- 24HDPORT3 ported saddlebag systems
- Installations using separate saddlebag reinforcement braces
- Professional and experienced custom motorcycle audio installers
Related Motorcycle Audio Categories
Cicada and Speakers
Amplifiers and Wiring
Cicada 24HDRINGT FAQ
Does the 24HDRINGT need 8-inch and 10-inch variants?
No. The 24HDRINGT is one template-kit SKU containing pre-marked guides for the published compatible 8-inch and 10-inch Cicada drivers.
Which 8-inch speaker guide is included?
The kit includes pre-marked cutout guides for the Cicada Audio CMB8.S4 8-inch Pro Mid-Bass driver.
Which 10-inch speaker guides are included?
The kit includes guides for the Cicada Audio CMB10.S4 and CMB10.S4NEO 10-inch Pro Mid-Bass drivers.
Does the template include 24HDPORT3 markings?
Yes. The left and right templates include pre-marked guidelines for the separately sold 24HDPORT3 port cutouts.
Are saddlebag-brace guides included?
Yes. The kit includes separate left and right brace templates with alignment guides for drilling and brace installation.
Are the speaker mounting rings included?
No. Select the separate 24HDRING8 or 24HDRING10 mounting ring and grille kit for the speaker size being installed.
Are the speakers included?
No. All mid-bass speakers are sold separately.
Are the ports and saddlebag braces included?
No. The template provides their installation guides, but the physical port assemblies and braces must be purchased separately.
Do the saddlebags need to be removed?
Yes. The associated Cicada installation process begins by removing the saddlebags so they can be safely positioned, marked, drilled and cut.
Does installation permanently modify the saddlebags?
Yes. Installation requires permanent speaker, port and mounting-hole cutouts based on the selected system configuration.
