Cicada Audio 24FLXPCM-4X8SG 1400W DSP 8-Speaker System
The Cicada Audio 24FLXPCM-4X8SG is a complete front-and-rear component audio system for compatible 2024 and newer Harley-Davidson Street Glide motorcycles. It combines a high-output four-channel DSP amplifier, four 2-ohm mid-bass speakers, four 4-ohm horn tweeters, A2B factory-radio integration, vehicle-specific mounting hardware and the wiring required to connect the system.
Eight-Speaker Component Audio
- Designed for compatible 2024+ Street Glide motorcycles
- FLX1400.4PRO amplifier with built-in six-channel DSP
- 350 watts RMS × 4 channels at 2Ω
- Four 2Ω Carbon Matrix Composite mid-bass speakers
- Four 4Ω ring-radiator horn tweeters
- Two 6.5-inch front fairing mid-bass speakers
- Two 6×9-inch rear saddlebag mid-bass speakers
- NAV-TV ZEN-H A2B factory-radio integration
- Street Glide amplifier rack and complete wiring
- 6×9 saddlebag lid cut-in installation system
24FLXPCM-4X8SG Complete System Overview
This Cicada Audio package is engineered as one complete component system rather than a collection of unrelated amplifiers, speakers and installation parts. The amplifier, speaker impedances, passive tweeter crossovers, factory-radio interface, wiring and vehicle-specific mounting components are selected for a four-channel Street Glide installation.
The front stage uses two CM65.2X 6.5-inch mid-bass speakers with two RR05T horn tweeters installed in Street Glide-specific fairing grilles. The rear stage uses two CM69.2X 6×9-inch mid-bass speakers with two RR075T horn tweeters mounted above the rear speakers using the included tweeter bridges.
The manufacturer describes this as an eight-speaker system because it includes four separate mid-bass drivers and four separate horn tweeters. Each left or right location operates as a component speaker set.
Speaker Impedance and Amplifier Load
Front Fairing Component Sets
Each front channel powers one 2Ω CM65.2X mid-bass speaker and one 4Ω RR05T tweeter through the tweeter’s supplied passive crossover.
Rear Saddlebag Component Sets
Each rear channel powers one 2Ω CM69.2X mid-bass speaker and one 4Ω RR075T tweeter through the tweeter’s supplied passive crossover.

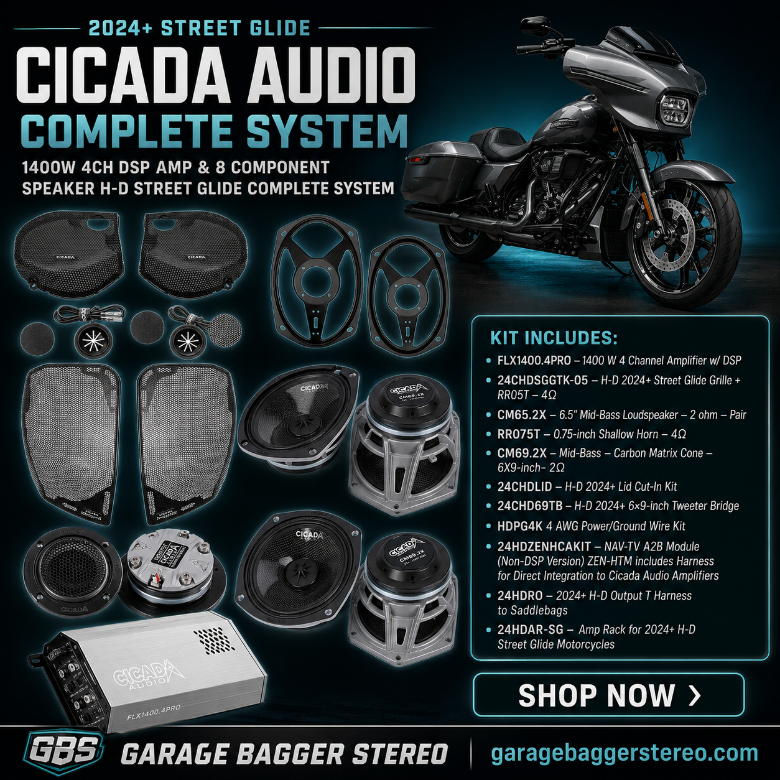

Everything Included in the Complete System
FLX1400.4PRO — 1400W Four-Channel DSP Amplifier
One compact Class-D amplifier producing up to 350 watts RMS across four channels at 2 ohms. It includes an integrated six-channel DSP with four amplified channels and two processed pass-through channels.
24CHDSGGTK-05 — Street Glide Grilles and RR05T Tweeters
One matched pair of Street Glide-specific powder-coated steel fairing grilles with two integrated 4-ohm RR05T ring-radiator horn tweeters and their 7kHz, 12dB passive crossovers.
CM65.2X — 6.5" Front Mid-Bass Speakers
One pair of 2-ohm CM65.2X Carbon Matrix Composite mid-bass speakers for the Street Glide fairing. Each speaker is rated for 250 watts RMS and 500 watts maximum.
RR075T — Rear Saddlebag Horn Tweeters
One pair of 4-ohm RR075T shallow ring-radiator horn tweeters. Each tweeter is rated for 50 watts RMS and includes a 7kHz, 12dB passive crossover.
CM69.2X — 6×9" Rear Mid-Bass Speakers
One pair of 2-ohm CM69.2X Carbon Matrix Composite mid-bass speakers for the saddlebag lids. Each speaker is rated for 250 watts RMS and 500 watts maximum.
24CHDLID — 6×9" Saddlebag Lid Cut-In Kit
A complete left-and-right 6×9-inch saddlebag lid mounting system with angled top-load baffles, steel grilles, cutout templates, gasketing, rain covers and lid-support components.
24CHD69TB — Rear Tweeter Bridges
One pair of powder-coated steel tweeter bridges designed to position the RR075T tweeters above the CM69.2X mid-bass speakers in the 24CHDLID rear lid system.
HDPG4K — 4-AWG Power and Ground Kit
Includes six-foot 4-AWG power and ground cables, battery-side ring terminals, amplifier-side ferrules, remote trigger wiring, a waterproof Mini-ANL fuse holder and 60-, 80- and 100-amp fuses.
24HDZENHCAKIT — NAV-TV ZEN-H A2B Interface Kit
NAV-TV ZEN-H factory A2B audio interface with a Cicada Audio direct-connect harness using correctly pinned Molex connections for the FLX1400.4PRO amplifier.
24HDRO — Rear Output Speaker Harness
Plug-and-play rear-output harness with factory-style connectors, two short extensions and two longer speaker-wire leads for routing the amplifier output to the saddlebags.
24HDAR-SG — Street Glide Amplifier Rack
Black-anodized aluminum mounting rack that installs at compatible Street Glide OEM amplifier locations. It includes predrilled FLX-amplifier mounting positions and installation hardware.
Eight-Speaker Component Layout
Four Mid-Bass Speakers
- Two CM65.2X 6.5-inch front speakers
- Two CM69.2X 6×9-inch rear speakers
- All four mid-bass speakers are 2Ω
- 250 watts RMS per mid-bass driver
Four Horn Tweeters
- Two RR05T front fairing tweeters
- Two RR075T rear saddlebag tweeters
- All four tweeters are 4Ω
- Passive crossovers included with the tweeter pairs
FLX1400.4PRO Amplifier and DSP
350W × 4 at 2Ω
The amplifier produces up to 350 watts RMS on each of its four channels when operating at 2 ohms and 14.4 volts.
Built-In Six-Channel DSP
Four DSP channels feed the internal amplifier while two additional processed channels are available as pass-through outputs.
DIALD™ Tuning Platform
Supports Cicada DIALD DSP configuration through compatible PC and application-based controls, including USB-C computer tuning.
Bluetooth Audio Streaming
Integrated Bluetooth functionality supports compatible audio streaming through the amplifier’s DSP platform.
Advanced Crossovers
DSP-selectable high-pass, band-pass and low-pass filters offer adjustable frequencies and multiple crossover slopes.
Motorcycle-Ready Construction
The compact aluminum chassis and conformal-coated circuit board provide protection against moisture, dust and vibration.
Amplifier and Speaker Power Matching
CM65.2X Front Fairing Mid-Bass Speakers
RR05T Front Fairing Tweeters
CM69.2X Rear Saddlebag Mid-Bass Speakers
RR075T Rear Saddlebag Tweeters
24CHDLID Rear Saddlebag System
The included 24CHDLID is a complete cut-in mounting system designed to turn the factory saddlebag lids into rigid, rider-focused 6×9-inch speaker locations.
- Left and right angled top-load 6×9-inch speaker baffles
- Powder-coated steel protective speaker grilles
- Fully gasketed clamping design
- High-strength, UV-resistant molded components
- ABS saddlebag lid cutout templates
- Updated heavy-duty lid gasket seals
- Rainproof lid covers
- Cicada lid tethers with crossover-storage pouches
- Die-cut speaker gasketing
Plug-and-Play A2B Integration
The NAV-TV ZEN-H interface extracts the factory digital A2B audio signal. The included Cicada harness uses correctly pinned Molex connections to route that signal directly into the FLX1400.4PRO amplifier.
- Designed for compatible 2024+ Harley-Davidson A2B systems
- No cutting or splicing of the factory signal harness
- Positive-locking OEM-grade connections
- Direct integration with Cicada Audio amplifiers
- Compact routing inside the Street Glide fairing
- Built-in amplifier DSP provides system processing and tuning
Plug-and-Play Versus Cut-In Installation
Direct-Fit Components
The A2B interface harness, amplifier connections, rear-output harness and amplifier rack use vehicle-specific connections and mounting points to reduce custom wiring and fabrication.
Cut-In Components
The rear CM69.2X and RR075T component installation requires permanent modification of the factory saddlebag lids using the supplied 24CHDLID templates and mounting system.
Complete System Specifications
Electrical Requirements
- Use the included HDPG4K 4-AWG power and ground kit.
- Install the appropriate supplied fuse near the battery connection.
- Use clean, secure and properly prepared power and ground connections.
- Confirm that the motorcycle battery is in good operating condition.
- Evaluate charging-system capacity before extended high-output use.
- Protect all wiring from heat, sharp edges and moving components.
- Secure the amplifier and wiring against motorcycle vibration.
- Professional electrical installation is strongly recommended.
Fitment and Ordering Notes
- Designed for compatible 2024 and newer Street Glide motorcycles.
- The package includes four 2Ω mid-bass speakers.
- The package includes four 4Ω tweeters with passive crossovers.
- The speakers are not available as selectable impedance variants in this kit.
- The A2B interface provides factory digital-signal integration.
- The rear-output harness routes amplifier output to the saddlebags.
- The factory saddlebag lids require permanent cutting.
- DSP configuration, crossover setup and gain adjustment are required.
- Professional installation and tuning are strongly recommended.
Best For
- 2024+ Street Glide riders wanting a complete Cicada component system
- High-output eight-driver front-and-rear audio upgrades
- Factory A2B radio systems requiring aftermarket integration
- Riders wanting separate mid-bass speakers and horn tweeters
- Systems adding 6×9-inch component speakers to factory saddlebag lids
- Motorcycle audio systems requiring built-in DSP control
- Professional Street Glide audio installations and tuning
Related Motorcycle Audio Categories
Cicada and 2024+ Harley Systems
Amplifiers and Integration
Power and Installation Support
Cicada 24FLXPCM-4X8SG FAQ
Why is this called an eight-speaker system?
The package includes eight separate drivers: four mid-bass speakers and four horn tweeters. Each left and right location uses a separate mid-bass driver and tweeter as a component set.
What impedance are the mid-bass speakers?
All four mid-bass speakers are 2-ohm models. The front pair is CM65.2X and the rear pair is CM69.2X.
What impedance are the tweeters?
All four tweeters are 4-ohm models. The front pair is RR05T and the rear pair is RR075T.
Does each amplifier channel see a 1.33-ohm load?
No. The tweeters are connected through frequency-selective passive crossovers and do not operate as direct full-range 4-ohm loads in parallel with the 2-ohm mid-bass speakers. The complete component system is engineered around the amplifier’s 2-ohm stereo operation.
How much power does the amplifier produce?
The FLX1400.4PRO produces up to 350 watts RMS × 4 channels at 2 ohms and 14.4 volts.
Does the amplifier include a DSP?
Yes. It includes a six-channel DSP with four internally amplified channels and two processed pass-through channels.
Does the system integrate with the factory A2B radio?
Yes. The system includes a NAV-TV ZEN-H A2B interface and a Cicada Audio direct-connect amplifier harness.
Are the front Street Glide grilles included?
Yes. The 24CHDSGGTK-05 package includes the Street Glide-specific fairing grilles and the pair of RR05T tweeters.
Are the rear tweeter mounting bridges included?
Yes. The package includes the 24CHD69TB bridge pair for mounting the RR075T tweeters with the rear 6×9-inch speakers.
Does the system include rear-speaker wiring?
Yes. The 24HDRO rear-output harness includes factory-style connectors, extensions and longer leads for routing speaker output to the saddlebags.
Does the system include an amplifier rack?
Yes. The black-anodized aluminum 24HDAR-SG Street Glide amplifier rack and its mounting hardware are included.
Do the factory saddlebag lids need to be cut?
Yes. Installation of the included 24CHDLID rear mounting system permanently modifies both factory saddlebag lids.
Is this completely plug-and-play?
The A2B integration, amplifier connections, rear-output wiring and amplifier rack are vehicle-specific. The rear speaker installation still requires cutting the factory saddlebag lids.
Does the system require professional tuning?
Proper DSP, crossover, equalization, limiter and gain configuration are strongly recommended because the amplifier’s available output must be matched correctly to the mid-bass speakers and tweeters.
