Cicada Audio 24FLXPCHX-4X4SG 1400W DSP 4-Speaker Plug-and-Play System
The Cicada Audio 24FLXPCHX-4X4SG is a complete four-speaker audio system for compatible 2024 and newer Harley-Davidson Street Glide motorcycles. It combines a 1400-watt four-channel DSP amplifier, four high-output 2-ohm Pro Coaxial Horn speakers, A2B factory-radio integration, Street Glide-specific mounting hardware, saddlebag lid components and the wiring required to connect the complete system.
Complete Front and Rear Audio Upgrade
- Designed for compatible 2024+ Street Glide motorcycles
- FLX1400.4PRO amplifier with built-in DSP
- 350 watts RMS × 4 channels at 2Ω
- Four Pro Coaxial Horn speakers
- All four included speakers are 2Ω
- Two 6.5-inch fairing speakers
- Two 6×9-inch saddlebag speakers
- NAV-TV ZEN-H A2B factory-radio integration
- Street Glide amplifier rack and complete wiring
- 6×9 saddlebag lid cut-in mounting system
24FLXPCHX-4X4SG Complete System Overview
This Cicada Audio package is engineered as a complete front-and-rear audio upgrade rather than a collection of unrelated components. The amplifier, speaker impedance, integration interface, wiring, mounting rack, fairing grilles and saddlebag speaker installation parts are selected to work together in a four-channel Street Glide system.
Two CHX65.2 6.5-inch Pro Coaxial Horn speakers replace the front fairing speakers. Two CHX69.2 6×9-inch Pro Coaxial Horn speakers install in the rear saddlebag lids using the included 24CHDLID cut-in mounting system.
All four speakers are rated at 2 ohms. In the intended layout, each speaker is connected to its own channel of the FLX1400.4PRO amplifier, creating a 2-ohm load on each of the amplifier’s four powered channels.
Speaker Impedance and Amplifier Channel Load
Front Fairing: 2Ω
The system includes one pair of CHX65.2 6.5-inch Pro Coaxial Horn speakers. Each front speaker has a nominal impedance of 2 ohms.
Rear Saddlebags: 2Ω
The system includes one pair of CHX69.2 6×9-inch Pro Coaxial Horn speakers. Each rear speaker has a nominal impedance of 2 ohms.
Amplifier Load: 2Ω × 4
One speaker is powered by each amplifier channel, presenting a 2-ohm load to each of the four powered channels.

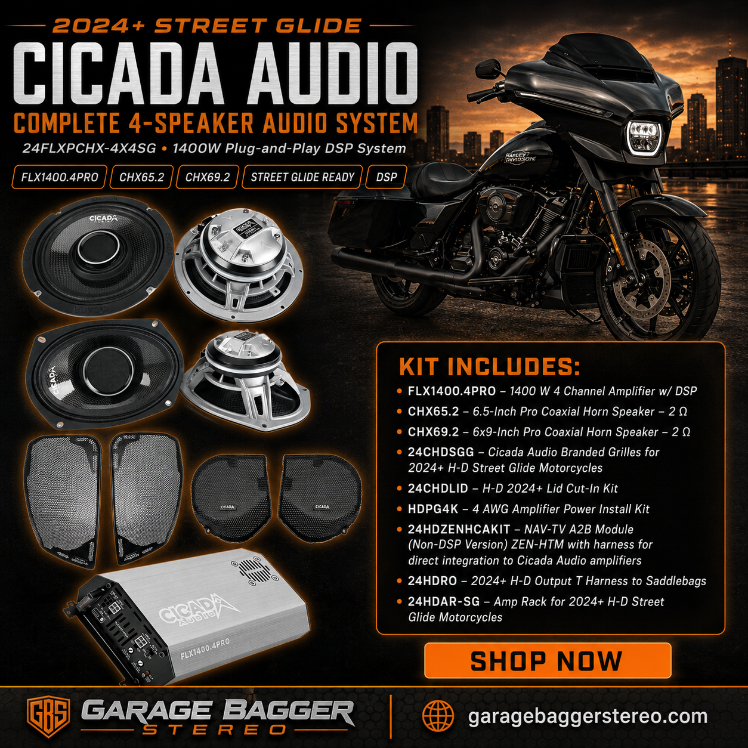

Everything Included in the Complete System
FLX1400.4PRO — 1400W Four-Channel DSP Amplifier
One compact Class-D four-channel amplifier with an integrated six-channel DSP. Four channels are amplified and two additional channels provide pass-through signal capability.
CHX65.2 — 6.5" Pro Coaxial Horn Speakers
One pair of 2-ohm CHX65.2 speakers for the Street Glide fairing. Each speaker is rated for 300 watts RMS and includes an external 12dB crossover with optional -3dB and -6dB tweeter attenuation.
CHX69.2 — 6×9" Pro Coaxial Horn Speakers
One pair of 2-ohm CHX69.2 speakers for the rear saddlebag lids. Each speaker is rated for 400 watts RMS and includes an external 12dB crossover with optional -3dB and -6dB tweeter attenuation.
24CHDSGG — Street Glide Fairing Grilles
One pair of Cicada Audio branded, powder-coated steel fairing grilles designed for compatible 2024 and newer Street Glide models.
24CHDLID — 6×9" Saddlebag Lid Cut-In Kit
A complete left-and-right saddlebag lid mounting system for the included CHX69.2 rear speakers. The system uses an angled top-load speaker baffle, protective grilles and gasketed clamping components.
HDPG4K — 4-AWG Amplifier Power Installation Kit
The primary 4-AWG power and ground installation package required to supply the FLX1400.4PRO amplifier.
24HDZENHCAKIT — NAV-TV ZEN-H A2B Interface Kit
NAV-TV ZEN-H A2B factory-radio interface with a Cicada Audio direct-connect harness. The harness uses correctly pinned Molex connections for direct integration with the Cicada amplifier.
24HDRO — Rear Output Speaker Harness
Plug-and-play rear-output harness with factory-style connections and speaker-wire leads for routing the amplifier output to the rear saddlebag speakers.
24HDAR-SG — Street Glide Amplifier Rack
Black-anodized aluminum amplifier mounting rack designed around compatible 2024 and newer Street Glide OEM amplifier locations. Mounting hardware is included with the rack.
24CHDLID Saddlebag Lid Kit Components
The included 24CHDLID is more than a simple speaker ring. It is a complete left-and-right 6×9-inch saddlebag lid cut-in mounting system designed to support full-depth, high-output Cicada speakers.
- Left and right heavy-duty powder-coated steel speaker grilles
- Angled top-load 6×9-inch speaker baffles
- Secure clamping rings with waterproof gaskets
- ABS molded saddlebag lid cutout templates
- Updated heavy-duty lid gasket seals
- Rainproof lid covers for parked or wash-down protection
- Cicada lid tethers with crossover storage pouches
- Die-cut speaker gasketing for an airtight mounting surface
FLX1400.4PRO Amplifier and DSP
350W × 4 at 2Ω
The amplifier produces up to 350 watts RMS on each of its four channels when powering the included 2-ohm speakers.
Built-In Six-Channel DSP
Four DSP channels feed the internal amplifier while two additional channels provide processed pass-through outputs for future expansion.
DIALD™ Tuning Control
Supports Cicada DIALD DSP configuration through compatible PC and app-based control, including USB-C computer tuning.
Bluetooth Audio Streaming
Integrated Bluetooth capability supports direct audio streaming through the amplifier’s DSP platform.
Advanced Crossovers
DSP-selectable high-pass, band-pass and low-pass filters provide adjustable frequencies and selectable crossover slopes.
Motorcycle-Ready Construction
A compact aluminum chassis and conformal-coated circuit board help protect the amplifier against vibration, moisture and dust.
Amplifier Output and Speaker Power Matching
CHX65.2 Front Fairing Speakers
CHX69.2 Rear Saddlebag Speakers
Plug-and-Play A2B Integration
The included NAV-TV ZEN-H interface extracts the factory digital A2B audio signal and routes it into the Cicada amplifier system. The 24HDZENHCAKIT supplies the correctly pinned Cicada Molex harnesses needed to connect the interface directly to the amplifier.
- Designed for compatible 2024+ Harley-Davidson A2B audio systems
- No cutting or splicing of the factory signal harness
- Factory-style positive-locking connectors
- Direct signal connection to the Cicada amplifier
- Compact harness routing for the Street Glide fairing
- Built-in amplifier DSP performs system tuning and signal processing
Plug-and-Play Versus Cut-In Installation
Plug-and-Play Components
The A2B interface harness, amplifier input connection and rear-output speaker harness use direct-fit connectors designed to reduce cutting, splicing and custom signal wiring.
Cut-In Components
The rear 6×9-inch speaker installation requires the factory saddlebag lids to be permanently cut using the templates supplied with the 24CHDLID mounting system.
Complete System Specifications
Electrical Requirements
- Use the included 4-AWG amplifier power installation kit.
- Install the proper main fuse near the battery connection.
- Use clean, secure and properly prepared power and ground connections.
- Confirm that the motorcycle battery is in good condition.
- Evaluate charging-system capacity before extended high-output use.
- Protect all wiring from exhaust heat, sharp edges and moving components.
- Secure the amplifier and wiring against motorcycle vibration.
- Professional electrical installation is recommended.
Fitment and Ordering Notes
- Designed for compatible 2024 and newer Street Glide motorcycles.
- The system includes four 2-ohm speakers.
- The system does not include selectable 4-ohm speaker variants.
- The amplifier uses one speaker per powered channel.
- The A2B interface and Cicada harness support direct signal integration.
- The included rear-output harness connects the amplifier to the saddlebags.
- The saddlebag lids require permanent cutting for the 6×9 speakers.
- DSP configuration and amplifier gain setup are required.
- Professional installation and tuning are strongly recommended.
Best For
- 2024+ Street Glide riders wanting a complete Cicada Audio system
- Four-speaker front-and-rear motorcycle audio upgrades
- Factory A2B radio systems requiring aftermarket amplifier integration
- High-output 2-ohm Pro Coaxial Horn speaker systems
- Riders adding 6×9-inch speakers to factory saddlebag lids
- Systems requiring built-in DSP tuning and crossover control
- Professional plug-and-play motorcycle audio installations
Related Motorcycle Audio Categories
Cicada and 2024+ Harley Systems
Amplifiers and Integration
Power and Installation Support
Cicada 24FLXPCHX-4X4SG FAQ
What ohm speakers come with this system?
All four speakers are 2-ohm models. The front pair is CHX65.2 and the rear saddlebag pair is CHX69.2.
What load does the amplifier see?
In the intended four-channel configuration, each amplifier channel powers one 2-ohm speaker. The amplifier therefore operates with a 2-ohm load on each of its four powered channels.
How much power does the amplifier produce?
The FLX1400.4PRO produces up to 350 watts RMS × 4 channels at 2 ohms and 14.4 volts.
How many speakers are included?
Four speakers are included: two 6.5-inch CHX65.2 front speakers and two 6×9-inch CHX69.2 rear speakers.
Does the amplifier include a DSP?
Yes. The FLX1400.4PRO includes a six-channel DSP with four internally amplified channels and two pass-through output channels.
Does the system integrate with the factory A2B radio?
Yes. The system includes a NAV-TV ZEN-H A2B interface and the 24HDZENHCAKIT direct-connect Cicada amplifier harness.
Are the Street Glide fairing grilles included?
Yes. The system includes the 24CHDSGG Cicada-branded fairing grille pair.
Does the system include rear speaker wiring?
Yes. The 24HDRO plug-and-play rear-output harness is included for routing amplifier output to the saddlebag speakers.
Does the system include an amplifier rack?
Yes. The 24HDAR-SG aluminum amplifier mounting rack and its mounting hardware are included.
Do the factory saddlebag lids need to be cut?
Yes. The included 24CHDLID system is a cut-in 6×9-inch mounting kit. Installation permanently modifies both factory saddlebag lids.
Is this completely plug-and-play?
The A2B signal integration, amplifier connections and rear-output wiring use direct-fit harnesses. The rear speaker installation still requires cutting the factory saddlebag lids.
Does the system require professional tuning?
Proper DSP, crossover, limiter and gain configuration are strongly recommended because the amplifier’s output must be matched correctly to the front and rear speaker power ratings.
