Cicada Audio 24FLXCXX-4X4RG 500W 4-Speaker System for 2024+ Road Glide
PRODUCT INFORMATION
Cicada Audio 24FLXCXX-4X4RG 500W 4-Speaker System for 2024+ Road Glide
$2,879.99
Couldn't load pickup availability
Additional Payment Info
Cicada Audio 24FLXCXX-4X4RG 500W 4-Speaker System for 2024+ Road Glide
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews

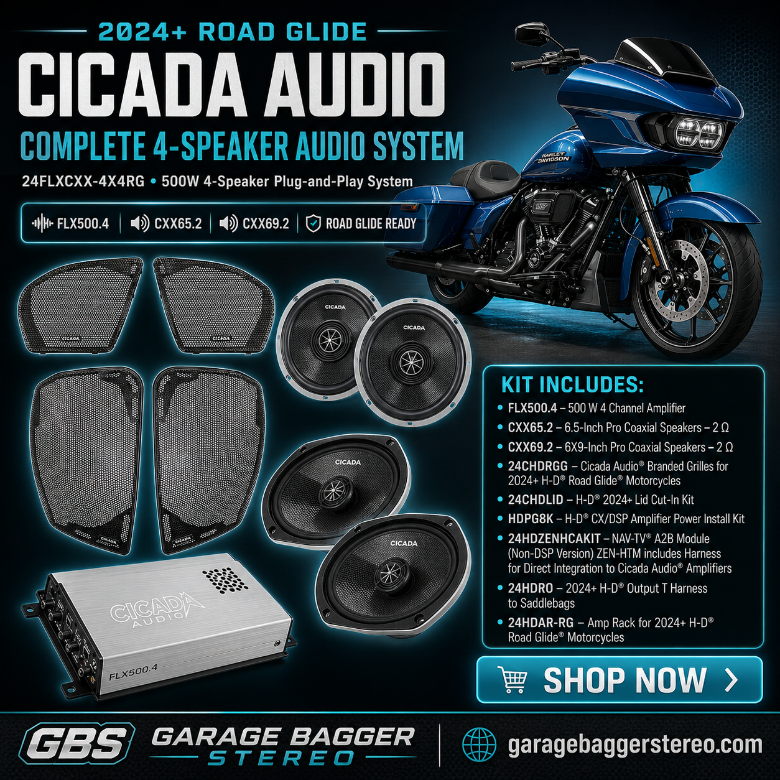

Cicada Audio 24FLXCXX-4X4RG 500W 4-Speaker Audio System
Build a complete amplified audio system in a compatible 2024 and newer Harley-Davidson Road Glide with four Cicada Audio Pro Coaxial speakers, factory A2B radio integration and Road Glide-specific installation hardware.
The package powers two 6.5-inch front fairing speakers and two 6Ă—9-inch saddlebag speakers from four dedicated FLX500.4 amplifier channels. Fairing grilles, a saddlebag lid cut-in system, amplifier rack, rear-speaker wiring and power wiring are included.
Four-Speaker Road Glide Package
- Designed for compatible 2024+ Road Glide motorcycles
- FLX500.4 compact four-channel Class-D amplifier
- 125 watts RMS Ă— 4 channels at 2 ohms
- Two CXX65.2 6.5-inch fairing speakers
- Two CXX69.2 6Ă—9 saddlebag speakers
- All four included speakers are 2 ohms
- Road Glide fairing grilles included
- 2024+ saddlebag lid cut-in kit included
- NAV-TV ZEN-H A2B integration included
- 8-AWG amplifier power kit included
- Rear-output speaker harness included
- Road Glide amplifier rack included
24FLXCXX-4X4RG Complete System Overview
The Cicada Audio 24FLXCXX-4X4RG combines the primary audio, integration, wiring and mounting components required for a complete four-speaker system in a compatible 2024 and newer Harley-Davidson Road Glide.
Two CXX65.2 6.5-inch Pro Coaxial speakers install in the front fairing. Two CXX69.2 6Ă—9-inch Pro Coaxial speakers install in the factory saddlebag lids using the included 24CHDLID cut-in mounting system.
Every included speaker has a nominal 2-ohm impedance and connects to its own FLX500.4 amplifier channel. All four amplifier channels are used in the supplied configuration.
Standard Non-DSP System Configuration
FLX500.4 Power Amplifier
The package uses the compact FLX500.4 four-channel Class-D amplifier. It provides conventional gain and crossover controls but does not contain an integrated digital signal processor.
NAV-TV ZEN-H A2B Integration
The included interface and Cicada harness convert the compatible factory A2B audio signal and route it into the amplifier through purpose-built locking connections.
Four-Channel Speaker and Amplifier Configuration
Front Fairing Channels
Two CXX65.2 6.5-inch speakers create the Road Glide front soundstage. Each speaker presents a nominal 2-ohm load to its own amplifier channel.
Rear Saddlebag Channels
Two CXX69.2 6Ă—9-inch speakers provide the rear soundstage. Each speaker presents a nominal 2-ohm load to its own amplifier channel.
Everything Included in the Complete System
FLX500.4 Four-Channel Amplifier
One compact Class-D amplifier rated for 125 watts RMS Ă— 4 at 2 ohms, 95 watts RMS Ă— 4 at 4 ohms or 250 watts RMS Ă— 2 bridged at 4 ohms.
CXX65.2 Fairing Speaker Pair
Two 2-ohm 6.5-inch Pro Coaxial speakers with Kevlar cones, PEI-dome tweeters, neodymium motors and built-in 6dB crossovers.
CXX69.2 Saddlebag Speaker Pair
Two 2-ohm 6Ă—9-inch Pro Coaxial speakers rated for 200 watts RMS each and designed for high-output rear audio.
24CHDRGG Road Glide Grilles
Powder-coated steel front fairing grilles with Cicada Audio-branded emblems for compatible 2024+ Road Glide motorcycles.
24CHDLID Saddlebag Lid Kit
Complete 2024+ cut-in mounting system with angled top-load 6Ă—9 baffles, steel grilles, clamping rings, gaskets, cutting templates, rain covers and crossover-storage tethers.
HDPG8K 8-AWG Power Kit
Six-foot power and ground cables, braided covering, battery ring terminals, amplifier ferrules, remote trigger wiring and a waterproof Mini-ANL fuse holder.
24HDZENHCAKIT A2B Interface
NAV-TV ZEN-H factory A2B interface with a Cicada Audio direct-connect amplifier harness and correctly pinned locking Molex connections.
24HDRO Rear-Output Harness
Plug-and-play rear-speaker harness with factory-style connectors, two short extensions and two longer leads for saddlebag routing.
24HDAR-RG Amplifier Rack
Black-anodized aluminum amplifier rack using compatible OEM Road Glide mounting locations and predrilled holes for FLX amplifiers.
FLX500.4 Amplifier Performance
125W × 4 at 2Ω
The supplied four-speaker configuration operates all four channels at a nominal 2-ohm load.
95W × 4 at 4Ω
The amplifier also supports compatible four-channel 4-ohm speaker configurations.
250W Ă— 2 Bridged
Published bridged output is 250 watts RMS Ă— 2 into compatible 4-ohm loads.
Wide Input Range
The 0.2V–12V gain range supports compatible factory interfaces, aftermarket radios and external processors.
Adjustable Crossovers
LPF, full-range and HPF modes provide broad frequency and slope adjustment for system setup.
Compact Chassis
The small aluminum chassis installs on the included Road Glide rack while conserving space inside the fairing.
FLX500.4 Amplifier Specifications
CXX65.2 Front Fairing Speakers
CXX69.2 Saddlebag Speakers
NAV-TV A2B Signal Integration
The included 24HDZENHCAKIT uses the NAV-TV ZEN-H to integrate the compatible factory Harley-Davidson A2B signal with the FLX500.4 amplifier.
- Direct-fit integration for compatible 2024+ Harley A2B systems
- No cutting or splicing of the factory signal harness
- Correctly pinned Cicada amplifier connections
- Automotive-grade materials
- Positive-locking connectors
- Compact routing inside the Road Glide fairing
24CHDLID Saddlebag Lid Installation
The 24CHDLID system converts compatible 2024 and newer factory Harley-Davidson saddlebag lids into angled top-load 6Ă—9-inch speaker locations.
Top-Load Baffles
Supports easier speaker installation and service from above the lid.
Rider-Focused Angle
Positions the rear speakers toward the rider for improved projection.
Steel Grilles
Powder-coated steel mesh protects the saddlebag speakers.
Gasketed Clamp System
Clamping rings and gaskets help seal the completed openings.
Cutting Templates
Molded templates support accurate permanent lid modification.
Rain Covers and Tethers
Rain covers, lid tethers and crossover pouches are included.
Road Glide Grilles and Amplifier Rack
24CHDRGG Fairing Grilles
Powder-coated steel grilles are designed for compatible 2024+ Road Glide front speaker locations and include Cicada Audio logo emblems.
24HDAR-RG Amplifier Rack
The black-anodized aluminum rack uses compatible OEM amplifier mounting locations and includes predrilled FLX amplifier mounting points and hardware.
Power Wiring and Fuse Selection
Included HDPG8K Power Kit
Includes six-foot 8-AWG power and ground cables, battery ring terminals, amplifier ferrules, remote trigger wiring and a waterproof Mini-ANL fuse holder.
Published Amplifier Recommendation
Cicada’s current FLX500.4 specifications list a recommended amplifier fuse value of 50 amps.
Complete System Specifications
Fitment and Ordering Notes
- Designed for compatible 2024 and newer Road Glide motorcycles.
- The package includes four 2-ohm speakers.
- All four amplifier channels are used.
- Each speaker connects to its own amplifier channel.
- The amplifier and A2B interface do not include DSP processing.
- Front Road Glide fairing grilles are included.
- The rear saddlebag lid cut-in system is included.
- Both compatible factory saddlebag lids require permanent cutting.
- Rear-output speaker wiring is included.
- Verify the final fuse value before installation.
- Professional installation and system setup are recommended.
Best For
- Compatible 2024+ Road Glide complete audio upgrades
- Riders wanting front fairing and saddlebag speakers
- Factory A2B radios requiring aftermarket amplifier integration
- Four-channel systems using four dedicated 2-ohm loads
- High-efficiency Pro Coaxial motorcycle speakers
- Compact non-DSP amplifier installations
- Professional Road Glide audio builds
Related Motorcycle Audio Categories
Cicada and 2024+ Harley Audio
Amplifier and Signal Support
Cicada 24FLXCXX-4X4RG FAQ
How many speakers are included?
The system includes four speakers: two CXX65.2 6.5-inch fairing speakers and two CXX69.2 6Ă—9-inch saddlebag speakers.
What impedance are the speakers?
Every included speaker has a nominal impedance of 2 ohms.
Are all four amplifier channels used?
Yes. Two channels power the front speakers and two channels power the rear saddlebag speakers.
How much power does the amplifier produce?
The FLX500.4 produces 125 watts RMS Ă— 4 at 2 ohms, 95 watts RMS Ă— 4 at 4 ohms or 250 watts RMS Ă— 2 bridged at 4 ohms.
How much power can the front speakers handle?
Each CXX65.2 is rated for 100 watts RMS and 200 watts maximum. Amplifier output must be limited correctly.
How much power can the rear speakers handle?
Each CXX69.2 is rated for 200 watts RMS and 400 watts maximum.
Does the amplifier include DSP?
No. The FLX500.4 is a standard four-channel amplifier without integrated digital signal processing.
Does the NAV-TV interface include DSP?
No. The package identifies the supplied ZEN-H as the non-DSP version.
Are Road Glide fairing grilles included?
Yes. Cicada 24CHDRGG steel fairing grilles are included.
Are saddlebag speaker mounts included?
Yes. The package includes the complete 24CHDLID 6Ă—9 saddlebag lid cut-in system.
Do the factory saddlebag lids need to be cut?
Yes. The rear-speaker installation requires permanent cutting of both compatible factory saddlebag lids.
Is rear-speaker wiring included?
Yes. The 24HDRO plug-and-play rear-output harness is included.
Is the Road Glide amplifier rack included?
Yes. The package includes the 24HDAR-RG aluminum amplifier rack and mounting hardware.
What fuse should be installed?
Cicada’s FLX500.4 specifications currently recommend a 50-amp fuse, while the HDPG8K kit lists larger included fuse values. Confirm the correct final fuse with current Cicada guidance before installation.
Need Help Planning Your Road Glide System?
Garage Bagger Stereo can help verify Road Glide fitment, speaker impedance selection, amplifier matching, fairing and saddlebag mounting, power and speaker wiring, and factory A2B signal integration before the system is installed.
