Cicada Audio 24CXK69 6x9" Component Speaker Kit for 2024+ Harley-Davidson | 2Ω or 4Ω
PRODUCT INFORMATION
Cicada Audio 24CXK69 6x9" Component Speaker Kit for 2024+ Harley-Davidson | 2Ω or 4Ω
Choose Impedence:
$849.99
$849.99
Couldn't load pickup availability
Additional Payment Info
Cicada Audio 24CXK69 6x9" Component Speaker Kit for 2024+ Harley-Davidson | 2Ω or 4Ω
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews
Cicada Audio 24CXK69 6x9" Component Speaker Kit for 2024+ Harley-Davidson | 2Ω or 4Ω
The Cicada Audio 24CXK69 is a complete component speaker upgrade available in 2Ω and 4Ω versions for compatible 2024 and newer Harley-Davidson 6x9-inch saddlebag speaker applications. Each kit combines high-output Carbon Matrix Composite mid-bass drivers, separate shallow horn tweeters, external crossovers, tweeter mounting bridges and Harley-specific wiring components.
High-Output Harley Saddlebag Audio
- Designed for compatible 2024+ Harley-Davidson applications
- Available with 2Ω or 4Ω 6x9-inch mid-bass drivers
- 250 watts RMS per mid-bass driver
- Separate 4Ω ring-radiator horn tweeters
- 2024+ Harley 6x9 tweeter mounting bridges
- External 12dB crossovers at 7kHz
- Harley-specific wiring components
- Rain or Shine™ all-weather performance design
Cicada 24CXK69 Component Kit Overview
The Cicada Audio 24CXK69 is built for Harley-Davidson riders who want stronger saddlebag mid-bass, increased output and clearer high-frequency detail from their 2024 and newer motorcycle audio system.
Instead of using a conventional coaxial speaker with the tweeter mounted directly in the center of the cone, this component system separates the 6x9-inch mid-bass drivers from the horn tweeters. The included tweeter bridges position the separate tweeters over the 6x9 speaker locations, creating a complete component assembly for compatible Harley saddlebag lids.
Select the 24CXK69.2 2Ω version or the 24CXK69.4 4Ω version based on your amplifier, channel configuration and total system impedance requirements.
Available Impedance Options and SKUs
24CXK69.2 — 2-Ohm Version
Includes 2Ω 6x9-inch mid-bass drivers. Select this version when your amplifier is stable at the intended 2-ohm channel load and your system wiring is designed for the lower impedance.
24CXK69.4 — 4-Ohm Version
Includes 4Ω 6x9-inch mid-bass drivers. Select this version for amplifiers and multi-speaker configurations designed around a 4-ohm channel load.

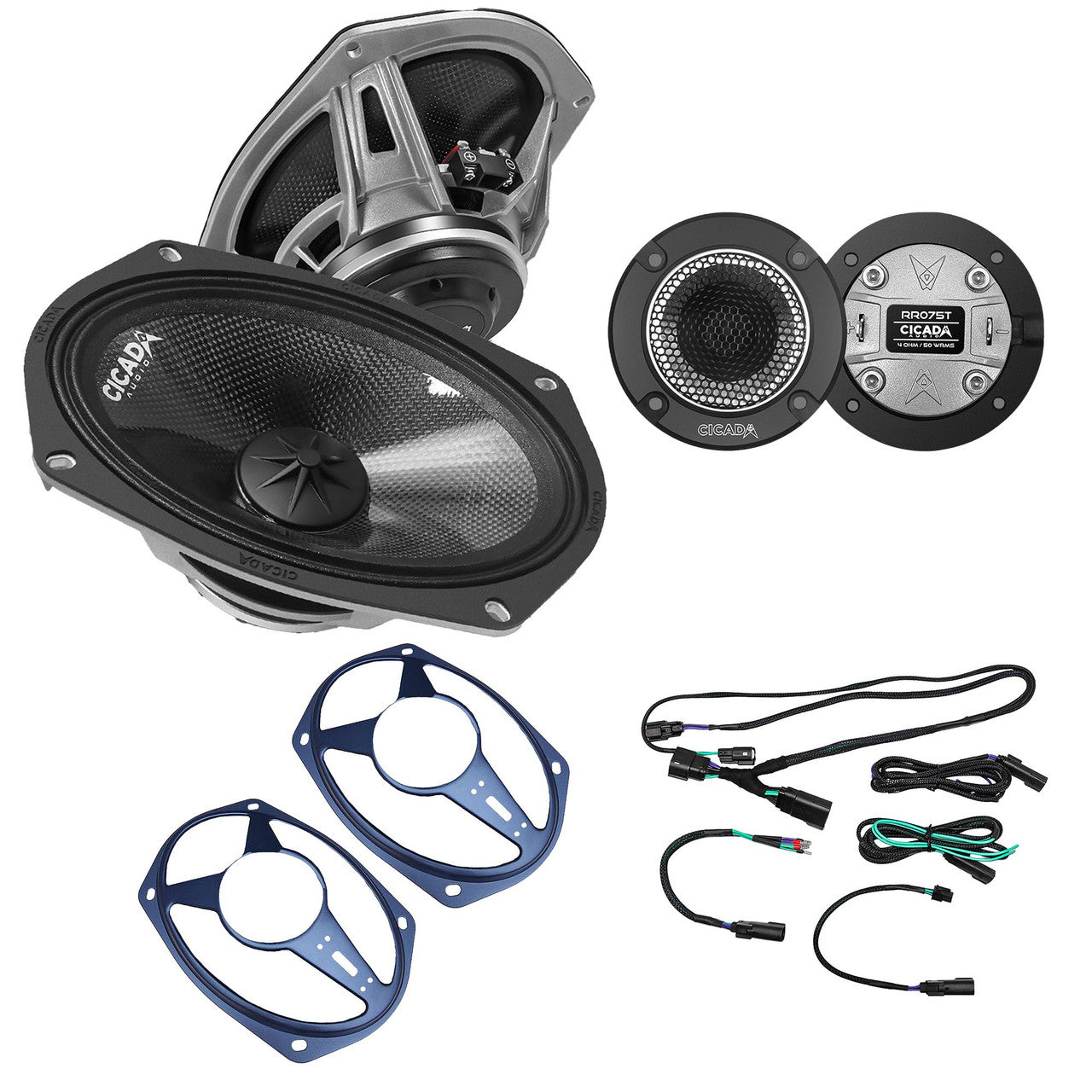

What Comes in the Kit
- Two Cicada Audio 6x9-inch mid-bass drivers in the selected 2Ω or 4Ω configuration
- Two 4Ω 1-inch shallow ring-radiator horn tweeters
- Two external 12dB / 7kHz component crossovers
- Pair of 2024+ Harley-Davidson 6x9 tweeter mounting bridges
- Harley-specific speaker and tweeter wiring harnesses
- Speaker terminals, connectors and installation hardware
Why Riders Choose This Kit
2024+ Harley Integration
Includes mounting and wiring components developed for compatible 2024 and newer Harley-Davidson 6x9 saddlebag speaker locations.
250W RMS Mid-Bass Drivers
The 6x9-inch drivers are built for substantial amplifier power and strong mid-bass output in open-air motorcycle riding conditions.
2Ω or 4Ω Variants
Two impedance options make it easier to match the component kit to different amplifiers, channel loads and multi-speaker configurations.
Separate Horn Tweeters
Dedicated ring-radiator horn tweeters provide improved high-frequency projection and detail compared with a mid-bass-only speaker system.
External Crossovers
Dedicated external crossovers divide the signal between the mid-bass drivers and separate horn tweeters.
All-Weather Construction
Rain or Shine™ construction supports motorcycle use, changing weather conditions and exposed saddlebag speaker locations.
Mid-Bass Driver Technology
- Carbon Matrix Composite™ cone provides a lightweight, strong and temperature-resistant speaker diaphragm
- OFC copper shorting ring helps extend upper-frequency performance from the 6x9-inch mid-bass driver
- OFC copper Black Coat™ voice coil supports high conductivity, low resistance and extreme thermal performance
- N35SH neodymium motor produces strong motor force without the weight of a traditional ferrite assembly
- Die-cast aluminum basket features Cicada Audio Vortex Flow Venting™
6x9-Inch Mid-Bass Specifications
Horn Tweeter and Crossover Specifications
Fitment and Ordering Notes
- Select 24CXK69.2 for the 2Ω mid-bass version.
- Select 24CXK69.4 for the 4Ω mid-bass version.
- Both versions include 4Ω horn tweeters.
- Use an amplifier stable at the final impedance presented by the speaker wiring.
- Do not connect a 2Ω load to an amplifier channel that is not rated for 2Ω operation.
- Compatible 6x9-inch saddlebag speaker lids or a cut-in lid kit are required.
- Saddlebag lids and complete lid cut-in kits are not included.
- Confirm crossover and wiring placement before beginning installation.
- Professional installation and system tuning are recommended.
Best For
- 2024+ Harley-Davidson saddlebag audio upgrades
- Road Glide and Street Glide rear speaker systems
- Factory or aftermarket 6x9-inch saddlebag speaker lids
- Amplified systems requiring a 2Ω speaker option
- Amplified systems requiring a 4Ω speaker option
- Multi-speaker builds requiring a specific final channel impedance
- Riders wanting stronger rear mid-bass and clearer high-frequency output
Related Motorcycle Audio Categories
Cicada and Harley Audio
Amplifiers and Signal
Cicada 24CXK69 FAQ
What motorcycles is the 24CXK69 designed for?
It is designed for compatible 2024 and newer Harley-Davidson applications using 6x9-inch saddlebag speaker locations. Exact model, factory audio package and speaker lid fitment should be confirmed before ordering.
Is this listing for the 2Ω or 4Ω version?
This single listing includes both versions. Select 24CXK69.2 for the 2Ω mid-bass kit or 24CXK69.4 for the 4Ω mid-bass kit before adding the product to your cart.
Are the included tweeters 2Ω or 4Ω?
The separate ring-radiator horn tweeters supplied with both kit variants are rated at 4Ω.
Which impedance should I choose?
Choose the impedance supported by your amplifier and overall speaker wiring plan. The 2Ω version can allow a compatible amplifier to produce more power, while the 4Ω version may be better suited to multi-speaker configurations or amplifiers designed around a 4-ohm channel load.
Does the kit include separate tweeters?
Yes. Each kit includes two separate 1-inch ring-radiator horn tweeters, external crossovers and 6x9-inch tweeter mounting bridges.
Are saddlebag speaker lids included?
No. Compatible factory speaker lids or an aftermarket 6x9-inch saddlebag lid cut-in kit are required and sold separately.
Does this component kit need an amplifier?
A properly matched motorcycle amplifier that is stable at the selected speaker impedance is recommended to take advantage of the system’s output and power handling.
Are the external crossovers included?
Yes. Each kit includes external 12dB crossovers operating at 7kHz.
What warranty does Cicada Audio provide?
Cicada Audio lists a two-year manufacturer warranty for the mid-bass drivers and tweeters included with this component kit.
Need Help Choosing 2 Ohms or 4 Ohms?
Call Garage Bagger Stereo with your Harley year, model, factory audio package, saddlebag lid configuration, amplifier and planned speaker wiring. We’ll help determine which 24CXK69 impedance is correct and recommend the proper supporting equipment.
