Cicada Audio 24CHDRGGTK-075 2024+ Road Glide Grilles with RR075T Tweeters
PRODUCT INFORMATION
Cicada Audio 24CHDRGGTK-075 2024+ Road Glide Grilles with RR075T Tweeters
$399.99
$399.99
Couldn't load pickup availability
Additional Payment Info
Cicada Audio 24CHDRGGTK-075 2024+ Road Glide Grilles with RR075T Tweeters
Need Help?
Call us at (864) 334‑6131 or message our team with your bike year/model and current upgrades. We'll map the best path to louder, cleaner sound.
-
Description
-
Reviews
Cicada Audio 24CHDRGGTK-075 Road Glide Grilles with RR075T Tweeters
Upgrade the high-frequency performance and appearance of a compatible 2024 or newer Harley-Davidson Road Glide with model-specific Cicada Audio kidney grilles loaded with RR075T ring-radiator horn tweeters.
The complete matched pair combines precision-punched fairing grilles, two 4-ohm aluminum-diaphragm tweeters and external 7kHz crossover protection for a clean, purpose-built Road Glide installation.
Road Glide Grille and Tweeter Kit
- Designed for compatible 2024+ Road Glide fairings
- Matched left and right kidney grilles
- Two Cicada Audio RR075T tweeters
- 4-ohm impedance per tweeter
- 50 watts RMS per tweeter
- 100 watts maximum per tweeter
- One-inch aluminum diaphragms
- High-temperature voice-coil construction
- N35 neodymium magnet structures
- 2 kHz–20 kHz frequency response
- External 7kHz/12dB crossovers
- Heavy-duty die-cast aluminum tweeter baskets
- Replaceable CRT075 diaphragms
- Sold as a matched pair
Complete High-Frequency Upgrade for the 2024+ Road Glide
The Cicada Audio 24CHDRGGTK-075 replaces the factory-style Road Glide kidney grilles with precision-punched Cicada grilles that incorporate dedicated mounting locations for the included RR075T horn tweeters.
The RR075T is engineered to add stronger vocal detail, percussion definition and upper-frequency projection to an amplified motorcycle audio system. Its compact neodymium motor and aluminum diaphragm deliver high output without requiring a bulky universal horn installation.
Each tweeter includes the required external 7kHz/12dB crossover protection. The crossover prevents damaging midrange and bass frequencies from reaching the tweeter while helping it blend with the motorcycle’s fairing speakers.
Harley-Davidson Road Glide Fitment
2024+ Road Glide
Designed around the redesigned kidney-grille locations used on compatible 2024 and newer Harley-Davidson Road Glide motorcycles.
Road Glide-Specific Design
The grille shape and tweeter placement are designed for the Road Glide fairing and are not interchangeable with Street Glide fairing grilles.

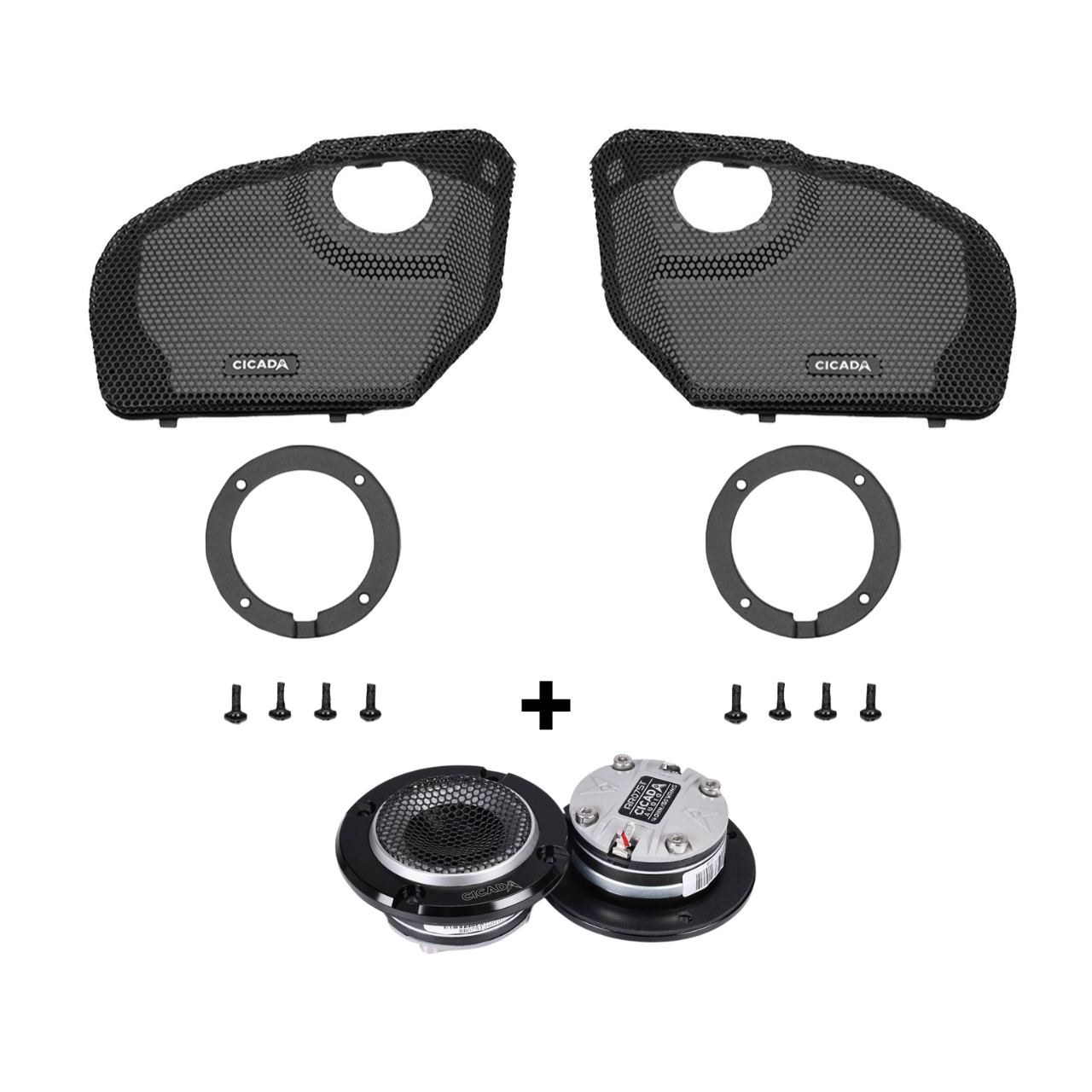

Everything Included
Left Road Glide Kidney Grille
One precision-punched, powder-coated metal grille with a dedicated RR075T tweeter mounting location.
Right Road Glide Kidney Grille
One matching right-side grille designed for balanced appearance, secure fitment and proper tweeter positioning.
Two Cicada Audio RR075T Tweeters
One matched pair of 4-ohm ring-radiator horn tweeters with aluminum diaphragms, neodymium motors and die-cast aluminum baskets.
Two External Crossover Networks
One vented 7kHz/12dB crossover network for each tweeter to provide required high-pass filtering and protection.
Road Glide Kidney Grilles
The supplied kidney grilles are designed to retain the distinctive appearance of the redesigned Road Glide fairing while adding a purpose-built location for dedicated high-frequency drivers.
Model-Specific Shape
Each grille follows the compatible Road Glide fairing opening for a cleaner installation than a universal tweeter mount.
Precision-Punched Metal
The grille openings protect the speaker area while allowing unrestricted high-frequency output.
Powder-Coated Finish
The durable finish provides a clean appearance and added protection for exposed motorcycle use.

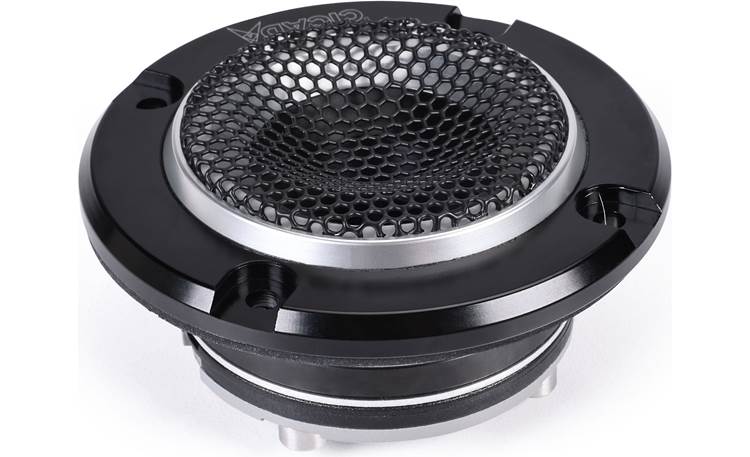

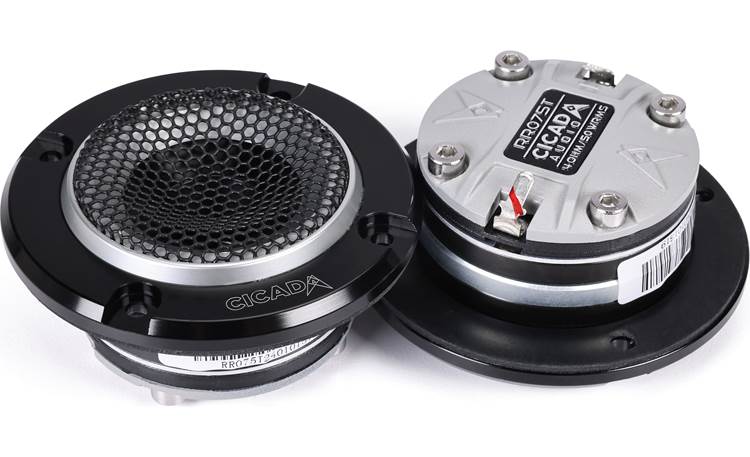

Cicada Audio RR075T Ring-Radiator Horn Tweeters
The RR075T is a compact 4-ohm horn tweeter engineered for high-output motorcycle and powersports audio systems. Each driver handles 50 watts RMS and 100 watts maximum when used with the correct crossover and amplifier setup.
50W RMS Per Tweeter
Continuous-power handling supports appropriately matched amplified motorcycle audio systems.
Aluminum Diaphragm
The lightweight, rigid diaphragm supports crisp vocal detail and extended high-frequency reproduction.
N35 Neodymium Motor
A compact high-energy magnet structure delivers strong output without unnecessary fairing weight.
Advanced Heat Dissipation
The heat-sink design helps manage operating temperature during extended high-volume use.
Die-Cast Aluminum Basket
The rigid basket maintains driver alignment and durability in a vibration-prone motorcycle environment.
Serviceable Diaphragm
The RR075T can be serviced with a separately available Cicada CRT075 replacement diaphragm.
Product Specifications
Amplifier and Crossover Matching
Each RR075T presents a nominal 4-ohm load and is rated for 50 watts RMS. Amplifier gain and maximum clean output must be configured around the continuous-power rating rather than the maximum-power figure.
- Use one external crossover network for each tweeter.
- Keep the supplied 7kHz crossover in the signal path.
- Do not connect the tweeters directly to an unfiltered amplifier output.
- Confirm positive and negative polarity for both tweeters.
- Set amplifier gain using measured clean output.
- Do not use amplifier gain controls as volume controls.
- Balance tweeter output with the existing mid-bass or coaxial speakers.
- Reduce output immediately if harshness or distortion occurs.
Installation and Mounting Notes
- Disconnect the motorcycle battery before beginning installation.
- Remove the outer fairing using the correct Road Glide procedure.
- Confirm left and right kidney-grille orientation before mounting.
- Verify tweeter and crossover clearance inside the fairing.
- Secure both crossover networks against vibration and movement.
- Protect wiring from steering movement, sharp edges and heat.
- Confirm tweeter polarity before reinstalling the fairing.
- Test the complete audio system at low volume before final assembly.
- Confirm grille alignment and fastener engagement before riding.
Fitment and Ordering Notes
- Sold as one matched left and right grille-and-tweeter pair.
- Cicada currently publishes fitment for 2024+ Road Glide models.
- Not designed for Street Glide fairing openings.
- Mid-bass and coaxial fairing speakers are not included.
- An amplifier and speaker wiring are not included.
- Factory-radio or aftermarket signal integration is not included.
- Both external crossover networks must be installed.
- Confirm exact motorcycle fitment before ordering.
- Confirm amplifier output and gain settings before playing the system.
Current Shipping Promotion
Enter code ShipOne at checkout for eligible free shipping. Current checkout requirements and product exclusions apply.
Related Motorcycle Audio Categories
Road Glide and Cicada Audio
Amplifier and Signal Support
Cicada Road Glide Grille and Tweeter FAQ
What is included with the 24CHDRGGTK-075?
The package includes matched left and right Road Glide kidney grilles, two Cicada RR075T horn tweeters and two external crossover networks.
Which motorcycles does this kit fit?
Cicada currently publishes this kit for compatible 2024 and newer Harley-Davidson Road Glide motorcycles.
Will these grilles fit a Street Glide?
No. The Street Glide uses a different fairing and grille shape.
Does the kit include 6.5-inch speakers?
No. This package adds dedicated high-frequency tweeters and Road Glide kidney grilles. Fairing speakers are selected separately.
What impedance are the tweeters?
Each included RR075T tweeter has a nominal impedance of 4 ohms.
How much power does each tweeter handle?
Each RR075T is rated for 50 watts RMS and 100 watts maximum.
What is the tweeter frequency response?
Cicada specifies a frequency response of 2 kHz through 20 kHz, within plus or minus 5 dB.
Are crossover networks included?
Yes. The package includes one external 7kHz/12dB crossover network for each tweeter.
Can the tweeters connect directly to an amplifier?
No. The supplied crossover networks must remain in the signal path to protect the tweeters from damaging lower frequencies.
Can a damaged tweeter be serviced?
Yes. Cicada offers the CRT075 replacement diaphragm separately for servicing the RR075T.
Is professional installation recommended?
Yes. Correct fairing removal, mounting, crossover placement, wiring, polarity, amplifier matching and gain setup are important for reliable performance.
Need Help Matching This Road Glide Tweeter Kit?
Garage Bagger Stereo can help verify Road Glide fitment, 4-ohm impedance selection, amplifier matching, grille and crossover mounting, speaker wiring and factory or aftermarket signal integration before installation.
