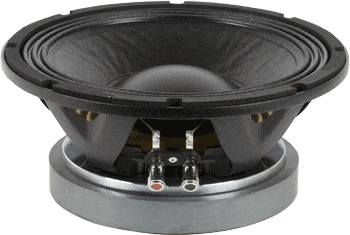

LOW FREQUENCY SPEAKER 10 INCH

Specifications
Nominal Basket Diameter	10" / 250mm
Impedance	8 ohms
AES Power Rating	500 Watts
Program Power	1,000 Watts

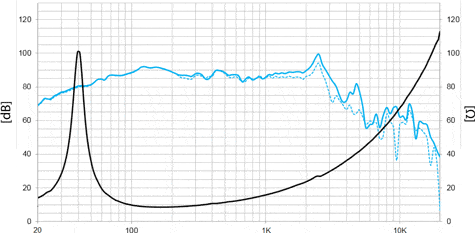

Frequency Response	40Hz - 3.3kHz
Sensitivity (1W/1m)	90dB
Voice Coil Diameter	3" / 76.2mm
Voice Coil Length	30 mm
Air Gap Height	8 mm
X Damage (peak to peak)	49 mm
BL Factor	19 N/A

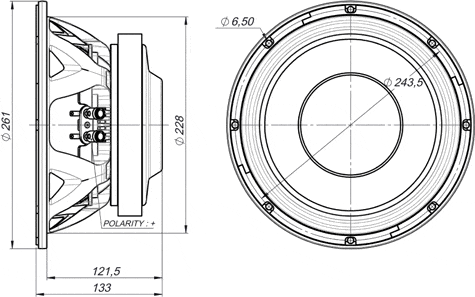

Mounting Information
Overall Diameter	10.3" / 261mm
Bolt Circle Diameter	9.6" / 243.5mm
Baffle Cutout Diameter-
- Front Mount	9" / 228mm
No. Of Mounting Holes	8
Overall Depth	5.2" / 133mm
Net Weight	18.3 lb. / 6.8 kg.
Shipping Weight	16 lb. / 7.25 kg.
Materials
Basket	Die Cast Aluminum
Cone	Paper
Surround	Rubber
Voice Coil	Edgewound Copper Wire
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	41 Hz
Impedance (Re)	6.8 ohms
Coil Inductance (Le)	1.0 mH
Mechanical Q (Qms)	8.1
Electrical Factor (Qes)	.46
Total Q (Qts)	.43
Comp. Equivelant Vol. (Vas)	1.15 ft3 / 32.5 Liters
Voice Coil Overhang (Xmax)	13.0 mm
Moving Mass (Mms)	95 Grams
Surface Area of Cone (Sd)m2	0.038
Reference Efficiency	.5%
Displacement Volume (Vd)	505 cm3
