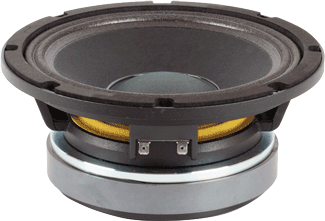

Beyma 8G40 - 8" Low-Frequency Speaker (Single)

TYPE: Speakers 8"
VENDOR: Beyma
Skip to product information
1 of 2

PRODUCT INFORMATION

Beyma 8G40 - 8" Low-Frequency Speaker (Single)

TYPE: Speakers 8"
VENDOR: Beyma
Type: Speakers 8"
Vendor: Beyma

Choose Ohm (Ω):

$160.00

Sale Sold out
Tax included. Shipping calculated at checkout.

Additional Payment Info

Frame_8859
unnamed
ShopPay
View full details
  • Description

  • Reviews

Beyma 8G40

8" Low-Frequency Speaker

(Sold in Singles)

EXCELLENT MAX OF 4.5MM FOR A CLEAN WARM BASS SOUND!

  • THE BEYMA 8G40 8" LOW-FREQUENCY SPEAKER HANDLES 250 WATTS AES & 500 WATTS PROGRAM POWER HANDLING
  • FEATURES A LARGE 2.5" VOICE COIL &  AN XMAX OF 4.5MM FOR POWERFUL CLEAN BASS
  • DELIVERS TIGHT-SOUNDING BASS WITH CLEAN MIDS UP TO 6KHZ
  • FOR ALL HIGH-QUALITY BASS APPLICATIONS, INCLUDING BASS GUITAR CABINETS, SMALL PA SYSTEMS, ETC.
  • AVAILABLE IN 4 OR 8-OHMS
  • Sold in Singles

Specifications

Nominal Basket Diameter

8" / 200mm

Impedance

4 or 8 ohms

AES Power Rating

250 Watts

Program Power  500 Watts

Frequency Response

65Hz - 6.0kHz

Sensitivity (1W/1m)

95dB

Voice Coil Diameter

2.5" / 62.4mm

Recom. Enclosure Volume .35-1.06 ft3  /  10-30 Liters
Voice Coil Length 16 mm
Air Gap Height 7 mm
X Damage (peak to peak) 23 mm
BL Factor 12.2 N/A
Magnetic Assembly Weight 6.6 lb. / 3 kg.

Mounting Information

Overall Diameter 8.35" / 212mm
Bolt Circle Diameter 7.8" / 198mm
Baffle Cutout Diameter-
- Front Mount 7.125" / 181mm
- Rear Mount 7.125" / 181mm
No. Of Mounting Holes 8
Volume Displaced By Driver 0.05 ft3  /  2 Liters
Overall Depth 3.78" / 96mm
Net Weight 7.26 lb. / 3.3 kg.
Shipping Weight 7.6 lb. / 3.45 kg.

Materials

Basket Die-Cast Aluminum
Cone Paper
Spider Treated Cotton Fiber
Surround Treated Cloth
Voice Coil Aluminum Wire
Former Fiber Glass
Metal Parts Anti-Corrosion
Magnet High Currie Temperature Ferrite

Thiele-Small Parameters

Resonant Frequency (fs) 70 Hz
Impedance (Re) 6.1 ohms
Coil Inductance (Le) 1.3 mH
Mechanical Q (Qms) 6.83
Electrical Factor (Qes) .38
Total Q (Qts) .36
Comp. Equivelant Vol. (Vas) .6 ft3 / 17 Liters
Voice Coil Overhang (Xmax) 6.5 mm
Surface Area of Cone (Sd)m2 0.0220m2
Diaphragm Mass (Mms) 21 Grams
Reference Efficiency 1.5%
Displacement Volume (Vd) 99 cm3
