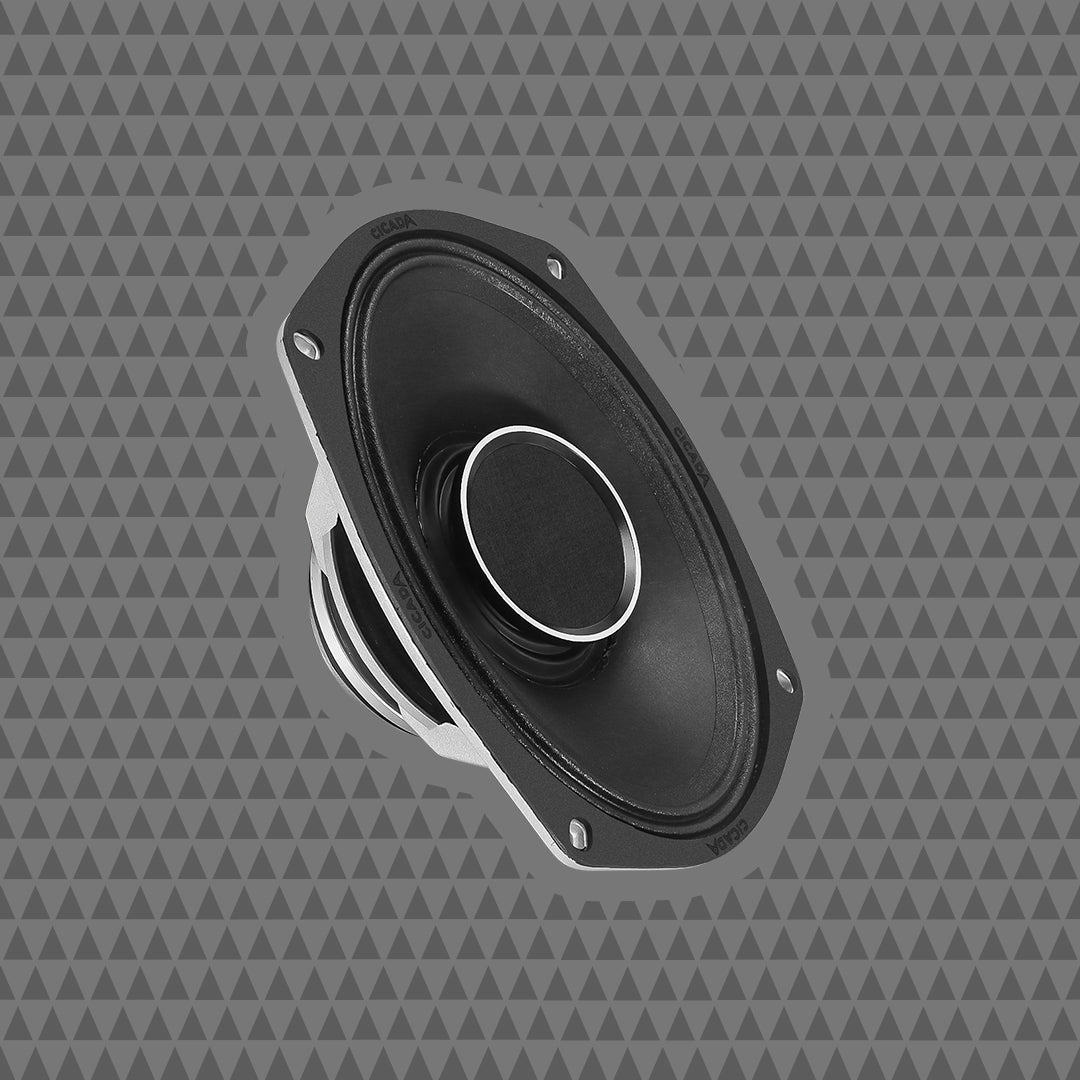

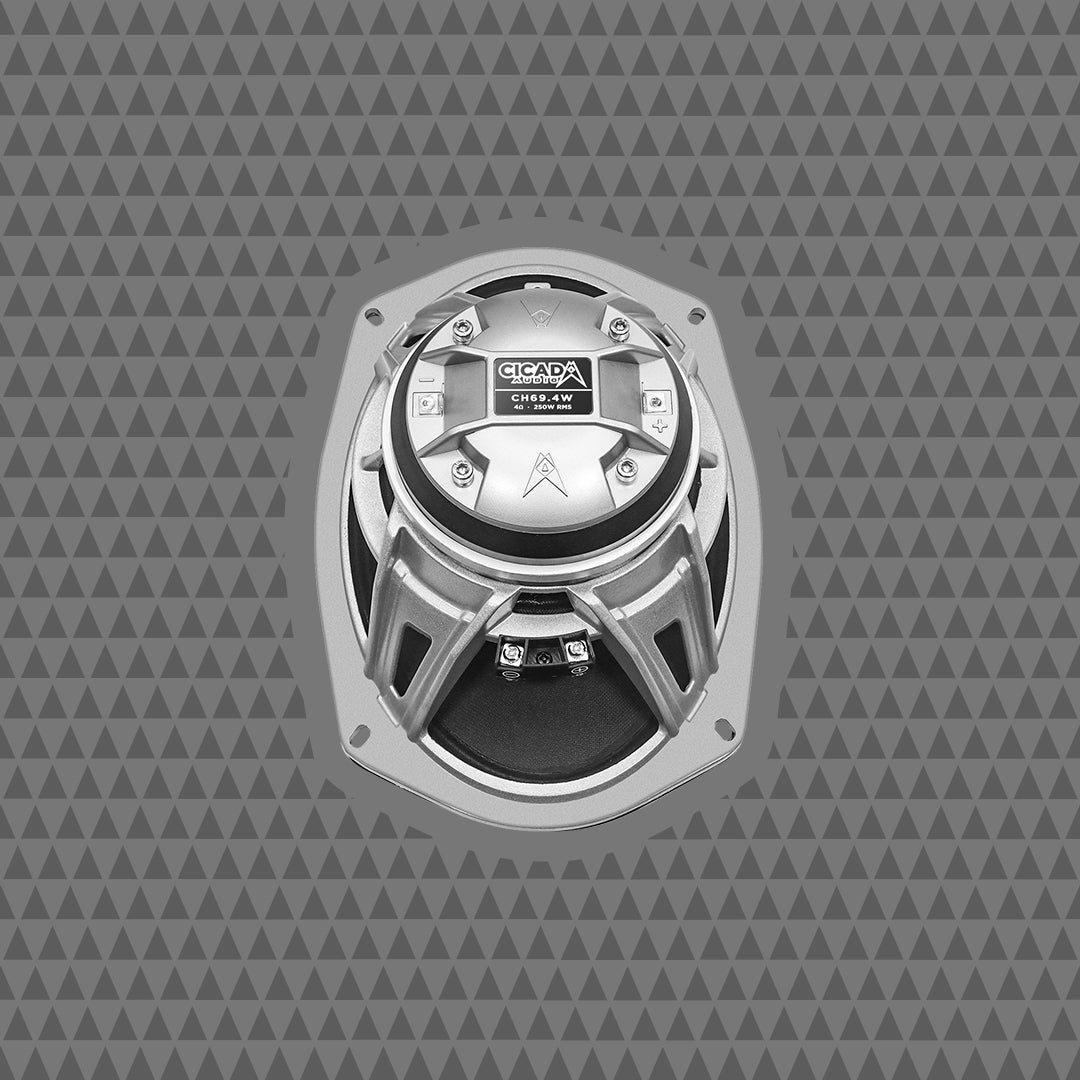

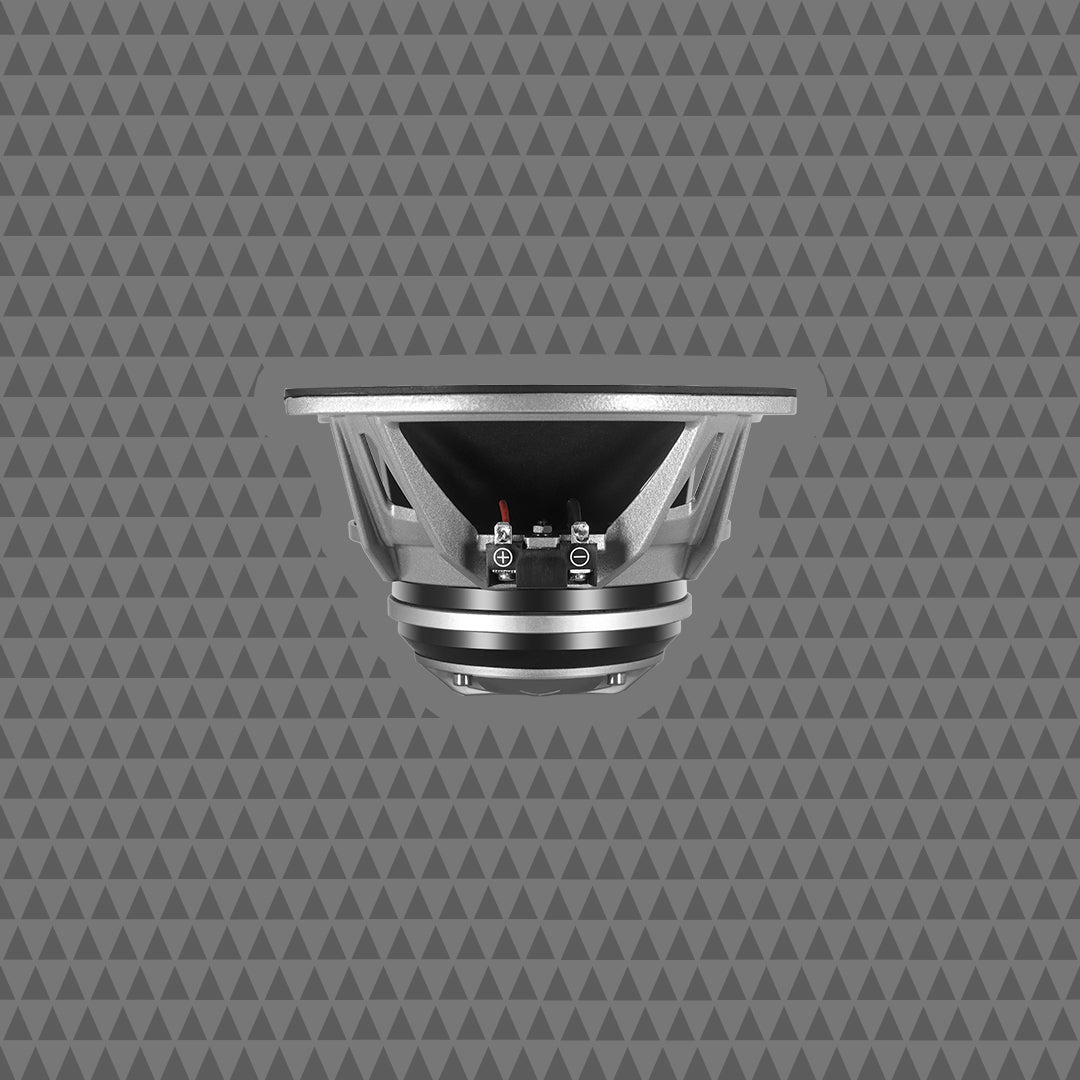

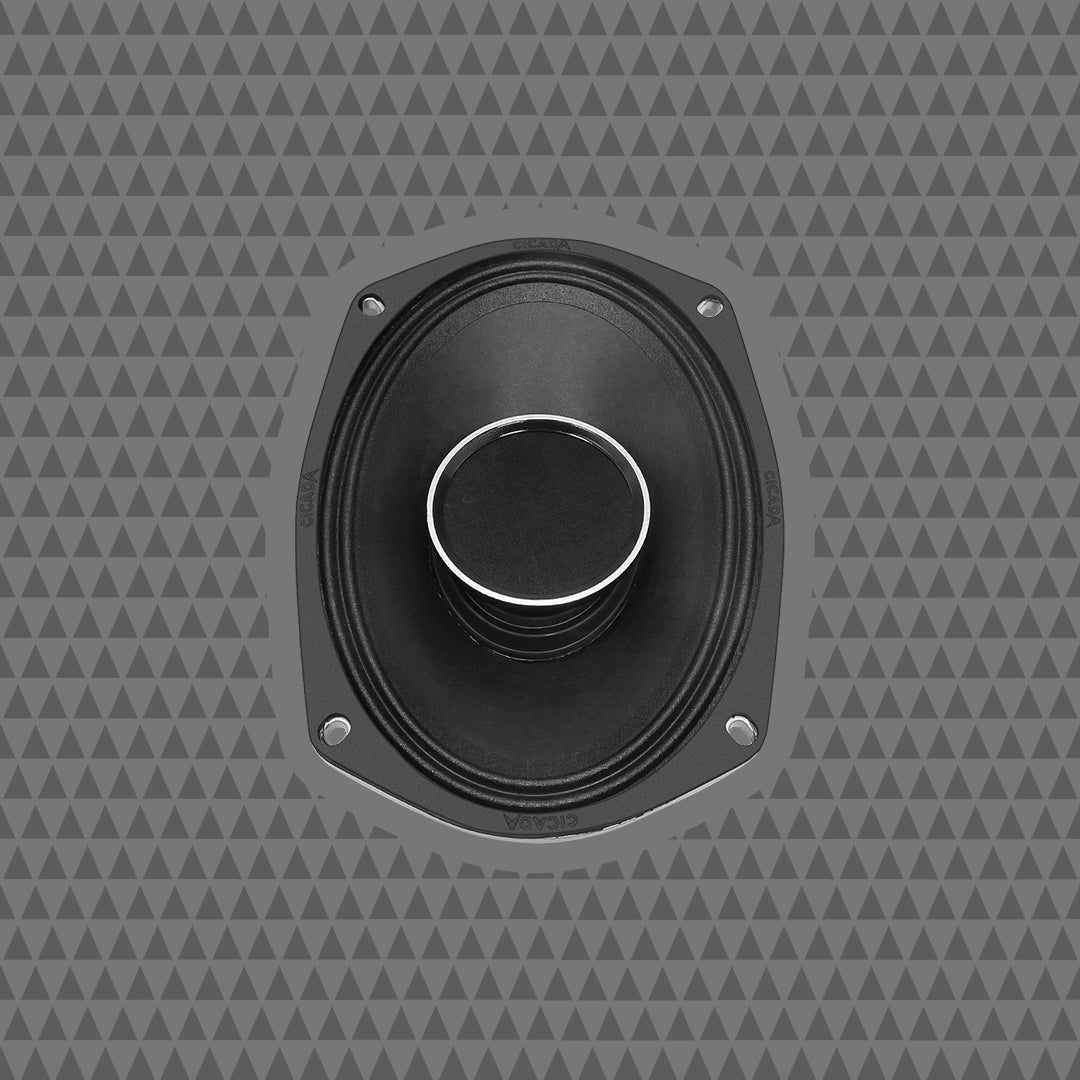

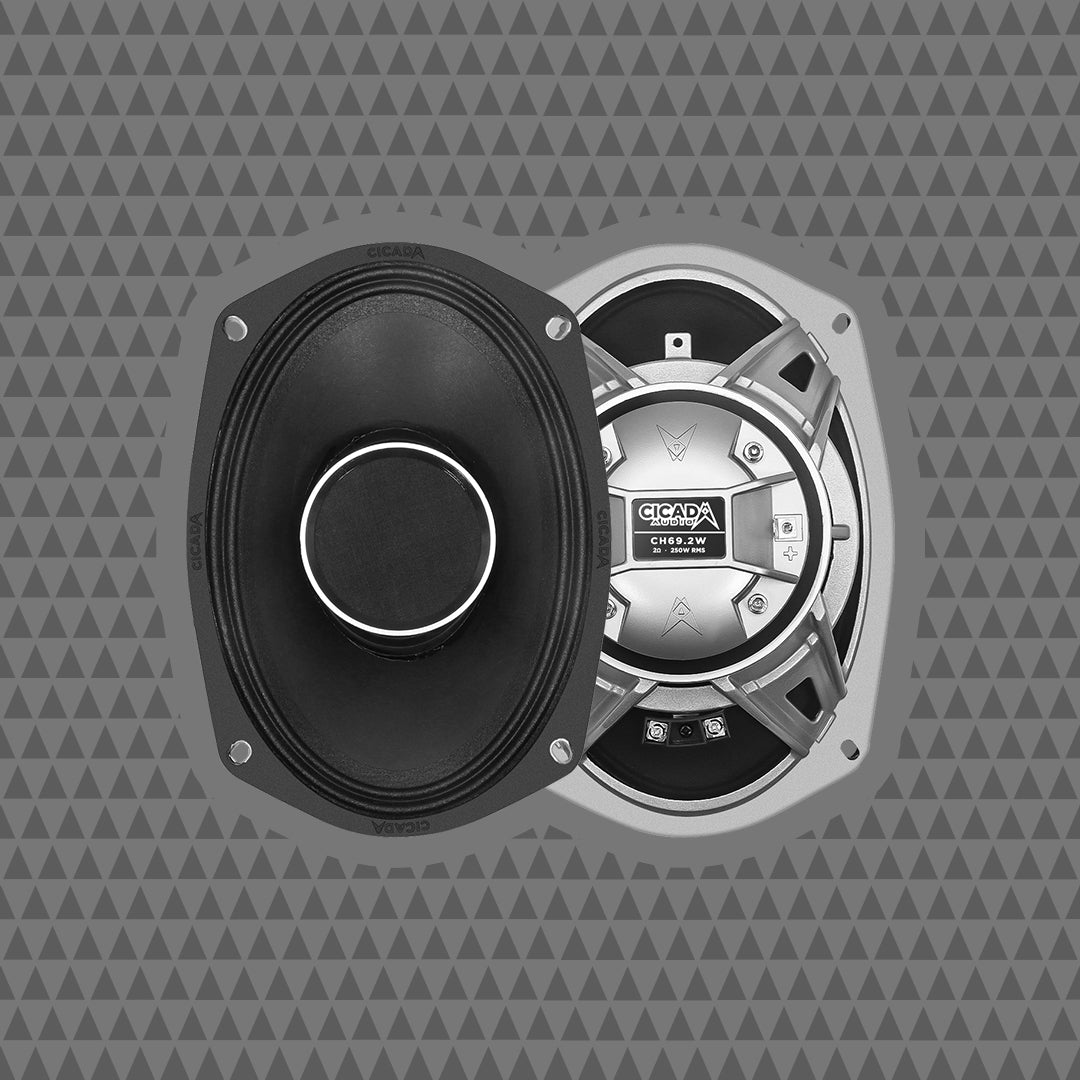

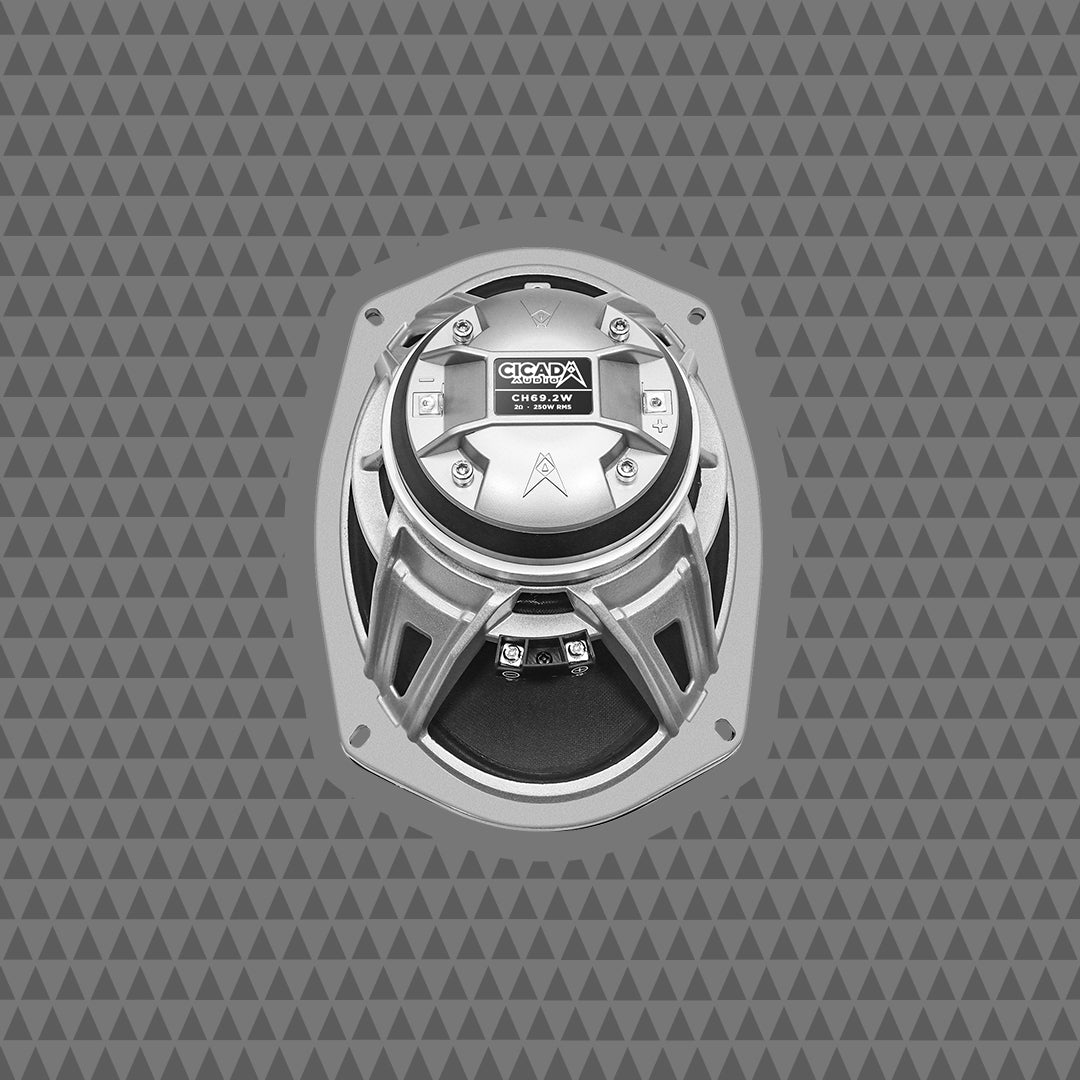

Cicada Audio CH69W 6x9" Coaxial Horn Speakers
The Cicada Audio CH69W is the 6x9" coaxial horn speaker in Cicada's CH series, sold as a pair in 2Ω or 4Ω with a Rain or Shine all-weather design and horn cover. It is rated 250W RMS / 500W max at 95dB sensitivity and needs 3.7" of mounting depth, so check pod and grille clearance before ordering.
High-Efficiency 6x9" Horn Power for Harley Audio
A horn-loaded tweeter with a horn cover in a 6x9" format, projecting clearly at highway speed.
- 250 watts RMS / 500 watts max
- 95dB sensitivity, 75Hz–20kHz
- Available in 2Ω and 4Ω versions
Key Product Details
| Product | Cicada Audio CH69W 6x9" Coaxial Horn Speakers |
| Impedance | 2Ω or 4Ω (select your variant) |
| Speaker Type | Coaxial horn speaker, 6x9" |
| Weather Protection | Rain or Shine all-weather design with horn cover |
| Sold As | Pair |
| Warranty | 2 years |
Always verify impedance, speaker location, mounting depth, amplifier power, wiring, crossover setup, and final fitment before ordering for your Harley-Davidson audio build.
Built for Amplified Harley-Davidson Bagger Audio
The CH69W is built for riders who want more efficiency and projection than a basic replacement speaker. The horn tweeter keeps vocals and highs clear at highway speed.
It uses an external crossover with an optional tweeter attenuator resistor so you can set the horn level.
- Water-resistant treated paper cone with an aluminum tweeter diaphragm.
- Die-cast aluminum basket with Vortex Flow venting.
- External 12dB crossover with an optional tweeter attenuator resistor.
- Removable threaded horn flange.
- Can be bi-amped with the horn tweeters on dedicated channels.
Specifications
| Speaker Size | 6x9" coaxial horn |
| Impedance | 2Ω or 4Ω |
| Power Handling | 250 watts RMS / 500 watts max |
| Frequency Response | 75Hz–20kHz +/-3dB |
| Sensitivity | 95dB, 1W / 1M |
| Magnet | N35SH neodymium |
| Crossover | External 12dB with optional tweeter attenuator resistor |
| Mounting Depth | 3.7" |
Fitment and System Planning
Confirm speaker depth, mounting diameter, pod and grille clearance, wiring path, impedance and amplifier compatibility before installation.
Road Glide, Street Glide, CVO and custom bagger applications can need adapters, rings or pods depending on the year and layout. If you are unsure, confirm your year and model with Garage Bagger Stereo before ordering the CH69W.
What to Pair With the CH69W
These parts help you power, wire and tune the speakers correctly.
Cicada Motorcycle Amplifiers
Power the speakers with an amplifier built for Harley-Davidson audio.
Motorcycle DSP
Tune the system with a digital sound processor built for Harley-Davidson audio.
Cicada HDFLXFO Front Fairing Speaker Harness
Plug-and-play harness for front fairing speakers on 2014+ Harley-Davidson.
Speaker Installation Parts
Adapters, rings, grilles and mounting parts for speaker installs.
Related Cicada & Motorcycle Audio Paths
Build the system around the correct speaker, amplifier, DSP, wiring, and installation parts. These related collections help match the CH69W with the right Harley audio upgrade path.
Best Use for the CH69W
Choose it when the goal is efficient, loud 6x9" output with strong vocal projection from a bagger system with amplifier power behind it.
Amplified System Recommended
These speakers are intended for serious motorcycle audio systems. For best results, match the CH69W with proper amplifier power, correct impedance selection, clean wiring, and a real tuning plan.
Cicada CH69W FAQ
Should I choose the 2Ω or 4Ω CH69W?
Choose the impedance that matches your amplifier and wiring plan. If you are unsure, call us or start a build consultation.
How much power can the CH69W handle?
It is rated at 250 watts RMS and 500 watts max, and is intended for amplified Harley-Davidson audio systems.
What mounting depth does the CH69W need?
It has a mounting depth of 3.7". Verify the available depth and cutout in your speaker location before ordering.
Does the CH69W come with a crossover?
Yes. It uses an external 12dB crossover with an optional tweeter attenuator resistor.
Are the CH69W speakers sold as a pair?
Yes. The CH69W is sold as a pair.
What warranty does the CH69W carry?
Cicada Audio products carry a two-year warranty.
What else do I need to run the CH69W?
Plan for an amplifier that matches the speaker impedance and power handling, OFC speaker wire, clean signal input, and a tuning plan such as a DSP. Garage Bagger Stereo can help you match the parts to your bike.
Does Garage Bagger Stereo install the CH69W?
Garage Bagger Stereo offers motorcycle audio installation at our Taylors, SC shop and can help you plan a DIY install. Start a Build Consultation or call 864-334-6131 to check scheduling.
Need Help Choosing?
Tell us your bike, model year and what you want to add, and we will confirm fitment and the right parts before you order.
