SounDigital 8000.1 XP - 2Ω or 1Ω Amplifier
SounDigital 8000.1 XP - 2Ω or 1Ω Amplifier
Couldn't load pickup availability
Additional Payment Info
-
Description
-
Reviews

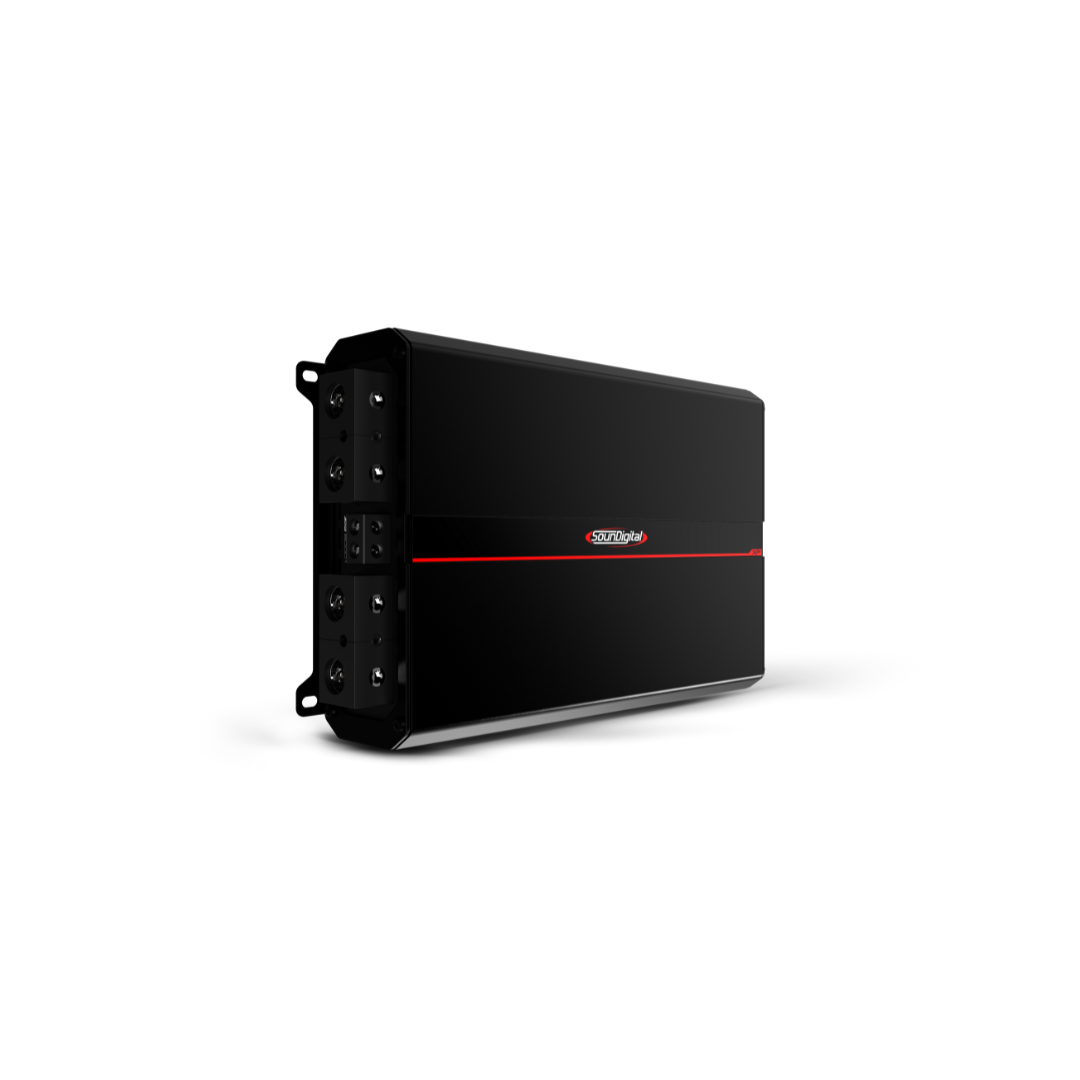

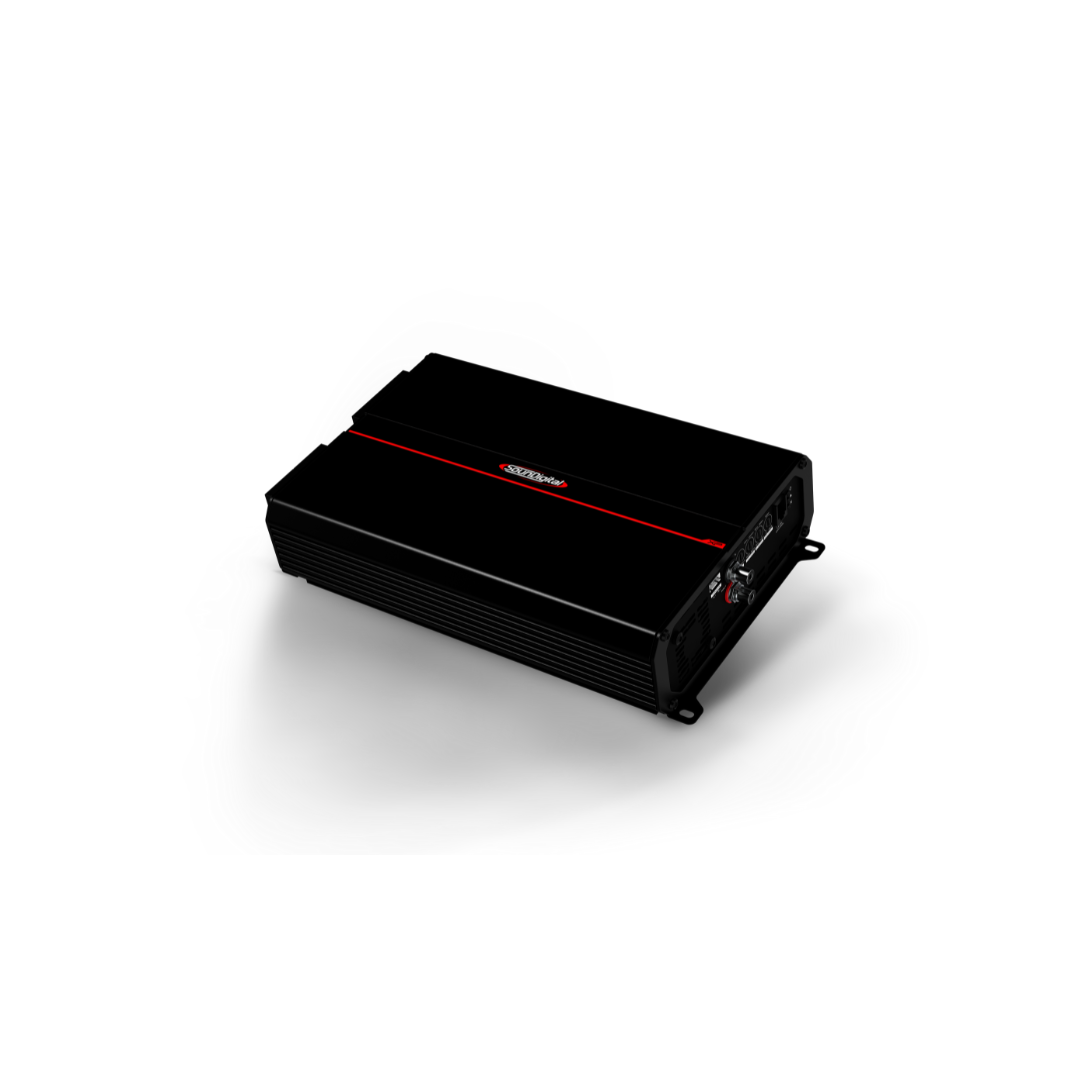

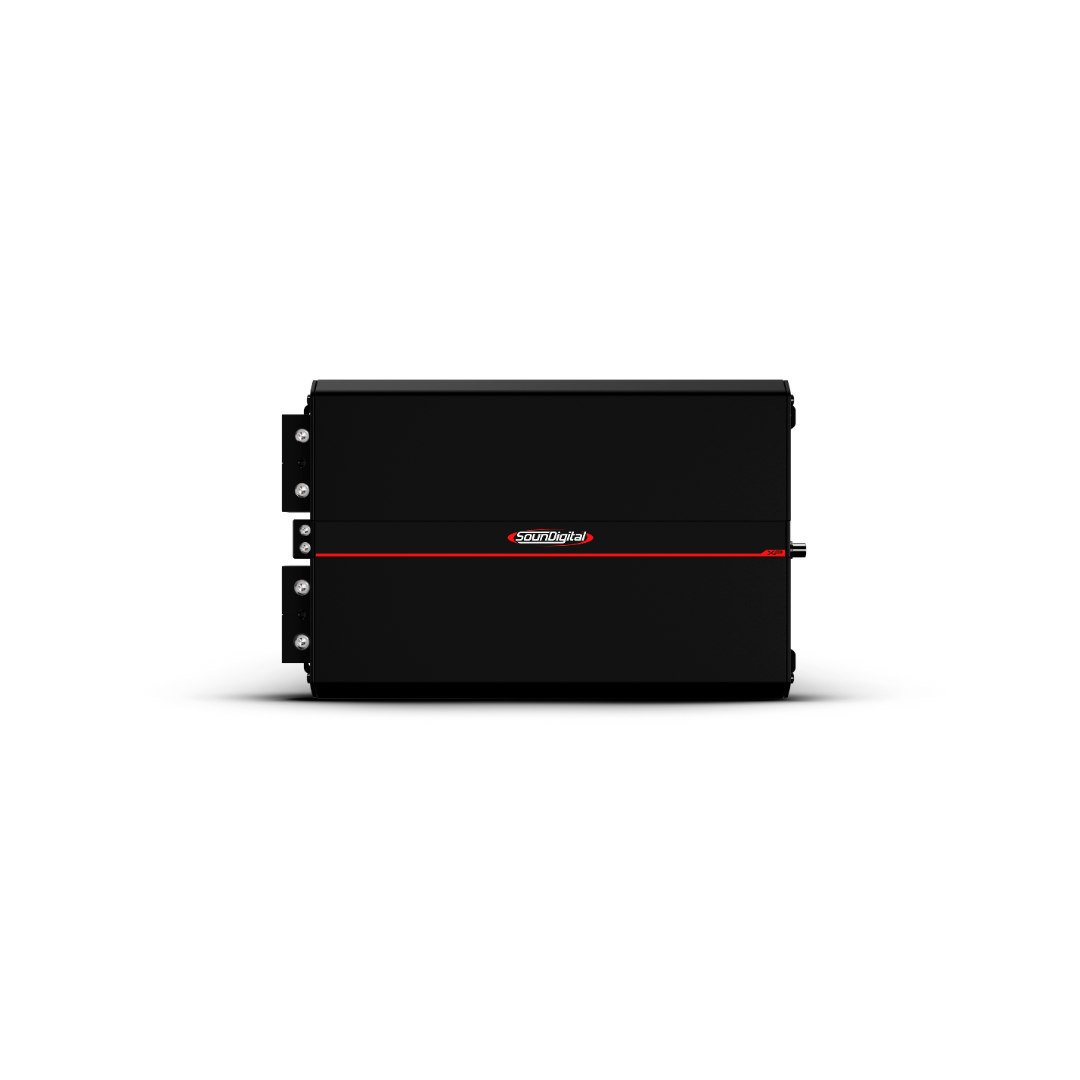

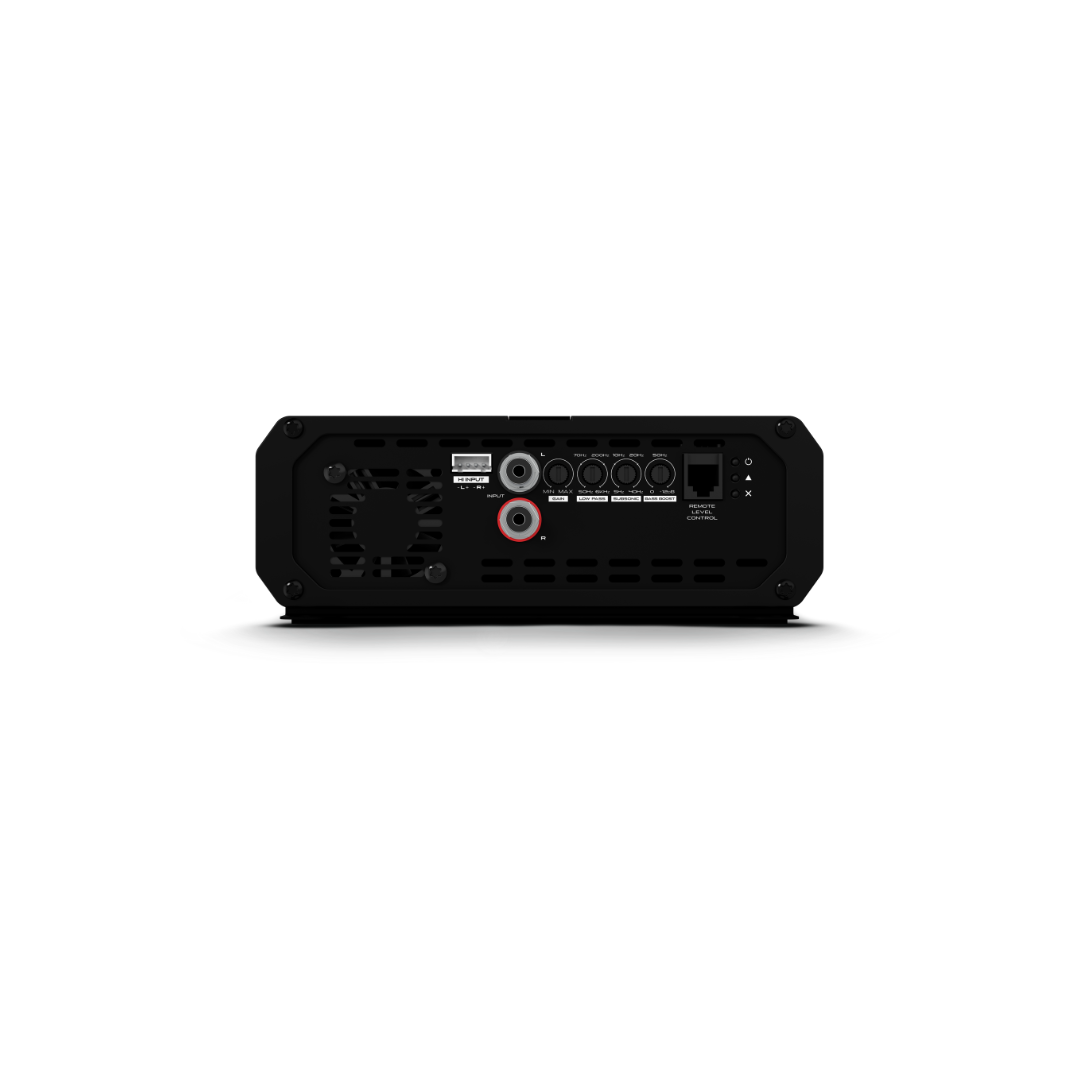

SounDigital 8000.1 XP Monoblock Amplifier, 2Ω or 1Ω, for Motorcycle Audio
At the top of the XP monoblock range, the 8000.1 XP reaches 8000 watts RMS on the 1Ω version, with the 2Ω version making 5300 W at 4Ω. The chassis measures 11.78 x 7.10 x 2.52 in, with subsonic 5Hz-40Hz and low-pass 50Hz-6kHz filters.
Flagship Monoblock Power for Bagger Bass
The highest-output amplifier in the XP monoblock line, with subsonic and low-pass filters and bass boost.
- Up to 8000 watts RMS (1Ω version at 1Ω)
- Subsonic 5Hz–40Hz and low-pass 50Hz–6kHz filters
- 11.78" x 7.10" x 2.52" chassis
Key Product Details
| Product | SounDigital 8000.1 XP Monoblock Amplifier |
| Amplifier Type | High-output monoblock amplifier |
| Versions | 2Ω or 1Ω (select your version) |
| Best For | The largest subwoofer and midbass systems in motorcycle audio |
| Peak Rating | 8000 watts RMS (2Ω version at 2Ω, 1Ω version at 1Ω) |
Always verify speaker impedance, wiring layout, fuse size, amplifier placement, gain structure, charging system capacity, and final system design before ordering or installing this amplifier.
Maximum Mono Power
The 8000.1 XP is for bass systems that need every watt available. SounDigital builds the XP series with high-quality components and a compact design.
Pick the 2Ω version for a 2Ω or 4Ω final load, or the 1Ω version when your wiring plan ends at 1Ω. Subsonic and low-pass filters plus bass boost let you shape the low end.
Power and Performance Specifications
| RMS Power, 2Ω Version | 5300 watts @ 4Ω / 8000 watts @ 2Ω |
| RMS Power, 1Ω Version | 3520 watts @ 4Ω / 5300 watts @ 2Ω / 8000 watts @ 1Ω |
| Frequency Response | 5Hz–6kHz (-3dB) |
| Signal-to-Noise Ratio | 82dB |
| Damping Factor | > 2000 (@100Hz nominal impedance) |
| Subsonic Filter | 5Hz–40Hz, 12dB/octave |
| Low-Pass Filter | 50Hz–6kHz, 12dB/octave |
| Bass Boost | 0dB–12dB @ 50Hz |
| Input Sensitivity | 0.2V–2V (RCA) / 1.5V–15V (high level) |
| Operating Voltage | 9V–16V |
| Current Draw | 334A music / 668A max |
| Efficiency | 81% |
| Recommended Fuse | 400A for music use |
| Recommended Minimum Battery | 400Ah |
| Recommended Cable Size | Power 000 AWG / speaker 5 AWG / remote 15 AWG |
| Dimensions (W x L x H) | 11.78" x 7.10" x 2.52" |
| Weight | 9.52 lb |
Recommended System Planning
Match the 8000.1 XP to a subwoofer or midbass setup that can handle its power at your final impedance. Use correctly sized OFC power and ground wire, a battery-side fuse, a clean signal input, and a real tuning plan for the filters and gain.
If you are unsure which version fits your speaker load, or whether your charging system can support this amplifier on your bike, contact Garage Bagger Stereo before ordering.
What to Pair With the 8000.1 XP
These parts help you wire, load and tune the amplifier correctly.
Amplifier Installation Parts
Power kits, fuses, wiring and mounting parts for motorcycle amplifier installs.
Motorcycle Subwoofers
Subwoofers and midbass drivers to load a monoblock amplifier.
Motorcycle DSP
Tune the system with a digital sound processor built for Harley-Davidson audio.
SounDigital XP Amplifiers
Add a 4-channel XP amplifier for the rest of the speakers.
Related Amplifier & Motorcycle Audio Paths
Build the system around the correct amplifier, speakers, DSP, wiring, and installation parts. These related collections help match the 8000.1 XP with the right bagger audio upgrade path.
Best Use for the 8000.1 XP
Choose it for the biggest bass builds, with large subwoofers or multiple drivers that need the highest mono output in the XP line.
Designed Around Real Motorcycle Audio
Motorcycle audio is different from car audio. Wind noise, road speed, speaker placement, electrical load, limited mounting space, and heat management all matter. This amplifier belongs in systems where the speakers, wiring, fusing, and tuning plan are matched correctly.
SounDigital 8000.1 XP FAQ
How much power does the 8000.1 XP make?
The 2Ω version is rated 5300 watts RMS at 4Ω and 8000 watts RMS at 2Ω. The 1Ω version is rated 3520 watts RMS at 4Ω, 5300 watts at 2Ω and 8000 watts at 1Ω.
Should I choose the 2Ω or 1Ω version?
Choose the version that matches your final speaker load. The 1Ω version is rated for loads down to 1Ω. If you are unsure, call us or start a build consultation.
What speakers does it suit?
It is a monoblock amplifier with subsonic and low-pass filters and bass boost, so it suits subwoofers and high-power midbass drivers.
What fuse and wire does it need?
SounDigital lists a 400A recommended fuse for music use, 000 AWG power cable and 5 AWG speaker cable. Current draw is 334A for music and 668A maximum.
How big is it?
It measures 11.78 inches wide by 7.10 inches long by 2.52 inches high and weighs 9.52 lb.
What else do I need to run the 8000.1 XP?
Plan for correct fusing, a suitable battery and charging system, speakers matched to the impedance you wire, clean signal input, and a tuning plan. Garage Bagger Stereo can help you match the parts to your bike.
Does Garage Bagger Stereo install the 8000.1 XP?
Garage Bagger Stereo offers motorcycle audio installation at our Taylors, SC shop and can help you plan a DIY install. Start a Build Consultation or call 864-334-6131 to check scheduling.
Need Help Choosing?
Tell us your bike, model year and what you want to add, and we will confirm fitment and the right parts before you order.
