American Hard Bag 5x7 to 6x9 speaker adapter Set for '14-23 Harley Speaker Lids

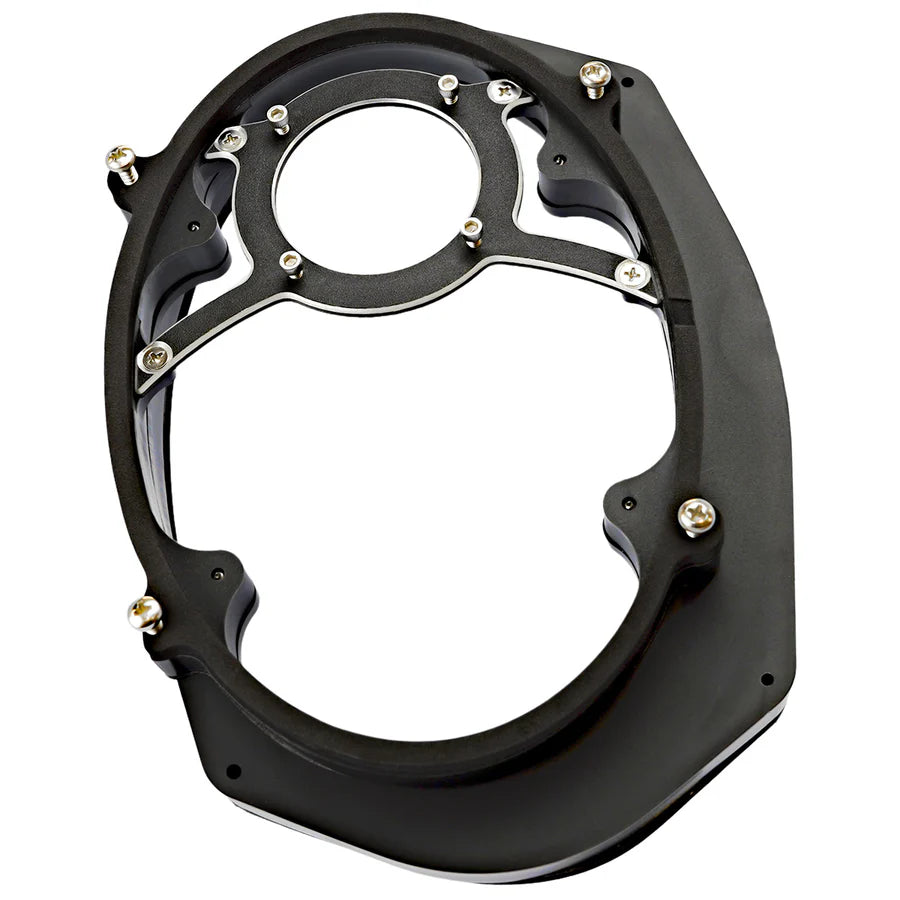

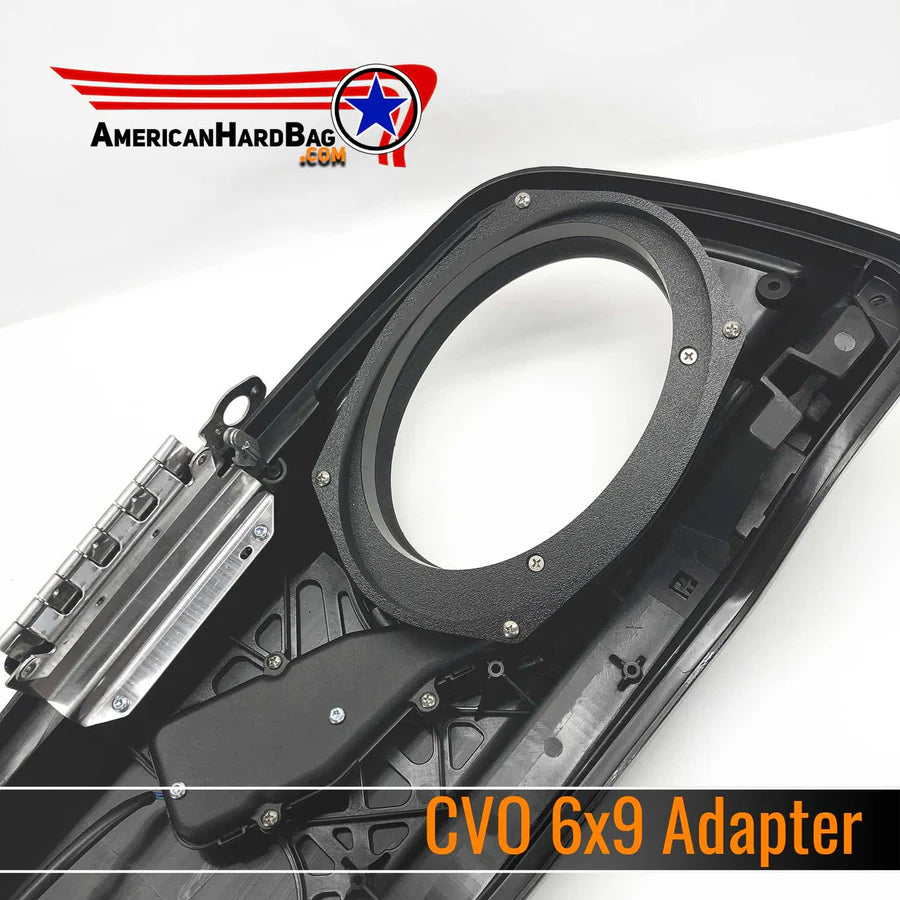

This American Hard Bag adapter set lets you mount 6x9" mid-bass drivers in factory or exact-replica CVO speaker lids that came with 5x7" speakers. It is listed for Harley-Davidson Touring CVO models from 2014 to 2023.
Fit 6x9 Mid-Bass Drivers in 5x7 CVO Lids

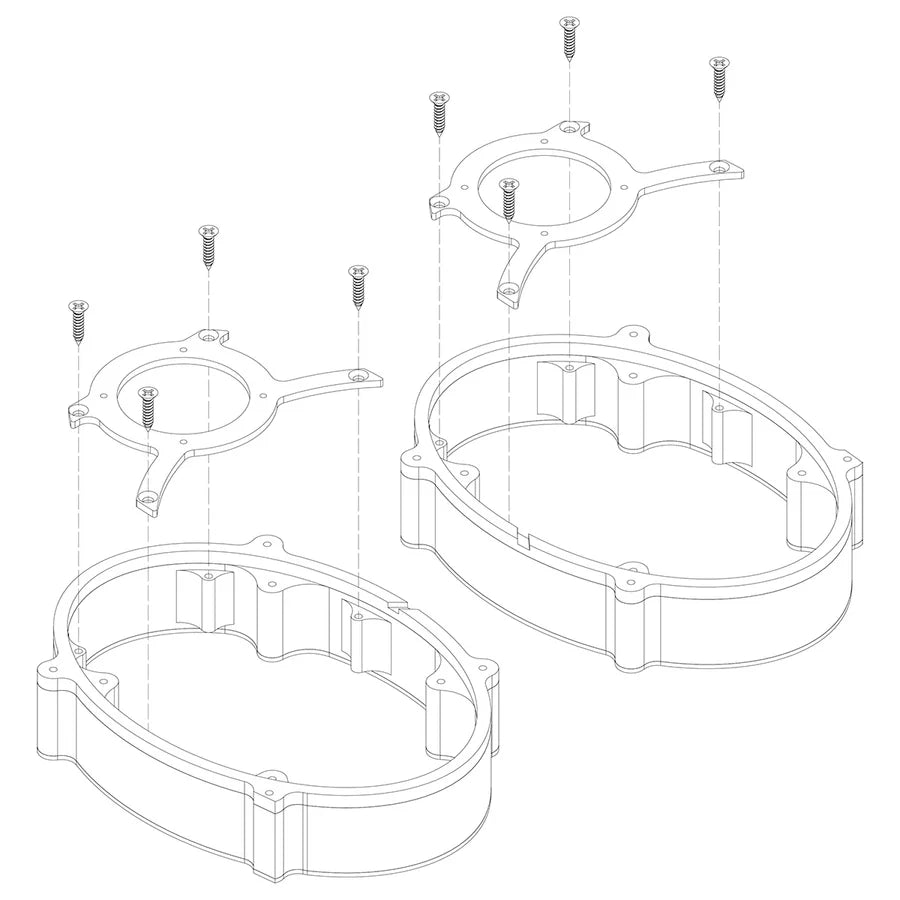

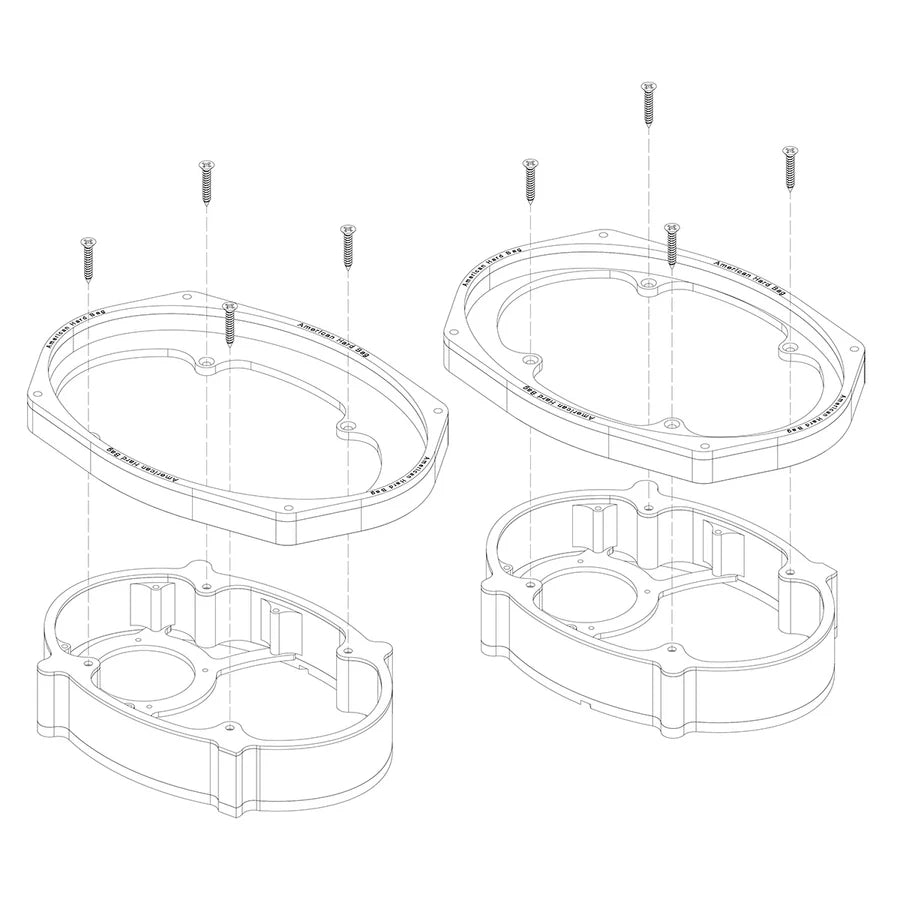

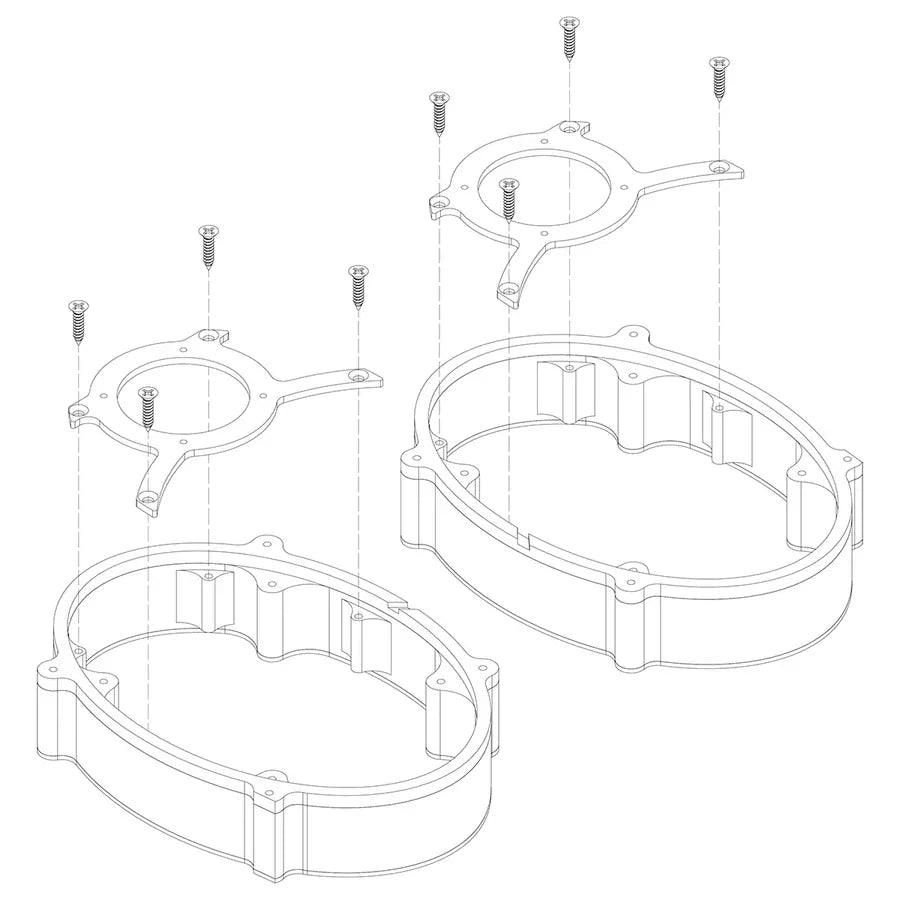

The set includes both 5x7 spacers, so it works on bikes with or without electric lid locks.
- Harley-Davidson Touring CVO, 2014–2023
- Includes both 5x7 spacers (with or without electric lid locks)
- Provision for a Velocity RZ75H compression horn tweeter
Key Product Details
| Brand | American Hard Bag |
| Product | 5x7" to 6x9" speaker adapter set |
| Fitment | Harley-Davidson Touring CVO, 2014 to 2023 |
| Lid Type | Factory or exact-replica CVO speaker lids |
| Included | Both 5x7" spacers, for bikes with or without electric lid locks |
| Tweeter Provision | Velocity RZ75H compression horn tweeter, mounted over the 6x9" mid-bass driver |
| Speaker Type | Separate 6x9" mid-bass drivers |
Always verify fitment, model year, wiring and compatibility with your bike before ordering.
Lid Preparation and Installation
Removing the plastic basket and grinding the lid flat can be done with an oscillating cutting tool or a die grinder with a Roloc disc, according to American Hard Bag.
Because the lid is modified, confirm your year, lid style and speaker choice before you start.
Speaker and Tweeter Compatibility
The set is intended for use with separate 6x9" mid-bass woofers. American Hard Bag notes it may not be compatible with 6x9" coaxial speakers.

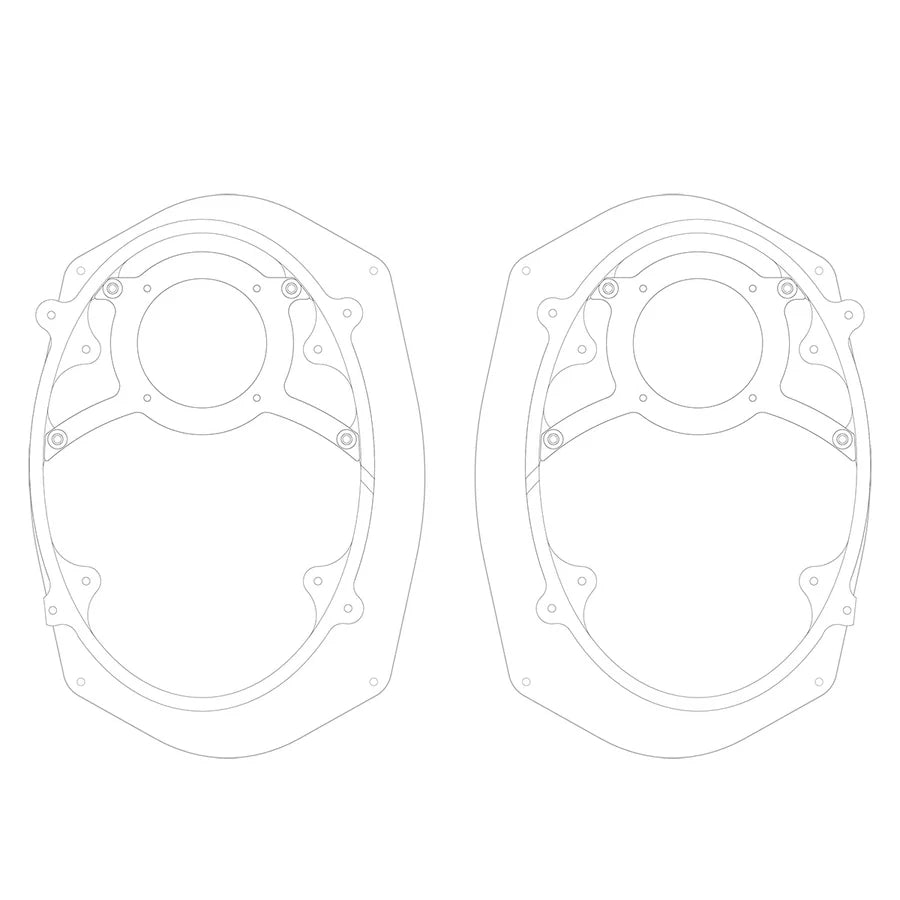

The tweeter provision supports the Velocity RZ75H compression horn tweeter mounted over the woofer.
Related Paths
5x7 to 6x9 Adapter FAQ
Which Harley models does this adapter set fit?
It is listed for Harley-Davidson Touring CVO models from 2014 to 2023, with factory or exact-replica CVO speaker lids.
Does the set work with electric lid locks?
Yes. It includes both 5x7" spacers, which accommodate bikes with or without electric lid locks.
Do I have to modify the speaker lid?
Yes. The integrated plastic basket on the underside of the lid must be removed and the surface ground flat so the adapter can mount.
Can I use 6x9 coaxial speakers with this set?
The set is intended for separate mid-bass woofers and may not be compatible with 6x9" coaxial speakers. Confirm with us before ordering.
Need Help Choosing?
Not sure your lids and speakers will work with the 5x7 to 6x9 adapter? We will confirm fitment before you order.
