4 Channel Full Range Amplifier
GENERAL SPECIFICATIONS
- Max Output Power 900 watts
- Rated RMS Power at 12.6 V at 2 Ohms 4x 200 Watts
- Rated RMS Power at 12.6 V at 4 Ohms 4x 120 Watts
- Bridged RMS Power at 12.6 V at 4 Ohms 2x 400 Watts
- Average Efficiency 88%
- Rated RMS Power at 14.4 V at 2 Ohms 4x 225 Watts
- Recommended Fuse 60 Ah
- 9" x 7.28" x 2.15"

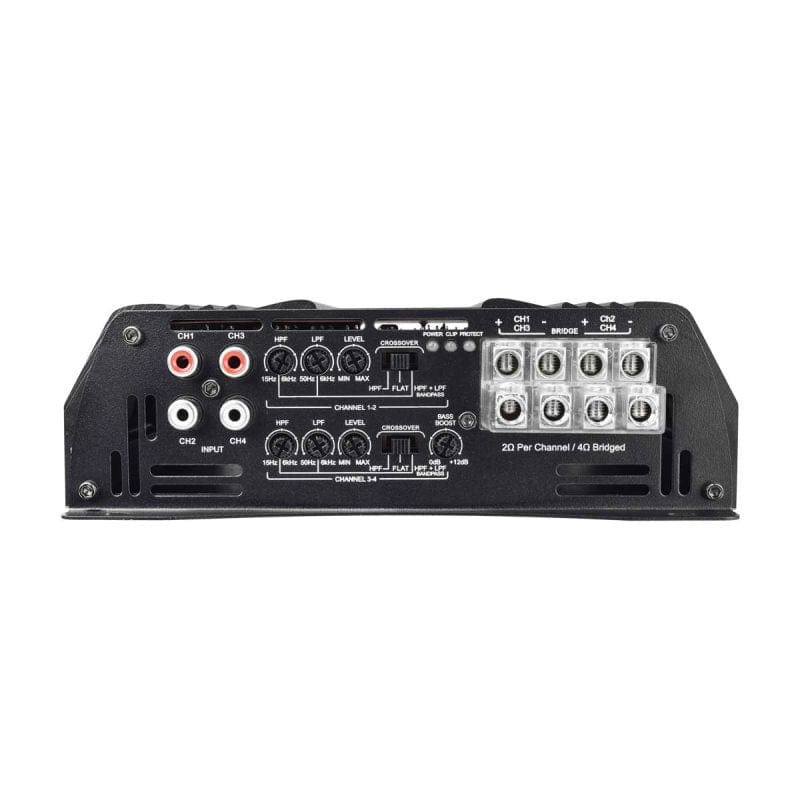

Channels 1, 2, 3 and 4 have the following built-In crossover filters
HPF ( High Pass Filter ) – Allows adjustment from 15Hz to 6000Hz at 12dB/Oct Slope
• FLAT – Full Range, amplifier filters will be turned off
• FLAT – Full Range, amplifier filters will be turned off
• BANDPASS HPF + LPF – Allows adjustment on HPF and on LPF together ( Low Pass Filter ) from 50Hz to 6000Hz
Channels 3 and 4 have an additional adjustment
• BASS BOOST – Provides a ” gain attenuation ” +12dB at center frequency of 45Hz
• BASS BOOST – Provides a ” gain attenuation ” +12dB at center frequency of 45Hz
